Bartels Kassetten-Schubfachregal
Breite max. 6.000 mm
Höhe min. 80 mm
Tiefe max. 1.200 mm
Gewicht max. 1.200 kg

Cassette Drawer Rack – with collapsible extension

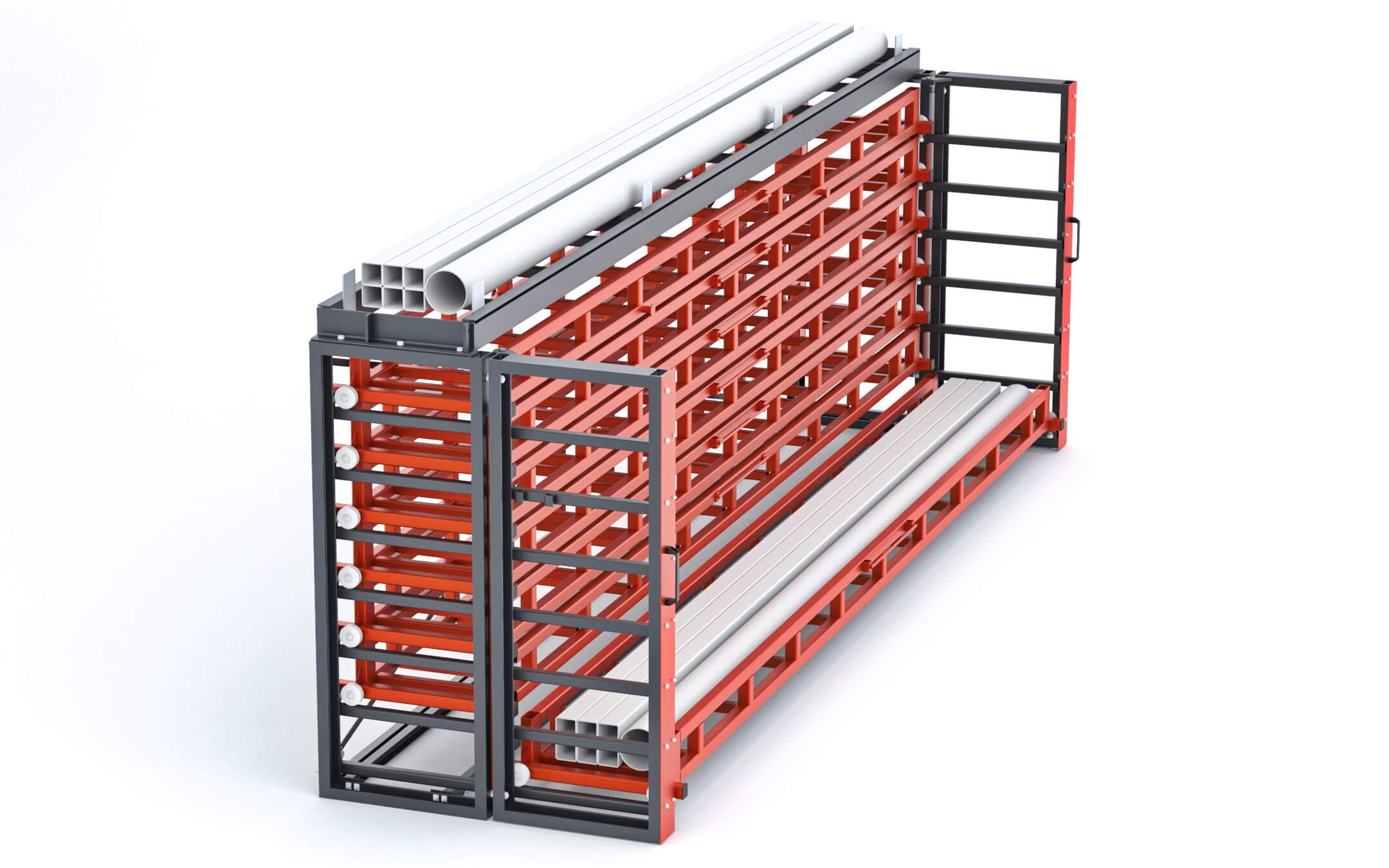

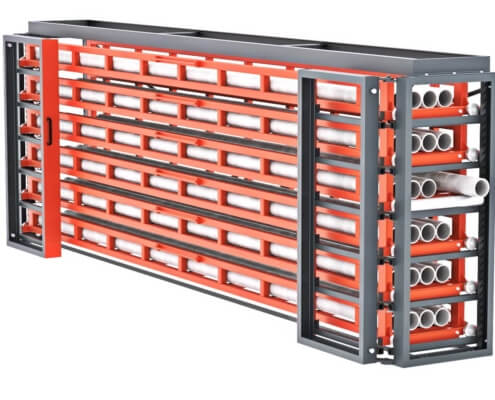

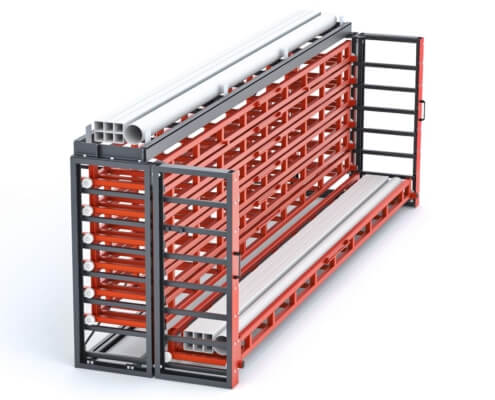

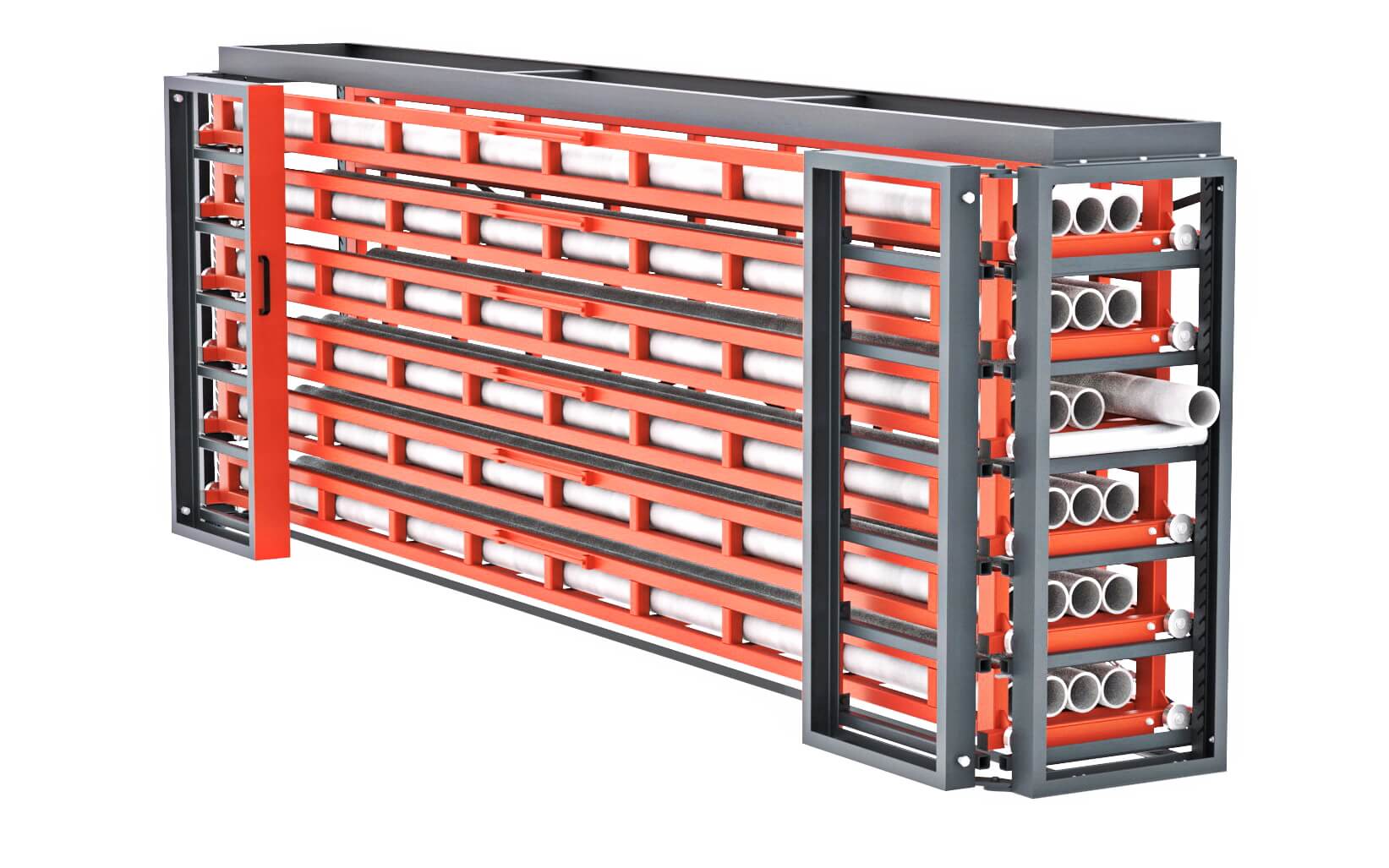

The Cassette Drawer Rack offers storage space for long steel profiles.

The space-saving storage of bars is a must under narrow production conditions. We offer you a solution for the storage of lengthy goods in which the Cassette Drawer Rack is loaded on front using a crane.

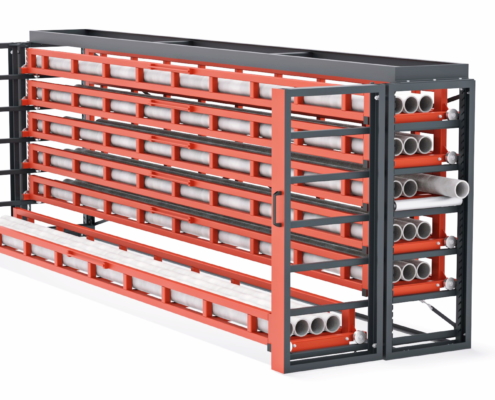

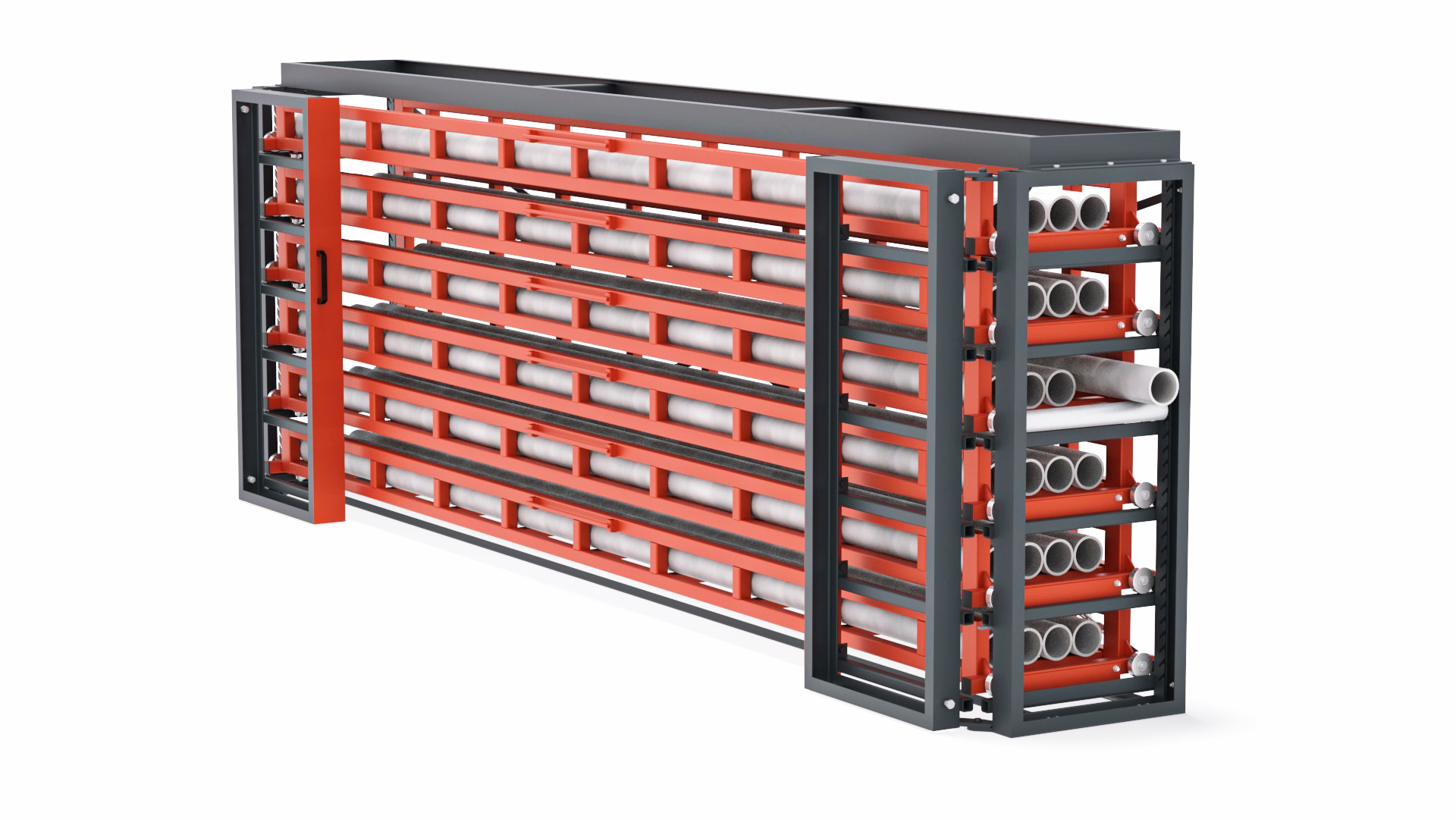

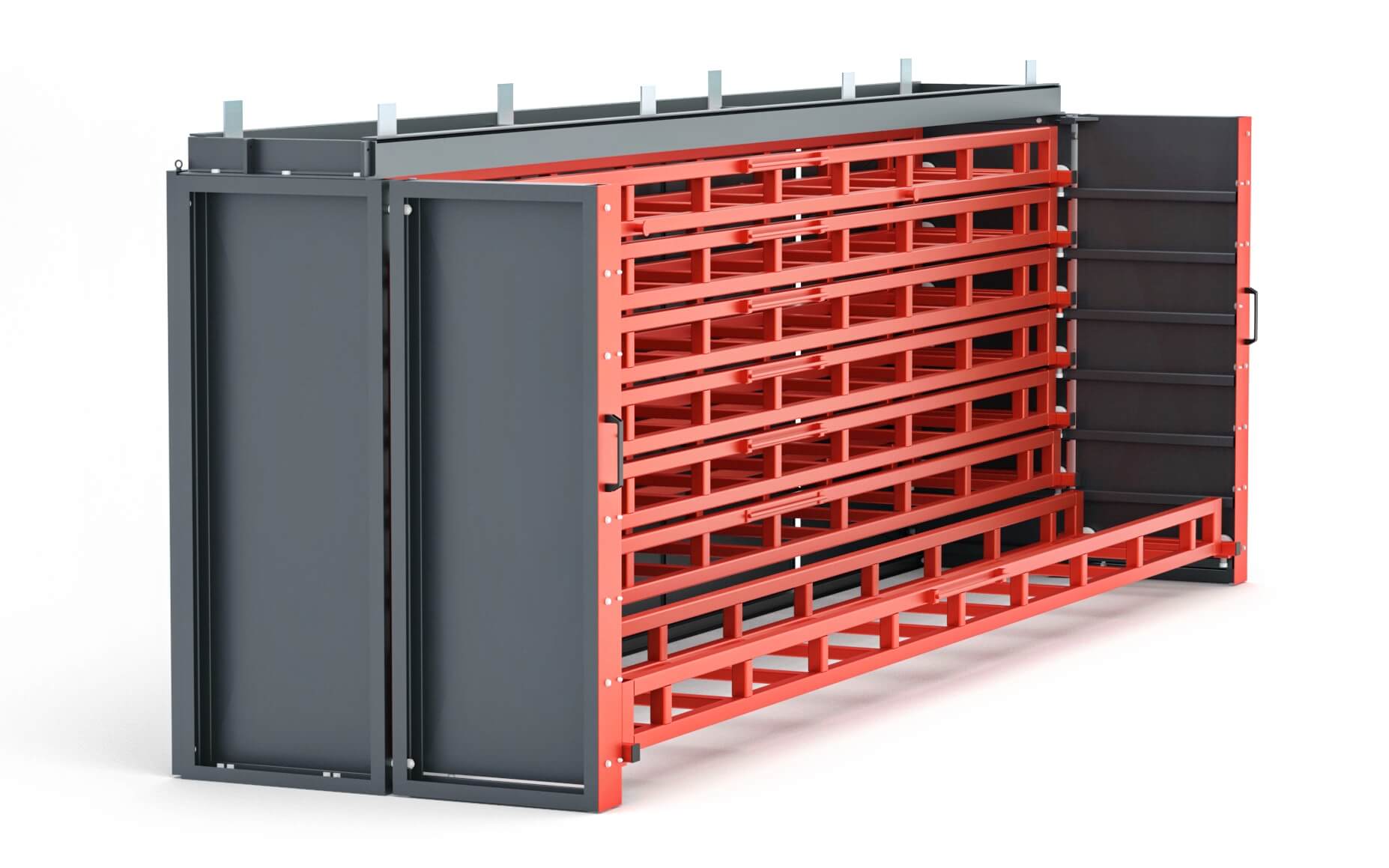

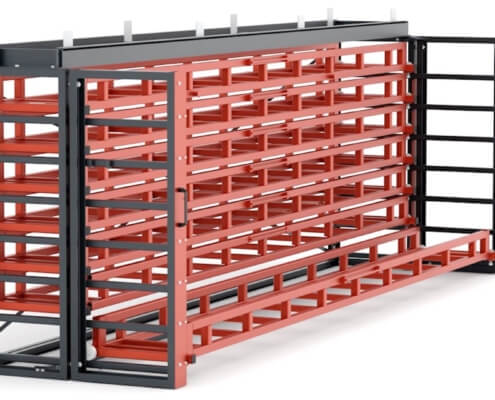

Removal of material is, however, also possible on the narrow face side. Due to its design, the rack for lengthy goods can be placed directly against the wall. The individual cassettes can be pulled out to the front 100% thanks to the swivel attachment. After use, the swivel attachment can be folded away and the narrow aisles can be cleared again.

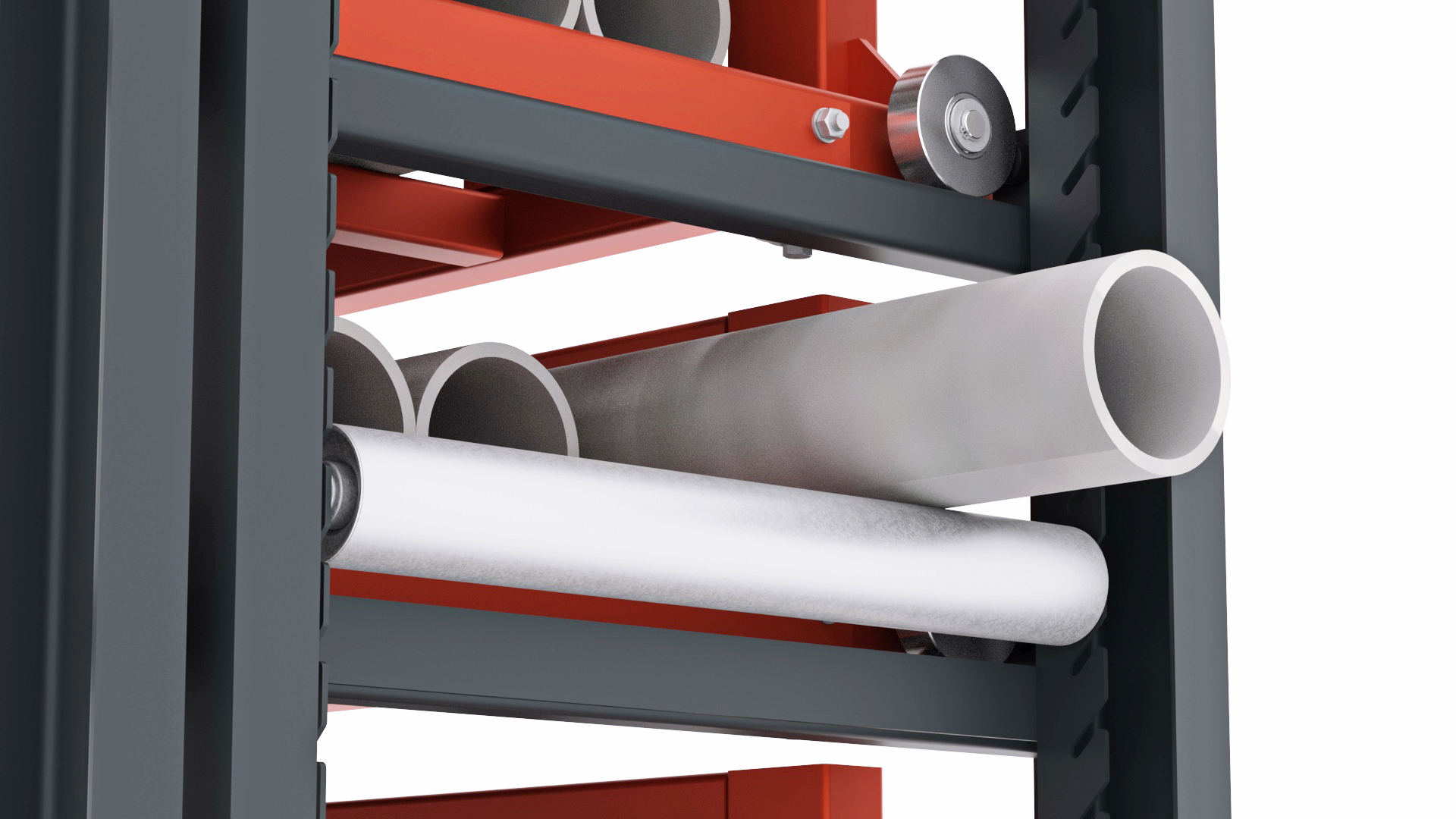

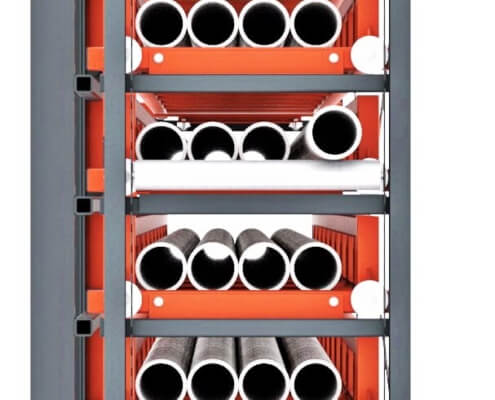

In order to ease the removal of material from the face sides even when the attachment of the cassette drawer rack is closed, the roll-off roller can be simply inserted and the steel bars can be pulled out with ease.
Cassette Drawer Rack
Convince yourself of our Cassette Drawer Rack – More pictures

Advantages

Advantages of the Cassette Drawer Rack

  • Can be extracted 100%, ideal for loading using a crane
  • Direct access – no restacking required (as for lengthy goods pallets)
  • For lengthy goods up to 6.000 mm and 2.000 kg per shelf
  • Space-saving through low construction height and pivoting projection
  • Well suited for offcuts
  • Clearly arranged also for different lengths

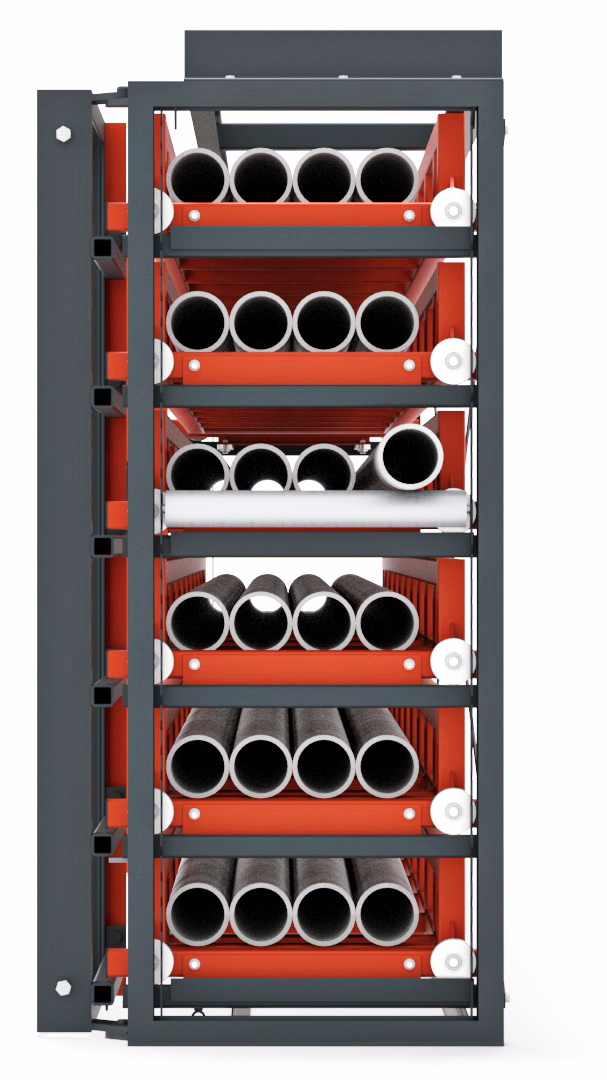

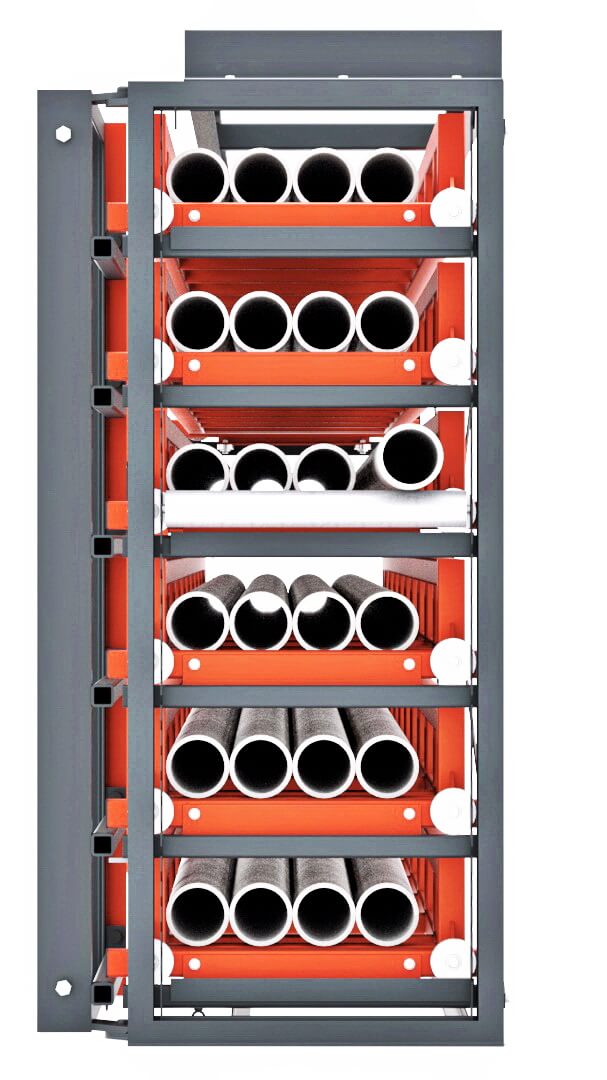

  • Removal of material possible from three sides (front and face sides)
  • Easy extension of the cassettes through ball-bearing mounted guide
Operation

Operation

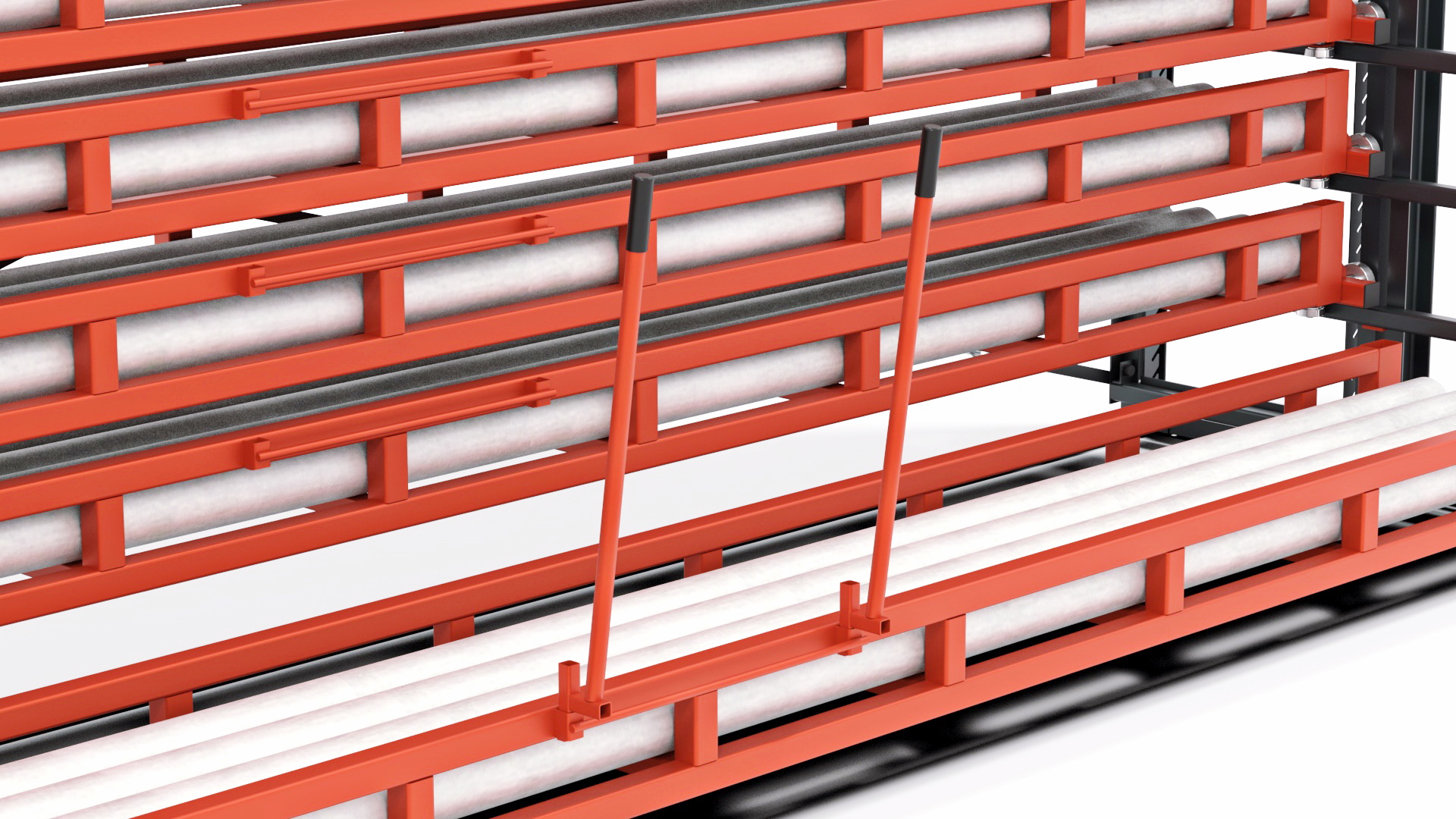

The ball-bearing mounted cassettes are extracted on the guide rails of the open doors. Manual storage or removal is carried out manually or by using a crane. As an option, also available with extracted on both sides.

Design

Design

  • Very stable, torsion-resistant steel construction.
  • Bolted support frame for retaining welded cassettes for lengthy goods. In order to ease the removal of material from the face side, the roll-off roller supplied can be simply inserted into the open construction.
  • Standard colour: Blue frame, RAL 5012; red cassette, RAL 2002.
  • Per request: Custom dimensions and paint coats available in all RAL colours – please inquire!

Custom-made Cassette Drawer Rack

If you need to store special materials or certain spatial requirements must be met, our consulting engineers will be happy to create individual concepts for you. Contact us!

To specify your request you may use our inquiry form:

Accessories for Cassette Drawer Rack

  • Attachable shelf dividers
  • Roof level
  • Extension on both sides
  • Various colours / custom paint coats in all RAL colours
  • Custom dimensions

Safety thanks to rack inspection

The Cassette Drawer Rack requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
