Bartels Roll-Aus-Regale
Breite max. 7.000 mm
Höh min. 100 mm
Tiefe max. 1.500 mm
Gewicht max. 2.600 kg per arm

Roll-Out Rack

The revolutionary storage system for lengthy goods

Optimise your warehouse with a Roll-Out Rack by Bartels. The high-quality cantilever arm racks are the ideal choice for the storage of your lengthy goods or other bulky material. Goods to be stored can be light plastic tubes, steel pipes or profiles and wooden boards. The racks can be flexibly adapted to different storage material heights and load requirements.

Roll-out Rack

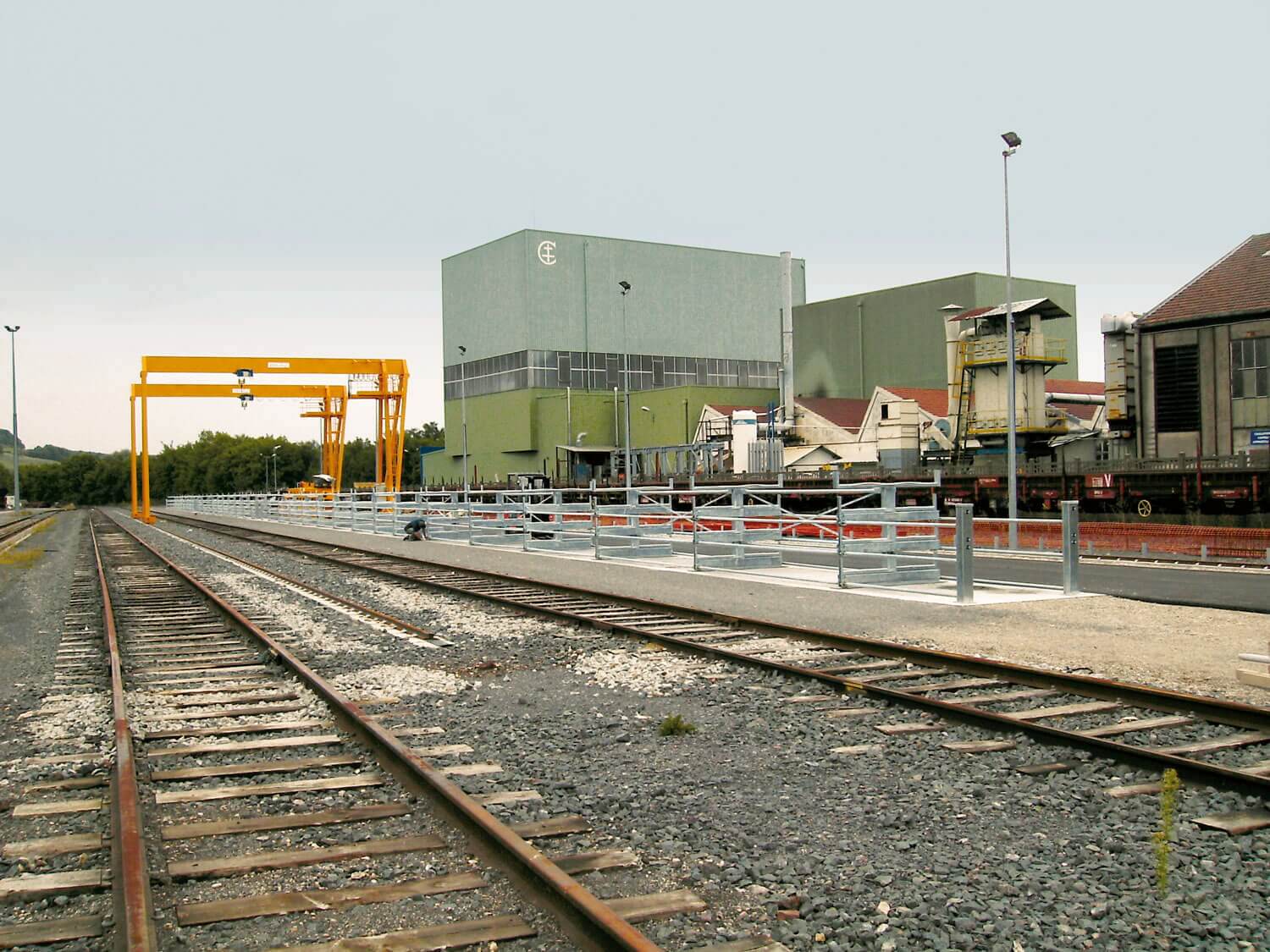

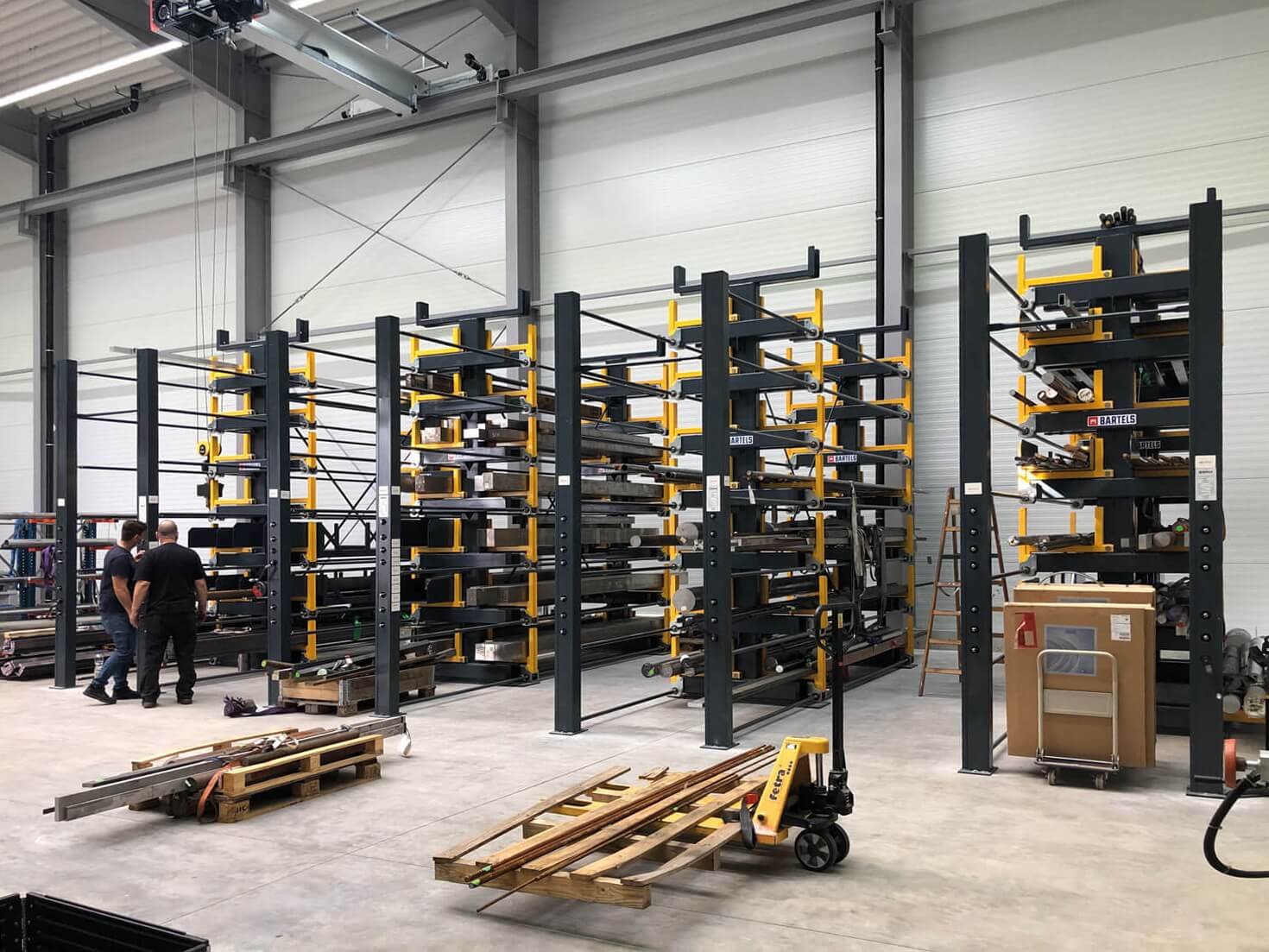

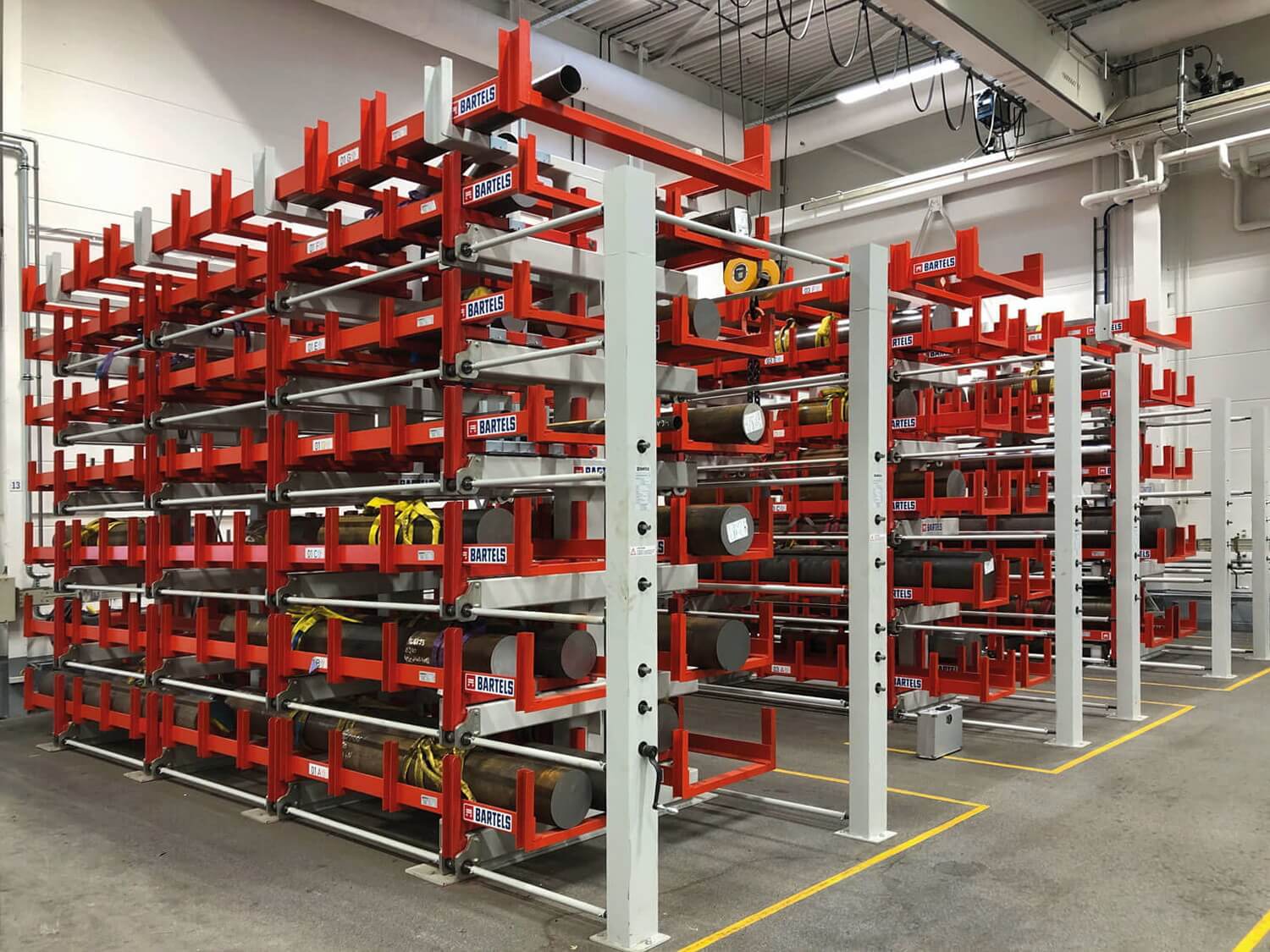

Convince yourself of our Roll-Out Rack – More pictures

Advantages

Advantages of the Roll-Out Rack

  • Space gain
    Storage is done directly with the hall crane. Wider aisles for forklift trucks, stacking cranes, etc. are therefore unnecessary
  • Excess lengths
    Storage of lengthy goods with a length of 25 m and above possible
  • Safety
    Entire roll-out rack can be accessed and loaded or unloaded freely, no “pushing in” or “pulling out” of the shelves necessary
  • Time-saving
    Without restacking using the hall crane, the racks can be loaded, or transport vehicles can be loaded or unloaded
  • Quick
    As it can be accessed quickly at any time
  • Easy handling
    The rack can usually be operated by one person
  • Space-saving
    Wide aisles for lift trucks or forklifts are also unnecessary on the side ends, as lengthy goods can easily be handled by means of the warehouse crane.
Operation

Operation

A crank turning a spindle rolls out each arm of the roll-out rack. The roll-out movement is controlled and limited by the depth of the shelf arm. The ratio of spindle shaft to crank rotation is 2.36: 1. With a full load of 5.000 kg, an initial crank force of approx. 15 kg may be required. After that, only little force is necessary.

Each rack unit consists of at least two base structures, longitudinal binders and a control mast for for each rack side. Depending on the type of lengthy goods, several base structures can be implemented for each rack at a customer-specified spacing. Storing the goods on very high shelves is possible with the help of e. g. platform ladders or lifts.

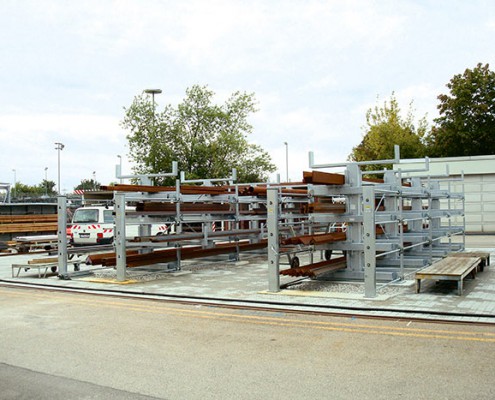

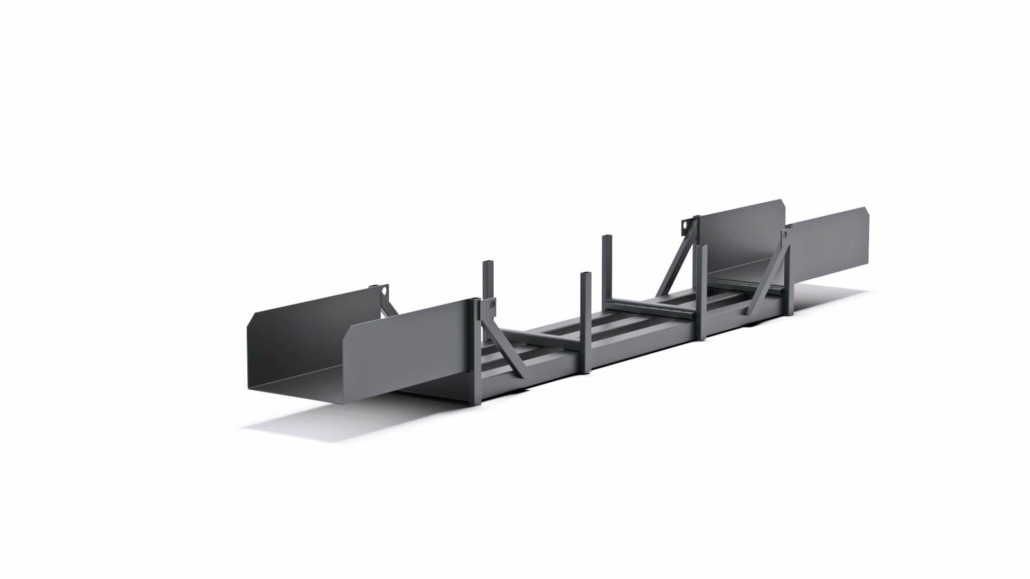

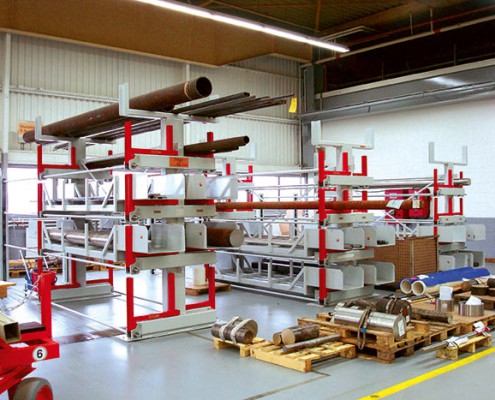

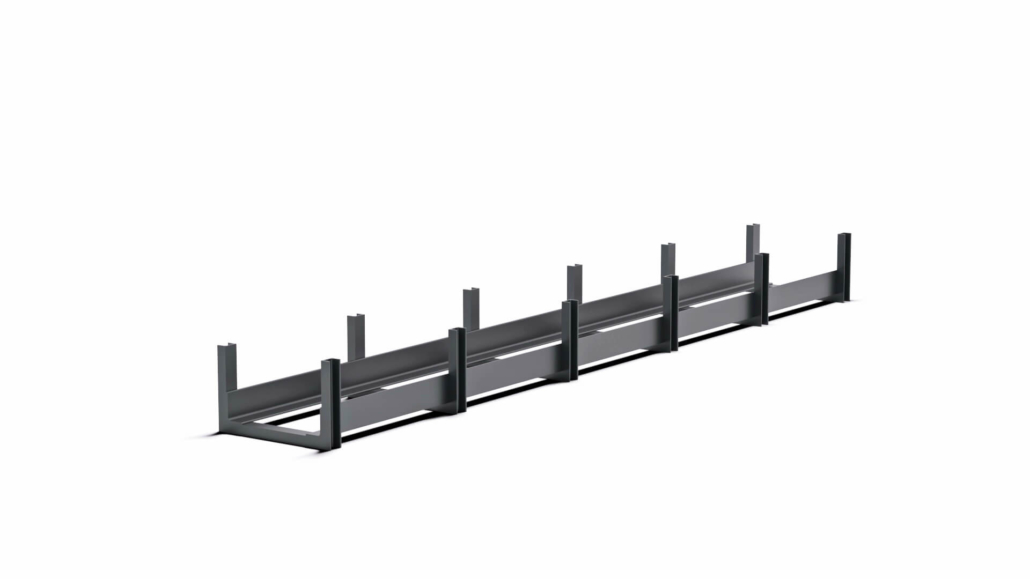

Residual lengths can be stacked with supporting pallets, or the shelf arm spacing is set as required.

Design

Design

  • Special rotary and rigid construction.
  • Moving parts are supported by ball bearings.
  • The individual structures (two control masts and two rack structures in the standard version) are completely welded and assembled units.
  • The cross-toothed driveshaft has a non-slip surface providing a good grip in order to ensure controlled rotary and roll-off movements of the pushing arm even under load.
  • Standard colour: Structure blue RAL 5012, roll-out arms red RAL 2002.
  • Per request: Custom dimensions and paint coats available in all RAL colours – please inquire!

Custom-made Roll-Out Rack

If you need to store special materials or certain spatial requirements must be met, our consulting engineers will be happy to create individual concepts for you. Contact us!

To specify your request you may use our inquiry form:

Accessories for Roll-Out Rack

  • Trays and boxes for leftover pieces

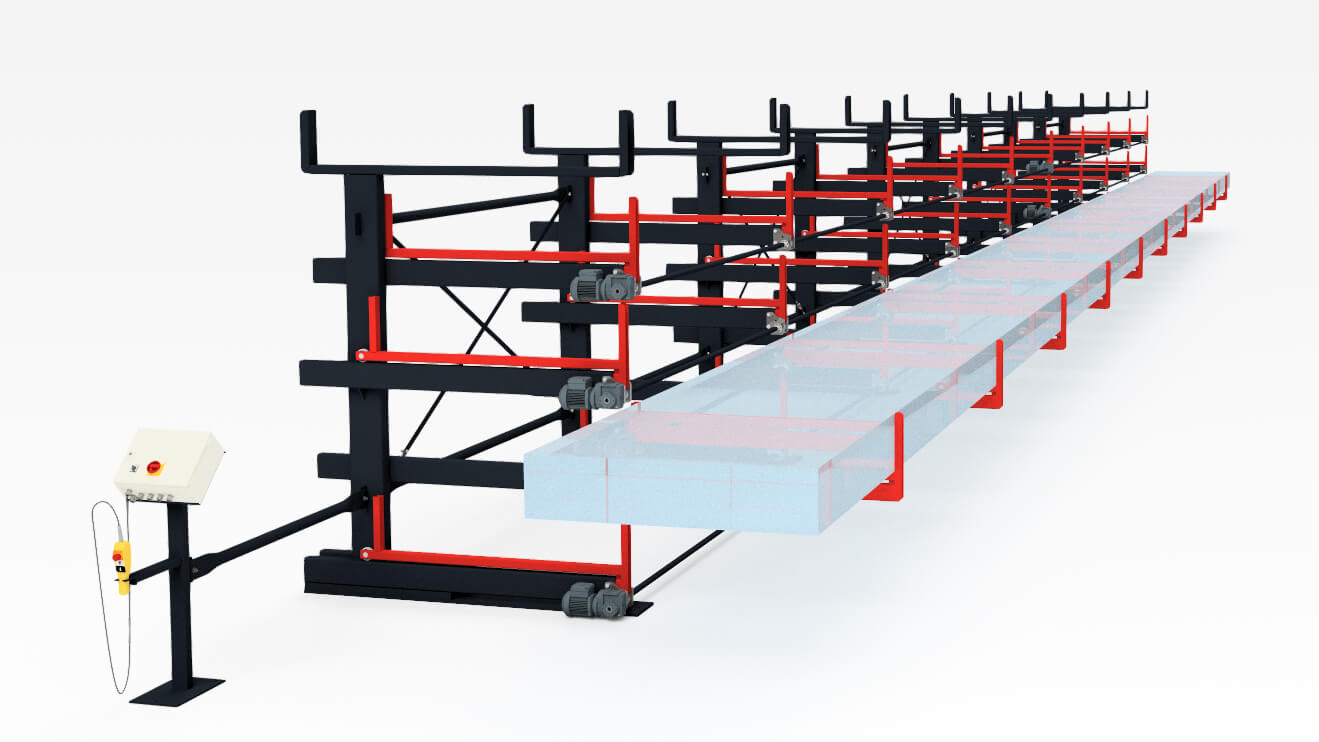

  • Electrically driven roll-out shelves
  • Various colours / custom paint coats in all RAL colours
  • Custom dimensions

Safety thanks to rack inspection

The Roll-Out Rack requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
