Pianoplan

Load capacity 600 kg

Stair Climber Pianoplan
Convince yourself of our Stair Climber Pianoplan – More Pictures

Advantages

Advantages of Pianoplan

  • The ideal stair Stair Climber for unwieldy loads that are difficult to transport.
  • Safe. Regardless of the weight or shape of the load, an electromagnetic brake protects the operator automatically and continuously.
  • Easy and safe to maneuver thanks to the compact design and built-in lift driving system. The device can easily maneuver between flights of stairs in confined spaces. (Intermediate landings must be at least 850 mm wide.)
  • Comes with 2 fastening belts and 1 battery charger.

Your BARTELS-Service for the Pianoplan

  • Individual, experienced, competent customer service
  • Some of the models we always carry in stock
  • Large stock of spare parts available
  • For a small fee, our experts are happy to demonstrate the device for you.
Design

Design

  • Battery capacity: 50 floors
  • Battery charger: 230 V / 50 Hz / 15 A
  • Color: blue RAL 5017

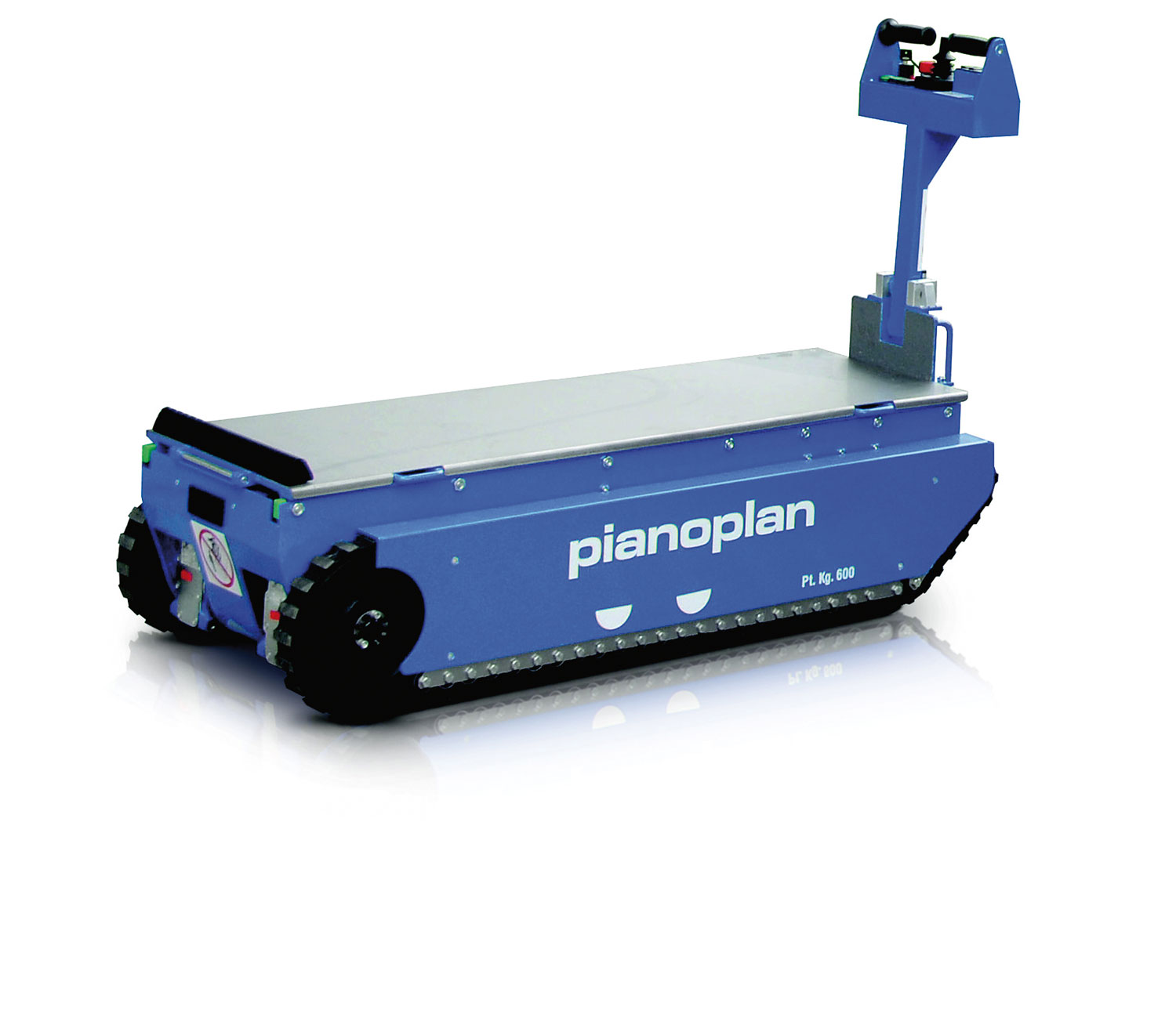

Standard Type
With horizontal load-bearing platform is movable in the front to allow the operator to shift the load center.

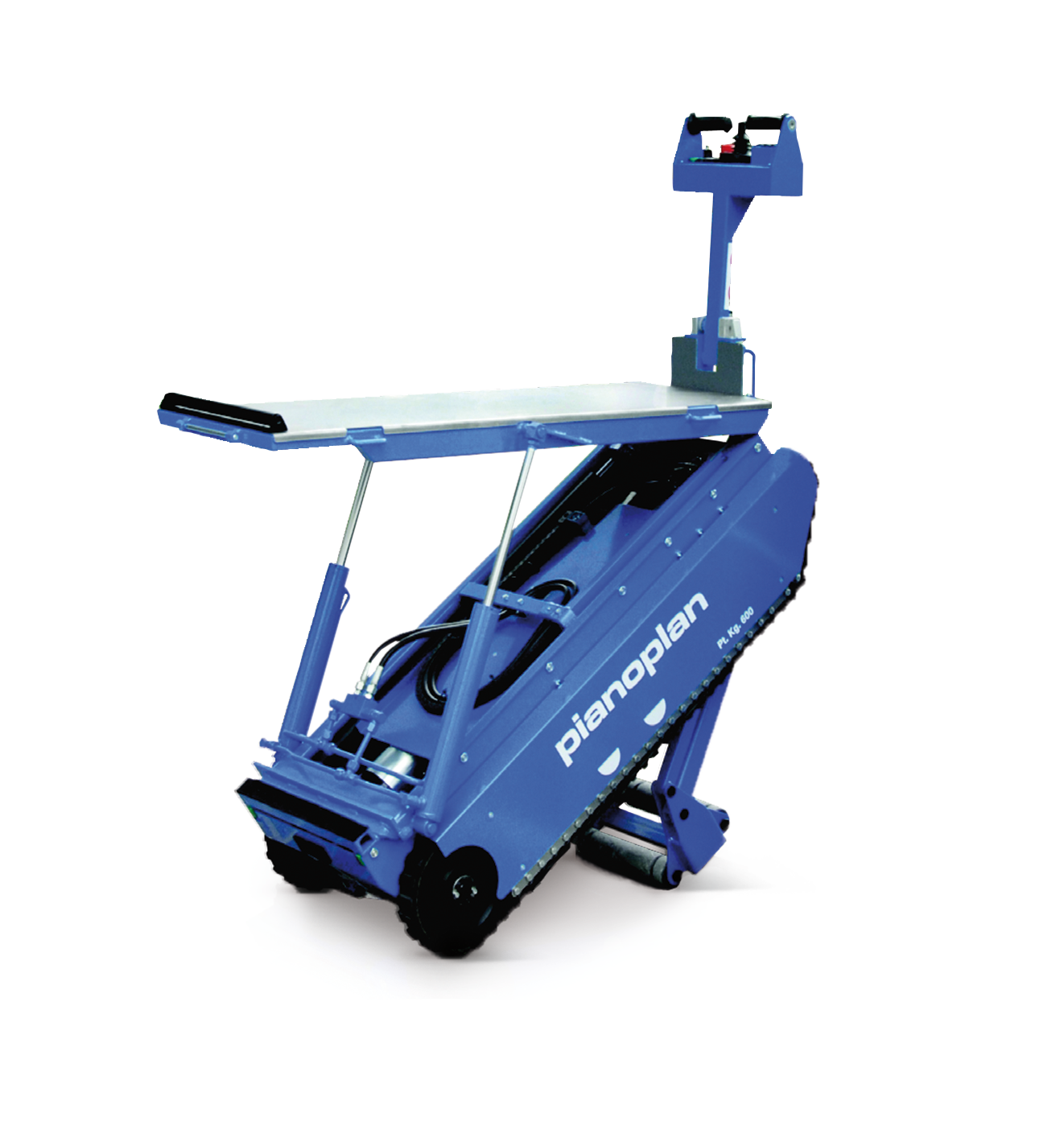

Horizontal Type
Similar to the standard type, the load-bearing platform is additionally horizontally liftable however (horizontal load orientation during transport).

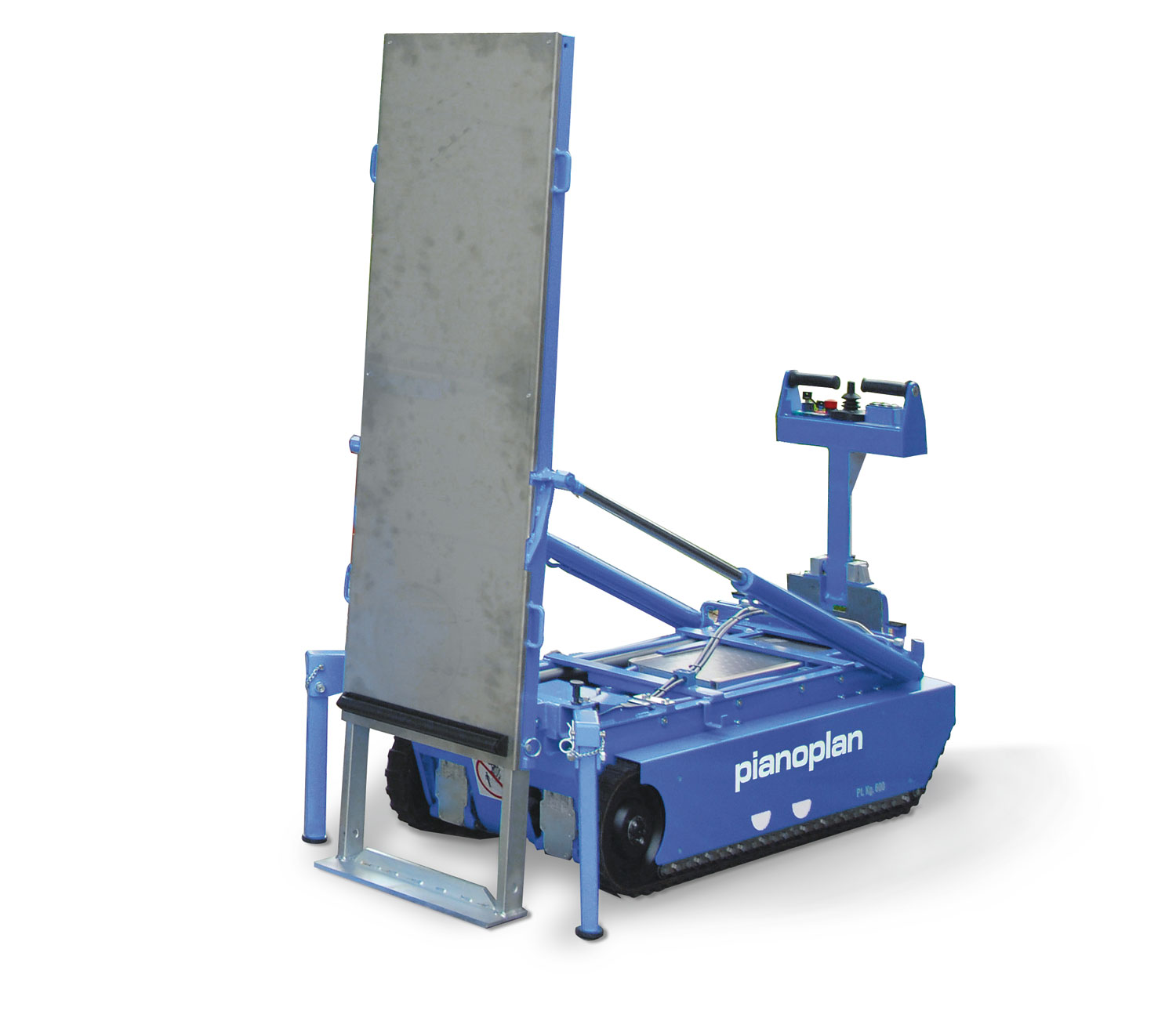

Vertical Type
Similar to the type standard, but the load-bearing platform can additionally swiveled vertically by 90° (direct loading from the ground possible) and has vertically retractable supports.

Optional

Our consultants will gladly assist you. Please Please contact us!

Technical specifications

StandardHorizontalVertical
Load capacity600 kg600 kg600 kg
Measurements L x W1280 x 540 mm1280 x 540 mm1280–1680 x 540 mm
Platform height325–700 mm370–700 mm405–700 mm
Platform W x D 1205 x 430 mm1205 x 430 mm1205–1605 x 430 mm
Speed12,5 m/min 12,5 m/min 12,5 m/min
Motor2 x 700 W2 x 700 W2 x 700 W
Battery 2 x 12 V / 65 Ah2 x 12 V / 65 Ah2 x 12 V / 65 Ah
Machine weight 300 kg340 kg345 kg
