Bartels Schubfachregale für Bleche
Breite max. 6.000 mm
Höh min. 40 mm
Tiefe max. 2.500 mm
Gewicht max. 5.000 kg

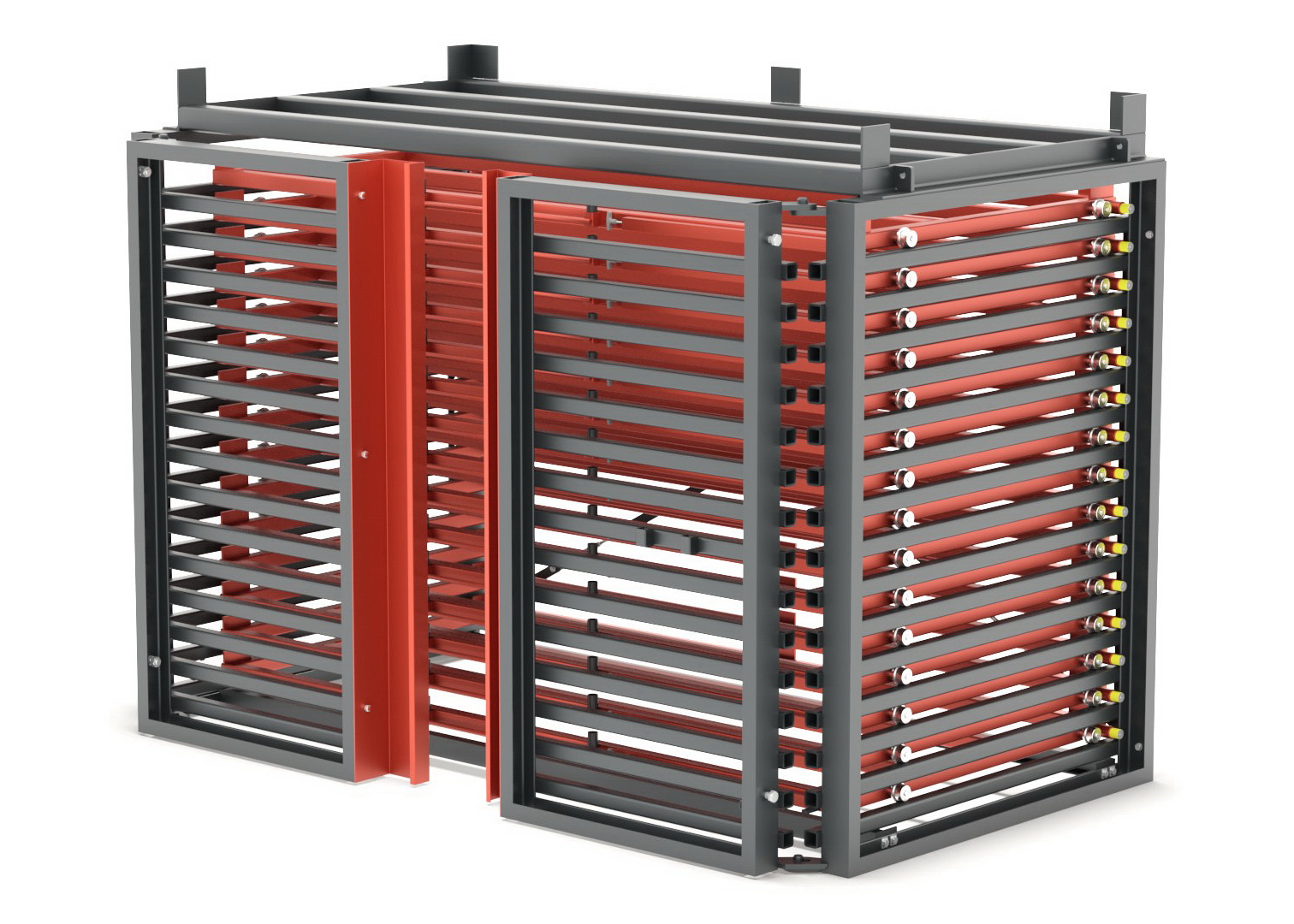

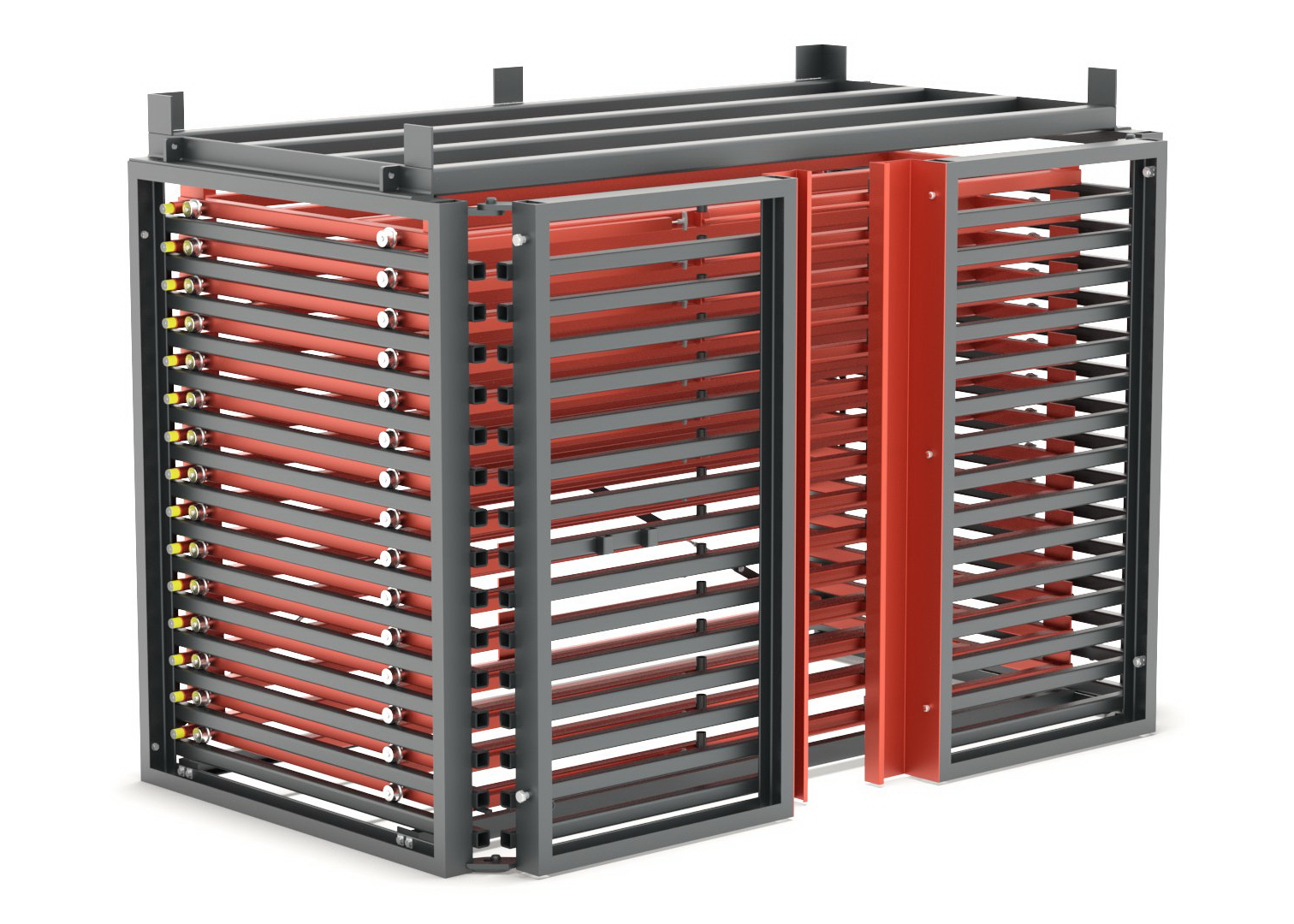

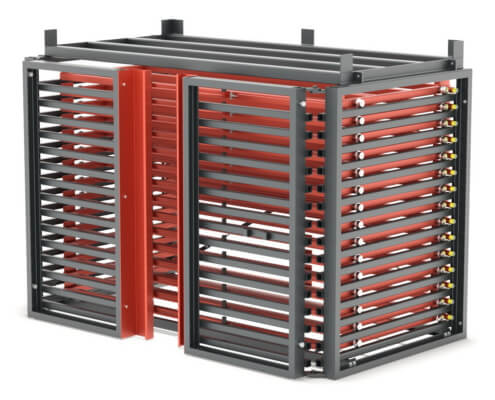

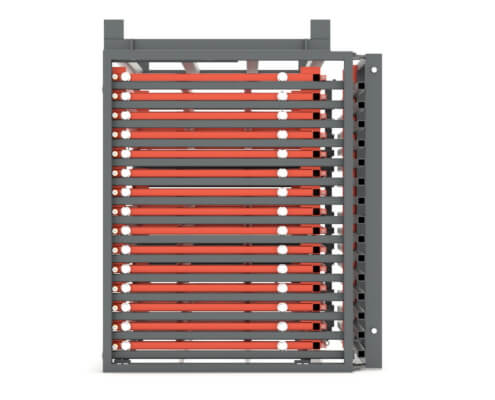

Drawer Rack for sheets

The drawer system for storage of sheet and plate material, tools and other products captivated by its stable, welded steel construction.

The drawers can be safely and trouble-free manually extracted 100%, because they run on maintenance-free ball-bearing rollers. As standard, the drawers have an open floor, however, on request can be constructed with wooden planks or steel plates. The rack can be provided with storage space on the roof. The drawer rack for sheets has a space-saving folding projection. For payloads of more than 2.000 kg for each shelf, we recommend our mechanical roll-out aid or the electric drive.

Drawer Rack for sheets

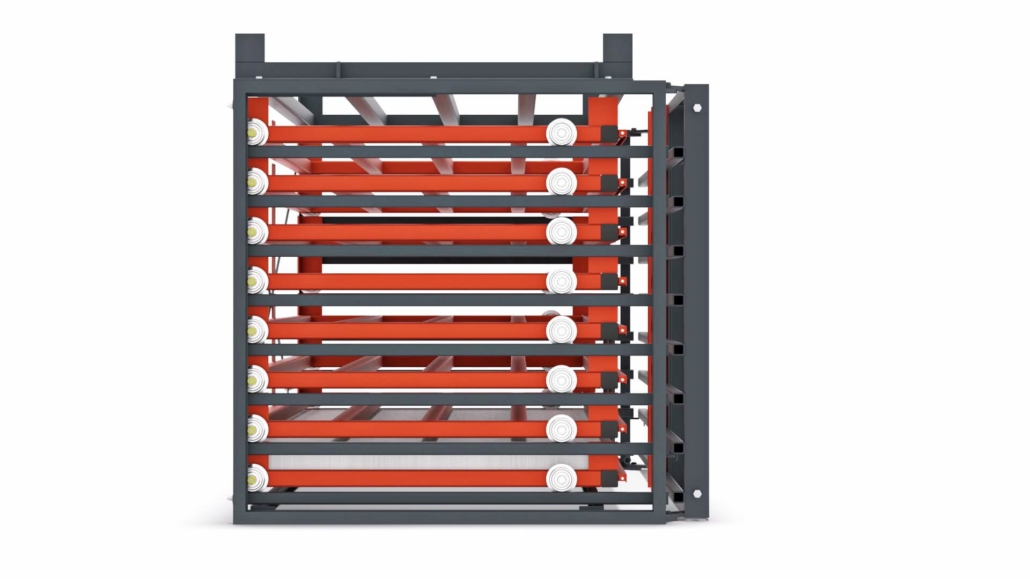

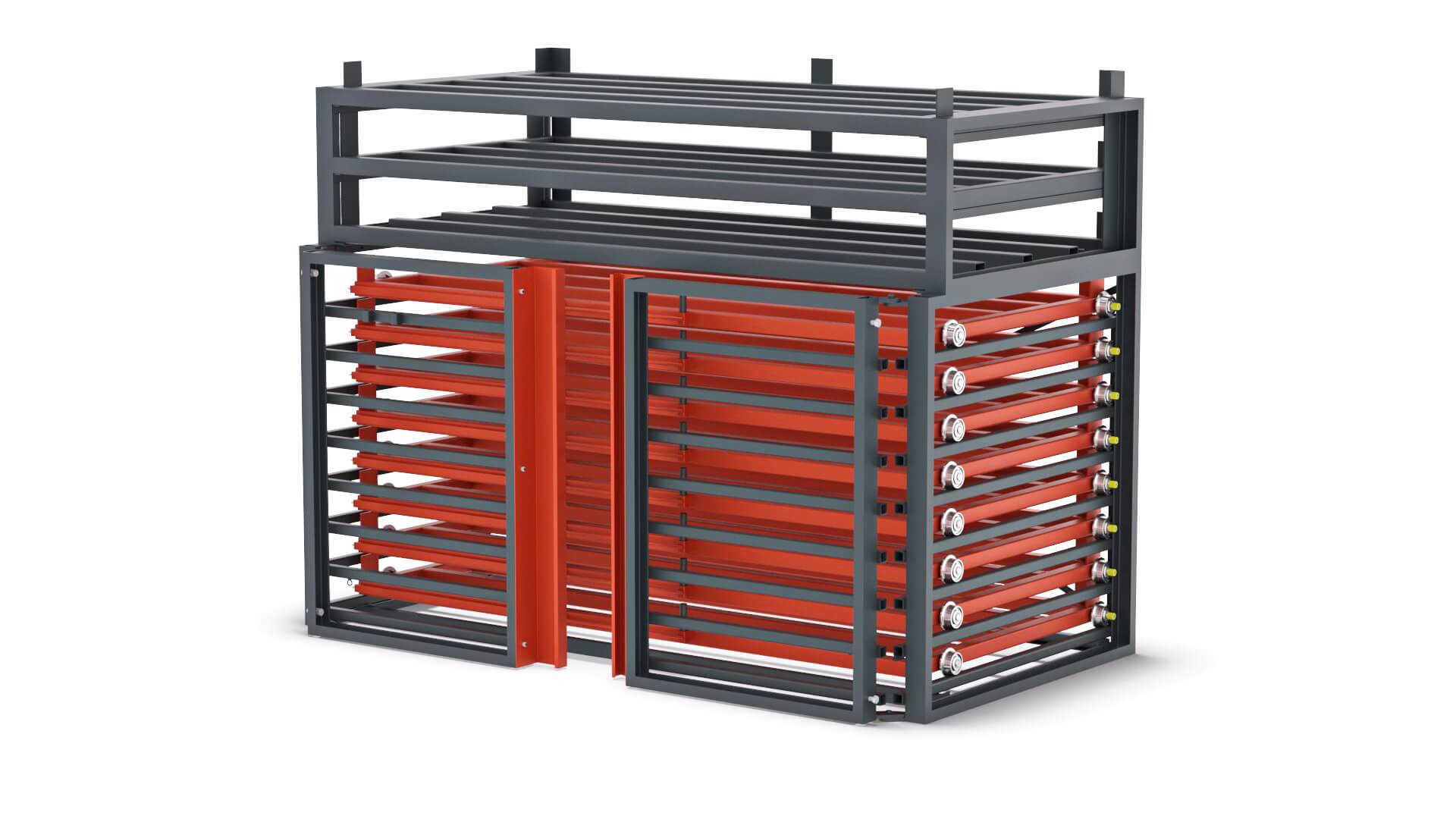

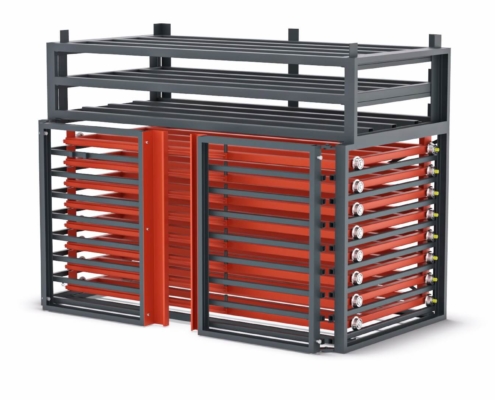

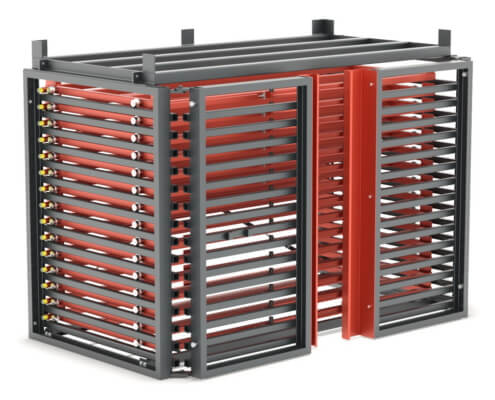

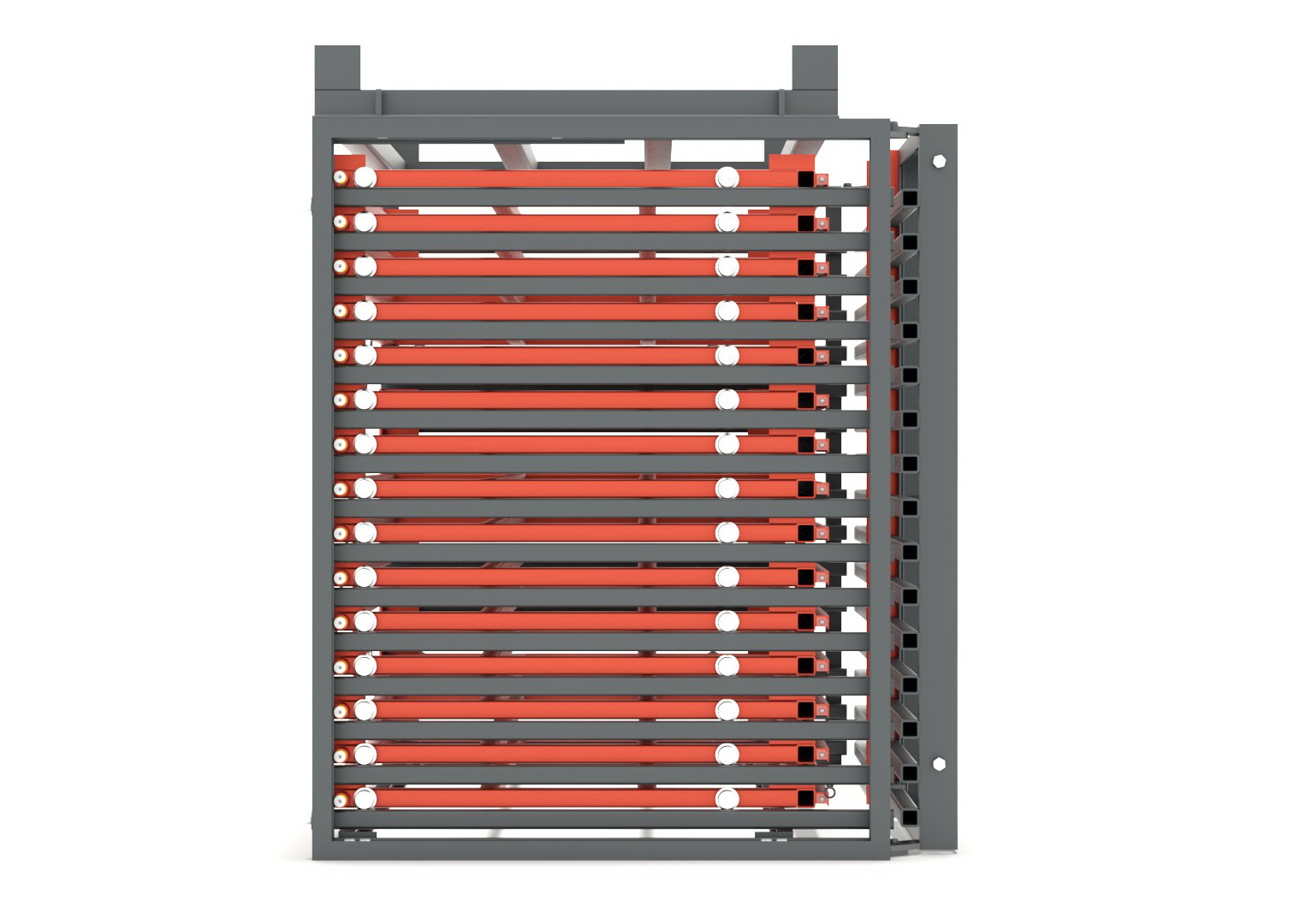

Convince yourself of our Drawer Rack for sheets – More pictures

Advantages

Advantages of the Drawer Rack for sheets

  • Custom-made
    We produce according to your wishes
  • 100% access
    You can extract the full length of the material from the rack
  • High load capacity
    We produce your drawer rack with a load capacity of up to 5,000 kg per shelf
  • Protective handling
    Even for sensitive sheets
  • Safe use of the drawers
    Rod locking of each drawer when extended
  • Convenient handling
    Thanks to the double-sided roller mechanism mounted in ball bearings
Operation

Operation

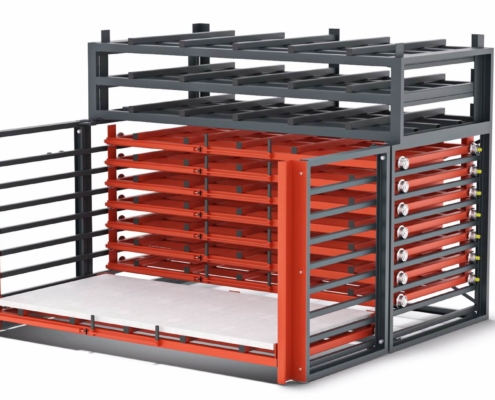

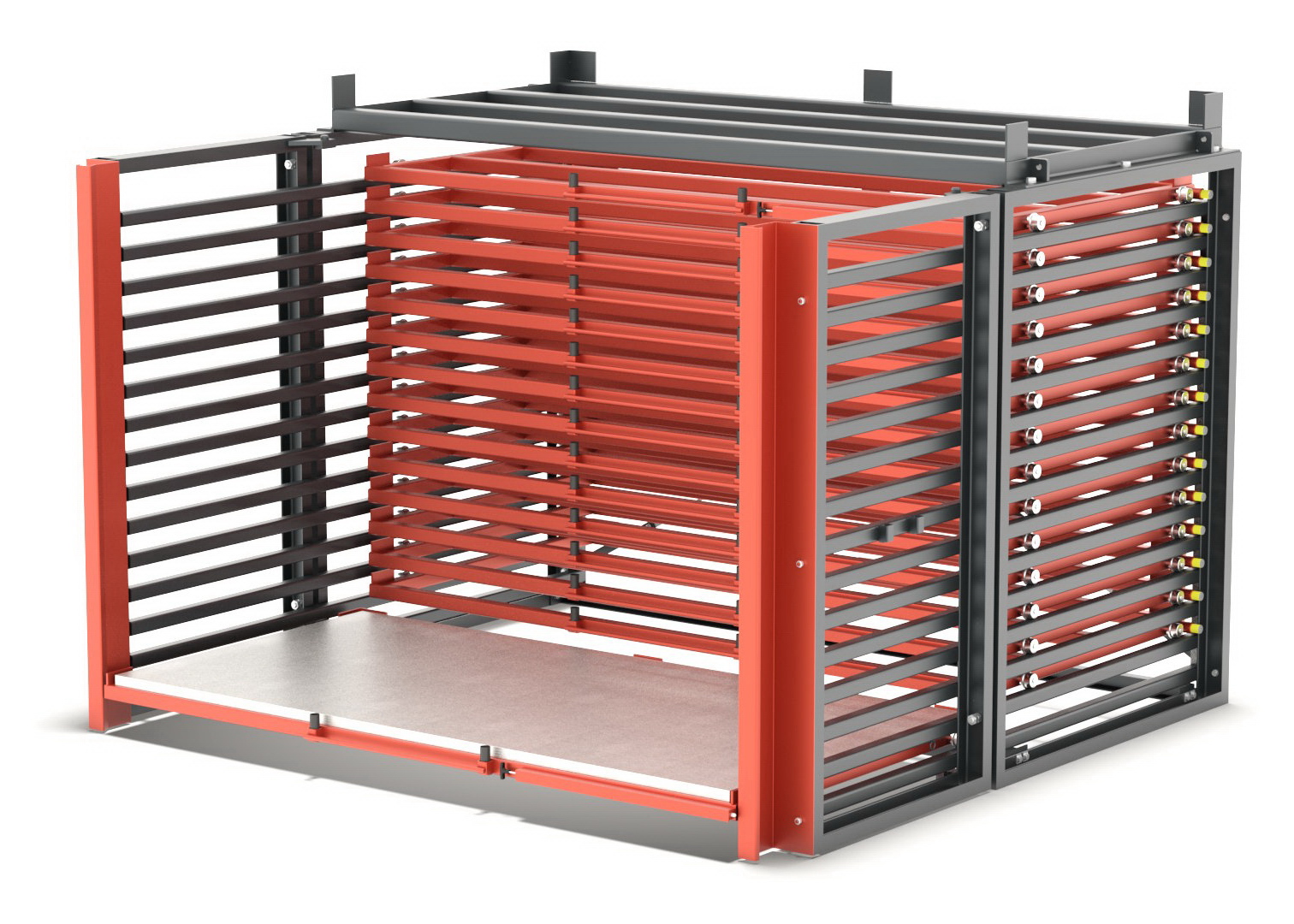

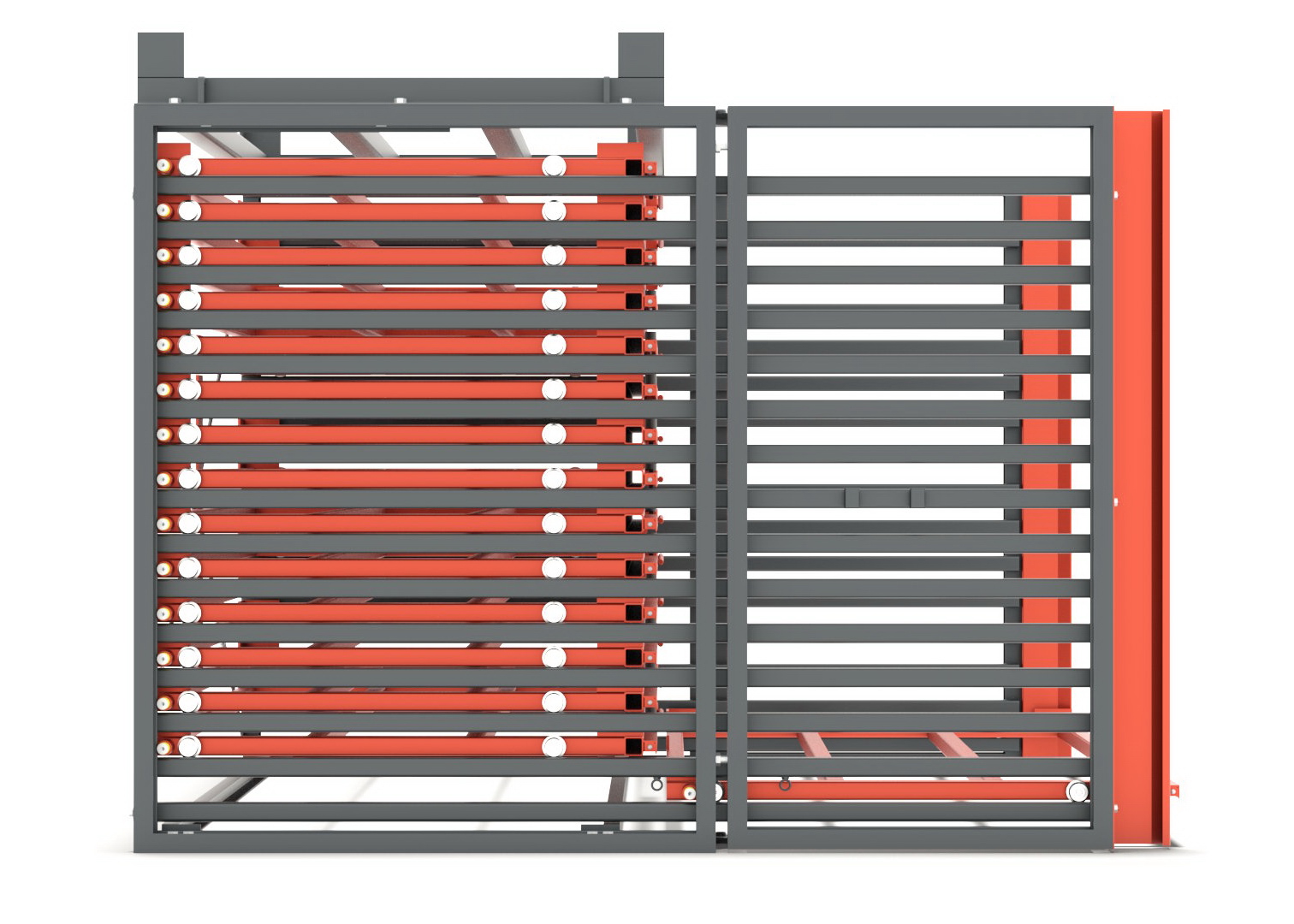

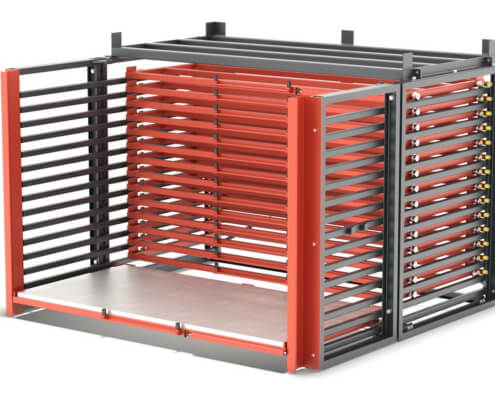

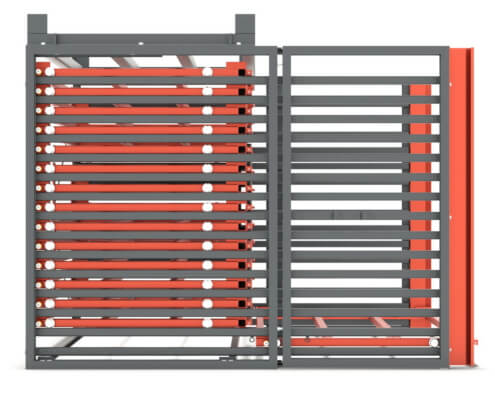

The ball-bearing mounted drawers are extracted on the guide rails of the open doors. Loading and unloading is done via crane, or forklift truck for the version with low support. As an option, also available with extracted on both sides.

Design

Design

  • Robust steel construction
  • Drawers on flange rollers in ball bearings – 100% extractable
  • Each drawer is protected by a rod locking system that secures the drawer when it is extracted
  • It is operated using the handle of the drawer

Custom-made Drawer Rack for sheets

Formats, number of shelves and accessories can all be adapted to your special requirements.
Drawers with sheet support and reinforced edges, electric drive and protective grille – we are happy to consult you and plan and produce your individual drawer rack. Please Contact us!

To specify your request you may use our inquiry form:

Accessories for Drawer Rack for sheets

  • Shelf labelling
  • Low supports for loading with forklift truck
  • Mechanical roll-out aid for easy movement of the drawers
  • Push through on both sides
  • Various colours / custom paint coats acc. to RAL

Safety thanks to rack inspection

The Drawer Rack for sheets requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
