Compact tipping skip

Ideal as container for machines

Because of their low height, the compact tipping skip by Bartels is ideal as containers for the production line. The compact tipping skip is ideal as collection containers for various bulk materials.

icon-fotogalerie
Convince yourself of our compact skips – go to photo gallery

Advantages

Advantages of the compact skip

  • Compact design with low heights
  • Safe operation through optimal centre of gravity close to the forklift travel indicator
  • Quick and easy tipping using cable pull
  • Emptying via cable pull from forklift seat
  • Safe operation
  • Easy locking
Operation

Operation

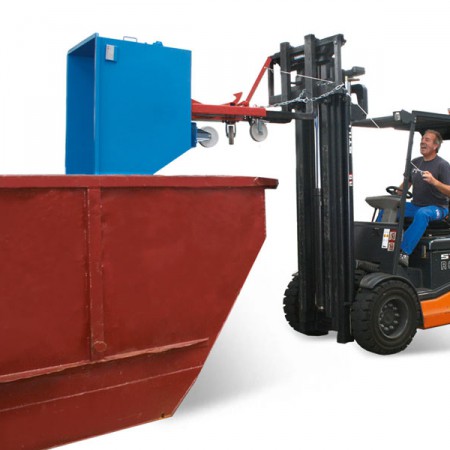

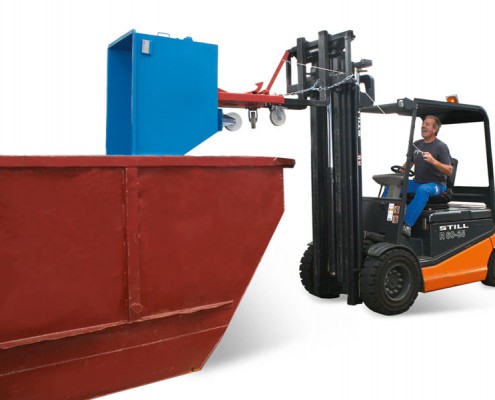

After unlocking the container using a cable pull from the forklift seat, it automatically tips so that reusable materials and chips fall down on their own due to their weight. By lowering the lifting frame, the tipping carriage is automatically brought back into the loading position.

Design

Design

  • Robust steel construction
  • Sheet steel carriage
  • Locking mechanism
  • Strop brake with spring scissors between container base and support frame (stops carriage after approx 90° rotation)
  • Locking device on carriage with chains as safety element against slipping
  • Standard colour: blue coating, RAL 5012; red base frame, RAL 2002

Individual, custom-made compact skips

If you need to transport special materials or certain spatial requirements must be met, we can respond to your special wishes in a flexible manner. Our sales representatives are also available for on-site consultation. Our consulting engineer will create individual concepts for you. Contact us!

Options for compact skips

  • Absolutely liquid-tight
  • Lid
  • Equipped with drain valve and removable, screw-in screen base for the mandatory separation of chips and coolant
  • Various colours / custom paint coats in all RAL colours

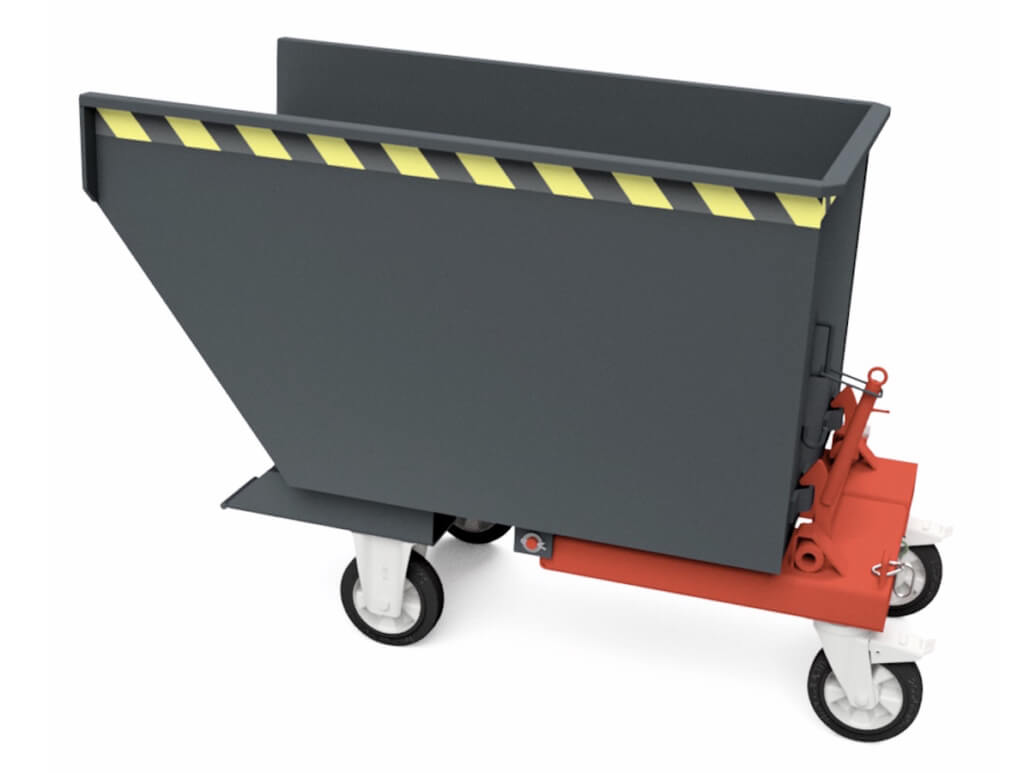

  • Wheel set for easy movement even without forklift truck
  • Forklift protected thanks to hydraulic tipping brake for cushioned emptying
  • Cable pull for comfortable and quick tipping from forklift truck
  • Available as stainless-steel version
