Bartels Tafelregal Vertikal
Breite max. 4.000 mm
Höhe min. 40 mm
Tiefe max. 2.000 mm
Gewicht max. 1.000 kg

Flat Pallet Rack Vertical, extractable

The Flat Pallet Rack Vertical for vertical storage is suitable for all standard sheet formats.

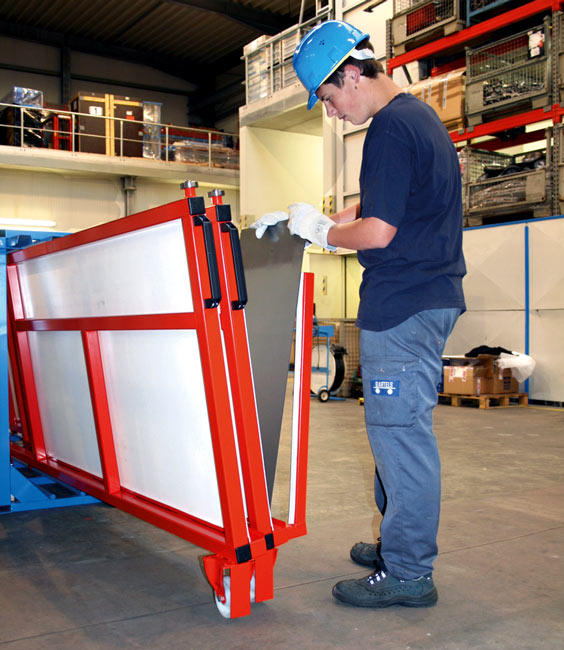

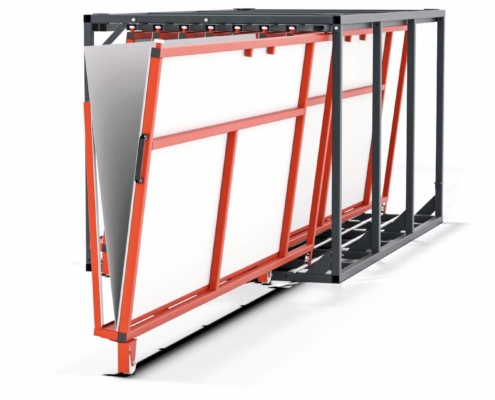

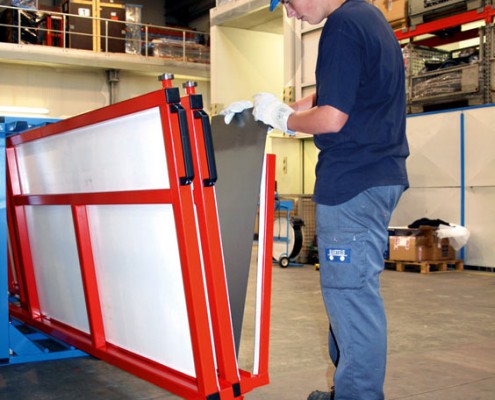

The robust, Flat Pallet Rack Vertical provides a good overview due to the drawers that can be individually extended. In order to prevent slipping, the sheets stand inclined on a synthetic material leaning wall in a continuous sheet tray. The sorting aid supplied, enables careful storage and removal of large formats in one shelf.

The rack has feed guides that prevent the drawer from tilting. The polyamide rollers are provided with foot rollover protection.

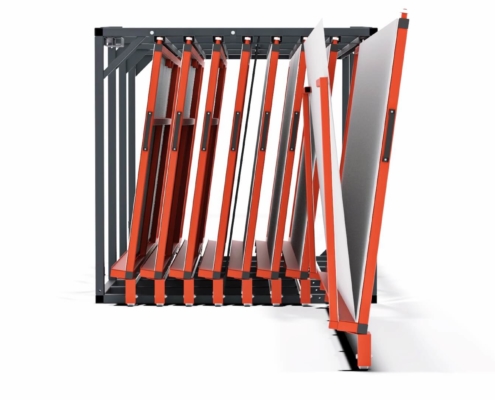

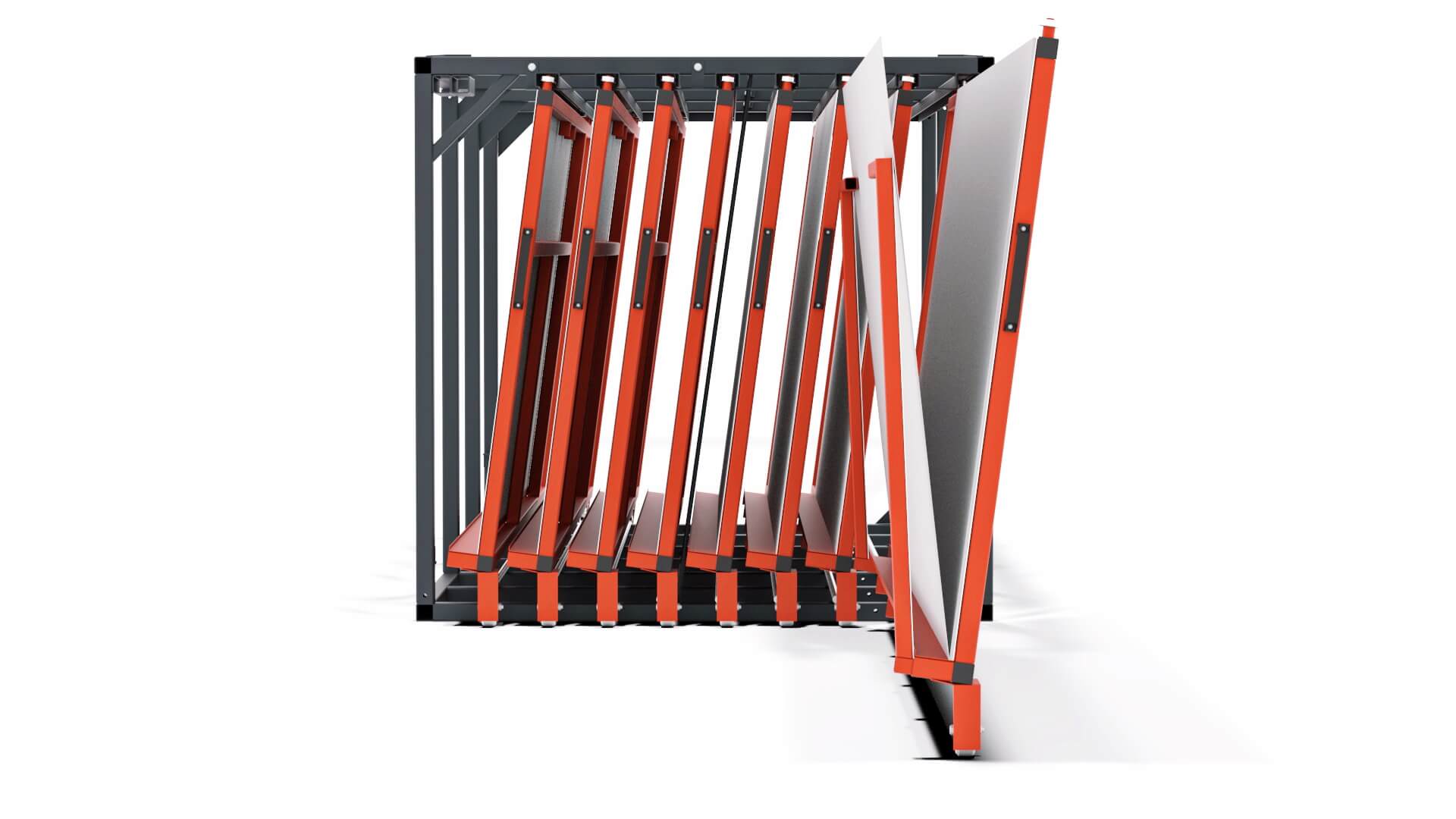

Flat Pallet Rack Vertical

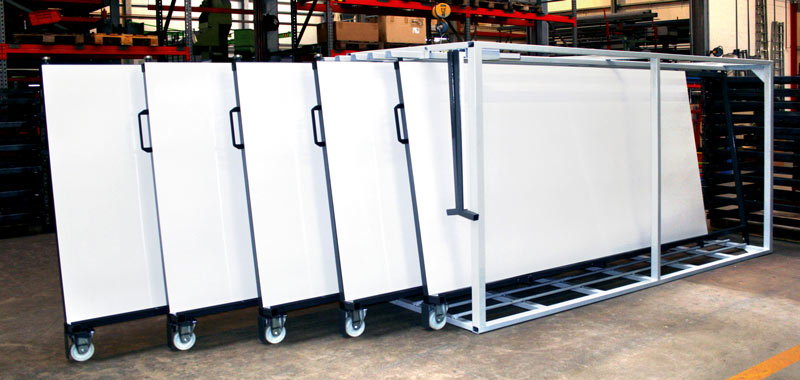

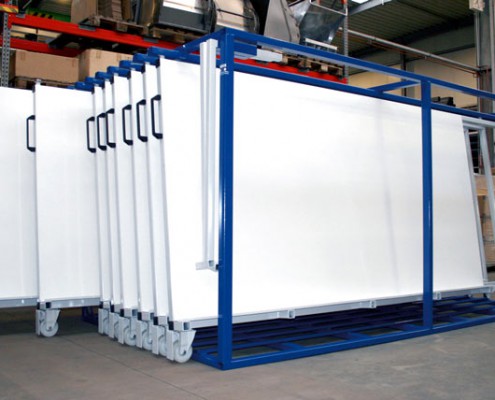

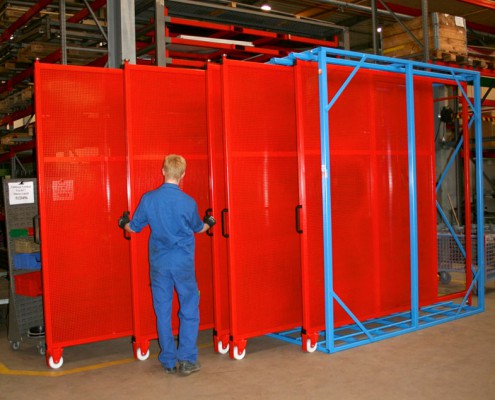

Convince yourself of our Flat Pallet Rack Vertical – More pictures

Advantages

Advantages of the Flat Pallet Rack Vertical for sheets

  • Custom-made
    We produce according to your wishes
  • 100% access
    You can extract the full length of the material from the rack
  • High capacity
    Each shelf has a load capacity of 1.000 kg
  • Can be sorted and removed individually
    Thanks to the sorting aid
  • Protective storage
    Of your specially high-quality and sensitive materials
  • Safe use of the drawers
    The feed guides prevent the drawers from tilting
  • Safe storage of your materials
    Slipping off is prevented by the synthetic material leaning wall in a sheet tray
Operation

Operation

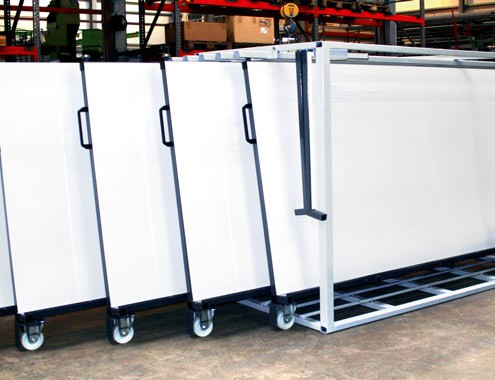

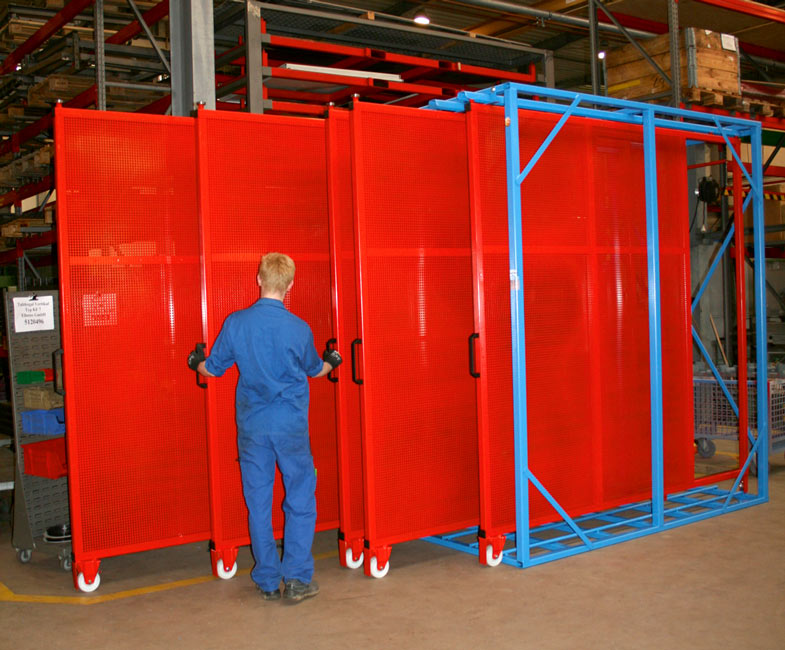

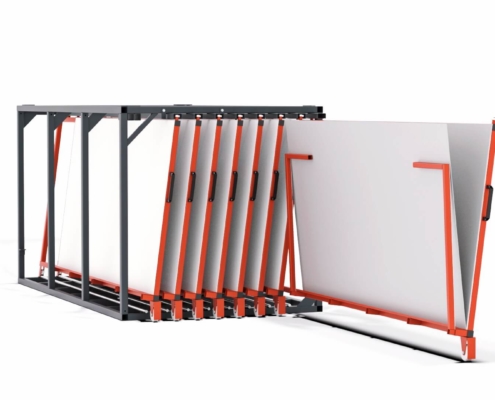

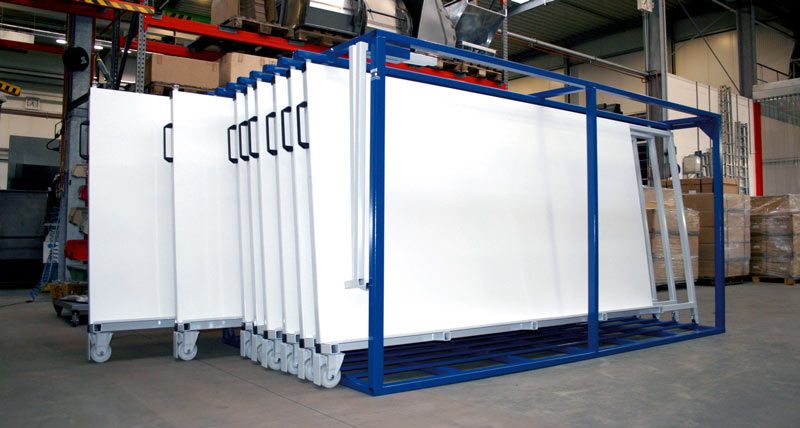

  • Robust steel construction, drawers can be extracted individually.
  • Support principle: Sheets stand inclined in a continuous sheet tray to prevent slipping.
  • Leaning wall: synthetic material.
  • Suitable for various plate formats.
  • Exact roll-in guides, upper shelf support in roller bearings, safe to operate thanks to foot rollover protection.
  • Wheels: Polyamide Ø 125 mm. Color: blue RAL 5012; extractable shelves blood orange, RAL 2002.
Design

Design

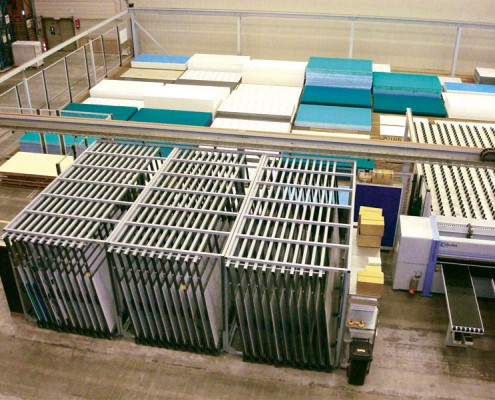

  • Ideal space-saving, vertical storage of plate material such as sheets, wooden plates, plastic plates etc.
  • Protective storage especially of high-quality sheets, e. g. stainless steel, aluminium, non-ferrous metals.
  • The sorting aid enables storage and removal of formats of different sizes in one shelf.
  • Version with shelves inclined to the left or right possible to ensure optimum use of the rack.

Custom-made Flat Pallet Rack Vertical

Custom formats, different number of shelves and accessories for formats such as 2,500 x 1,250 mm and up to 2,000 x 1,000 mm possible.
We are happy to consult you, and plan and produce your individual flat pallet rack. Please Contact us!

To specify your request you may use our inquiry form:

Accessories for the Flat Pallet Rack Vertical

  • Shelf labels
  • Various colours / custom paint coats in all RAL colours

Safety thanks to rack inspection

The Flat Pallet Rack Vertical requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
