Bartels Kompaktsystem
Breite max. 6.200 mm
Höhe min. 40 mm
Tiefe max. 2.500 mm
Gewicht max. 5.000 kg

Compact System

3 in 1: Buffer storage, individual removal, integrated crane

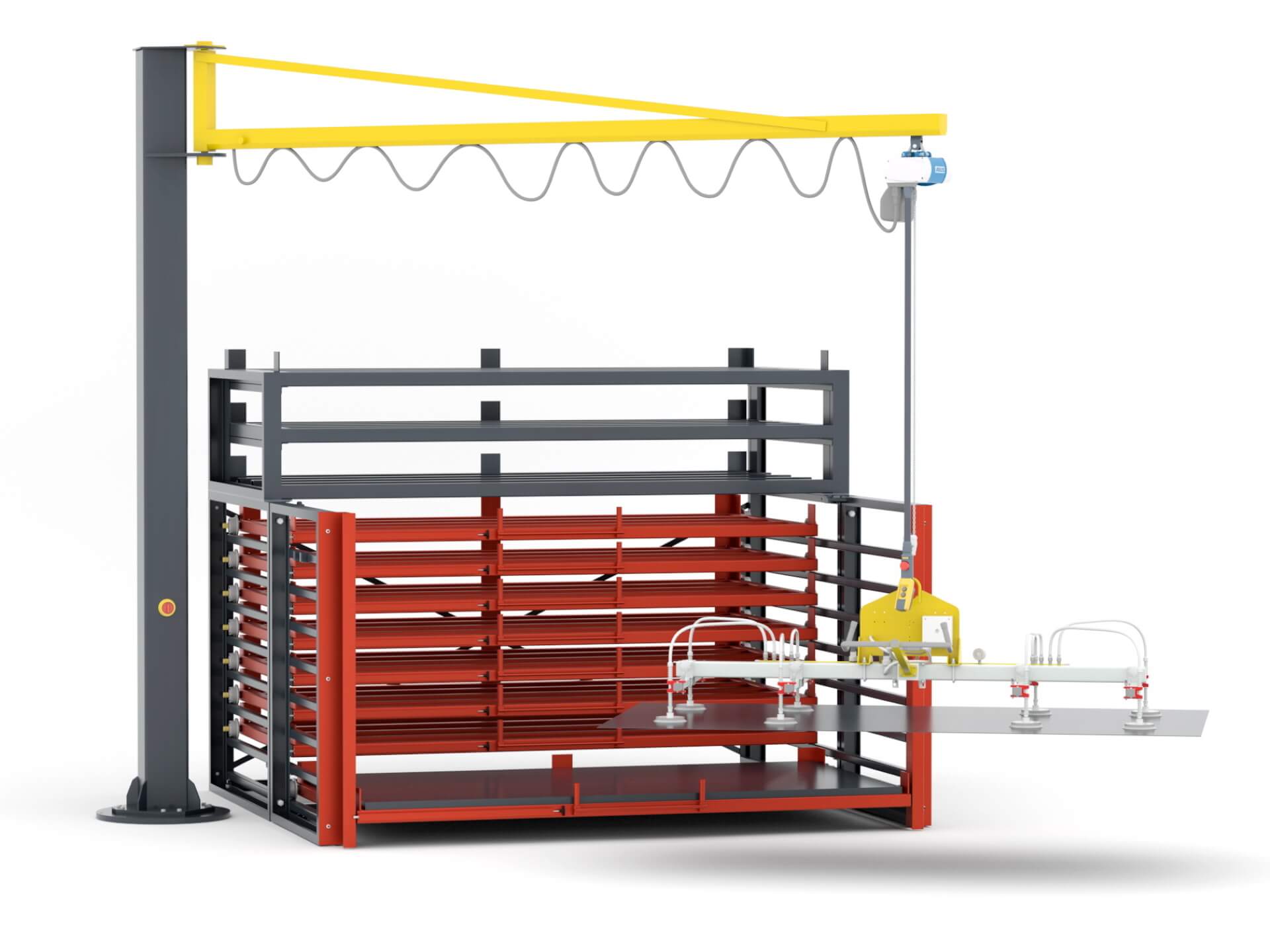

The Compact System provides everything that is required for handling directly at the machine. The basic framework is a drawer rack for sheets with swivel-mounted attachment structure and is ideal for easy loading and unloading. An attachment is located on the rack as a buffer store to increase the warehouse capacities. As an alternative, the complete system can also be loaded from the rear.

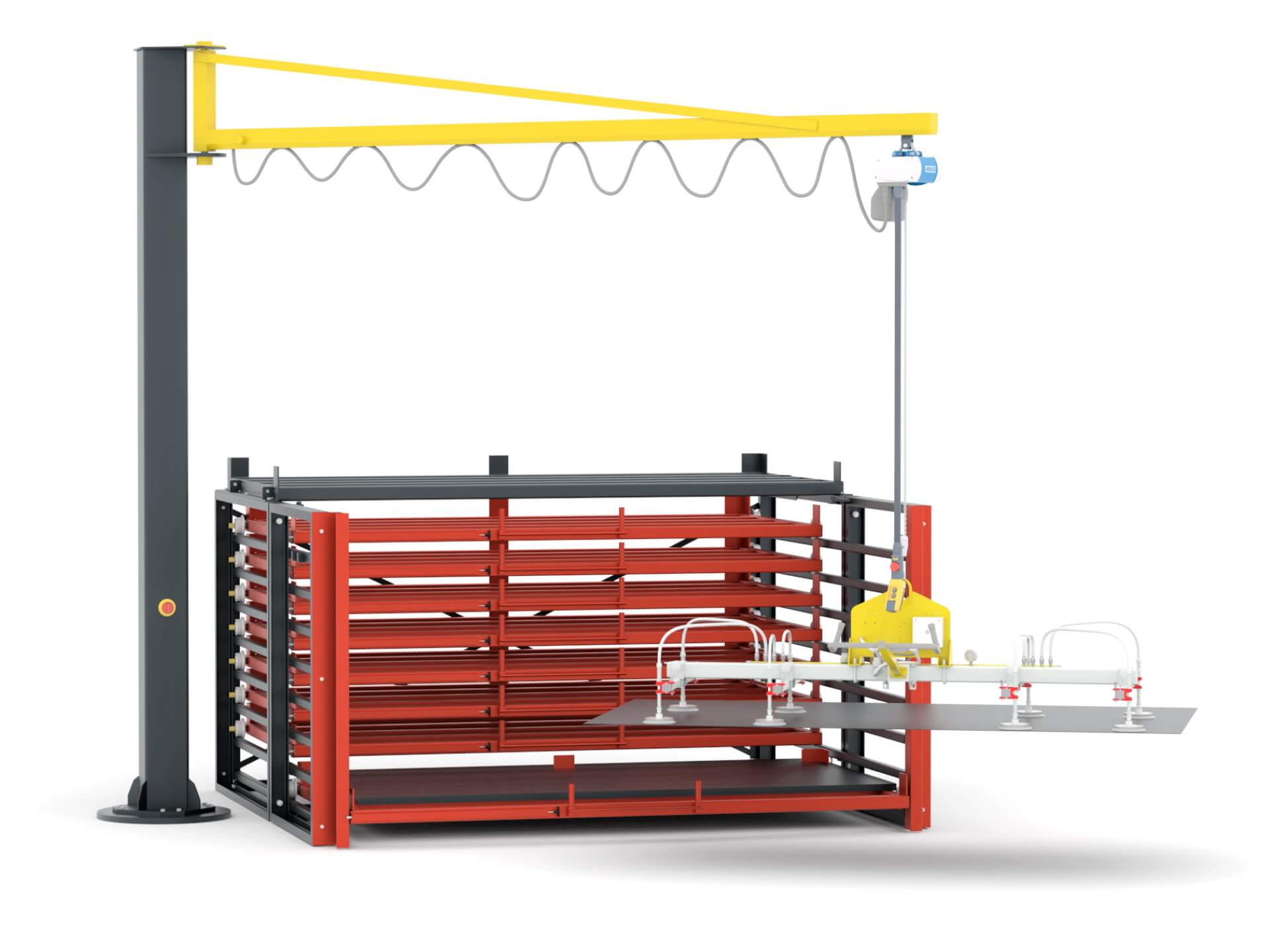

A crane pillar is located directly on the rack frame, the pivoting jib of which is equipped with a vacuum lifting device for plate material. As an alternative, instead of the fixed roof level of the structure, a flat pallet magazine can be installed.
Compact System
Convince yourself of our Compact System – More pictures

Advantages

Advantages of the Compact System

  • Ideal for sheets or other plate material
  • No foundation for the pillar, pivoting crane is required
  • 3-in-1 solution saves procurement costs and space
  • All functions available directly at the rack
  • Space-saving design with lifting system, swivel crane and vacuum hoist
Design

Design – Multi-functional compact system, consisting of

Base rack with swivel pull-out tray
Robust steel construction, drawers running on wheel flange rollers, rungs for securing the metal plates, individually lockable roll-outs for the metal plates for optimised safety.
Space-saving, collapsible extensions in the aisles between the racks fold away when they are not needed.
Loading from the rear by way of a forklift is optionally possible, as the rear of the rack was designed without diagonal cross struts. In order to allow for sufficient working height for loading, the drawer above the rack to be loaded is pulled forward and out.

Rigid roof structure
A rigid roof structure, or alternatively a flat pallet depot with individually removable cartridges above the actual rack, increases the rack’s capacity by several additional drawers.
The rigid drawers can also be loaded from the front or the rear, but are not extractable. Ideally suited for metal sheet packets that are not moved as frequently, allowing for optimised use of available space.

Integrated crane
No additional crane unit or additional foundations for a separate swivel arm crane required, as the compact system includes an integrated crane column directly in the rack. A great cost and time saver, and the functionality is adaptable specifically to the requirements of each customer. When not in use, the crane can be folded away flush with the rack, freeing up space in the work aisles, as do the pivoting fronts.

Optional: Vacuum hoist for metal sheets

  • Hoisting device directly attached to the swivel crane, to be used with a vacuum-operated suction lift for the removal of individual metal sheets.
  • User-friendly, easy to operate pivoting functions. Ideally suited for transporting metal sheets to process machinery.
  • Ergonomic handling and good accessibility of the operating elements and the gentle uptake of the metal sheets by way of suction cups will soon make this multi-functional compact system a must have for every production process.

Custom-made Compact System

If you need to store special materials or certain spatial requirements must be met, our consulting engineers will be happy to create individual concepts for you. Please Contact us!

Accessories for the Compact System

  • Number of storage shelves
  • Roof level
  • Buffer storage, access on both sides
  • Various colours / custom paint coats in all RAL colours
  • Custom dimensions
  • Depalletiser

Safety thanks to rack inspection

The Compact System requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
