Bartels Schwerlastregale flex
Breite max. 2.000 mm
Tiefe max. 1.200 mm
Gewicht max. 600 kg

Heavy Duty Rack Flex

Plug-in system for heavy loads

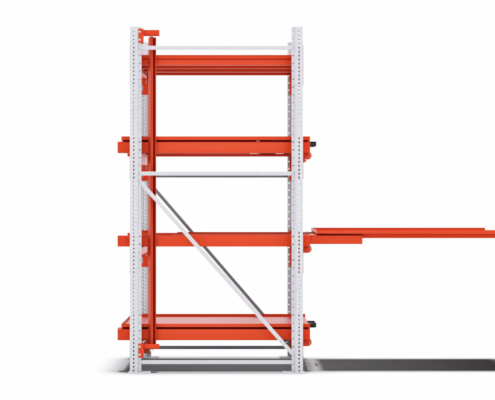

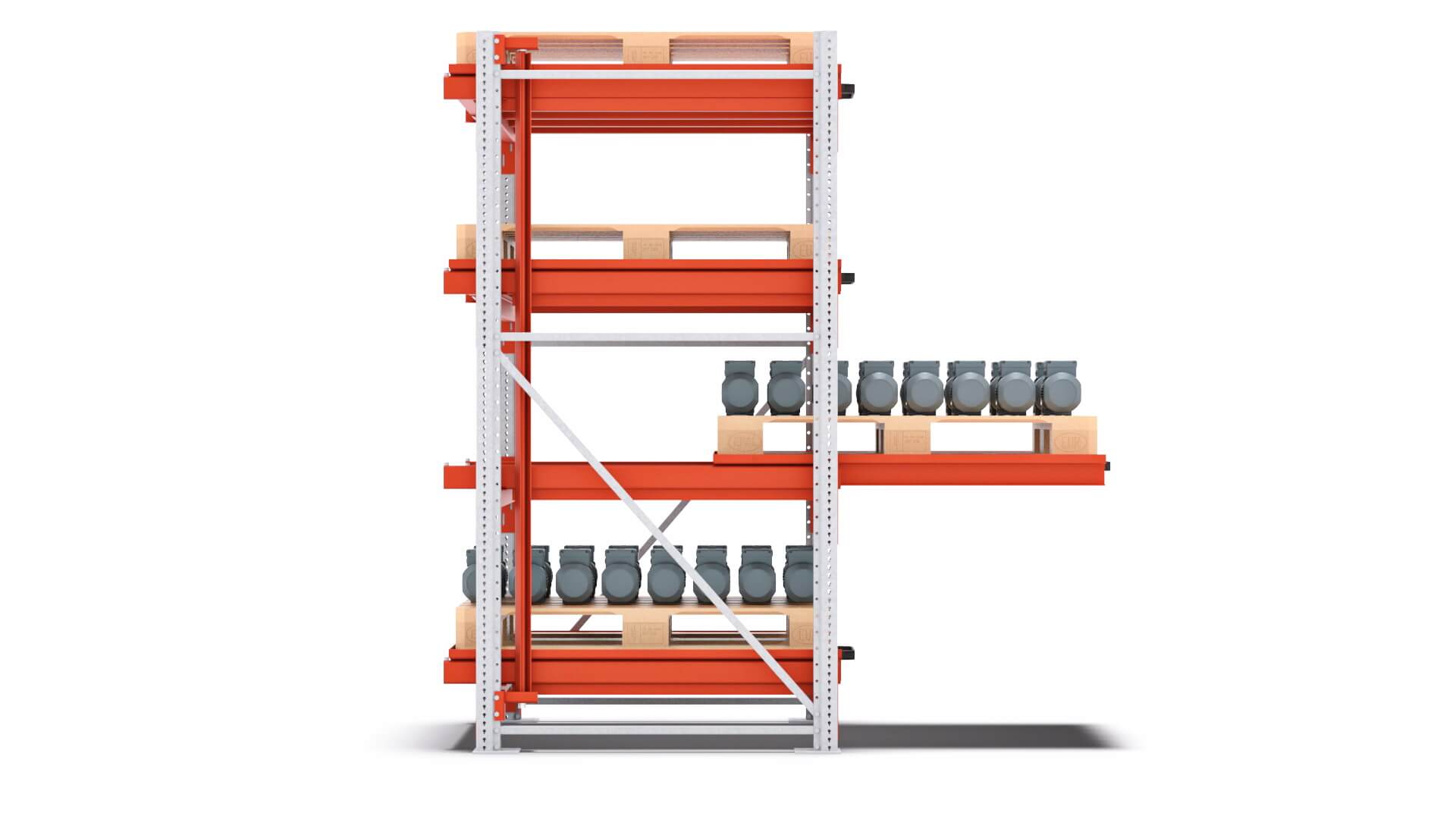

The tool storage rack is suitable for all kinds of heavy loads. The Heavy Duty Rack Flex offers a convenient, easy handling of tools, gauges, moulds, heavy and bulky objects “even in the very back of the rack”, as the drawers can be extracted 2/3. The tool drawer rack is the ideal solution for the storage of bulky tools. They rest on the supports of the extractable drawers in a clear arrangement and can thus be accessed quickly.

There is no need for time-consuming moving of heavy parts. As the drawers can be extracted far out, damage to the often sensitive surface of the parts can be prevented, as they can be easily stored and removed.

If the heavy-load drawer rack is loaded and unloaded via crane, it shows its space-saving capabilities and is even more flexible thanks to the individual height adjustments of the drawers in the grid by 50 mm and can therefore be adapted to individual storage requirements, especially owing to the fact that it can be expanded with additional racks.
Heavy Duty Rack Flex
Convince yourself of our Heavy Duty Rack Flex – More pictures

Advantages

Advantages of the Heavy Duty Rack Flex

  • Central locking – only one shelf can be pulled out at a time
  • Can be arbitrarily extended by additional racks
  • Individual height adjustment of shelves (in the grid by 50 mm)
  • Good running characteristics thanks to ball-bearing mounted guides
  • Compact storage through crane or forklift truck operation

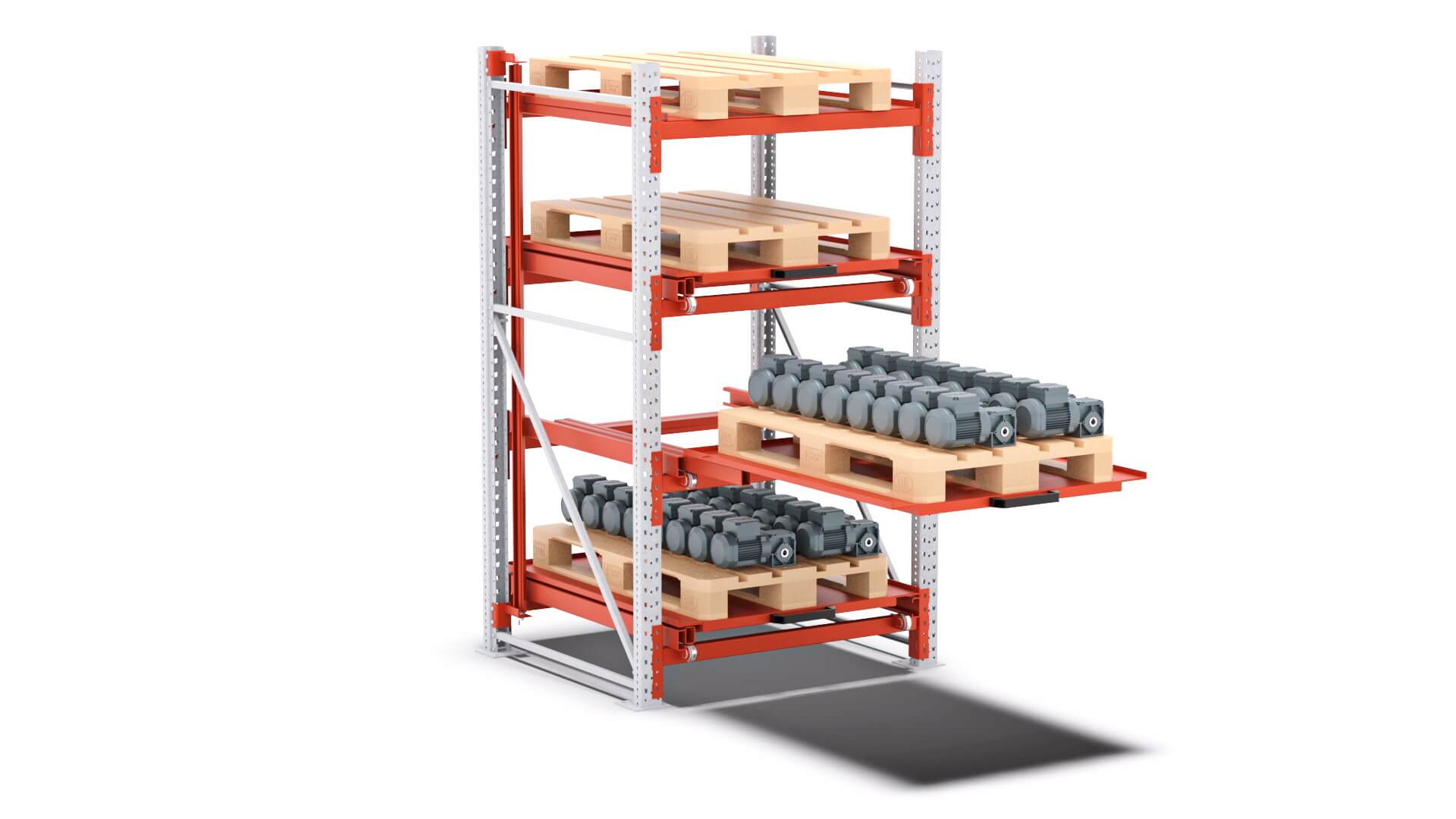

  • Ideal space-saving vertical storage of pallets
Operation

Operation

The tool rack with drawer extraction locking-device is an extremely robust and high-quality drawer system for safe storage of motors, moulds, tools and other products. The drawers are equipped with an open grid made of support struts. An additional base support made of sheet is supplied for the storage of small parts or smaller tools. The centring of the extractable shelves is done using double guides mounted in ball bearings on both sides. This ensure good running characteristics of the individual shelves.

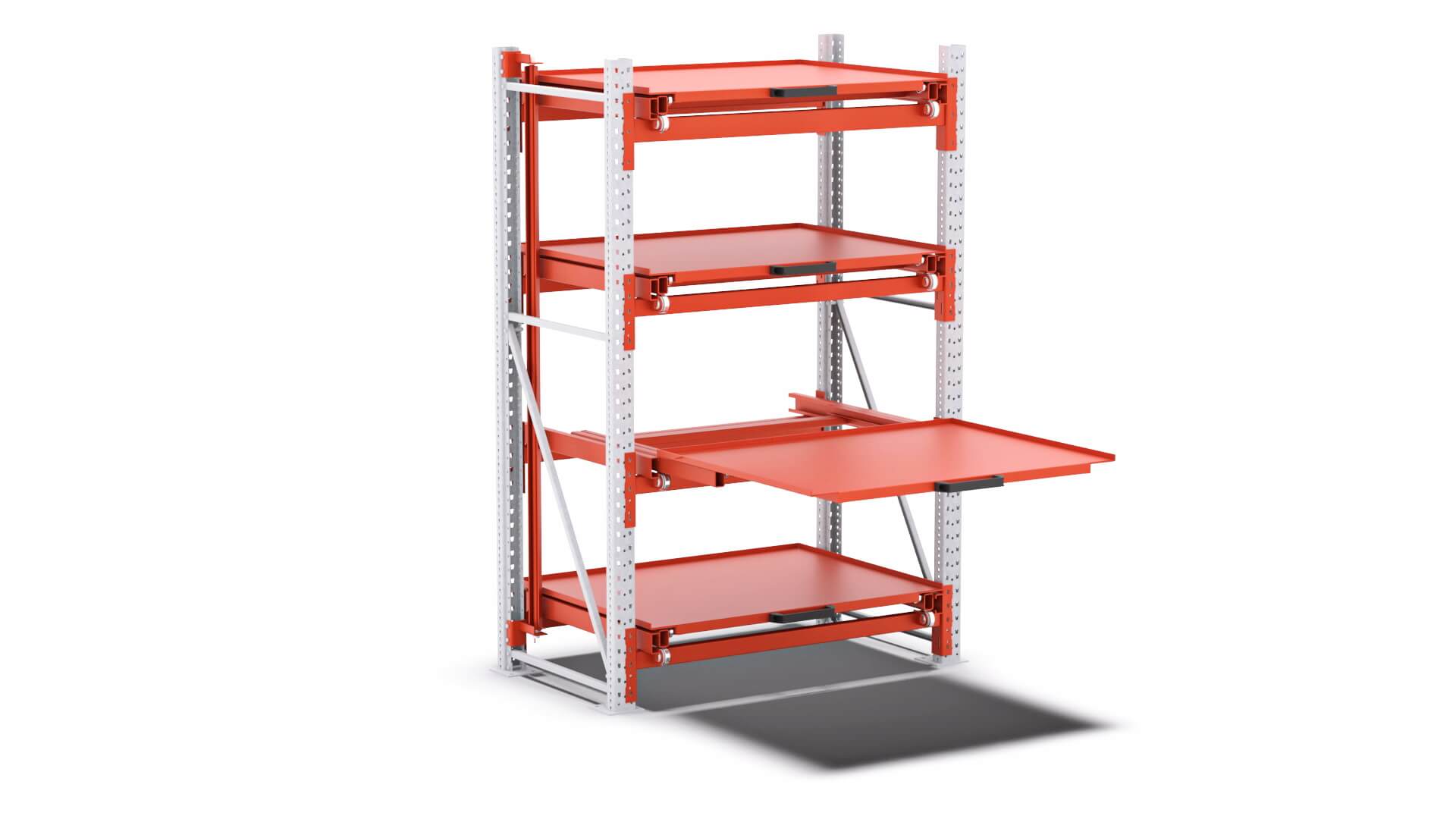

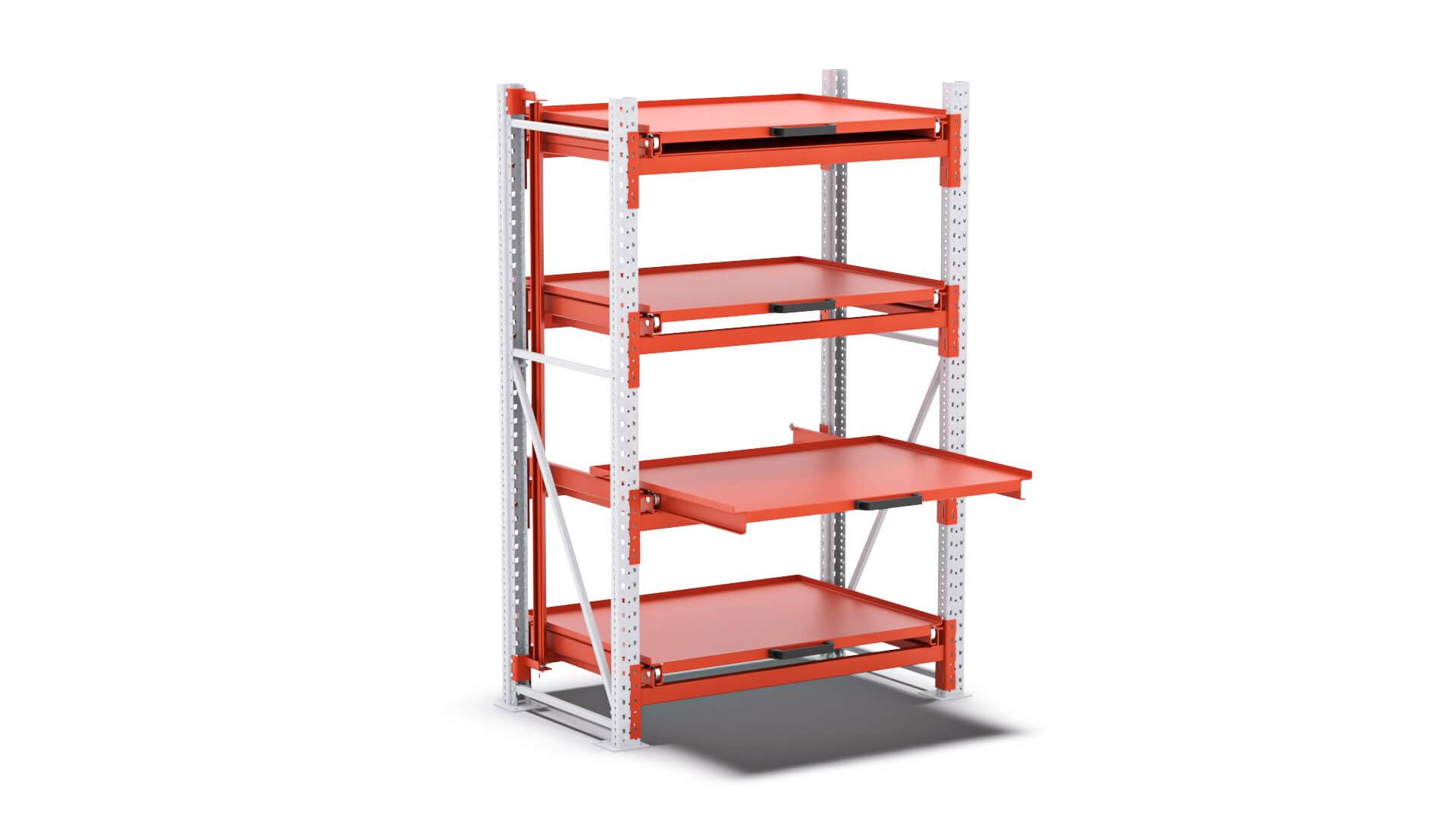

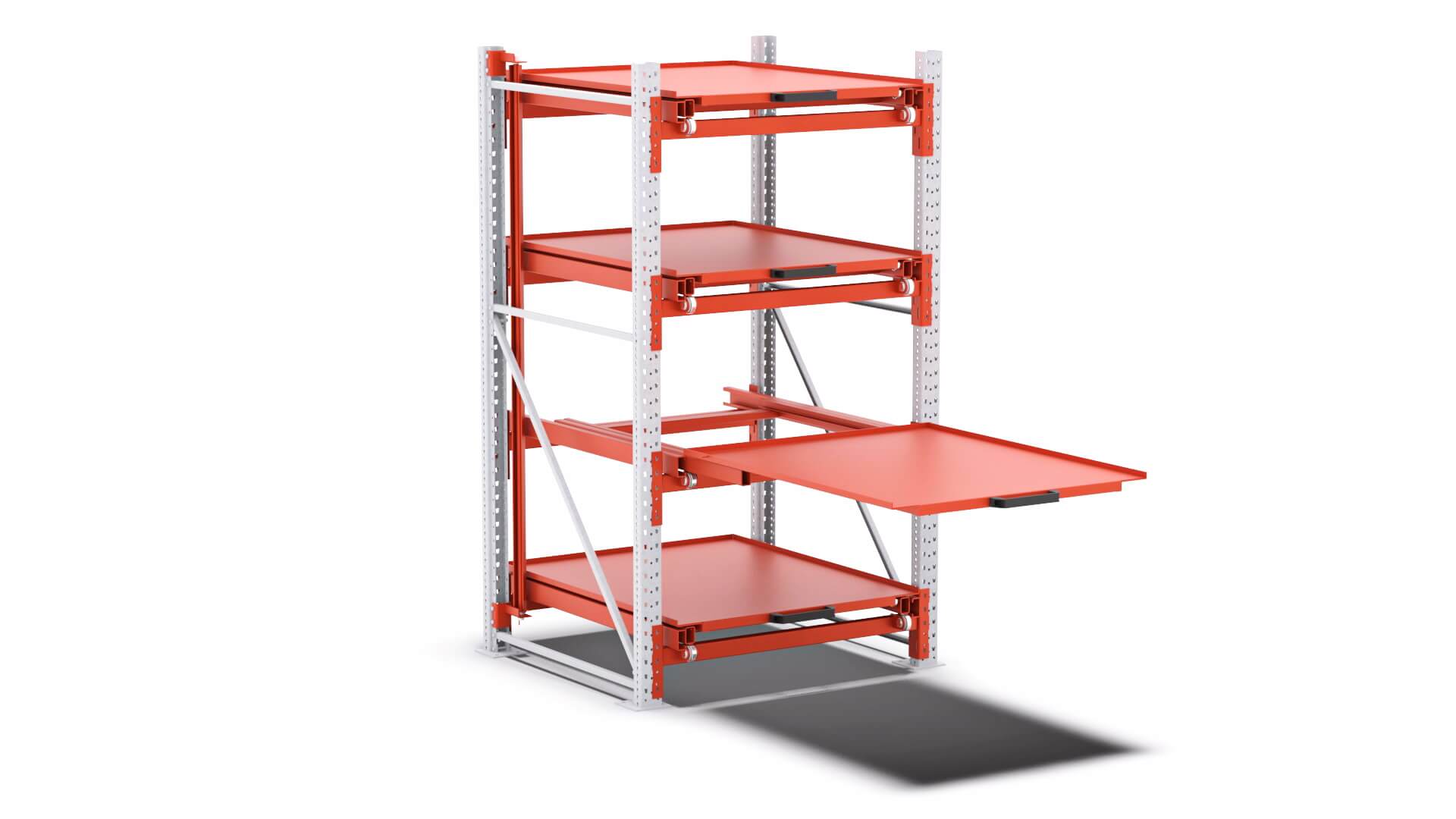

According to UVV guideline BGR 234 (previously ZH 1/428), after pulling out of a drawer the remaining drawers are blocked. All drawers are also equipped with an individual pull-out lock. These are supplied as selected with 2/3 or 100% extraction.

Design

Design

  • Base rack: 2 base structures made of pallet rack components.
  • To ensure sufficient overall stability, at least 2 drawers must be installed per field. Shelf height must be 150 mm to max. 1.000 mm.
  • Pull-out lock acc. to UVV BGR 234: When pulling out a shelf, the remaining shelves are blocked.
  • Add-on rack: as base shelf but only with 1 base structure.
  • Colour: Base structure galvanised, drawers red RAL 2002.

Custom-made Heavy Duty Rack Flex

If you need to store special materials or certain spatial requirements must be met, our consulting engineers will be happy to create individual concepts for you. Contact us!

To specify your request you may use our inquiry form:

Accessories for the Heavy Duty Rack Flex

  • Roof level
  • Custom dimensions
  • Various colours / custom paint coats in all RAL colours

Safety thanks to rack inspection

The HeavyDuty Rack Flex requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
