System mesh box SGB

Our stackable cages with drawers in four different variants help you to keep your order in a flexible way.

Discover the new intelligent internal load carrier SGB. No matter whether you are looking for a workbench with work cabinet, a cycle rack or a new order picking box. You can include the System-Gitterbox SGB in various production steps of your company. With standardised pallet dimensions, you can stack up to five cages in height, anytime, anywhere, always differently!

Advantages of the SGB system mesh box

  • Each drawer is mounted on two DIN 625 T1 deep groove ball bearings (12x28x8mm), which guarantee low-maintenance smooth opening and closing.
  • The pull-out system allows one drawer to be pulled out up to 2/3 of its length. In this way, the positional stability of the drawers is guaranteed.
  • Thanks to the multiple pull-out lock, only one drawer can be opened at a time, while the others are locked.
  • This prevents a shift of the centre of gravity outside the grid frame and thus prevents unintentional tilting.
  • The stable construction allows up to five fully loaded system lattice boxes to be stacked safely on top of each other in order to make full use of existing storage space or transport capacities.
  • Can be taken up on both sides
  • Various capping systems on offer
  • The robust heavy-duty design meets the highest demands. At several points, the grid frame is firmly attached to the inner structure, which ensures the function of the drawers even under maximum load.
  • Load capacities between 120 kg and 150 kg per drawer
  • Pallet dimensions 1,200 x 800 mm

Optional

  • Up to 6 drawers per box possible.
  • Painting in all RAL colours possible
  • Screen printing plate as roof covering
  • Drawers with grids and/or cages with complete drawer units sheet metal cladding
  • RFID tags can be used to locate items that you store or pick in the SGB.

Our consultants will gladly assist you.

Technical specifications

TypVariant A – Two large drawersVariant B. 1 – Three equal-sized drawersVariant B. 2 – Two small and one large drawerVariant C – Four small drawers
Overall dimension W x D x Hmm1.200 x 800 x 9701.200 x 800 x 9701.200 x 800 x 9701.200 x 800 x 970
Interior dimensions Drawer W x D x Hmm1.050 x 750 x 2951.050 x 750 x 1671.050 x 750 x 1671.050 x 750 x 125
Max. Load per drawerkg150135135120
Weightkg181202202222
ColorRed/Blue/GreenRed/Blue/GreenRed/Blue/GreenRed/Blue/Green

Variants

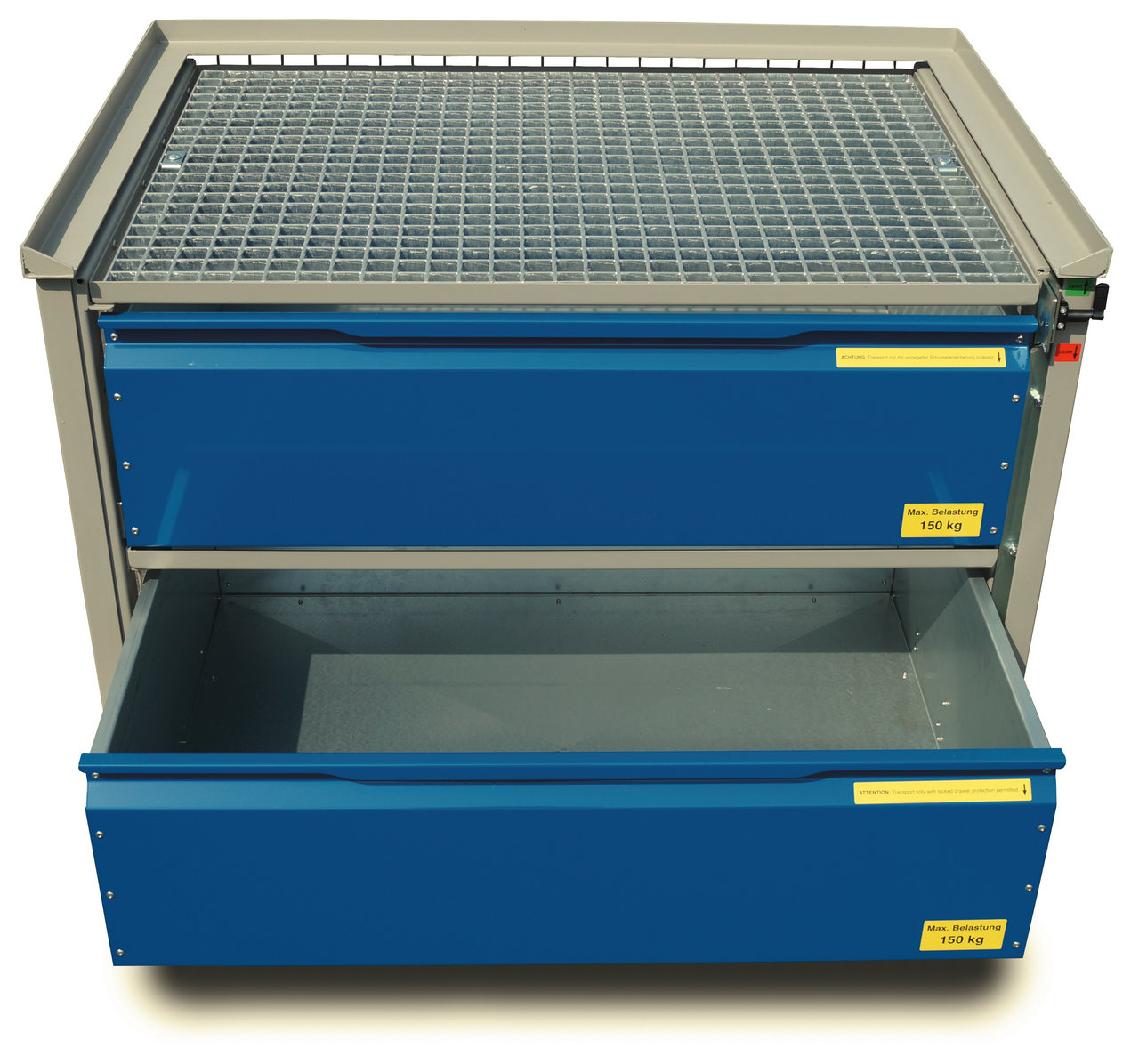

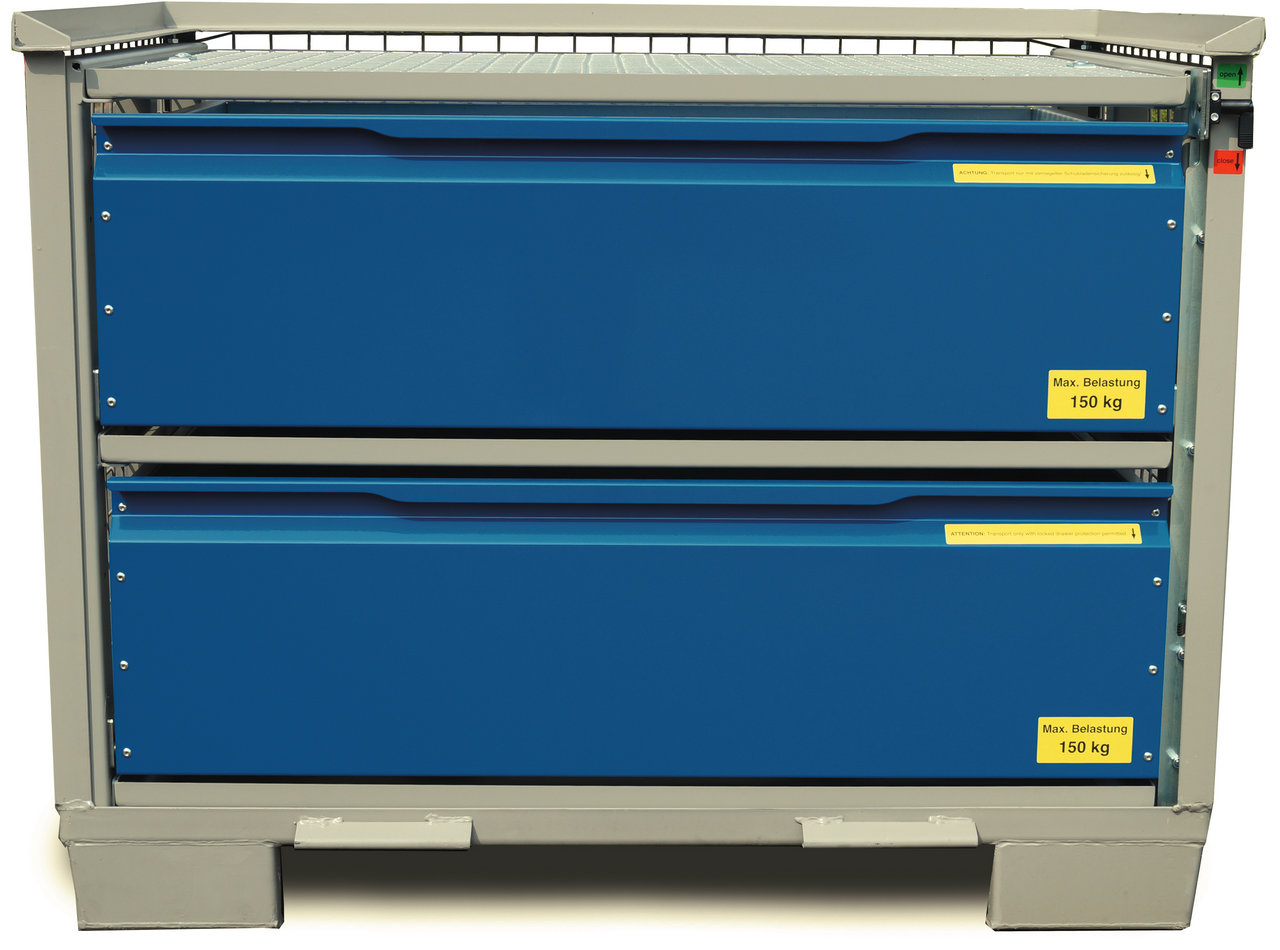

Version with 2 drawers

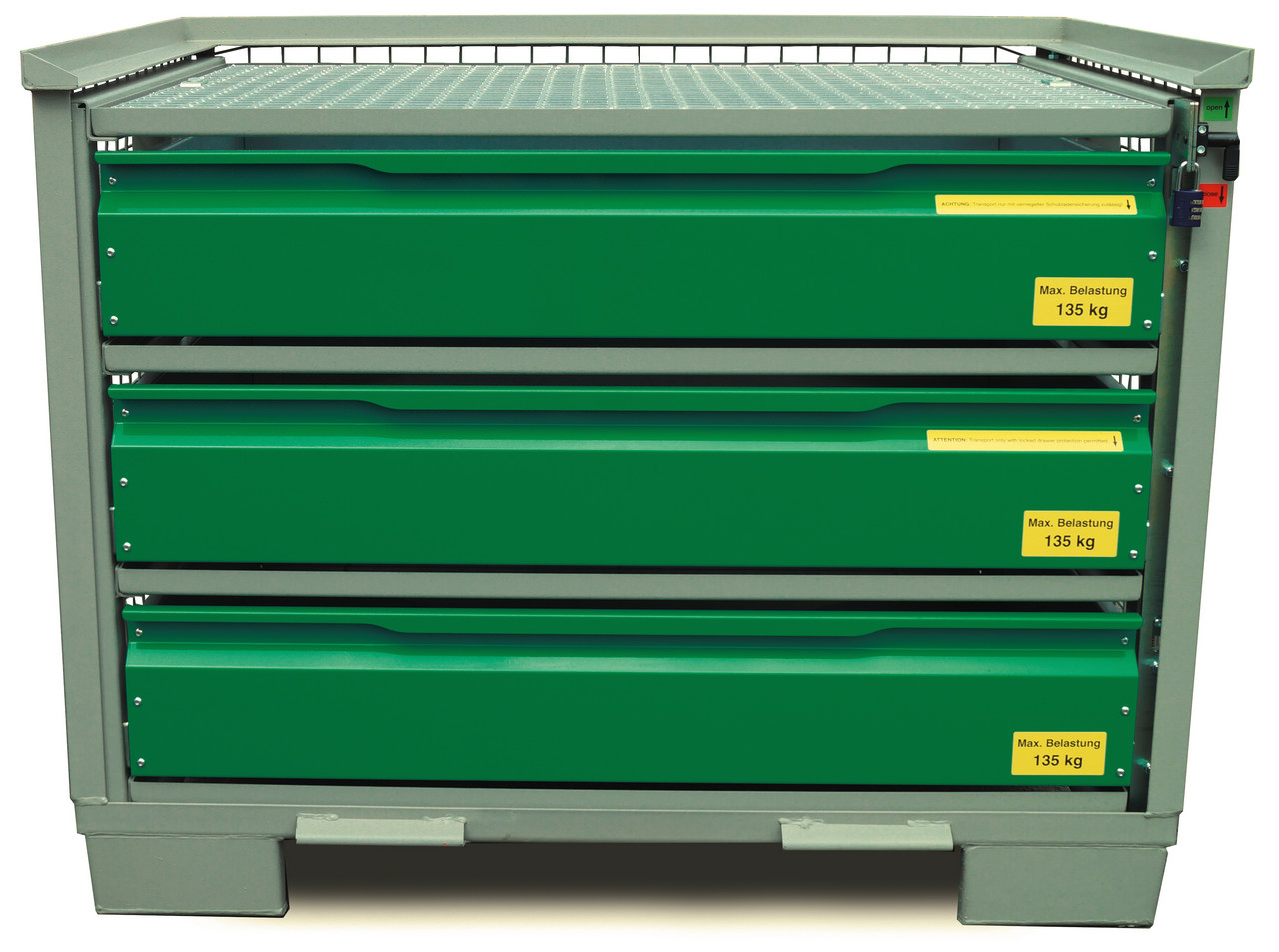

Version with 3 drawers

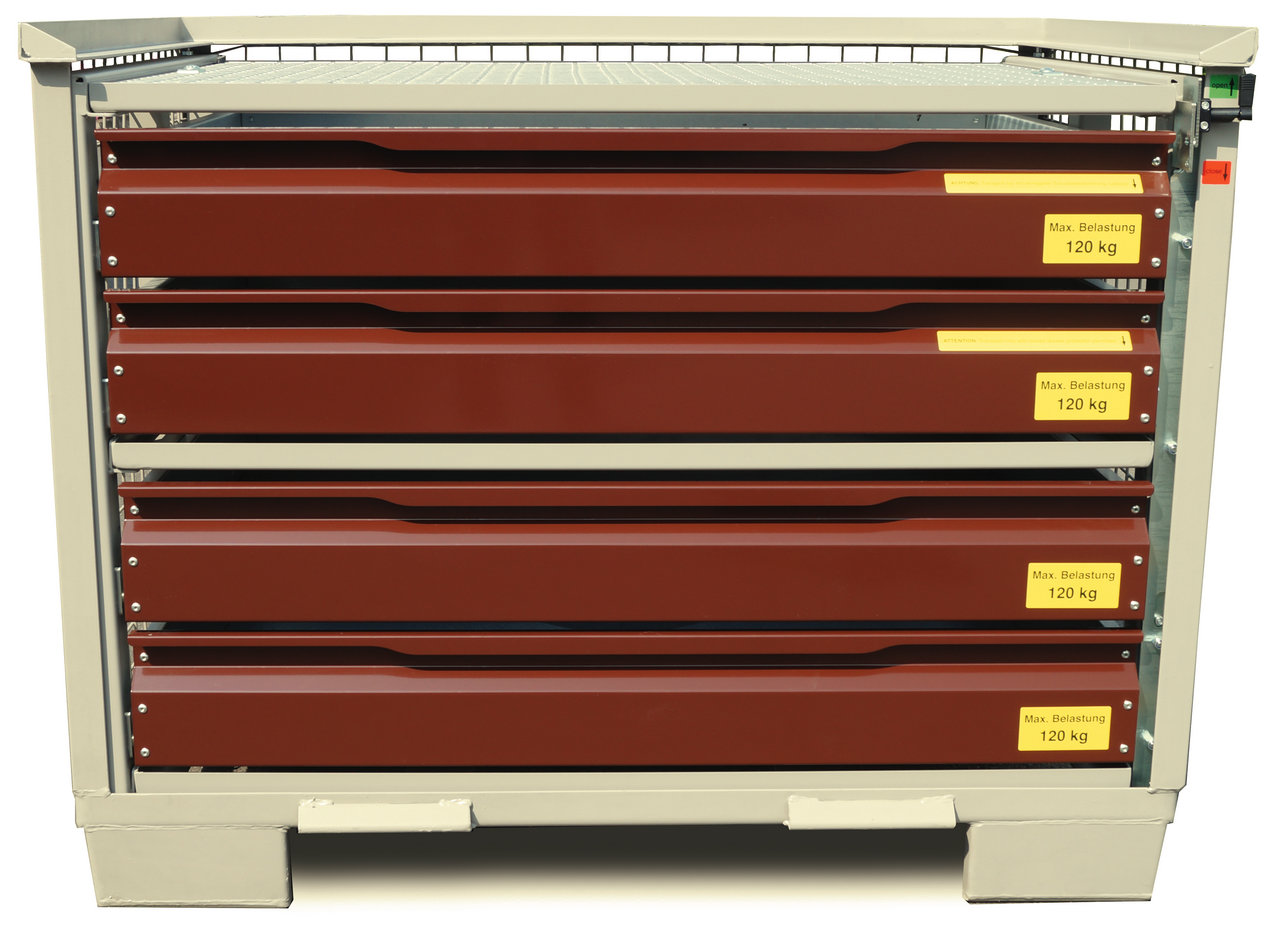

Version with 4 drawers and special painting

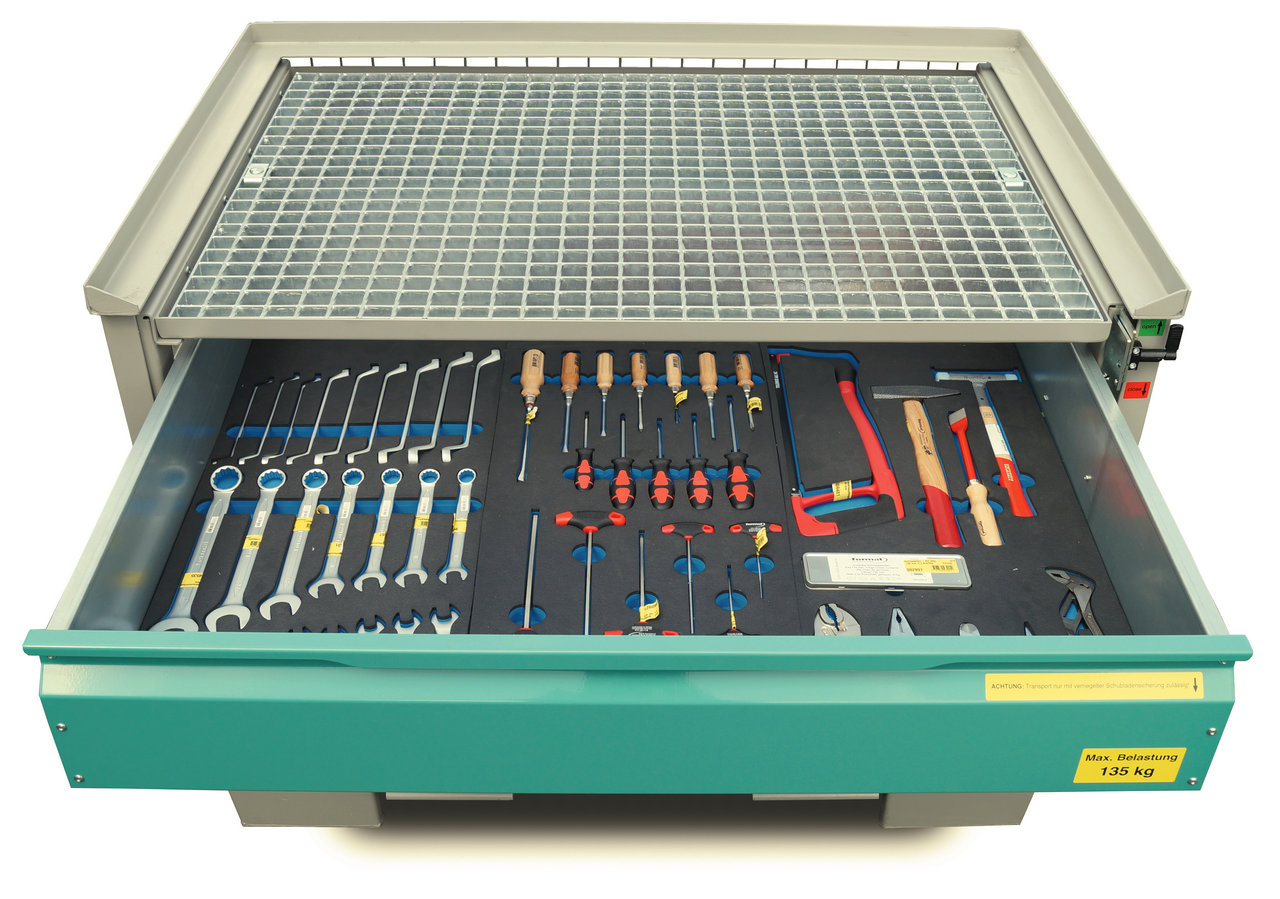

Version with drawer insert and special painting

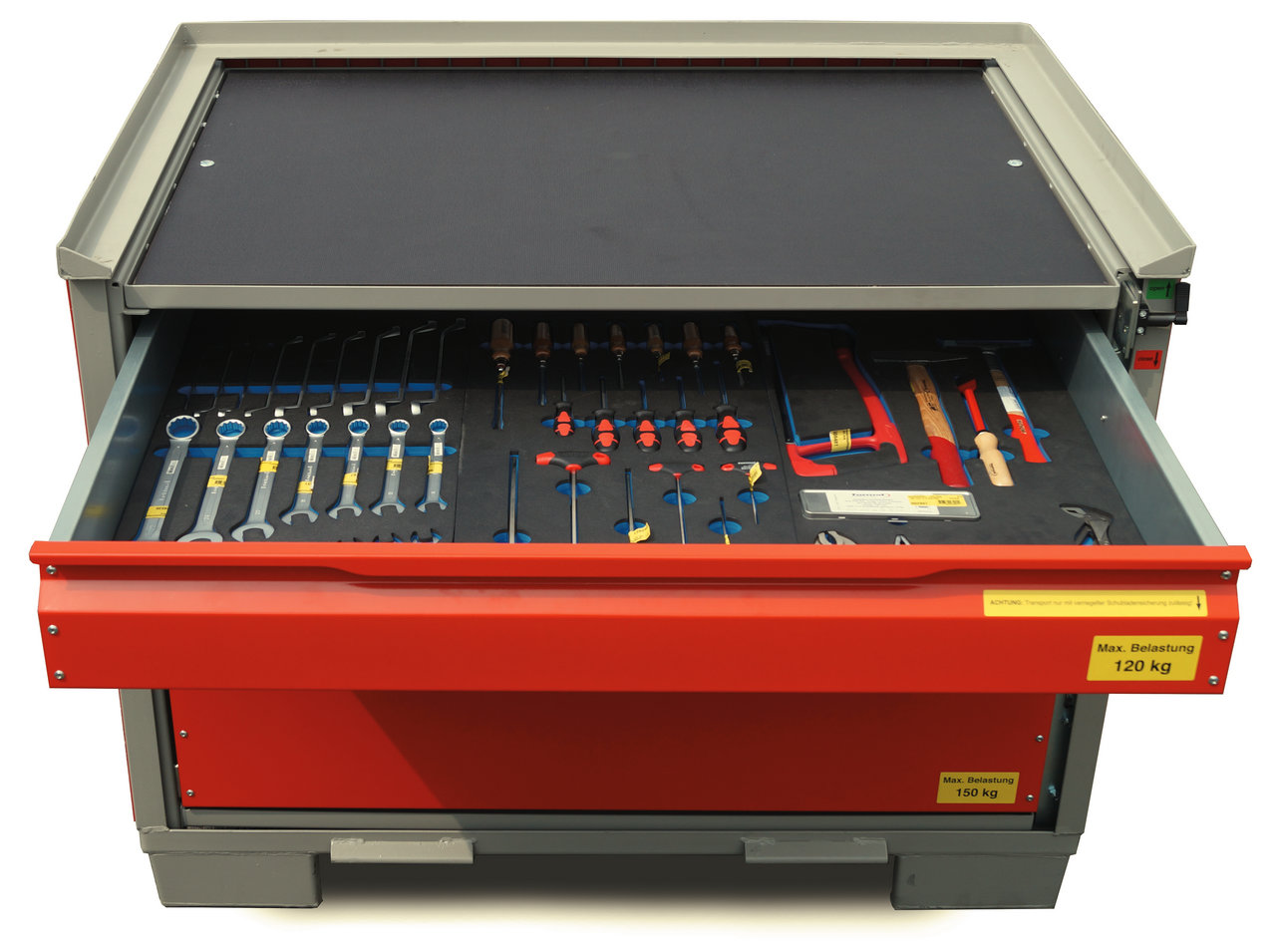

Version with screen printing plate and drawer insert

Accessories Lock systems

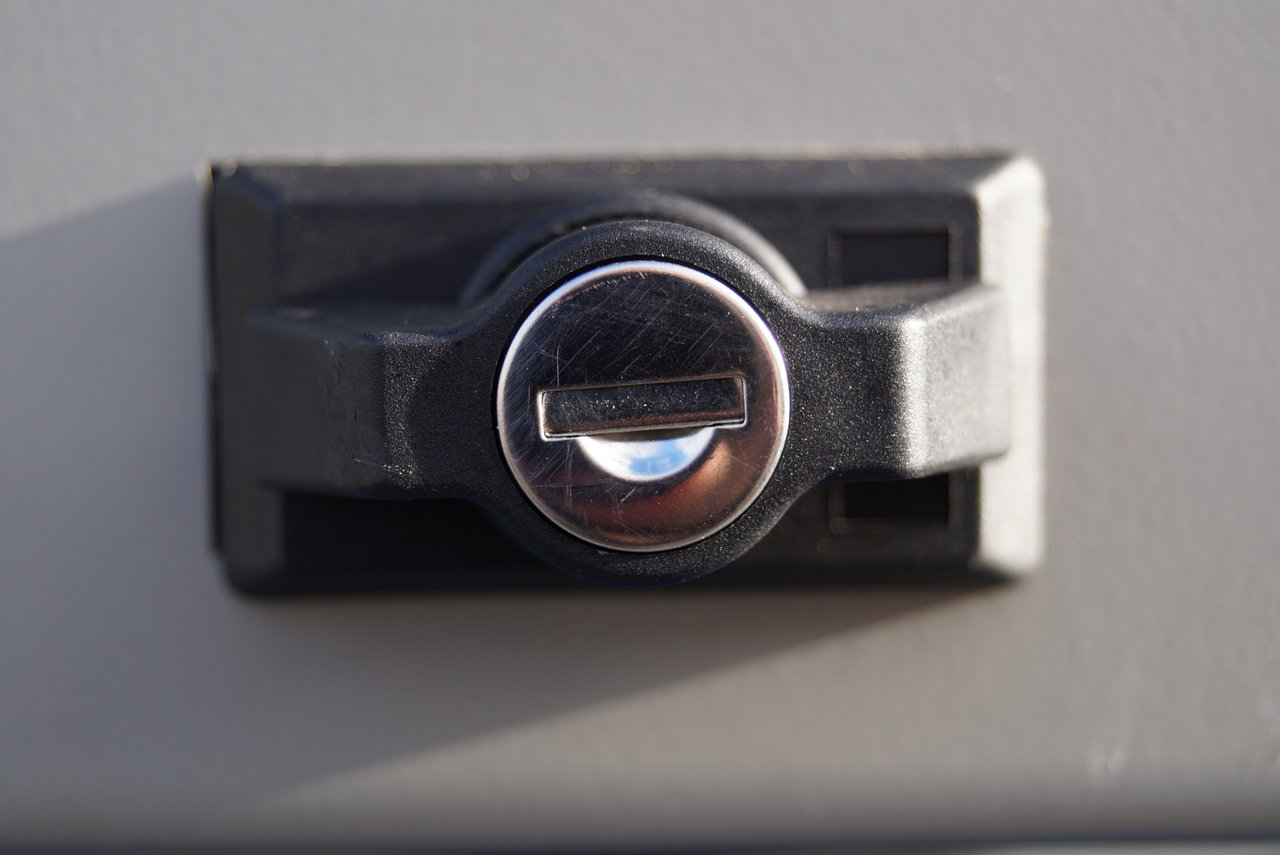

Locking mechanism

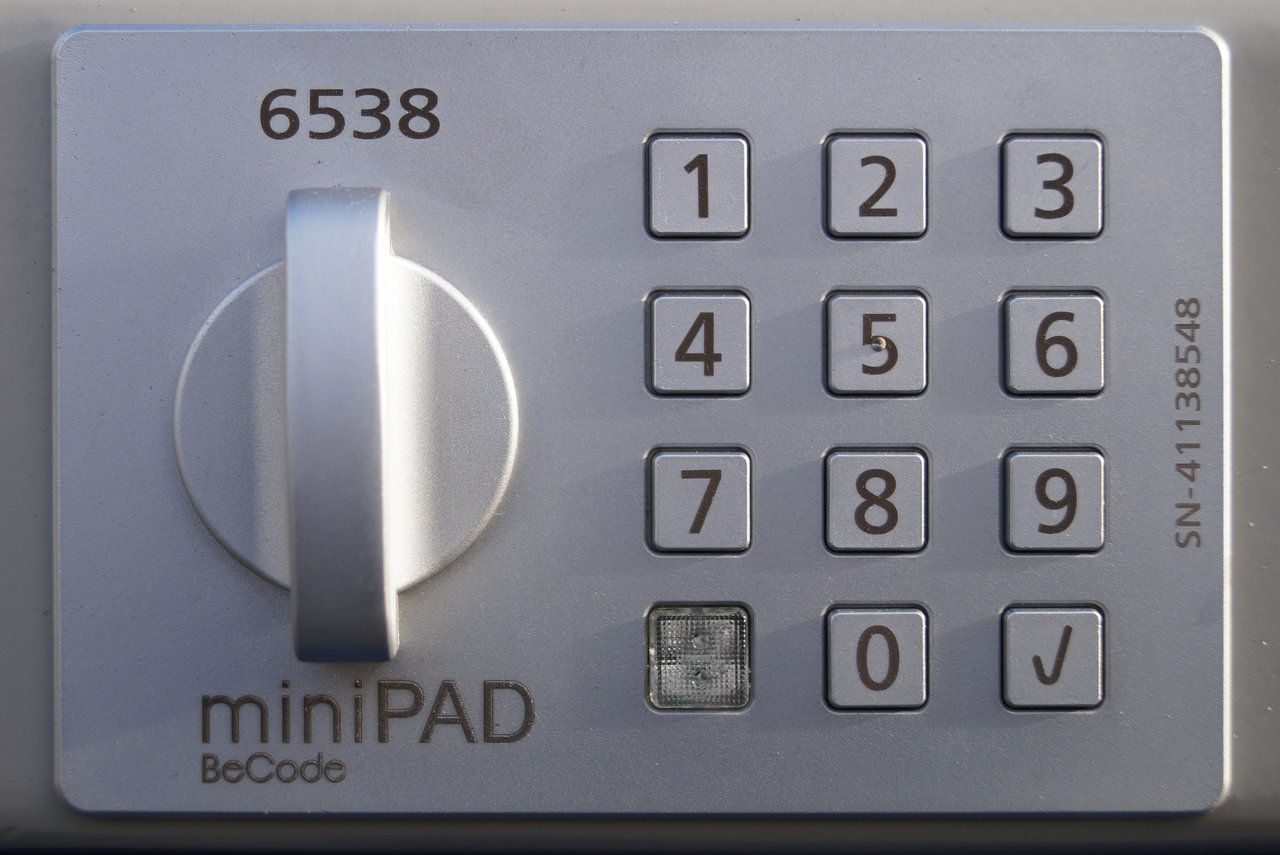

Combination lock
