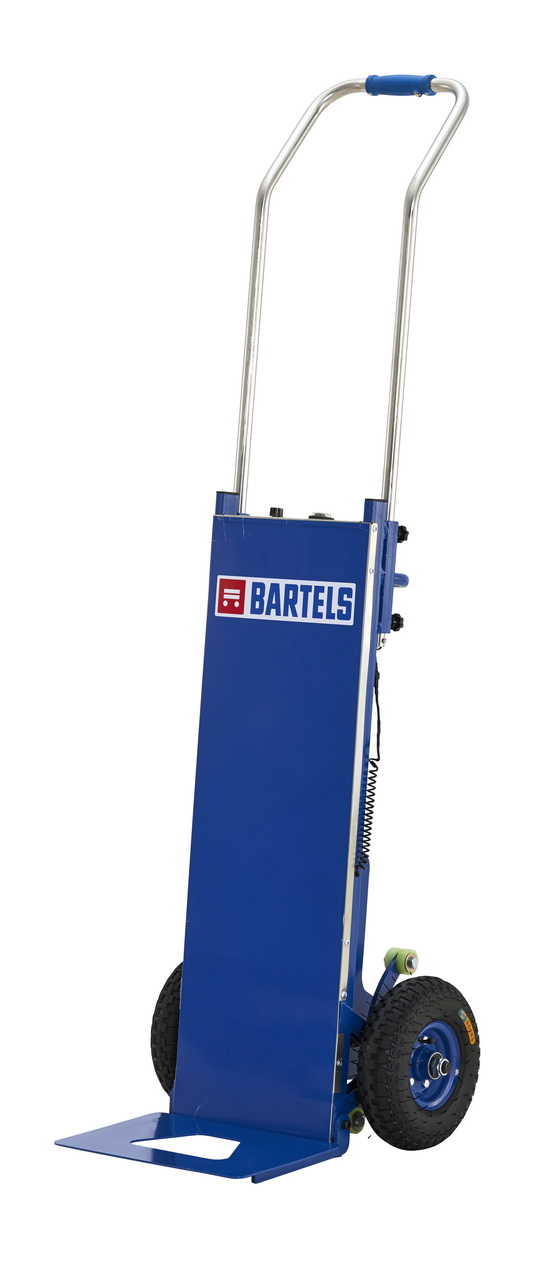

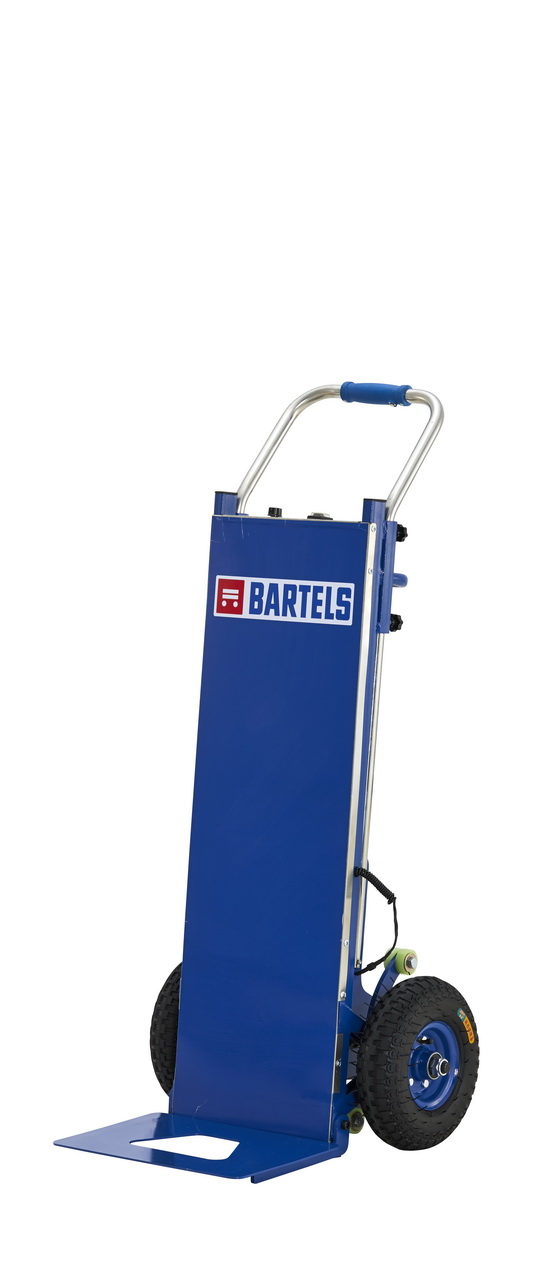

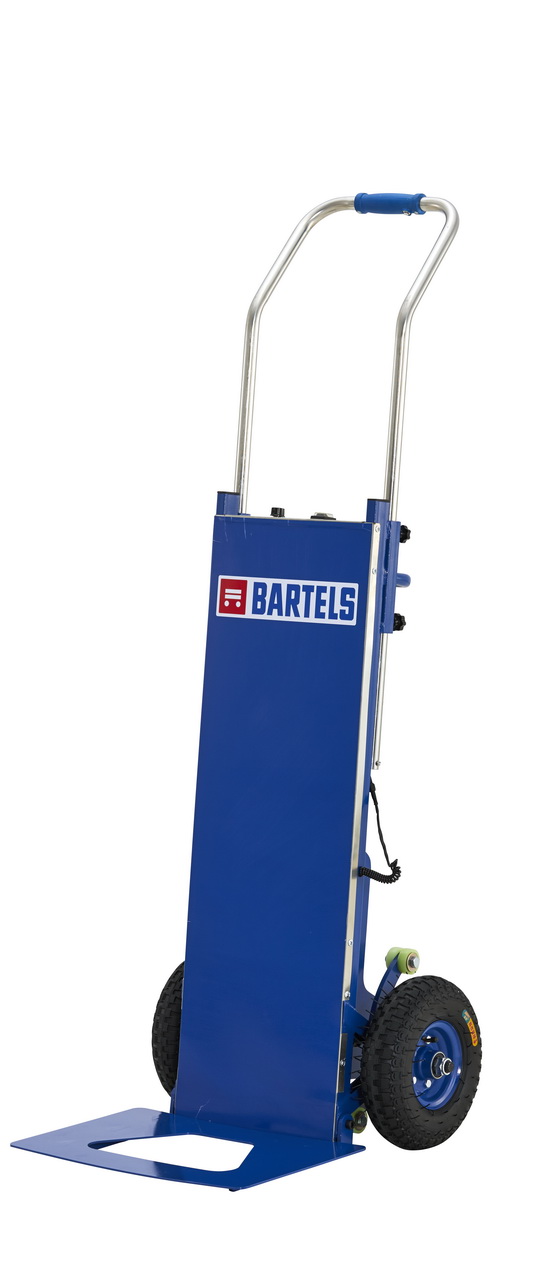

Stair climber Bartels Goral

○ Smooth start-up ○ Adjustable speed ○ Capacity 220 kg

The stair climber Bartels Goral is the workhorse among the all-round stair climbers.

The device can be operated by only one person. Optimally suited for transporting goods of all kinds, the Ibex easily masters bulky goods such as heaters, painting and tiling equipment or other building materials.

With one battery charge, you have a range of up to 2,500 steps up and down. The climbing speed is up to 30 steps/minute depending on the setting and weight.

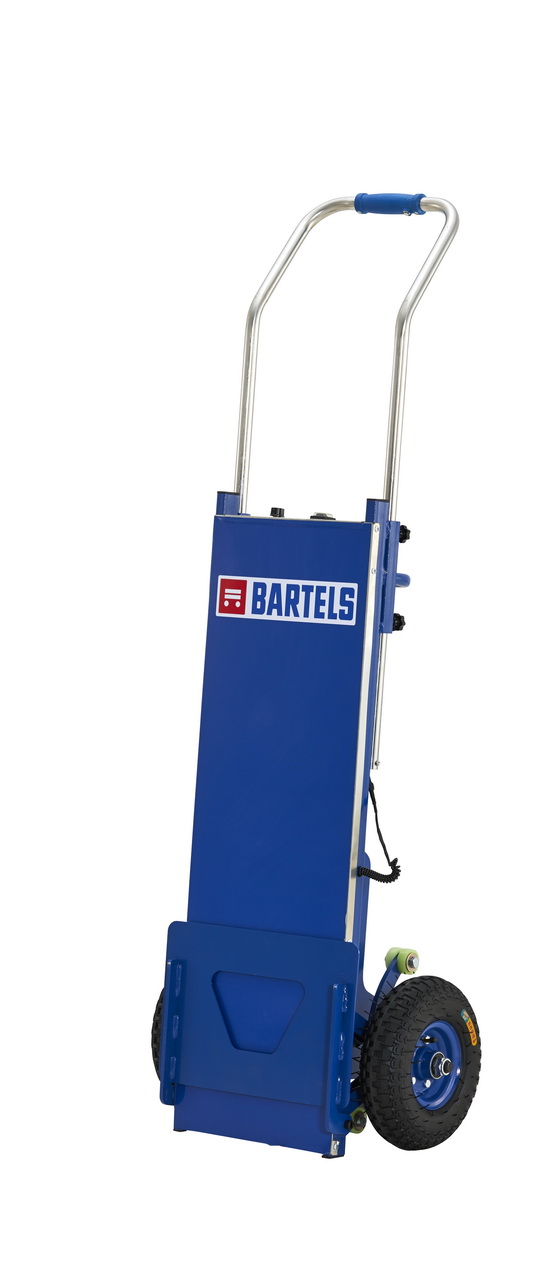

Stair climber Bartels Goral
Convince yourself of our Stair climber Bartels Ibex – More Pictures

Advantages of the stair climber Bartels Goral

  • Load capacity 220 kg
  • Maintenance-free electric motor

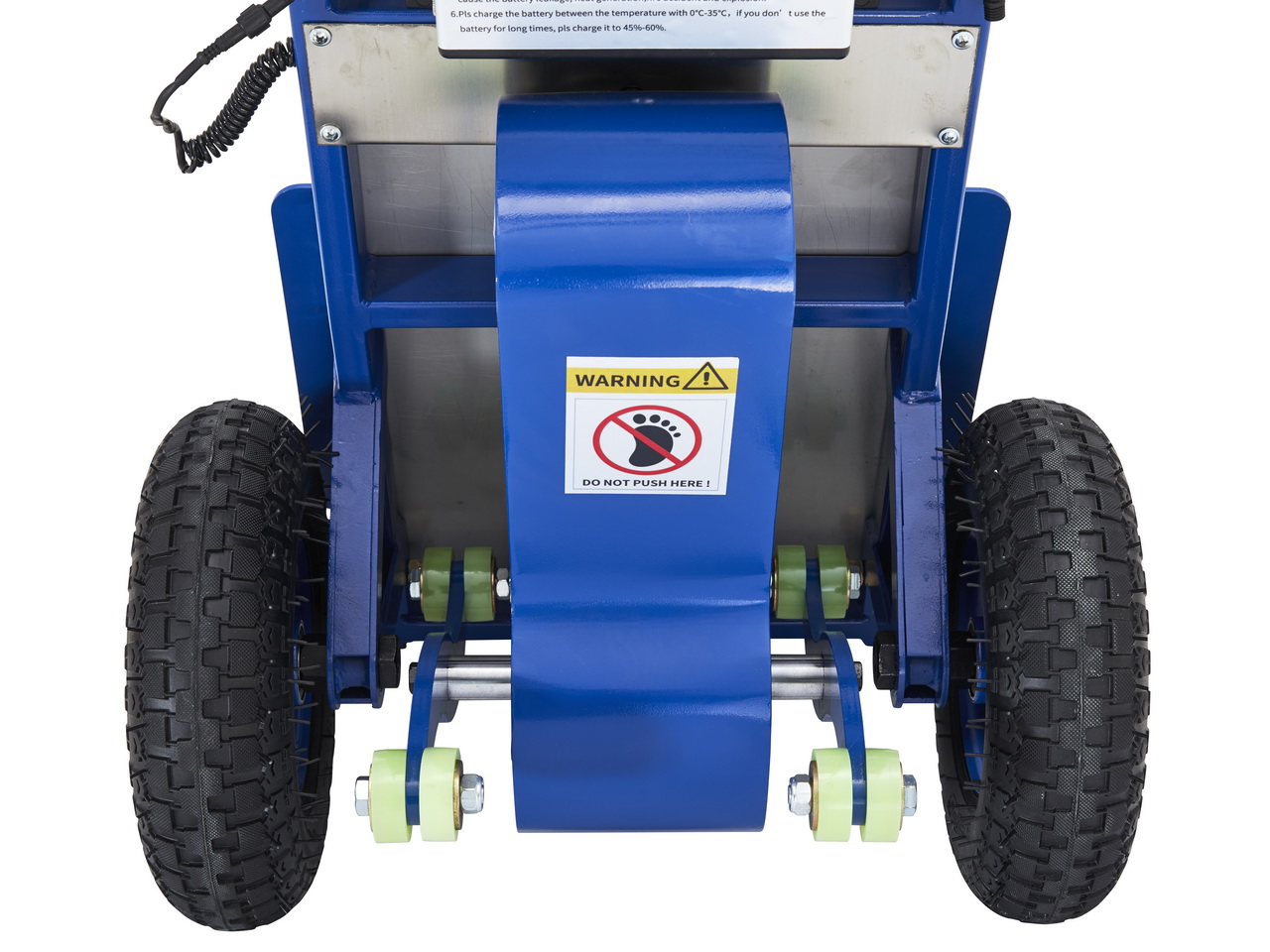

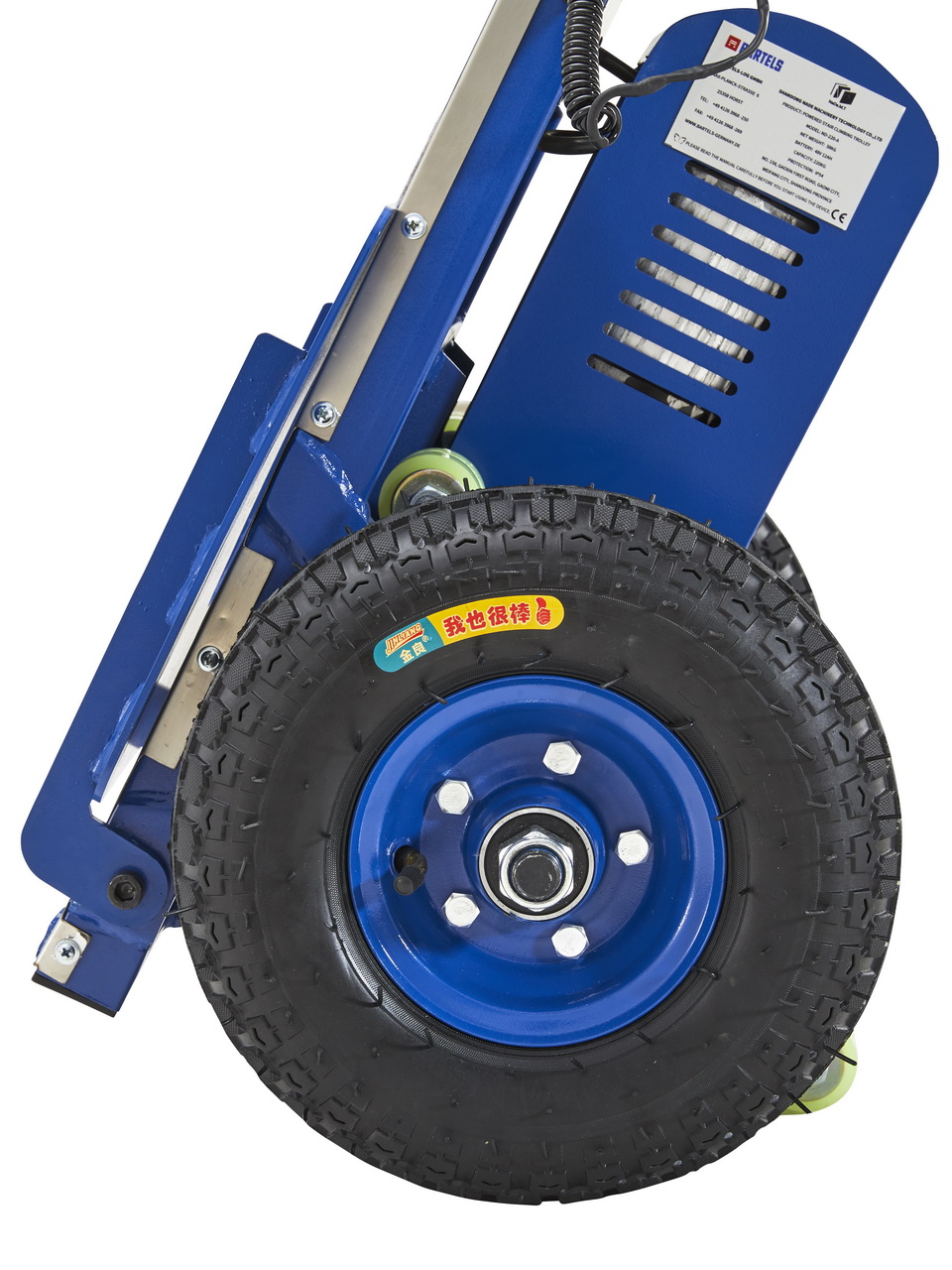

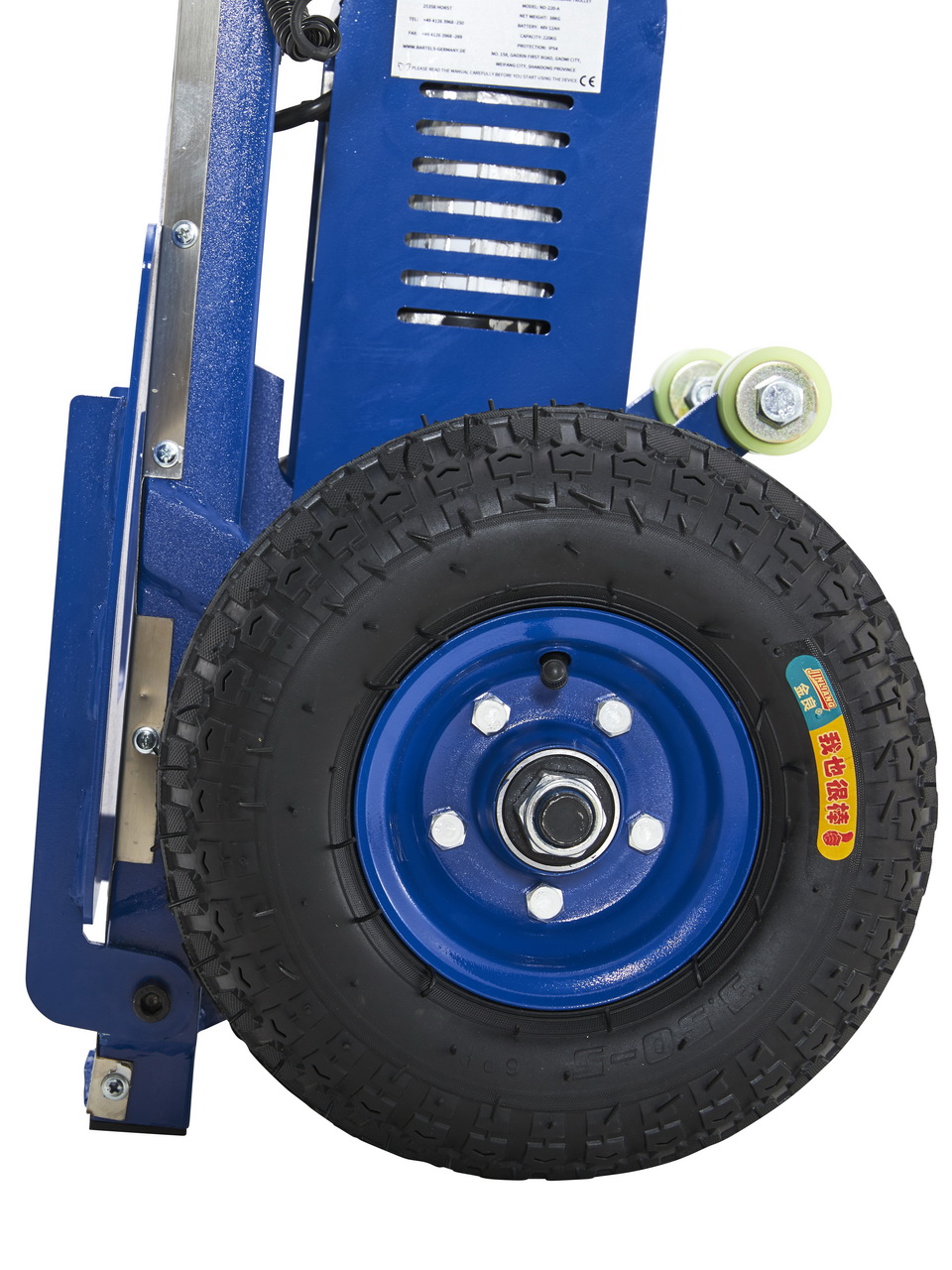

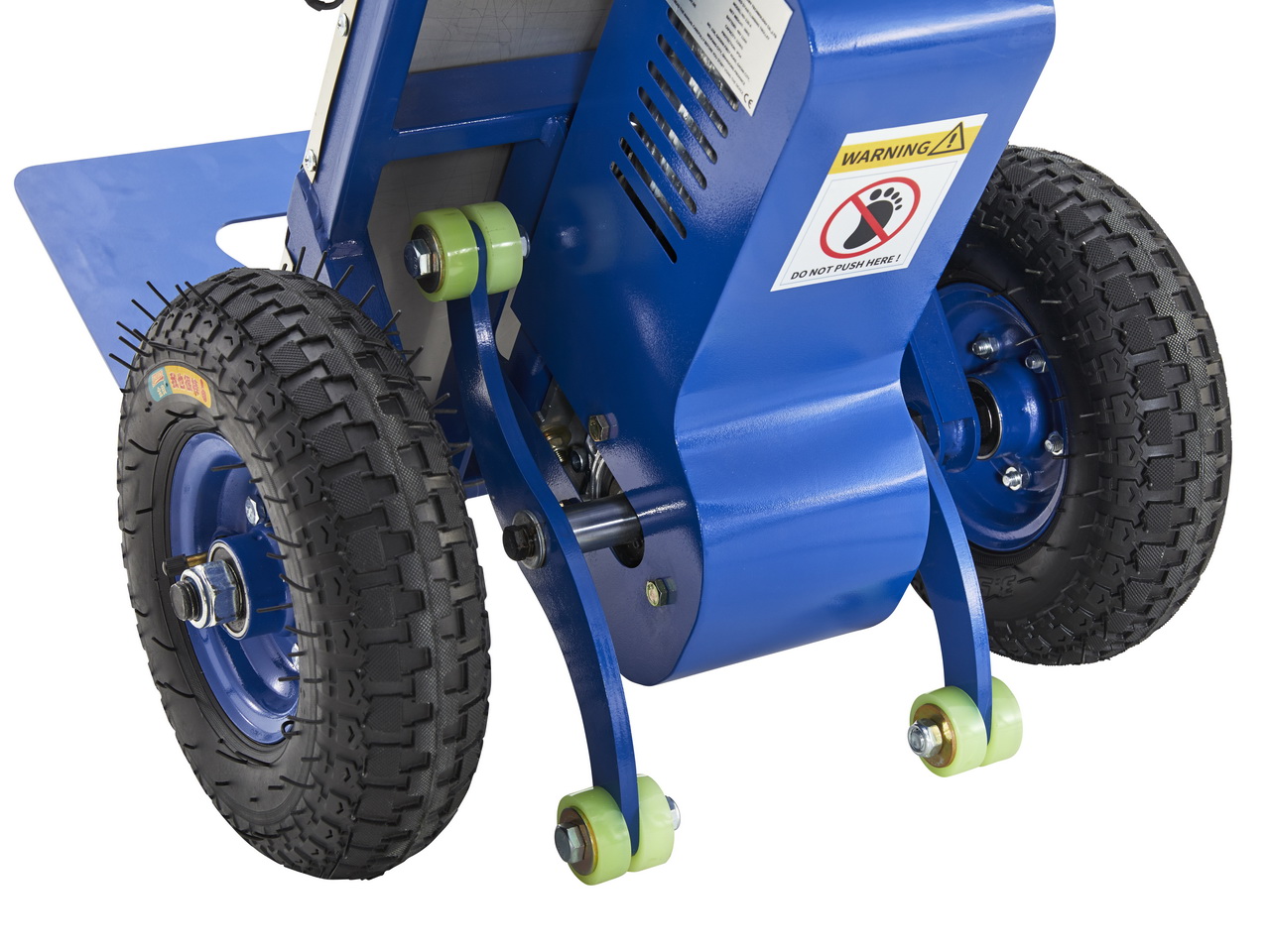

  • The ascending and descending mechanism always engages far enough into the edge of the steps, preventing slipping

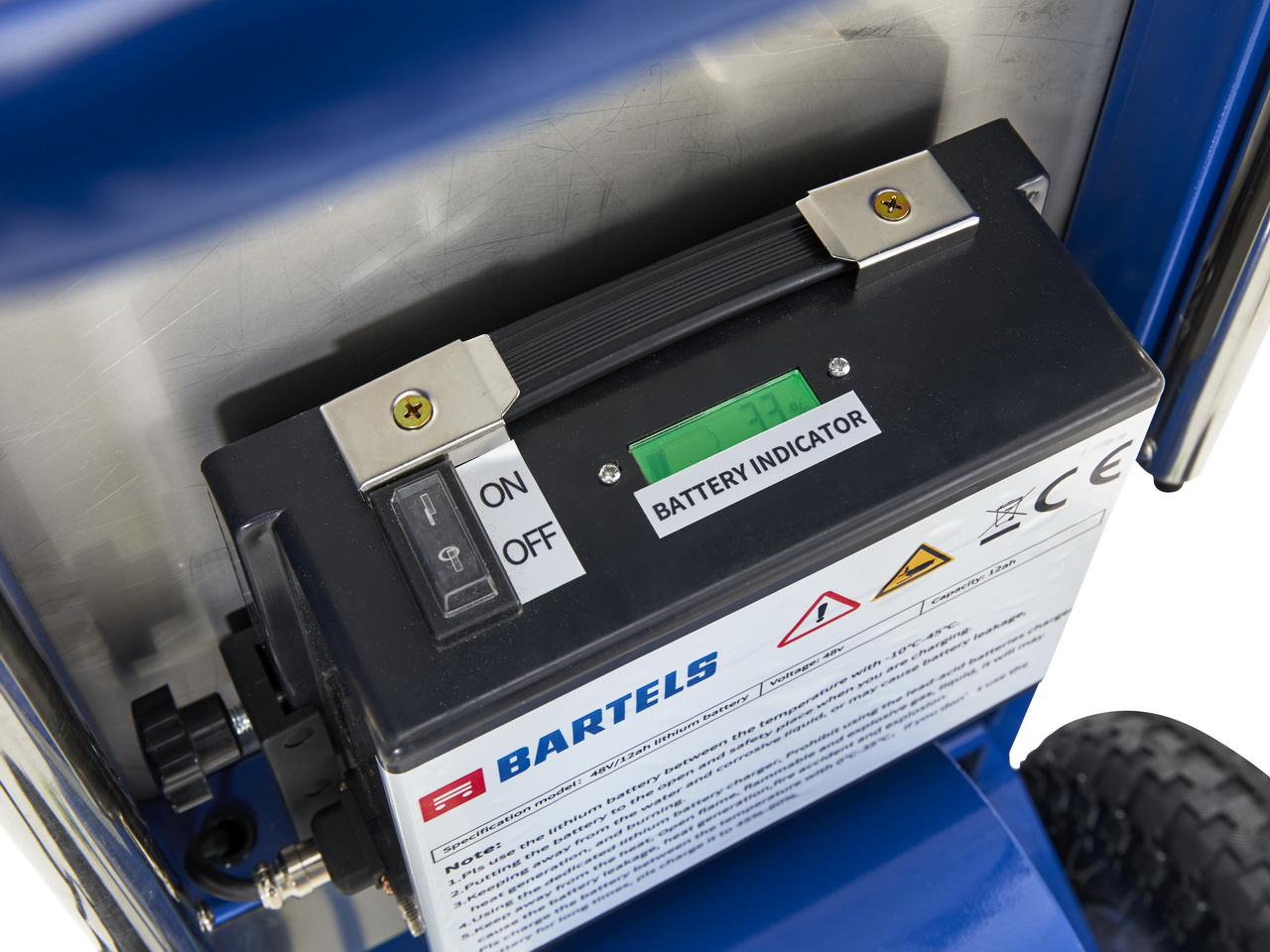

  • The digital charge indicator gives you an overview of the stair climber’s range at all times
  • The battery is fully charged after approx. 3 hours

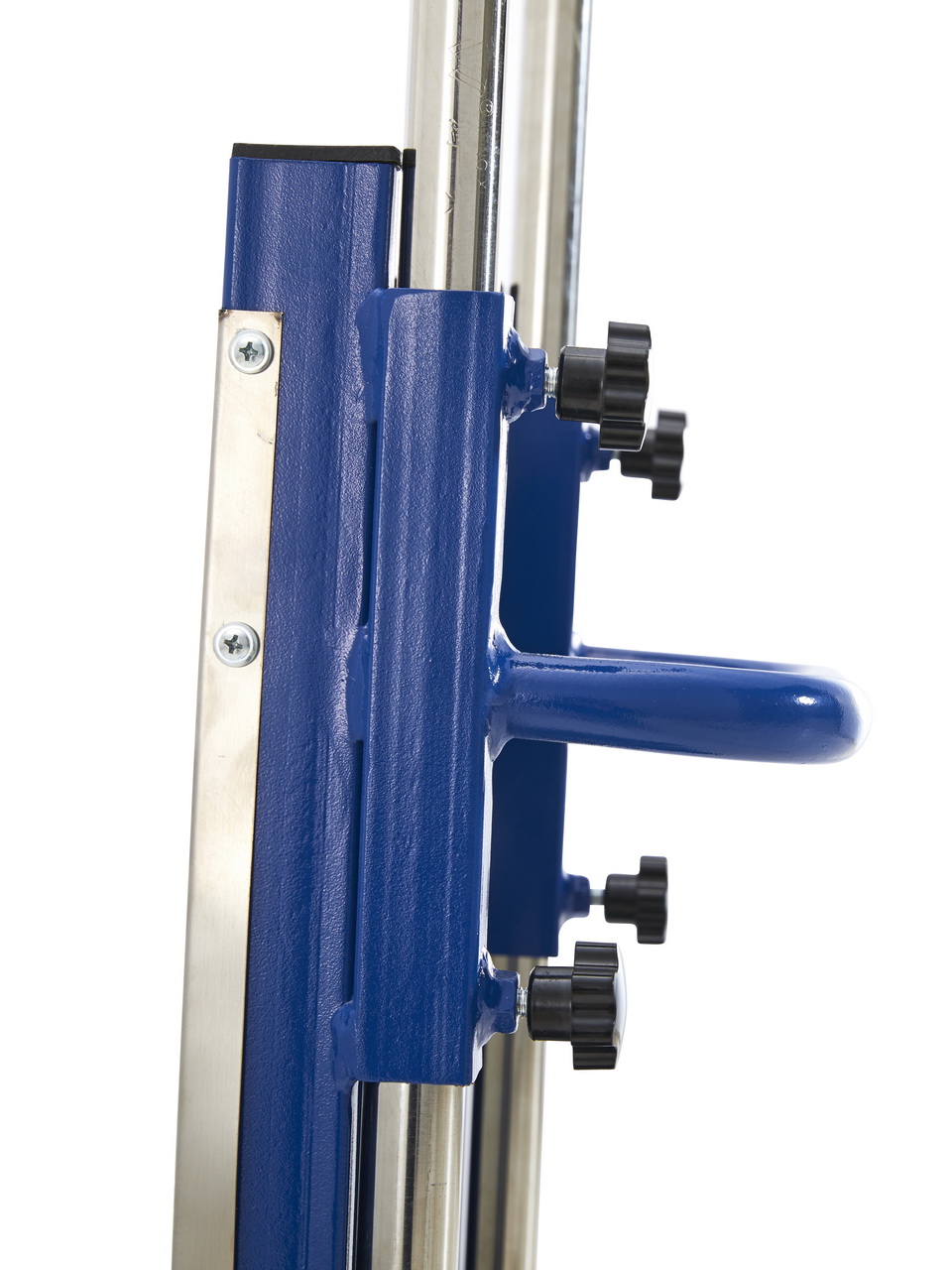

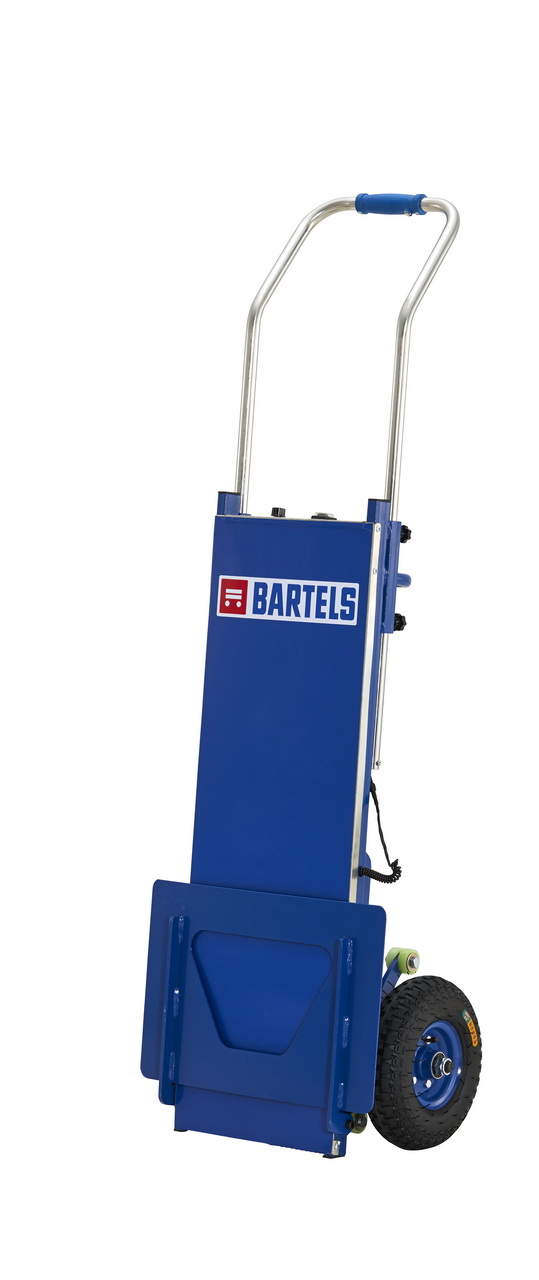

  • Foldable frame to reduce space requirements to a minimum

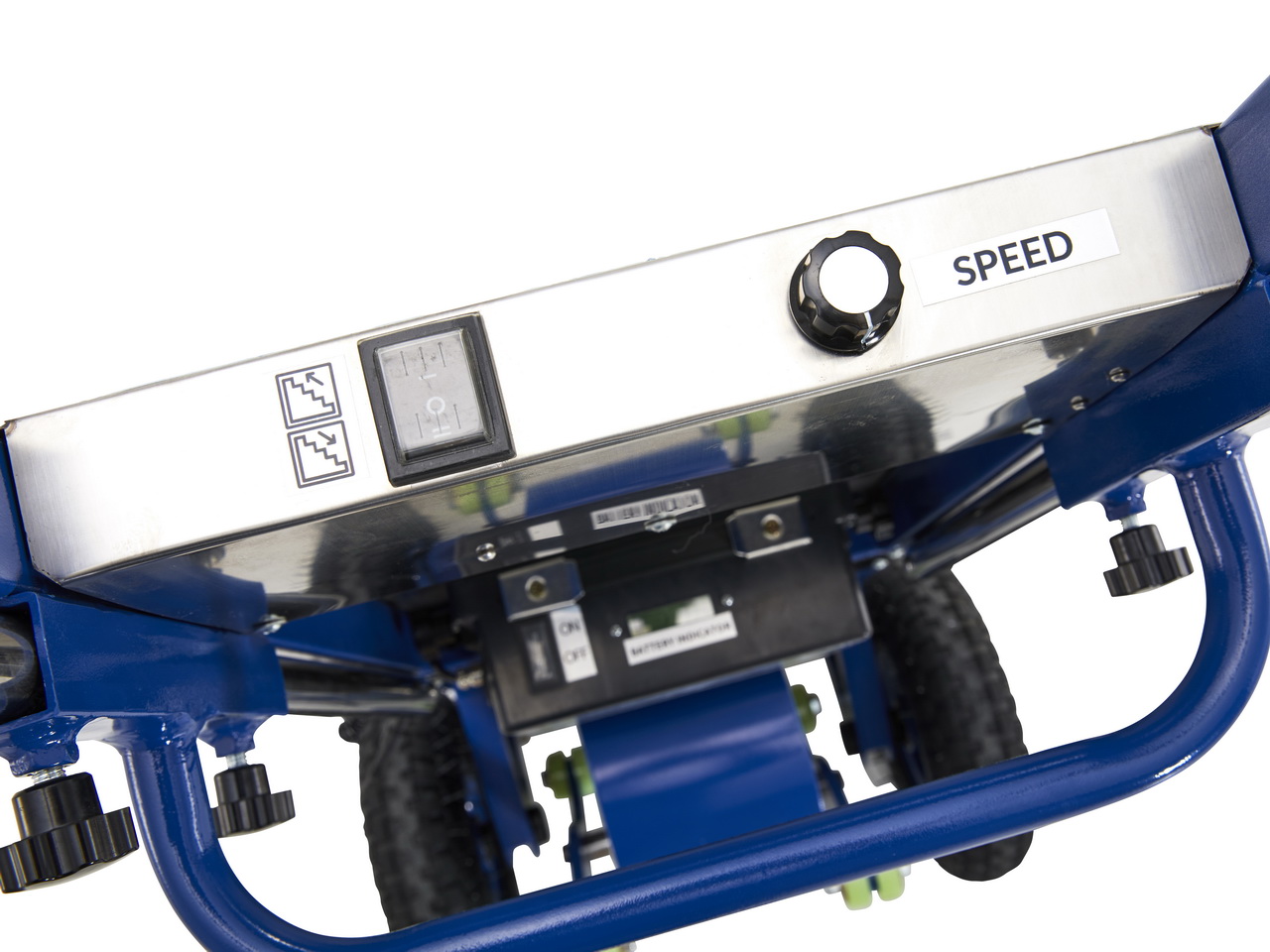

  • Adjustable speed, depending on the situation on site
  • Smooth start-up to minimise strain on the operator and the unit
  • Dust and splash-proof according to IP54

Service & Consulting

We attach great importance to excellent service and technical support for your products. We offer you the best after-sales service (maintenance, repairs and spare parts) for all your stair climbers.

Our consultants will gladly assist you. Please send us a message.

For security verification, please enter any random two digit number. For example: 13

Scope of delivery

1 x Bartels Goral stair climber
1 x tensioning strap for fastening the load

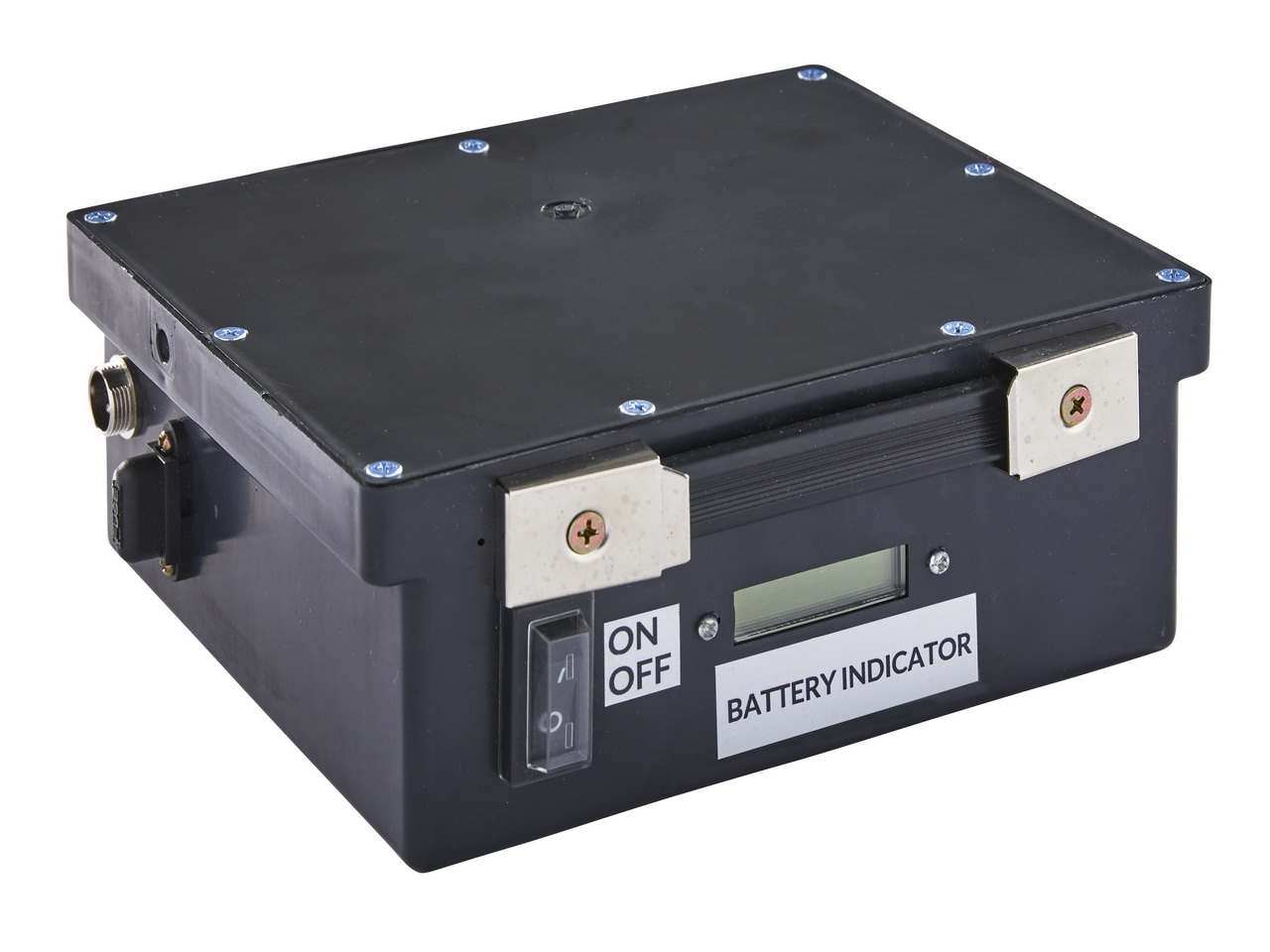

1 x lithium-ion battery

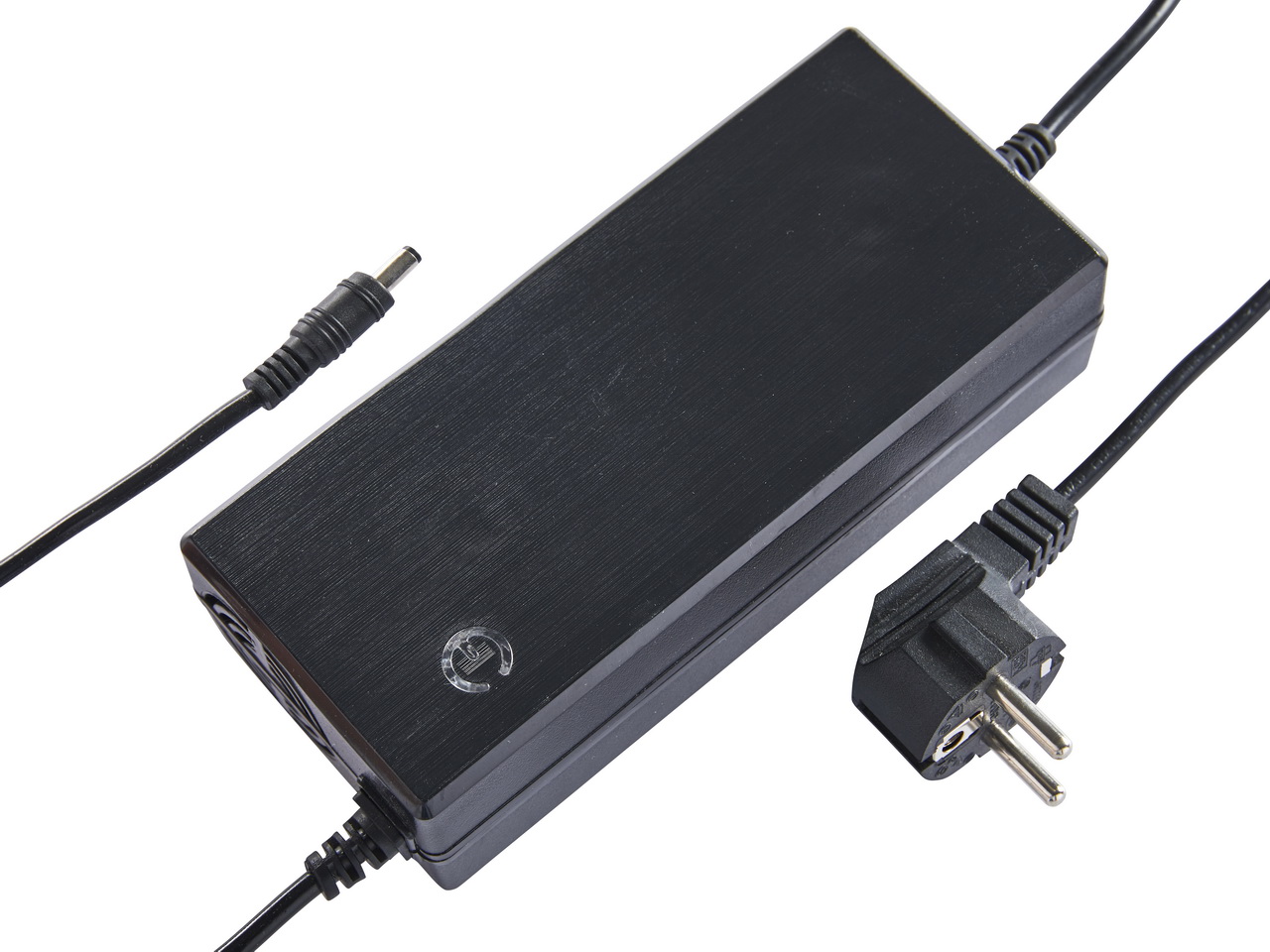

1 x automatic battery charger

Technical specifications Bartels Goral Stair Climbers

Stair climber Ibex
Own weight38 kg
Load 220 kg
Dimensions unfolded L x W x H 540 mm x 340 mm x 1,800 mm
Dimensions folded L x W x H 540 mm x 340 mm x 1,300 mm

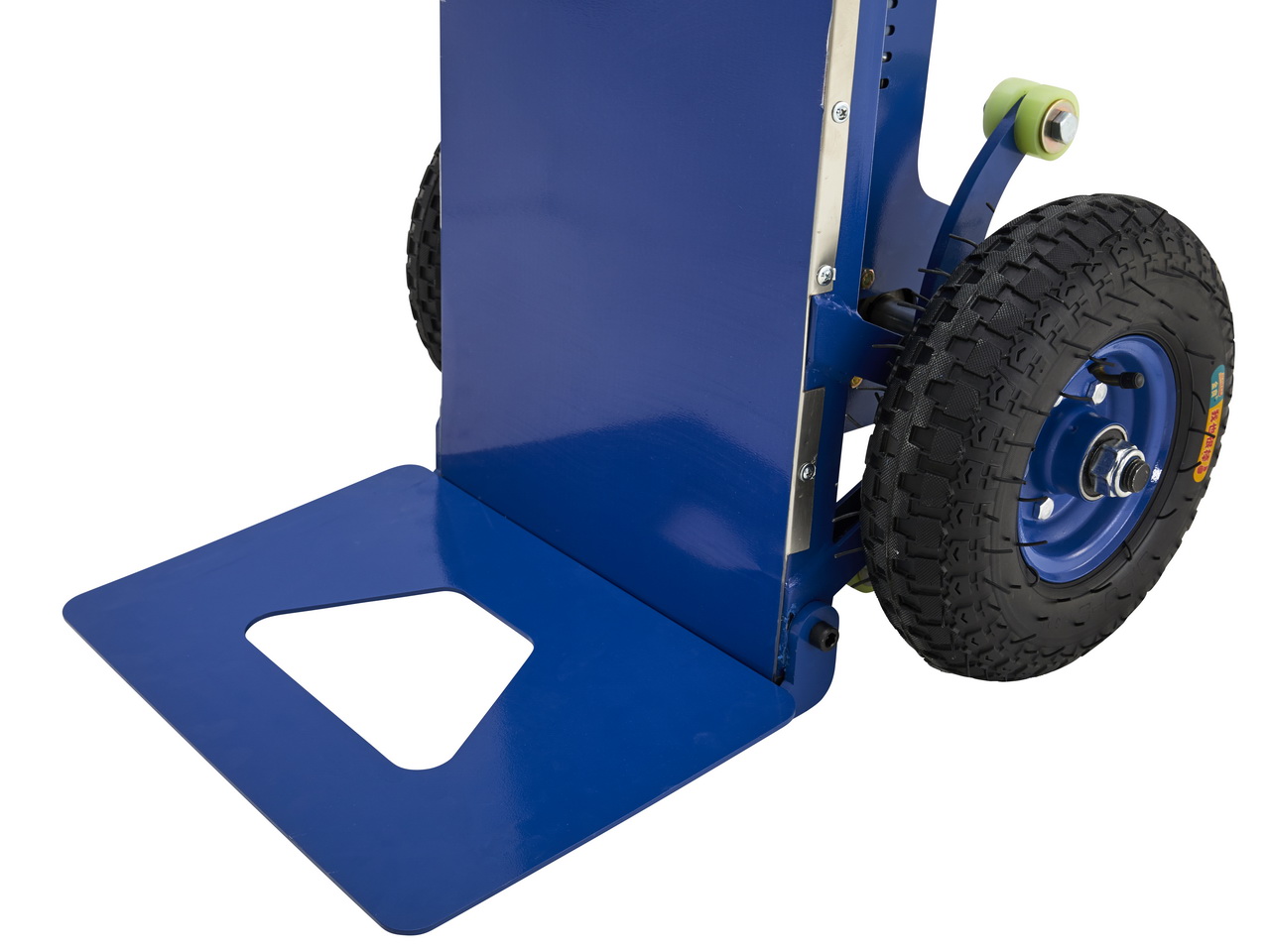

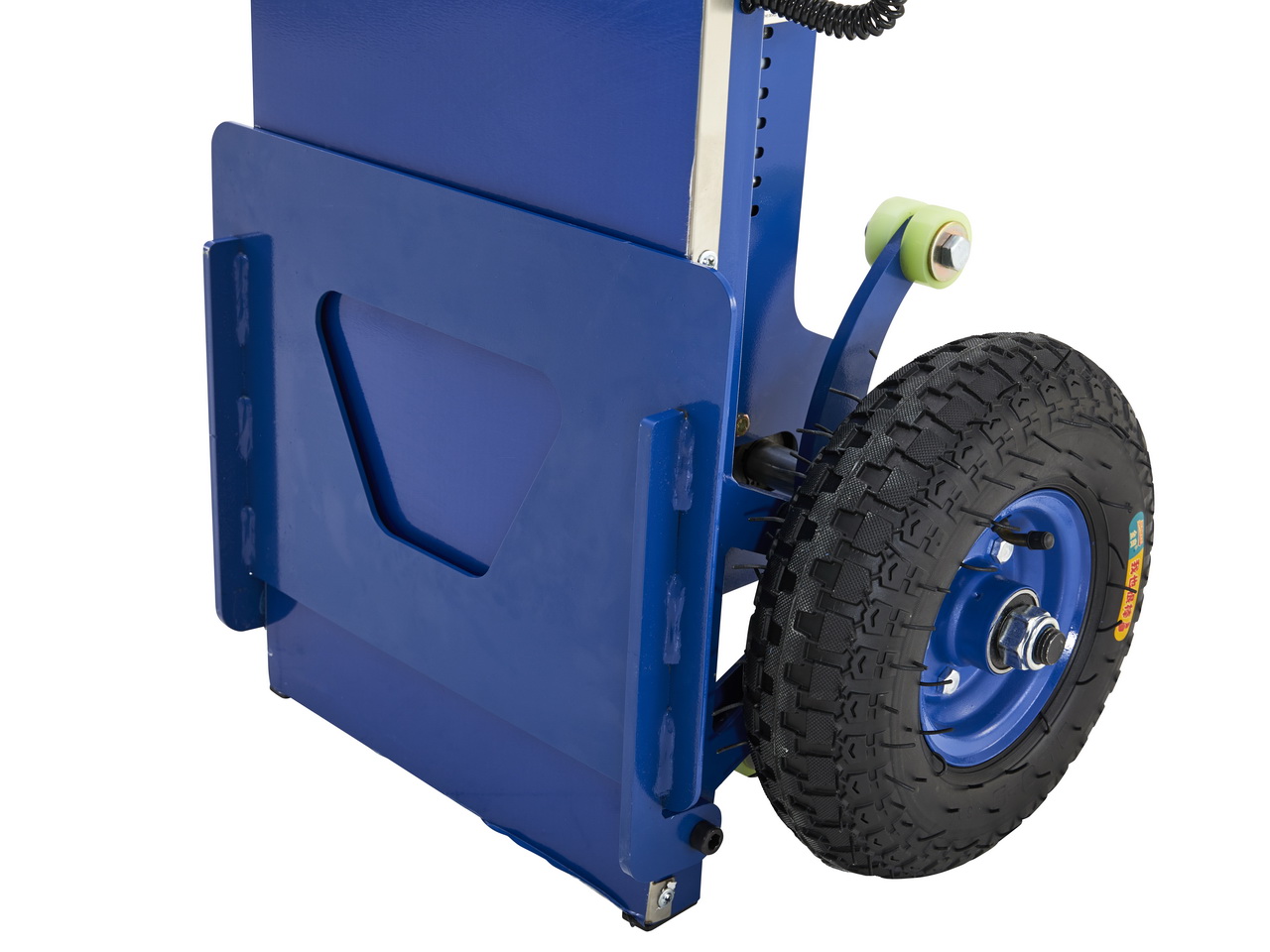

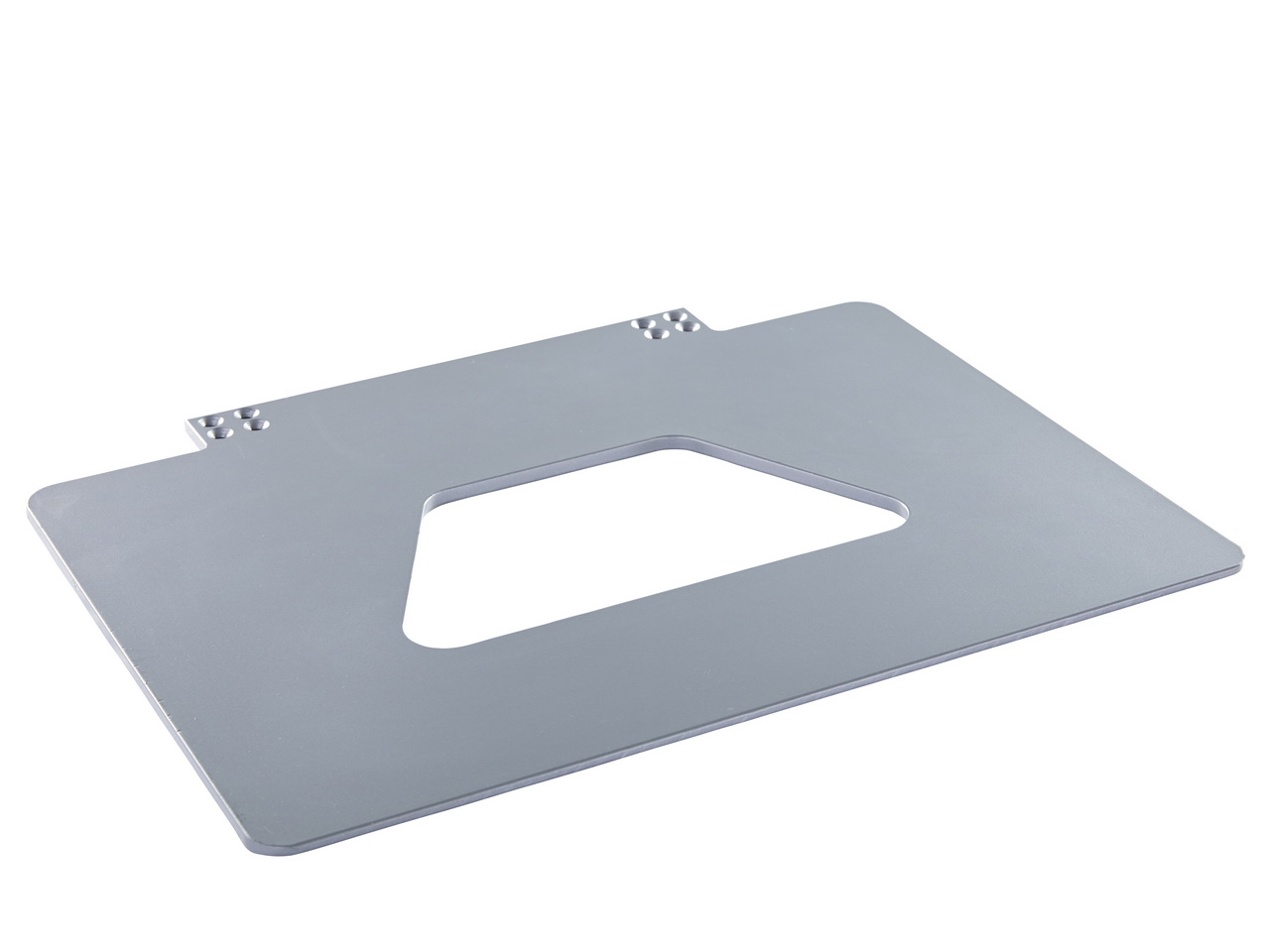

Bucket dimensions W x D 400 mm x 240 mm
Climbing speed slow25 steps/minute
Climbing speed fast 30 steps/minute
Range 1,800 – 2,000 steps/load
Battery weight 3.15 kg
Battery12 Ah
Battery voltage 48 V
Charging voltage 230 V
Charging time approx. 3 hours
