Pallet Stacking System PSS
A recurring problem: a pallet with different loading levels cannot be stacked.

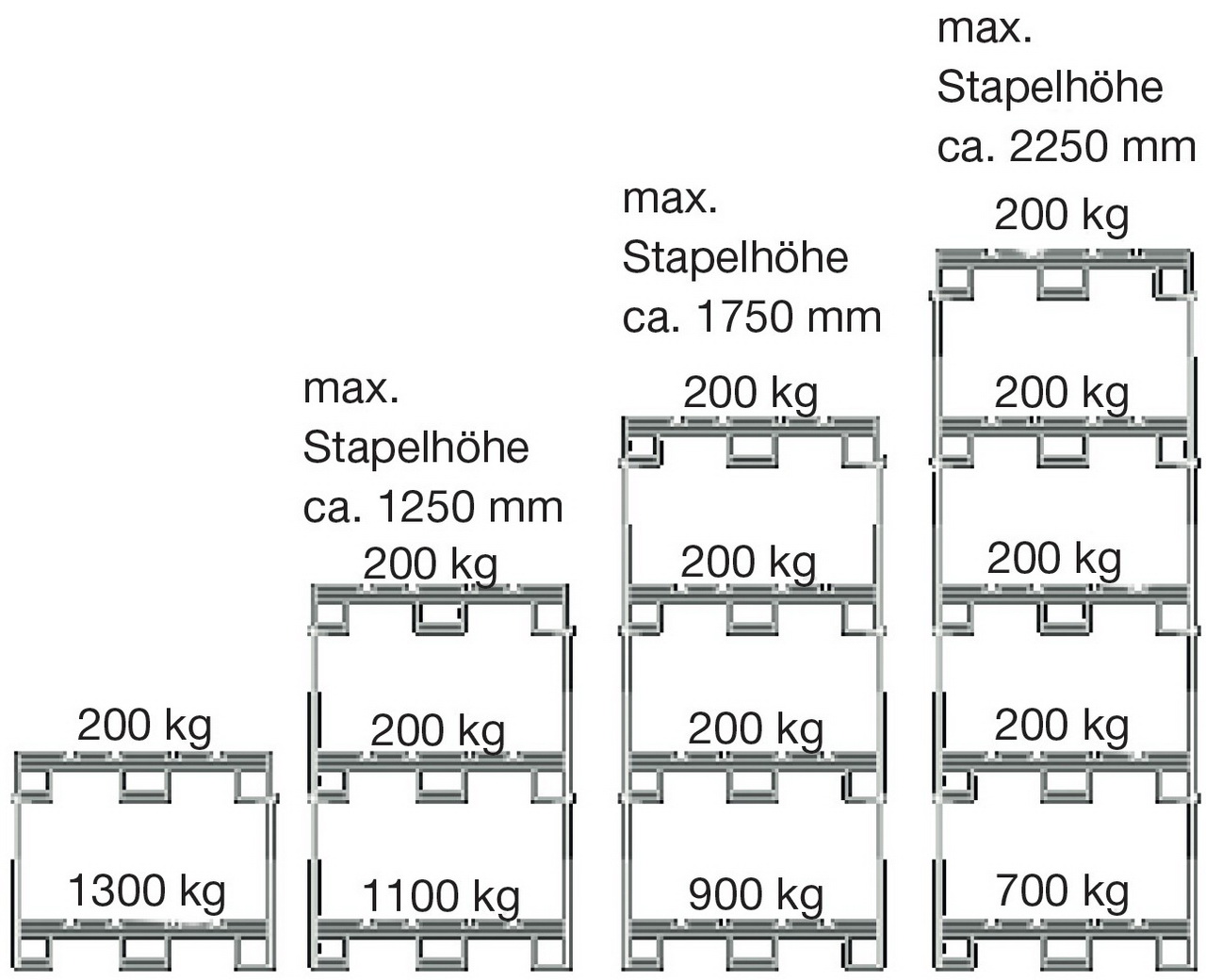

Now there’s the solution: The PSS pallet stacking system ensures optimum space utilisation thanks to flexible height adjustment, enabling your truck to have up to 600% more loading capacity. The PSS achieves this immense capacity increase by allowing loaded pallets to be stacked up to 6 times on top of each other. Even the most sensitive goods are not damaged. If the system is not needed, it can be folded up in a space-saving way, for example on the truck.
Advantages
Advantages of the PSS pallet stacking system
- Suitable for all EPAL pallets
- Stackability of various goods
- Plannable use of space in the truck
- Loading of different products
- Optimized use of the payload
- Easy handling during loading
- Optimized weight distribution
- Removal of the goods from all sides
- Production to customer-specific dimensions possible (standard are dimensions of EPAL pallets)
- Safe loading according to the standard
Design

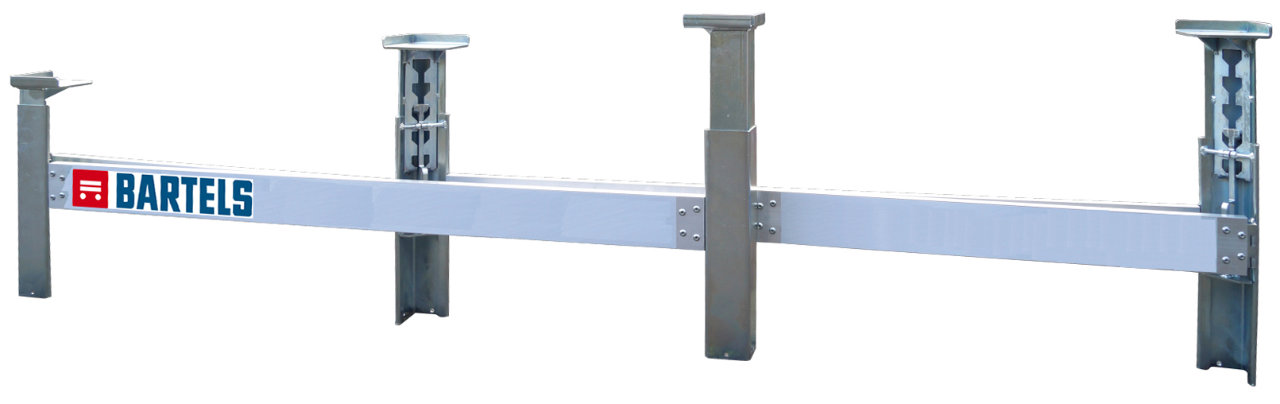

Optional
- Production according to customer-specific dimensions is possible
- (Standard are dimensions of EPAL pallets)
- Side panels can be customized for a surcharge.
Our consultants will gladly assist you.

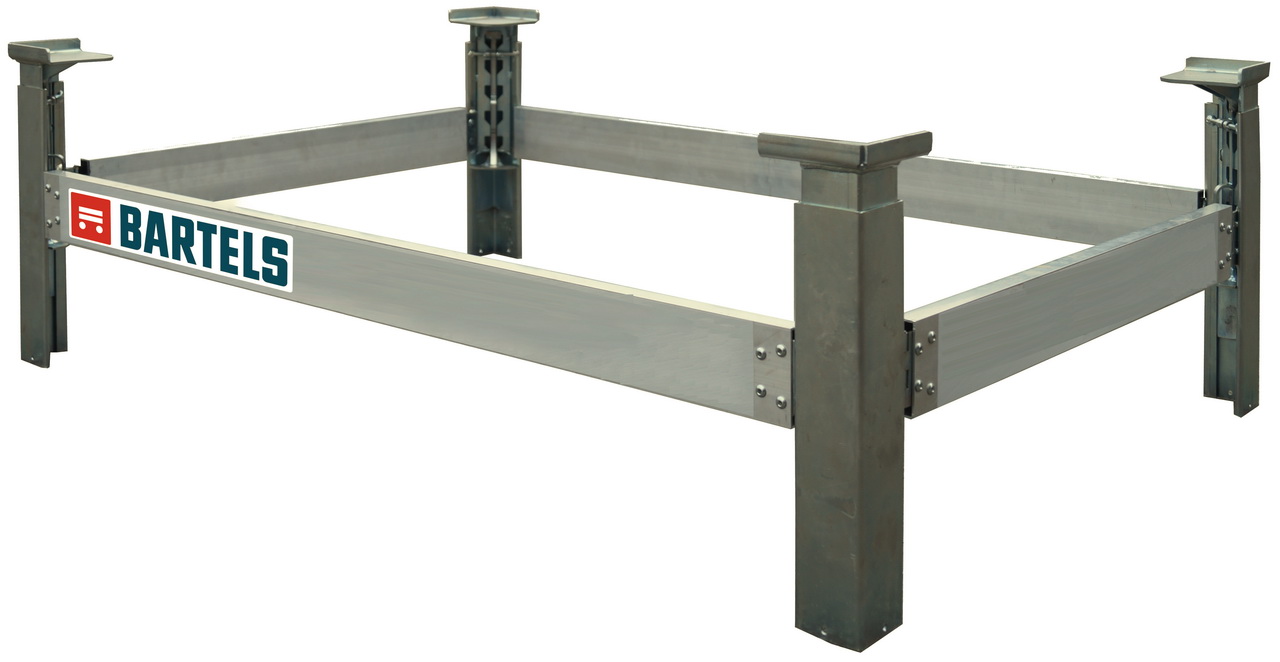

PSS 1 for full use of truck space
Max. 3 pieces of PSS 1 side by side in truck width
| Typ | PSS 1 | |
|---|---|---|
| Min. height | mm | 394,5 |
| Max. Height | mm | 554,5 |
| Usable pallet dimensions | mm | 1.160 x 760 |
| Weight | kg | 14,9 |
PSS 2 for full use of truck space
Max. 2 pieces PSS 1 side by side in truck width
| Typ | PSS 1 | |
|---|---|---|
| Min. height | mm | 394,5 |
| Max. Height | mm | 554,5 |
| Usable pallet dimensions | mm | 11.86,5 x 788 |
| Weight | kg | 14,9 |
