Stair climber Bartels Ibex – 150 kg

○ Smooth start-up ○ Adjustable speed ○ Capacity 150 kg

The Bartels stair climber Ibex combines the handiness of a manual stair trolley with the efficiency of an all-round stair climber.

The device can be operated by only one person. Ideally suited for transporting goods of all kinds, the Ibex easily masters bulky goods such as stoves, building materials or white goods.

With one battery charge, you have a range of up to 2,500 steps up and down. The climbing speed is up to 30 steps/minute depending on the setting and weight.

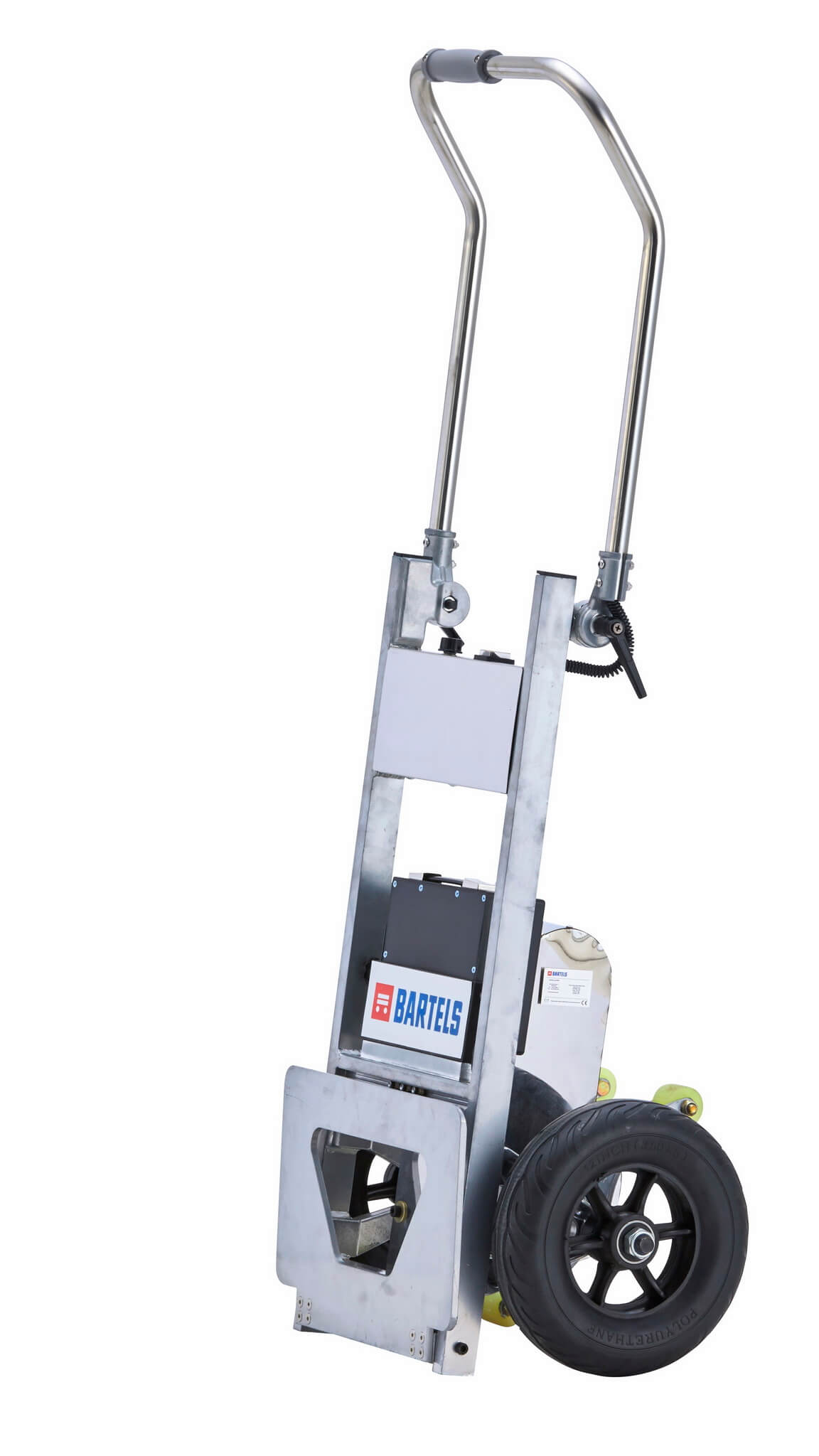

Stair climber Bartels Ibex
Convince yourself of our Stair climber Bartels Ibex – More Pictures


    Advantages of the stair climber Bartels Ibex

    • Load capacity 150 kg
    • Maintenance-free electric motor

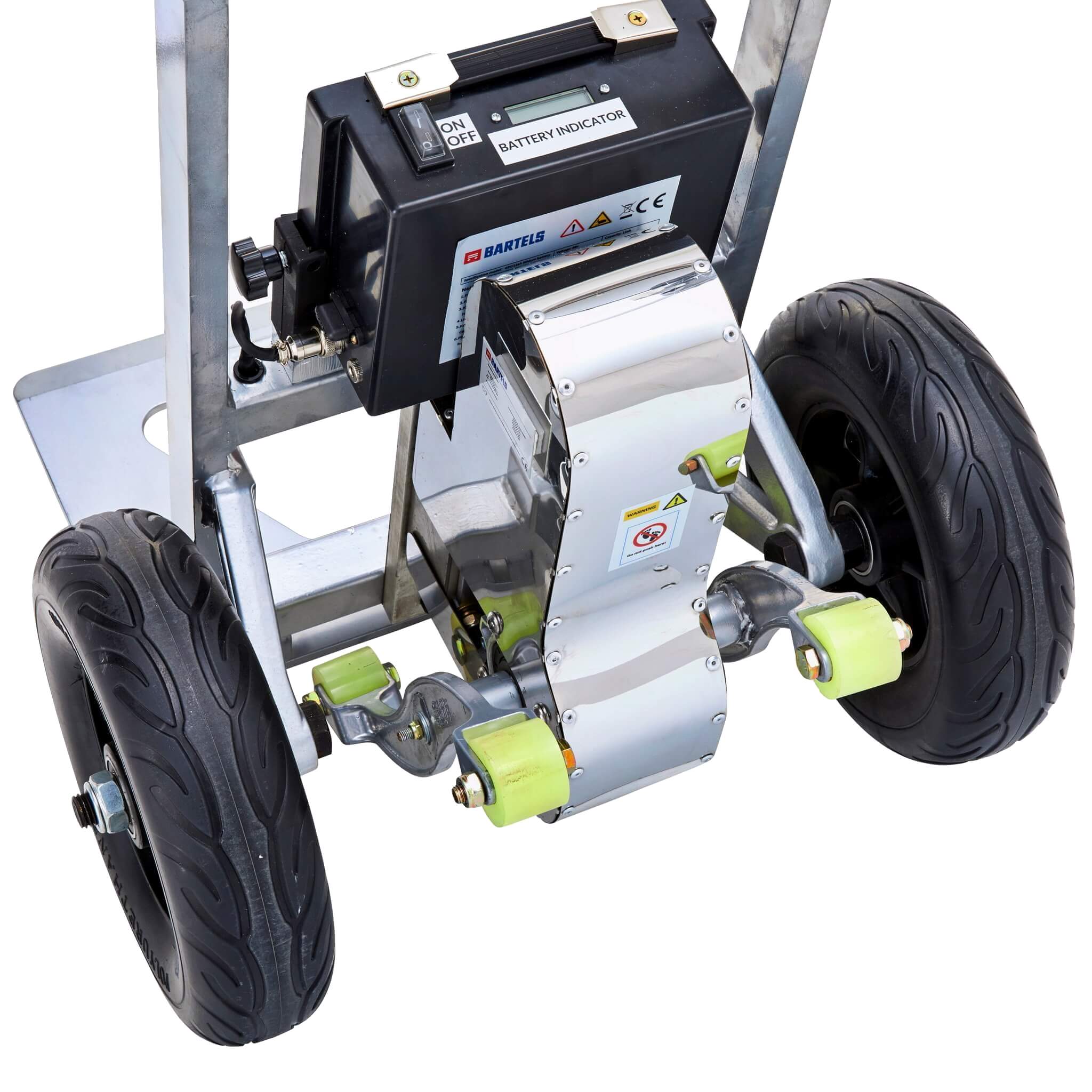

    • The ascending and descending mechanism always engages far enough into the edge of the steps, preventing slipping
    • The digital charge indicator gives you an overview of the stair climber’s range at all times
    • The battery is fully charged after approx. 3 hours

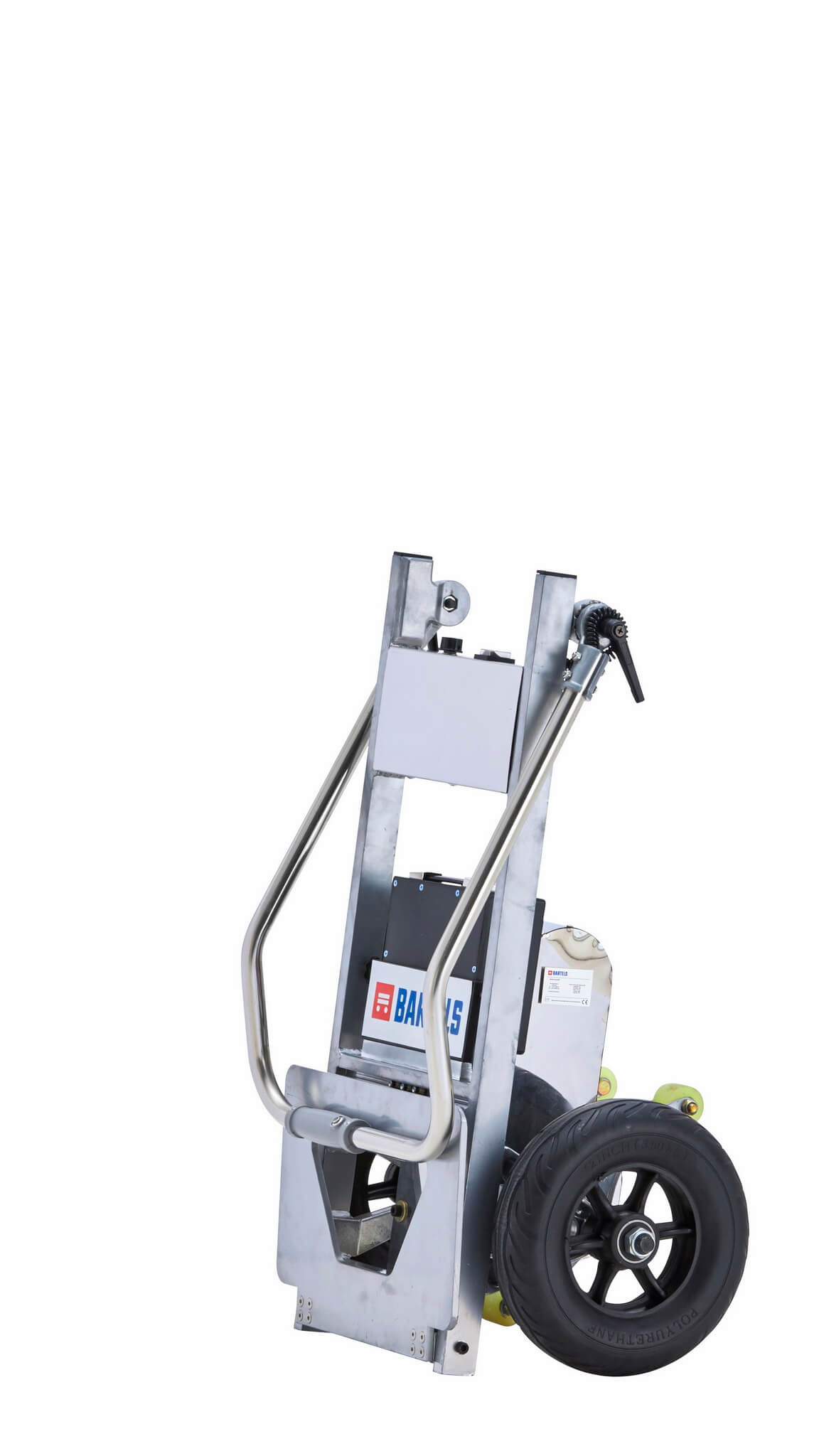

    • Foldable frame to reduce space requirements to a minimum

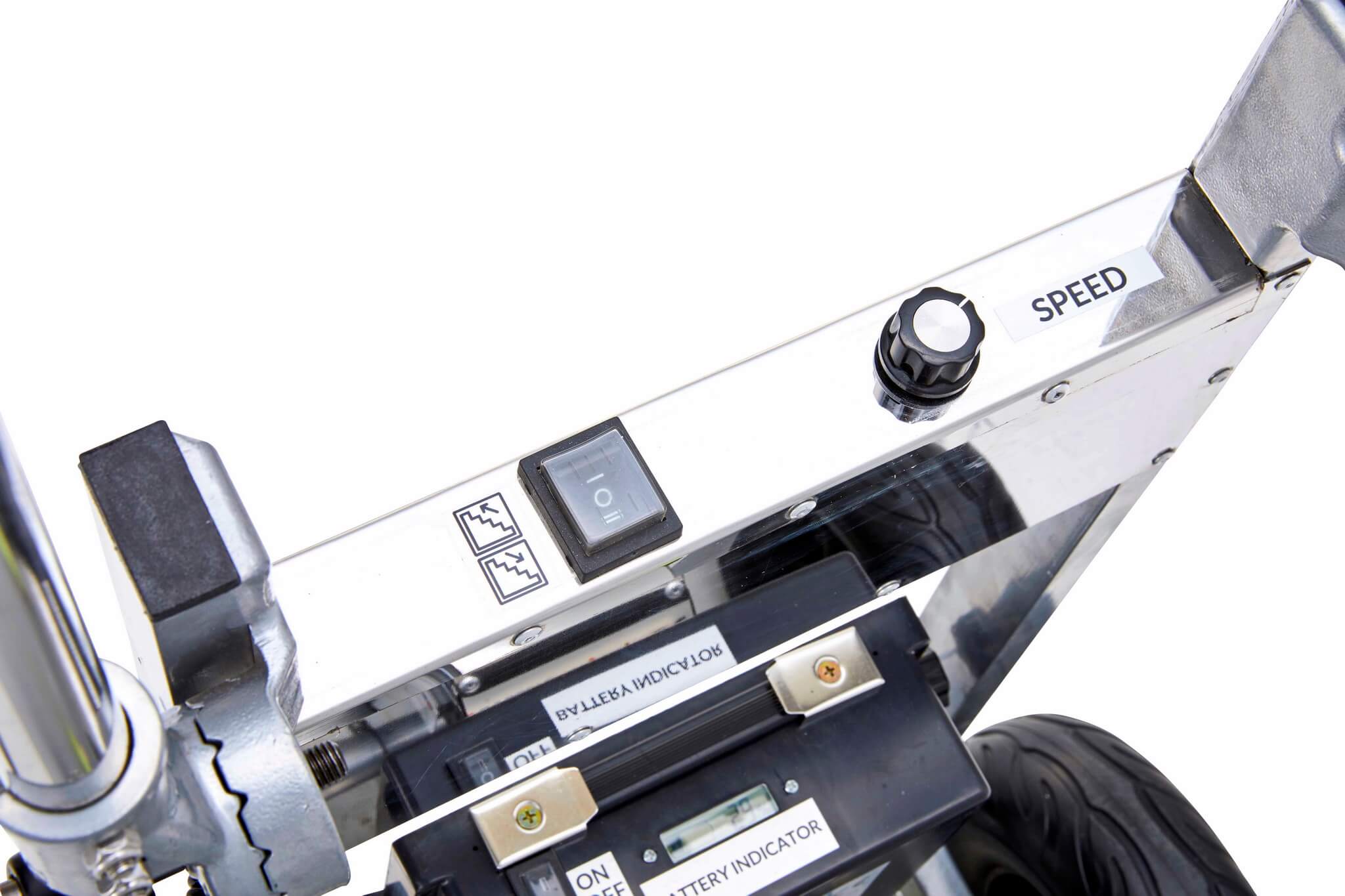

    • Adjustable speed, depending on the situation on site
    • Smooth start-up to minimise strain on the operator and the unit
    • Dust and splash-proof according to IP54

    Service & Consulting

    We attach great importance to excellent service and technical support for your products. We offer you the best after-sales service (maintenance, repairs and spare parts) for all your stair climbers.

    Our consultants will gladly assist you. Please send us a message.

    For security verification, please enter any random two digit number. For example: 60

    Scope of delivery

    1 x Bartels Ibex stair climber
    1 x tensioning strap for fastening the load
    1 x lithium-ion battery
    1 x automatic battery charger

    Technical specifications Stair climber Bartels Ibex

    Stair climber Ibex
    Own weight26 kg
    Load 150 kg
    Dimensions unfolded L x W x H 540 mm x 340 mm x 1,350 mm
    Dimensions folded L x W x H 540 mm x 340 mm x 850 mm
    Bucket dimensions W x D 400 mm x 240 mm
    Climbing speed slow25 steps/minute
    Climbing speed fast 30 steps/minute
    Range 2,000 – 2,500 steps/load
    Battery weight 3.15 kg
    Battery12 Ah
    Battery voltage 48 V
    Charging voltage 230 V
    Charging time approx. 3 hours
