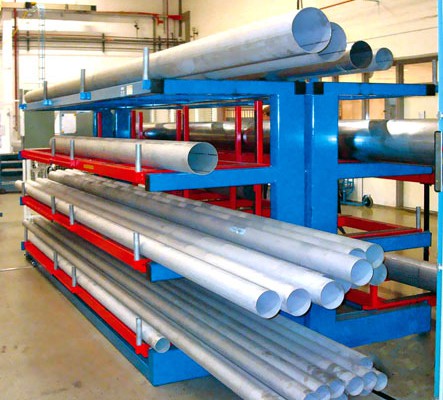

Bartels Schubfachregal für Langgut
Breite max. 6.000 mm
Höhe min. 100 mm
Tiefe max. 1.000 mm
Gewicht max. 1.000 kg

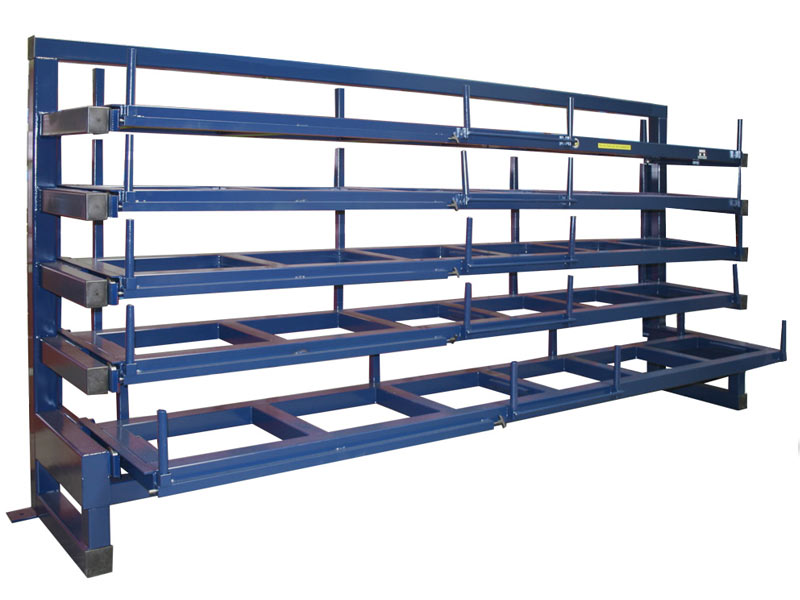

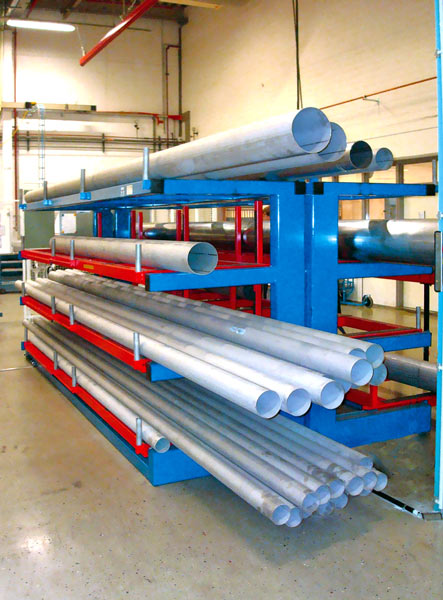

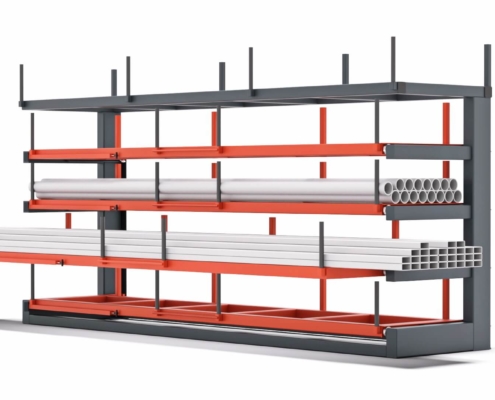

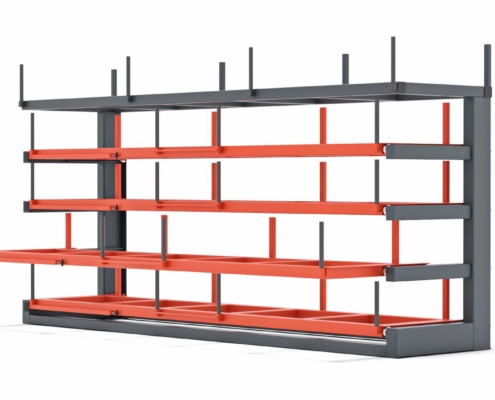

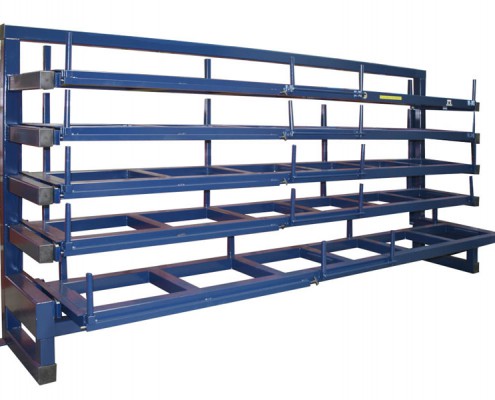

Drawer Rack for lengthy goods

Optimize your warehouse with the Bartels long material Drawer Rack.

With this quick-access rack, you have quick and safe manual access to your bars for quick processing. Thanks to the low rack depth, you can clearly arrange and store your lengthy goods on the hall wall and save space.
Drawer Rack
Convince yourself of our Drawer Rack – go to photo gallery

Advantages

Advantages of the Drawer Rack for bars

  • Quick access
    Through easier manual extraction.
  • Extremely easy movement
    Even when fully loaded with 2.000 kg per shelf
  • Clearly stored
    Different material lengths on one rack
  • Low rack depth
    For space-saving installation directly on the hall wall
Operation

Operation

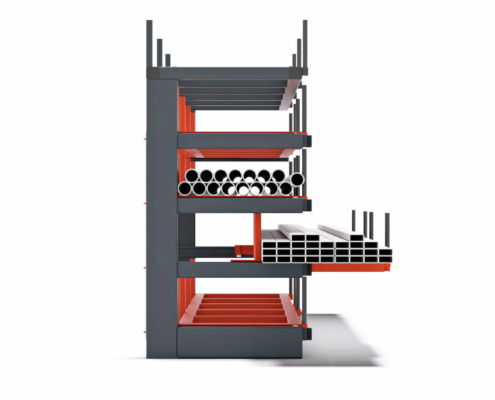

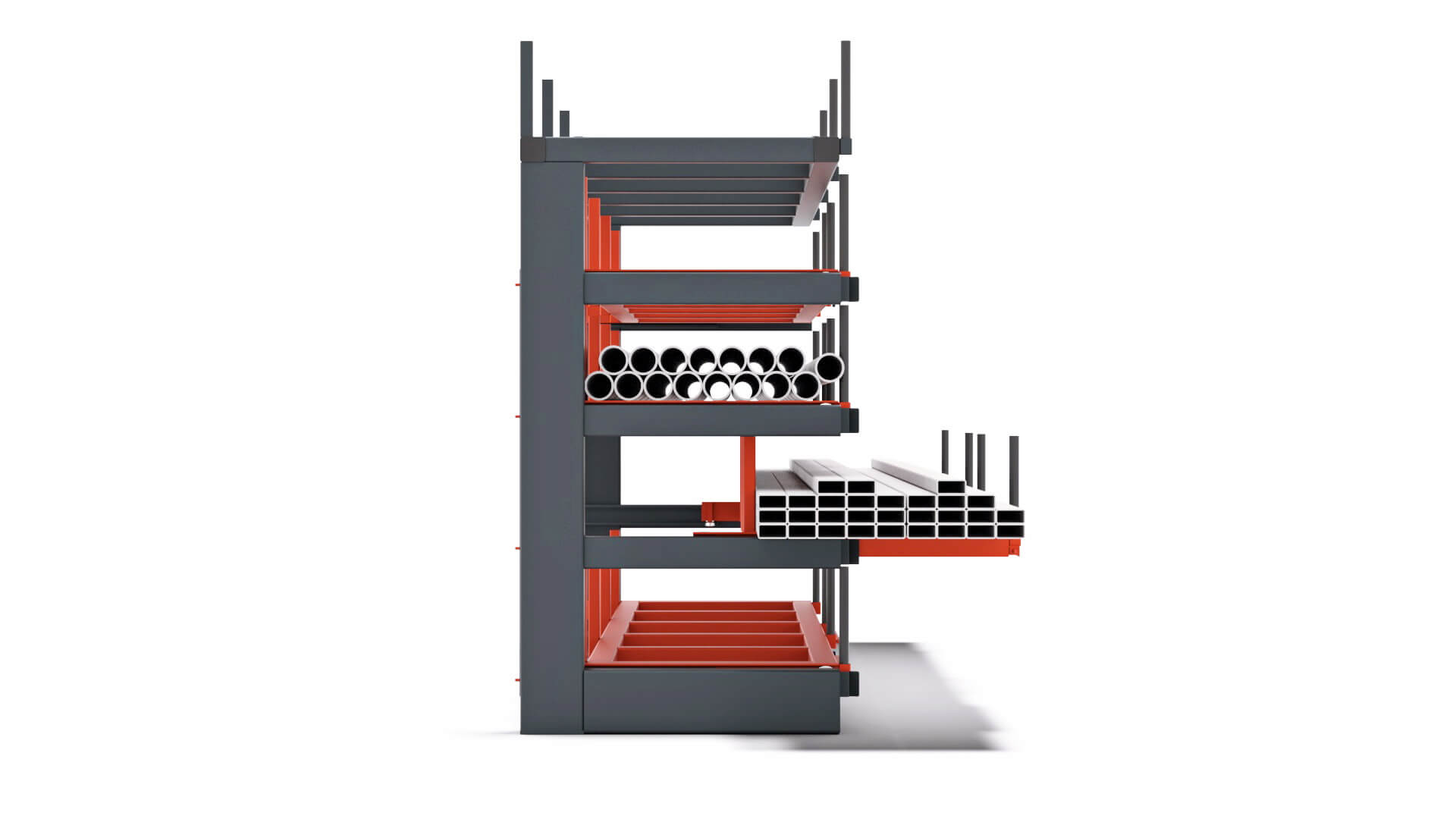

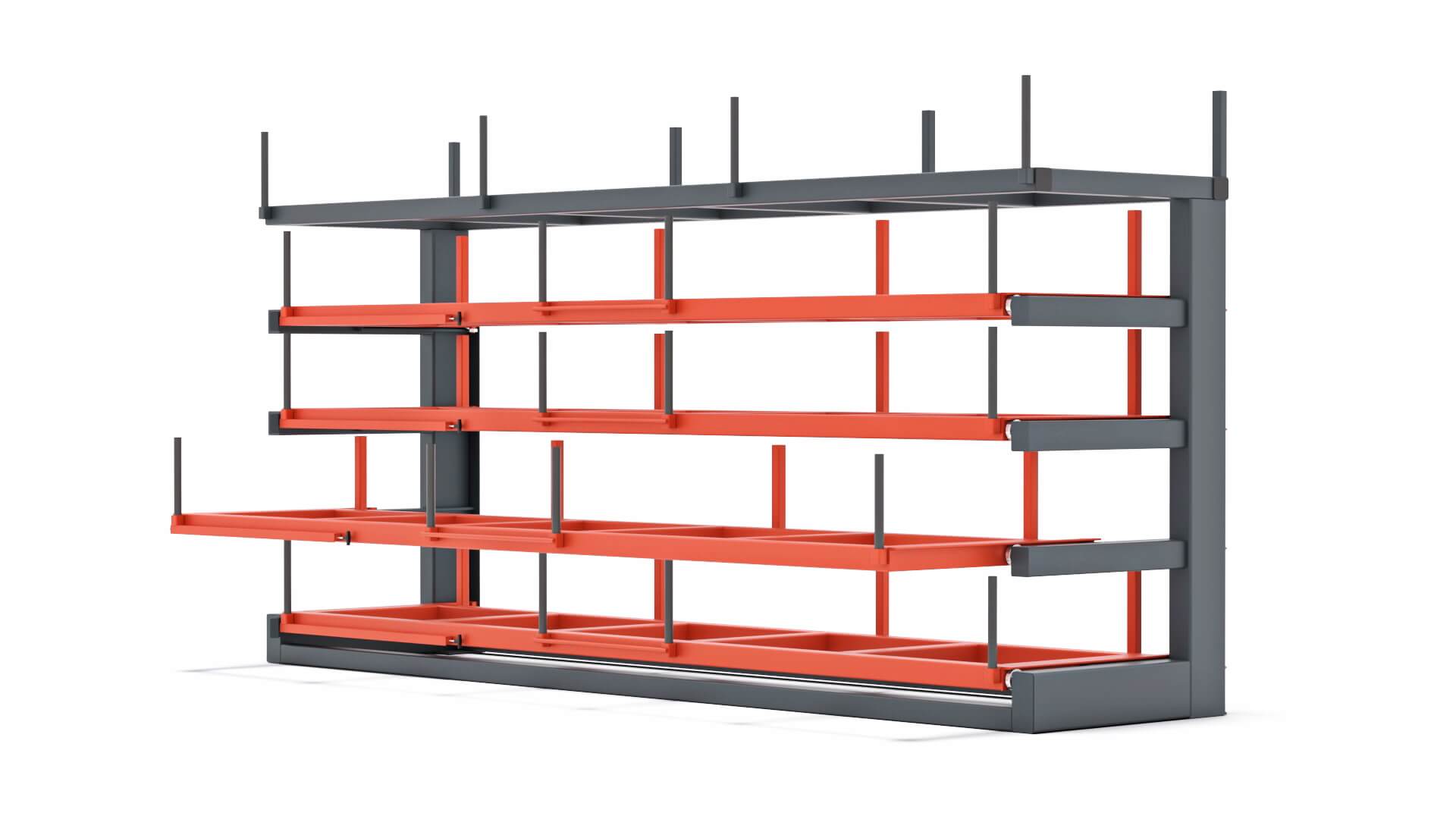

The drawers can be extracted by up to 2/3 and have maintenance-free ball bearings. Each drawer has a separate extraction locking device. The Drawer Rack is supplied fully assembled and is only fixed on site.

Design

Design

  • Each drawer has a separate pull-out lock
  • Loading and unloading by crane
  • Space-saving, as only narrow aisles are required when operating the crane
  • Easy handling even with maximum load thanks to double guides mounted in ball bearings on both sides
  • The drawer is supplied fully assembled
  • Standard colour: Structure blue RAL 5012, Roll-out arms red RAL 2002.
  • Per request: Custom dimensions and paint coats available in all RAL colours

Custom-made Drawer Rack

If you have material with a length of over 6.000 mm or require higher load capacities of the shelves, we can offer you individual, custom-made rack solutions.

To specify your request you may use our inquiry form:

Accessories for Drawer Rack

  • Various colours / custom paint coats
  • Custom dimensions

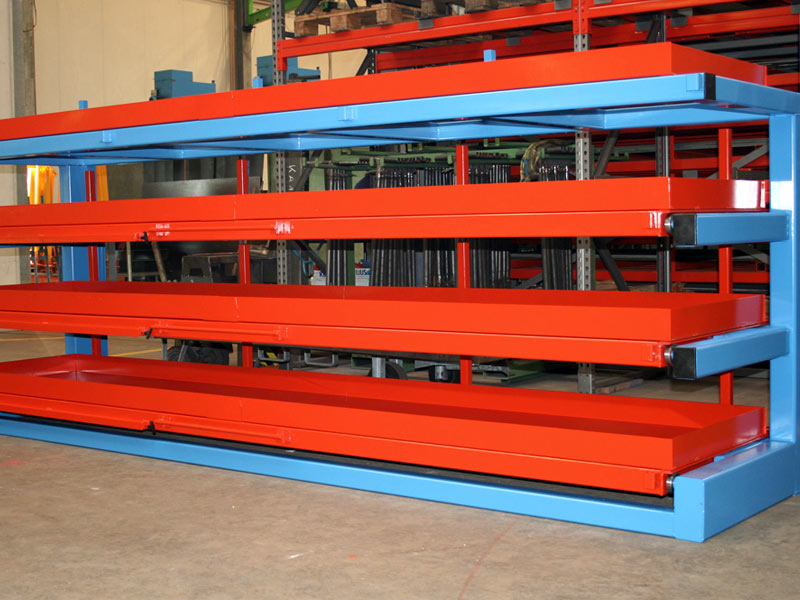

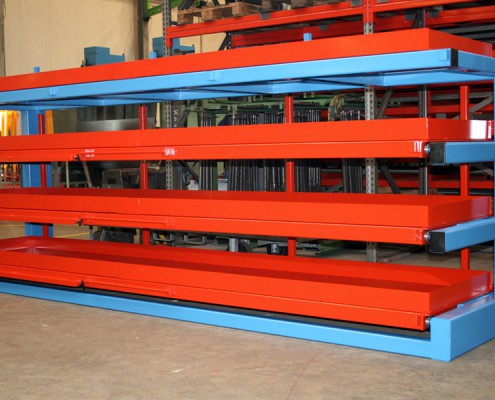

  • Sheet trays
  • Shelf dividers for an even better overview of storage materials

Safety thanks to rack inspection

The Drawer Rack requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
