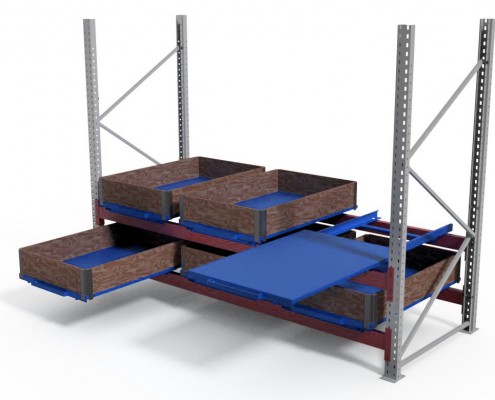

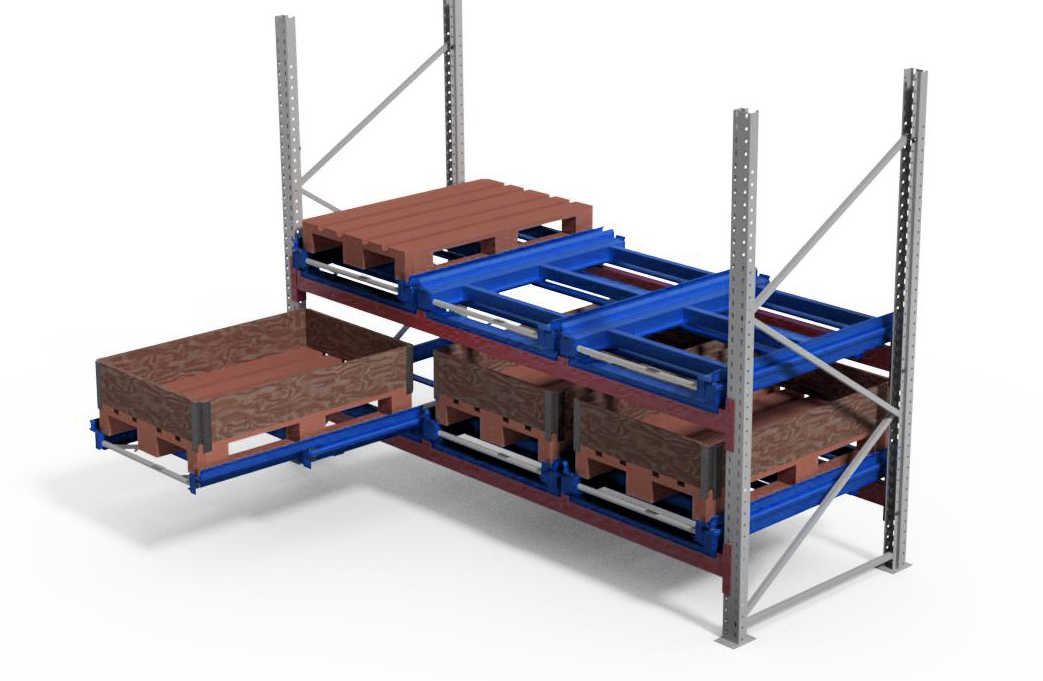

Rack Mounted Drawers

Ideal for installing on cross beams in pallet racks or directly on the floor.

Advantages
  • Transforms a pallet rack into a drawer rack
  • Suitable for most standard pallet racks on the market

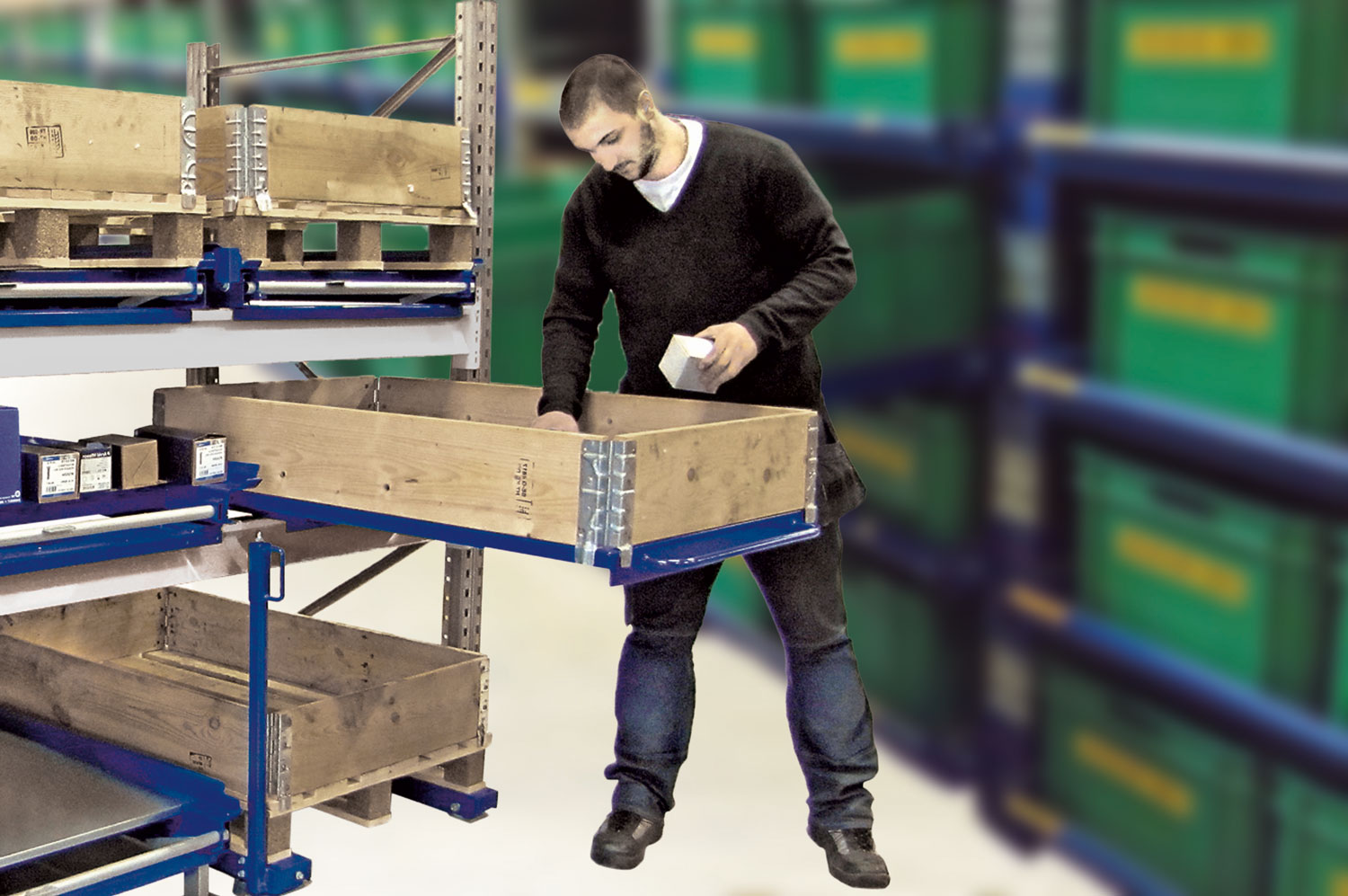

  • Easy access to stored goods from three sides without the use of lift trolleys or forklifts
  • Ergonomic operating positions, without acrobatics and athletic effort. No strain on back and shoulders
  • Space-saving, less aisle width needed
  • Greater safety through drawer stops
Design

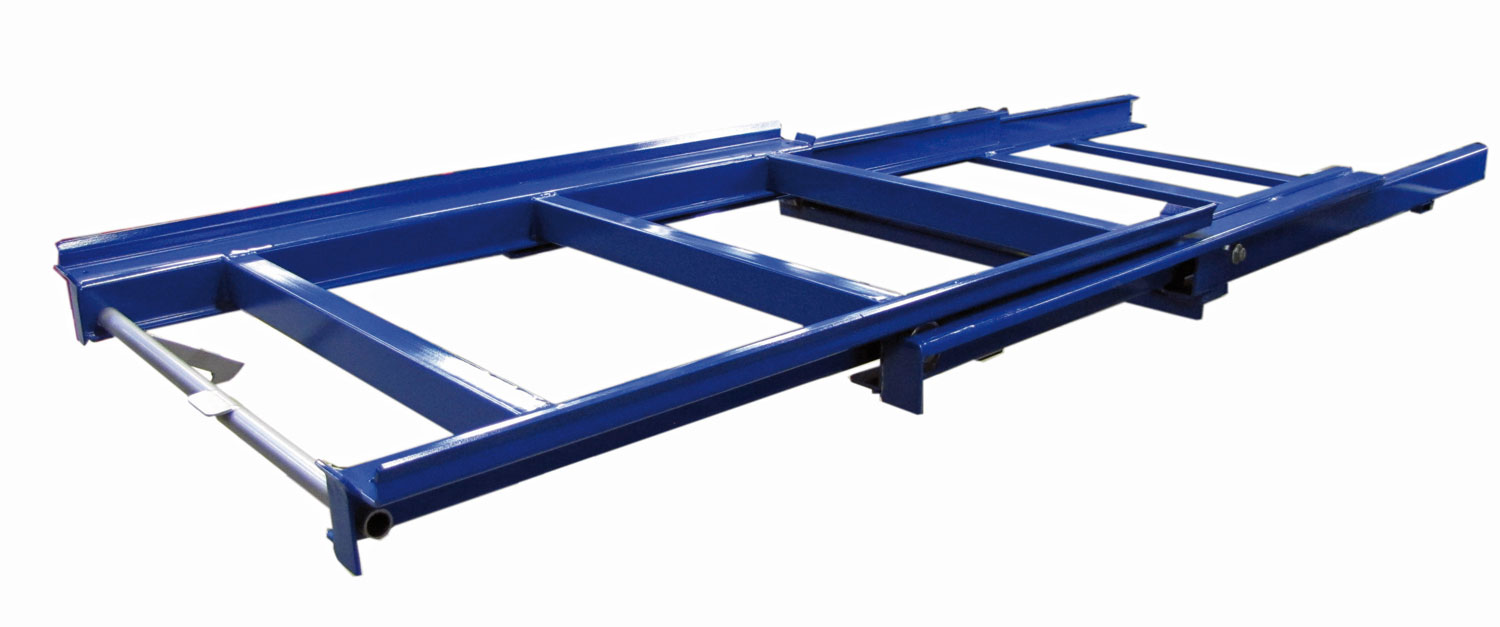

Solid reliable steel structure with load bearing components, high quality runners mounted on ball bearings. The delivery includes mounting materials and pallet stops for the front. Pallet stops in the back are already installed.

Standard color is blue RAL 5010; other colors are possible but will be extend the delivery time by 3 weeks.

Optional

Other colors are available at additional cost and different measurements are possible. Please contact us!

Please use our enquiry form to specify your request:

Load capacity of the pallet rack: With unilateral drawer extension the front crossbeam must have a higher load capacity than the drawer load. These cross beams must be designed for these forces. Optionally, this information can be requested from the suppliers of the pallet rack.

Generally, per compartment (with several drawers above each other) only one drawer may be pulled out at a time. Inserted drawers must be securely locked. The pallet rack must be anchored to the ground. Stabilizing crossbeams must be screwed to the frame.
