Stair climber Bartels Gobi

Load Capacity 130 kg – Eccentric drive

The stair climber Bartels Gobi can be operated by only one person.

The Gobi has a high-strength steel frame and offers maximum freedom of movement even in confined spaces and on landings. The device is dust and splash-proof according to IP54 and has a maintenance-free electric motor. The digital charge indicator gives you an overview of the battery status of the stair climber at all times.

The frame is foldable to reduce the space requirement to a minimum.

With one battery charge you have a range of up to 2,000 steps. The climbing speed is up to 36 steps/minute depending on the setting and weight.

Stair climber Bartels Gobi
Convince yourself of our Stair climber Bartels Gobi – More Pictures

Treppensteiger Bartels Gobi

Advantages of the stair climber Bartels Gobi

  • Eccentric drive
  • Extra long tracks ensure safe handling
  • Weight is always transferred to the stairs
  • Easy to move as a transport trolley due to the additional front wheels
  • Maximum freedom of movement even in confined spaces
  • Foldable frame to reduce space requirements to a minimum
  • Flexible adjustable handle

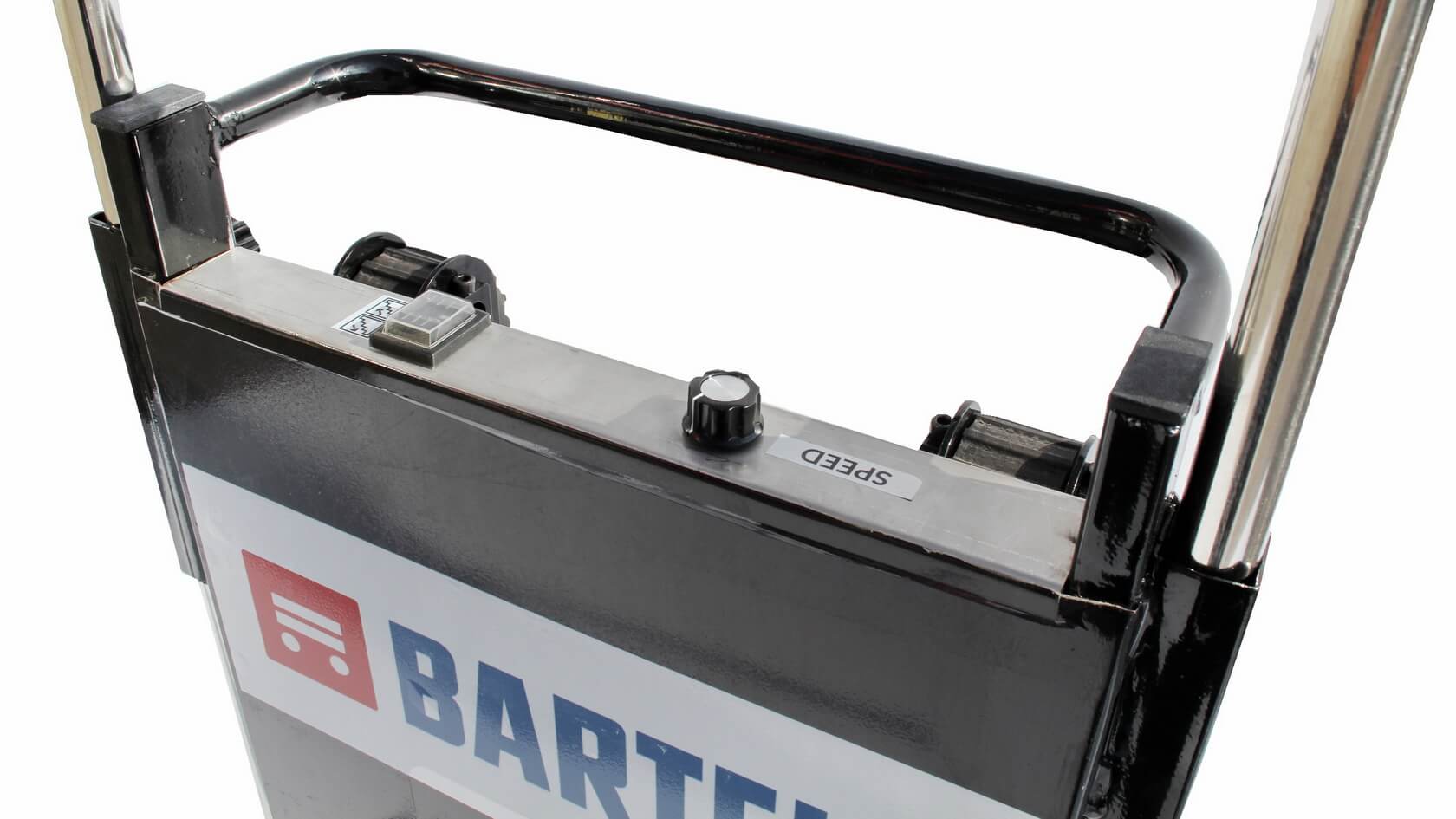

  • Adjustable speed, depending on the situation on site
  • Smooth start-up to minimize strain on the operator and the unit
  • Digital charge indicator gives you an overview of the stair climber’s range at all times
  • Dust and splash-proof according to IP54
  • Maintenance-free electric motor
  • The battery is fully charged after approx. 3 hours

Service & Consulting

We attach great importance to excellent service and technical support for your products. We offer you the best after-sales service (maintenance, repairs and spare parts) for all your stair climbers.

Our consultants will gladly assist you. Please send us a message.

For security verification, please enter any random two digit number. For example: 66

Scope of delivery

1 x Bartels Gobi stair climber
1 x tensioning strap for fastening the load
1 x lithium-ion battery
1 x automatic battery charger

Technical specifications

Stair Climber Bartels Gobi
Own Weight53 kg
Load Capacity130 kg

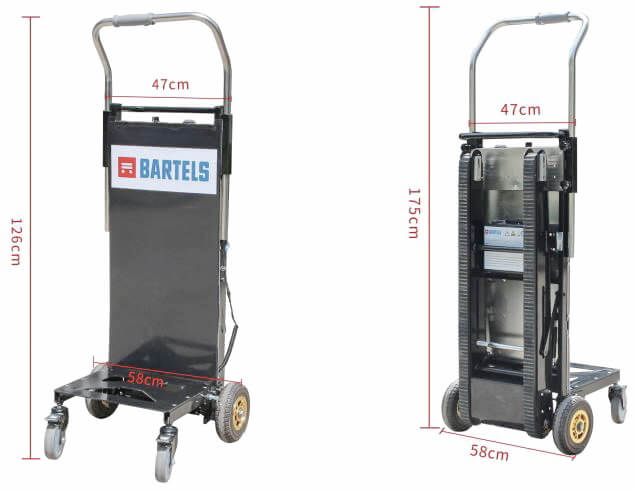

Dimensions unfolded L x W x H580 mm x 470 mm x 1,750 mm
Dimensions folded L x W x H580 mm x 470 mm x 1,260 mm
Bucket dimensions W x D400 mm x 360 mm
Climbing speed slow30 steps/minute
Climbing speed fast36 steps/minute
Range1,800 – 2,000 steps/load
Operating noiseLess than 70 dB
Battery weight3,15 kg
Battery12 Ah
Battery voltage48 V
Charging voltage230 V
Charging timeapprox. 3 hours
