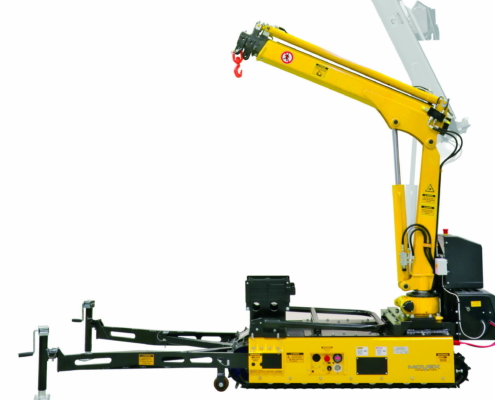

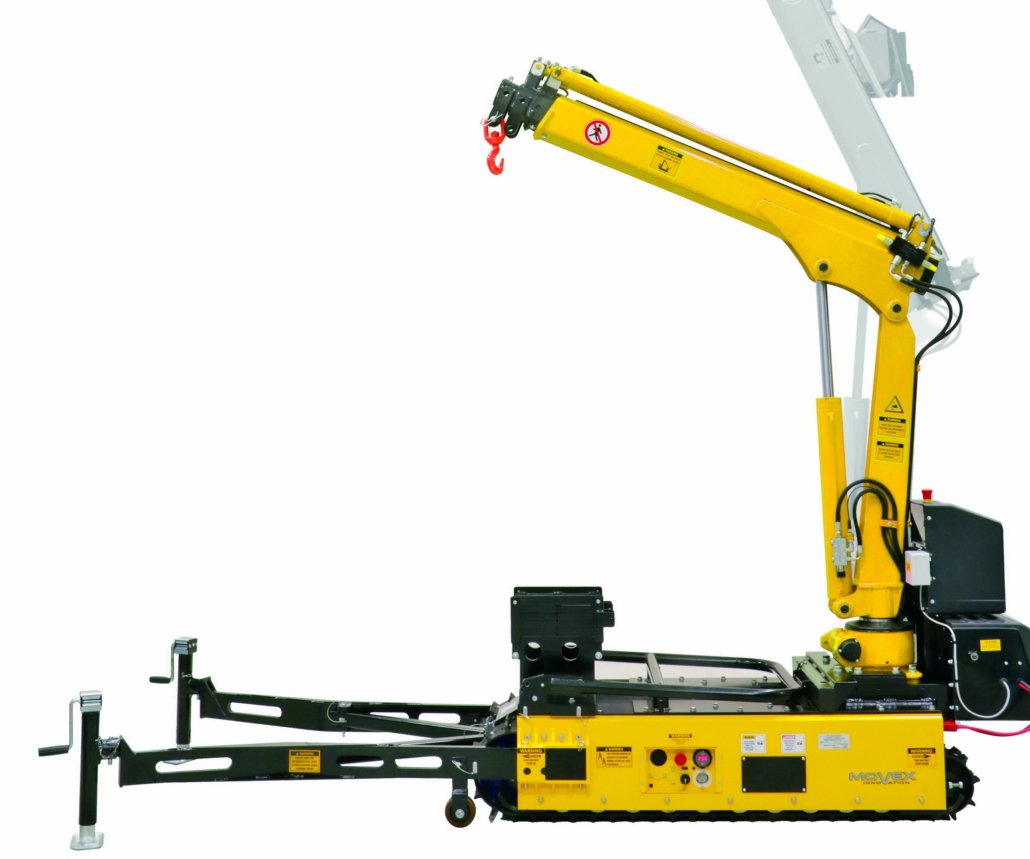

Track-O Mini Crawler Crane M7 – Electric Telescopic Crane
Crane Capacity 1.100 (500 kg) at 16.5 ft (5 m)

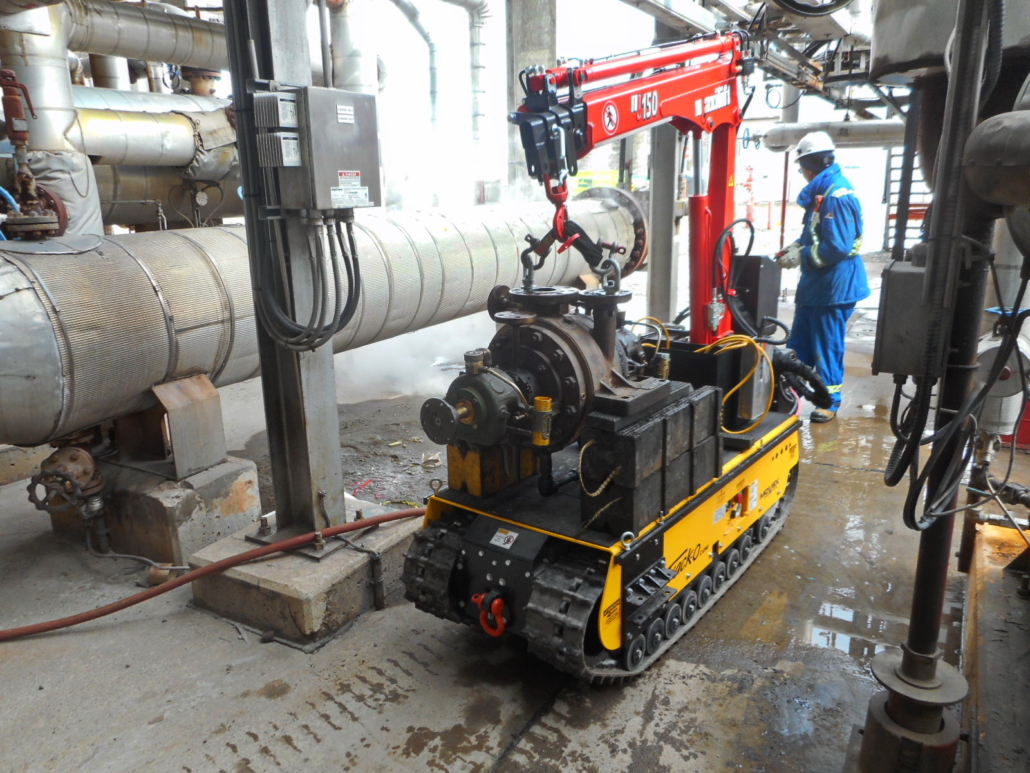

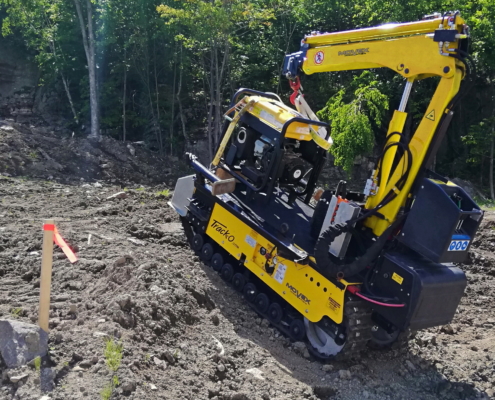

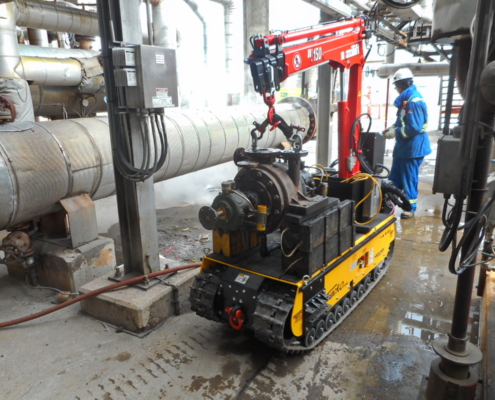

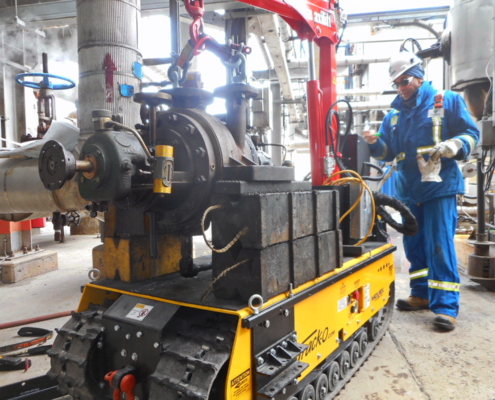

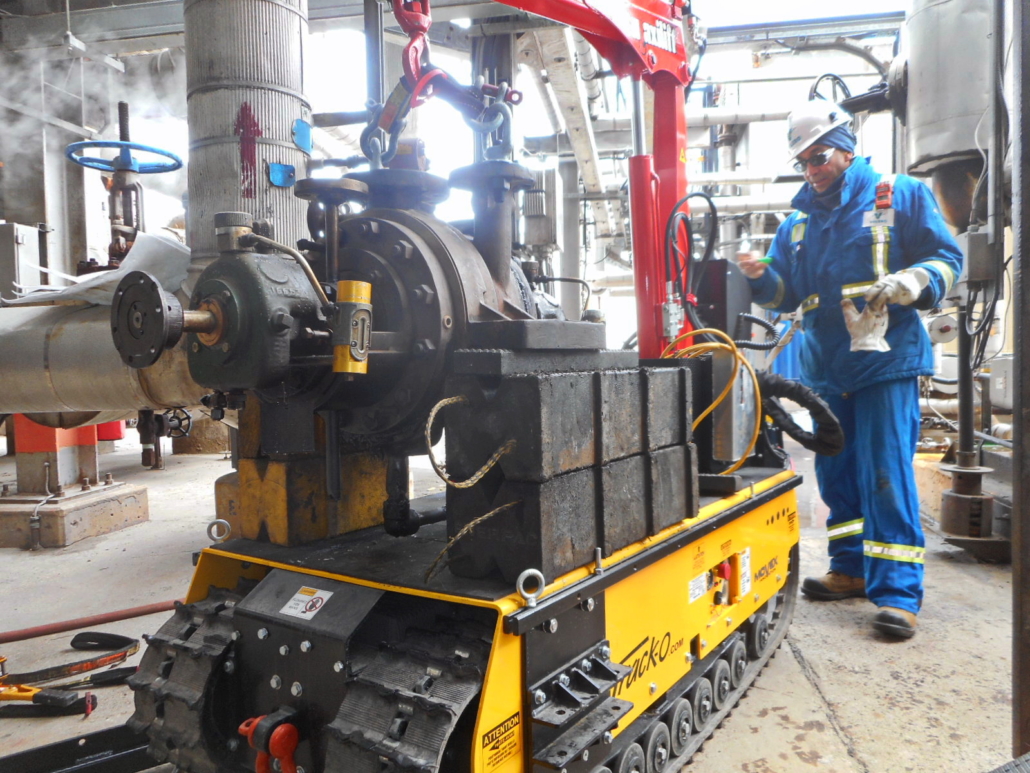

The Track-O Mini Crawler M7 is a is a electric telescopic crane based on the Track-O Twin-Track 66, the Track-O Heavy Duty or on the Track-O Cross-Country and allows a crane reach of 16.5 ft (5 m).
The Track-O stair climber track systems have made Movex famous worldwide. These models are appreciated by material handling specialists worldwide for their load capacity, endurance and versatility.

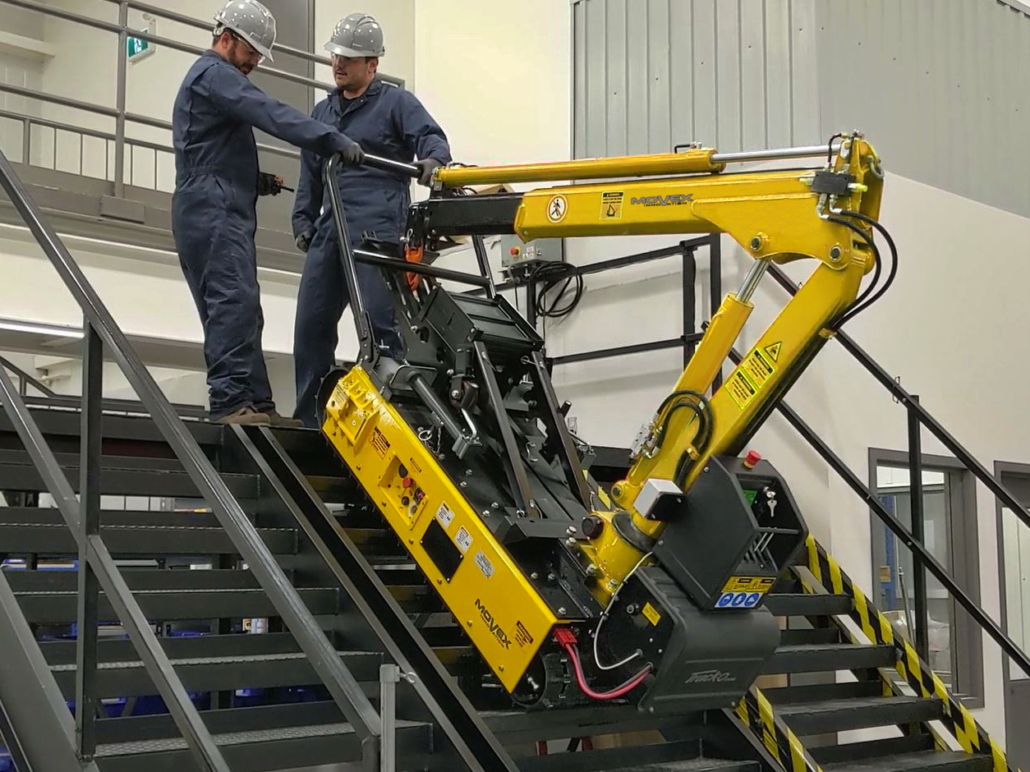

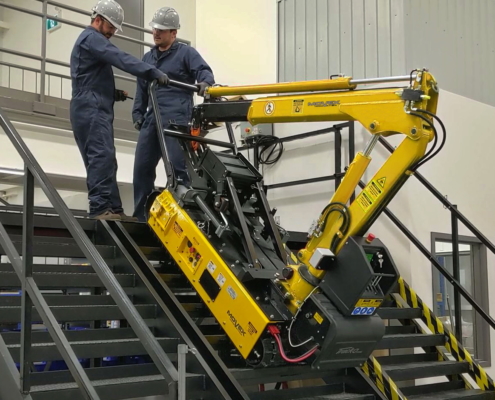

Stairs with an inclination angle of up to 40 degrees can be climbed. The Mini Crawler Crane can be easily transported from one place to another.
Convince yourself of our Track-O Twin-Track 66 modular stair climber track system – More Pictures
Advantages of the Track-O Mini Crawler Crane M7

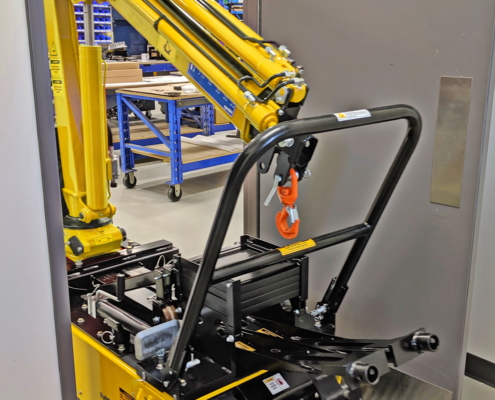

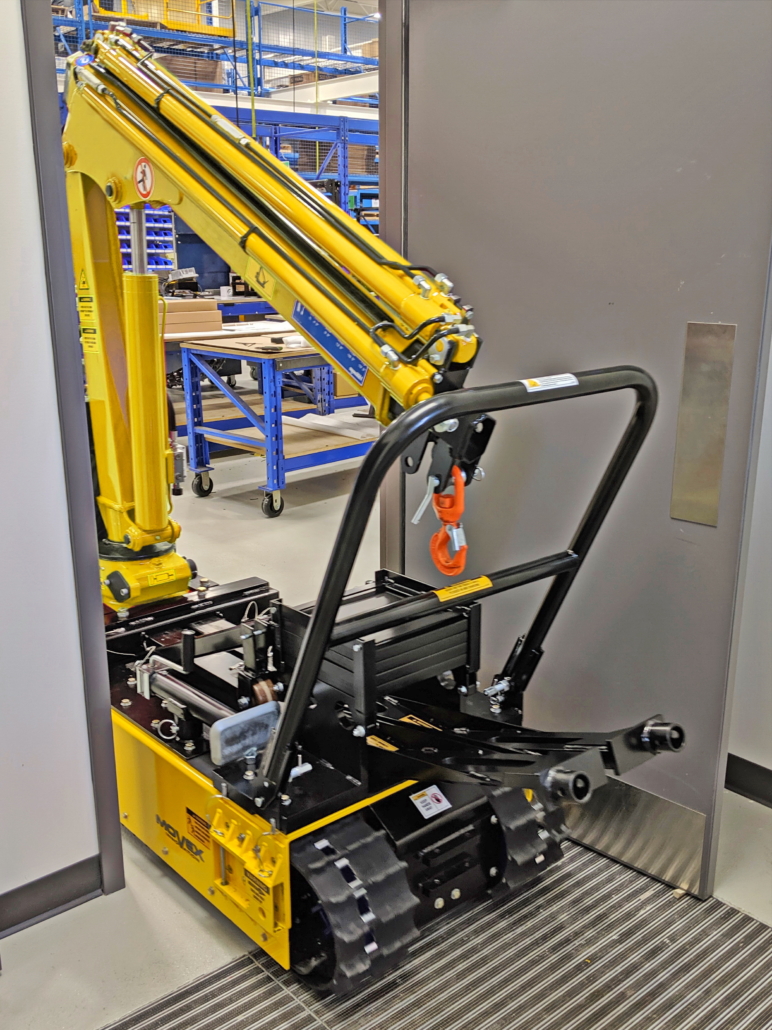

- Extremely compact – Goes through even the smallest of doorways
- Electric and remote-controlled
- No gas emission
- Increased operators’ Health and Safety
- Productivity gain
Technical Specifications
| Track-O Mini Crawler Crane M7 | |
|---|---|
| Material | Steel/Aluminum |
| Lenght (Stowed outriggers) | 76 in (1.930 mm) |
| Length (Deployed outriggers) | 126 in (3.200 mm) |
| Width (Stowed outriggers) | 30 in (762 mm) |
| Width (Deployed outriggers) | 52 5/16 in (1.329 mm) |
| Height | 78.5 in (1.994 mm) |
| Weight | 2.270 lb (1.032 kg) |
| Ground clearance | 2 1/8 in (54 mm) |

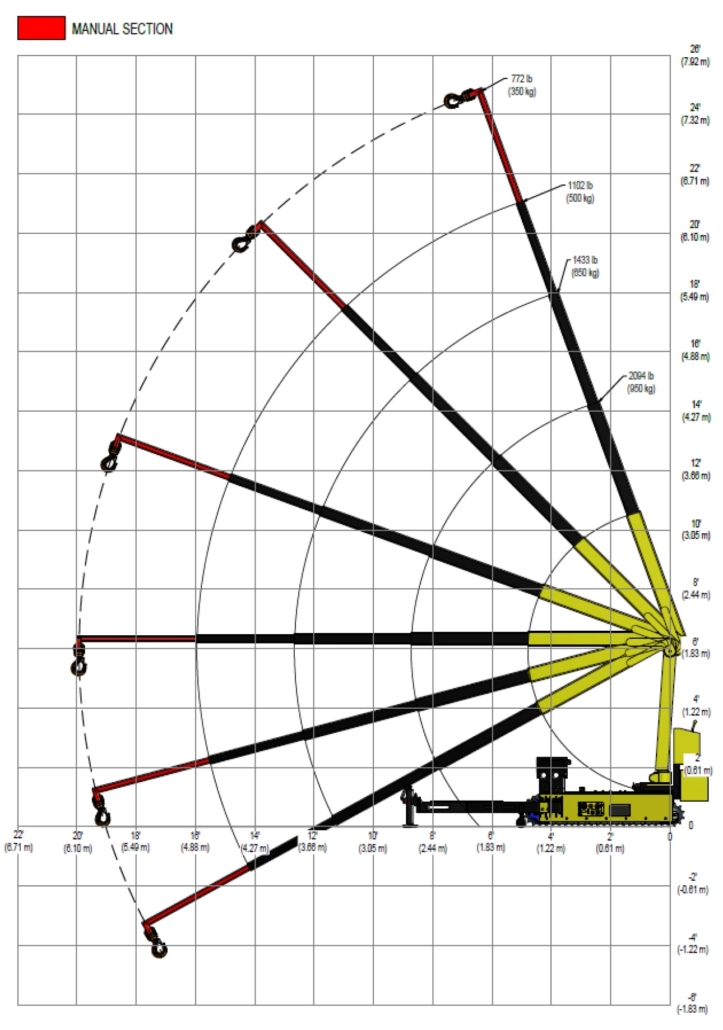

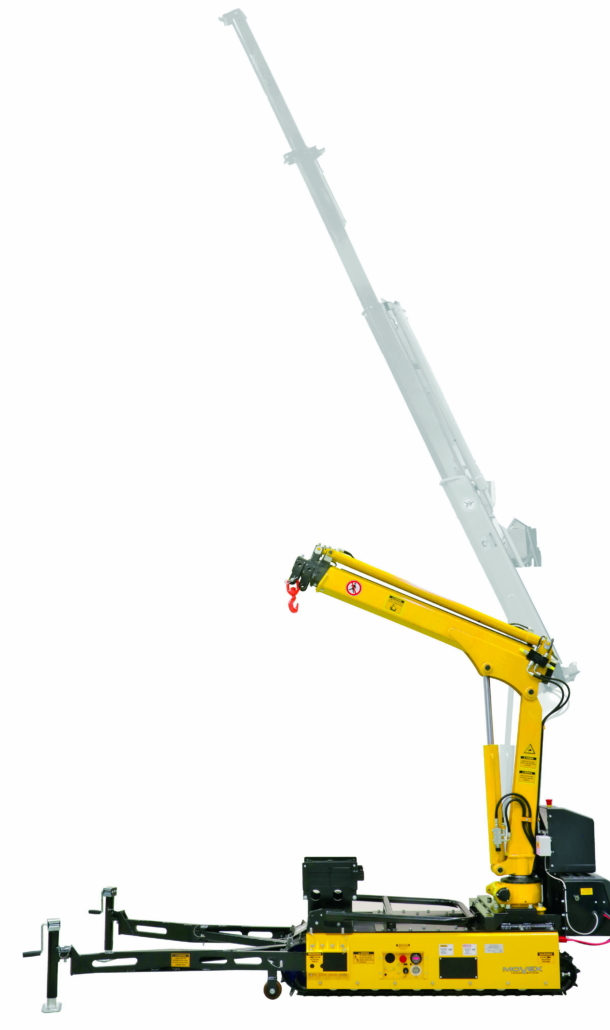

| Crane reach | 16.5 ft (5 m) |
| Crane capacity | 1.100 lb (500 kg) |
| Maximum speed (Flat surface) | 44 ft/min (13.5 m/min) |
| Gearbox Ratio | 100:1 (x2) |
| Motor Power | 2 HP (x2) |
Power Features
| Track-O Mini Crawler Crane M7 | |
|---|---|
| Batteries Amperage/Voltage | 2 x 110 Amp at 12 volts |
| Charger | 1 x Integrated AC-DC |
| Battery Pack Amperage | 110 Amp |
| Operating voltage | 24 V DC |
| Continous Run-time | Varies according to the operating conditions (Contact us for more information) |
| Battery Recharging Time | 8,5 hours approx. |
| Control | Standard wired, optional wireless |
