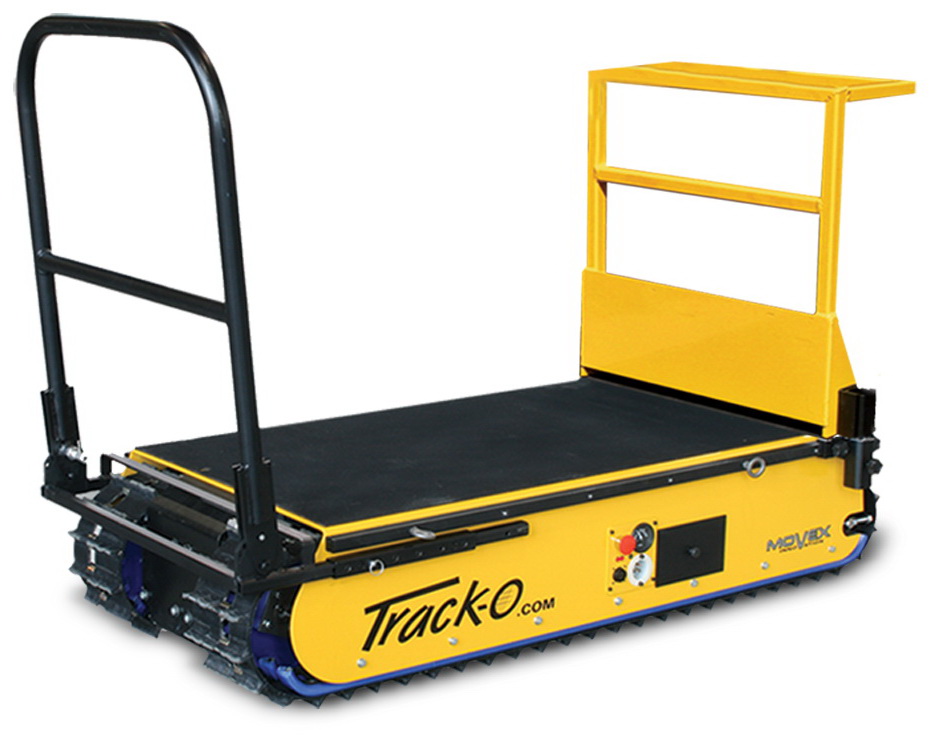

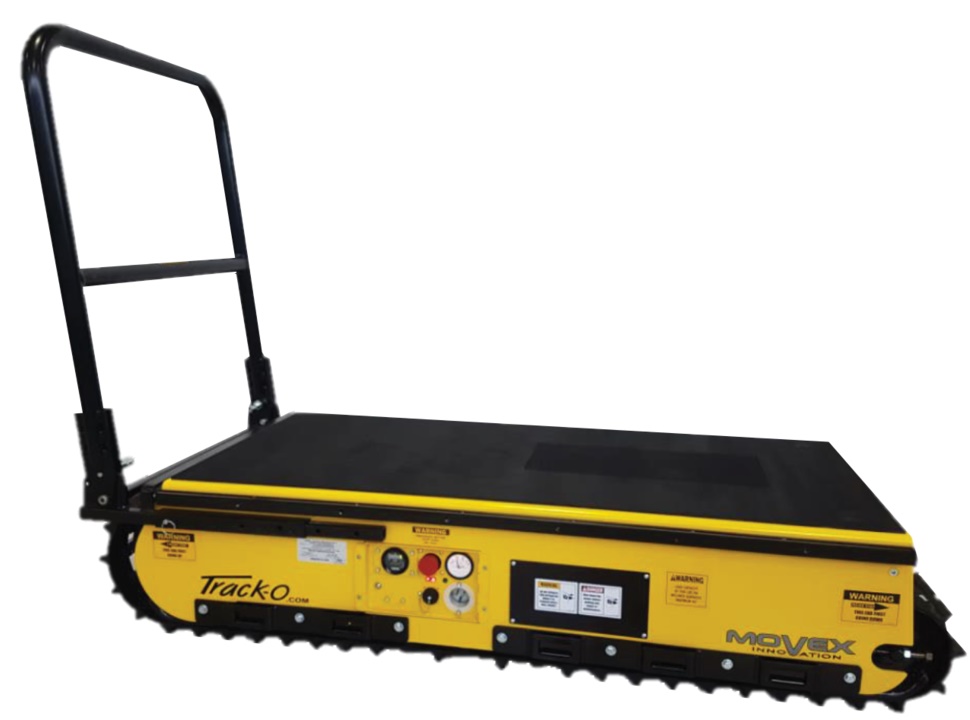

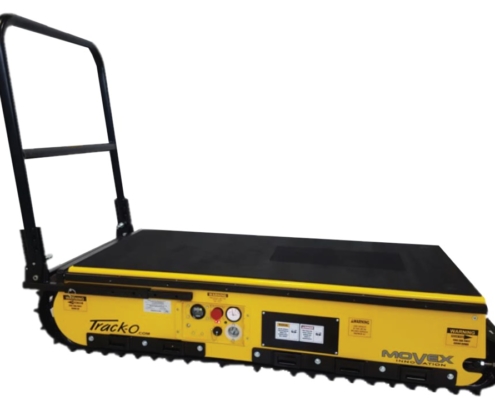

Track-O Twin-Track 66 – Modular Stair Climber Platform
Capacity on stairs up to 1.100 lb (500 kg)
The Track-O Twin-Track 66 Stair Climber Platform, the most ergonomic of material handling equipment, has made Movex known throughout the world. This model is highly prized by specialists in material handling for its load capacity, its endurance, and its versatility. This “basic” model offers a number of optional accessories such as our Greengo handling system, Jib crane, lift table, or any other accessory that will enable you to increase the efficiency of your equipment.

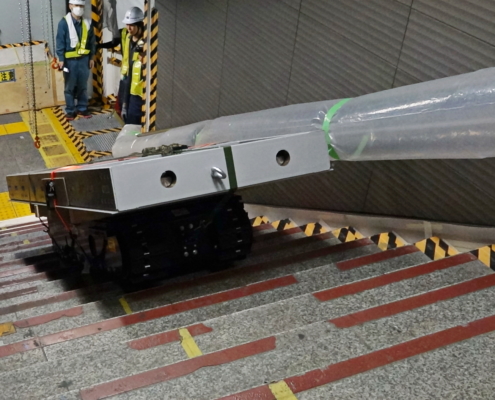

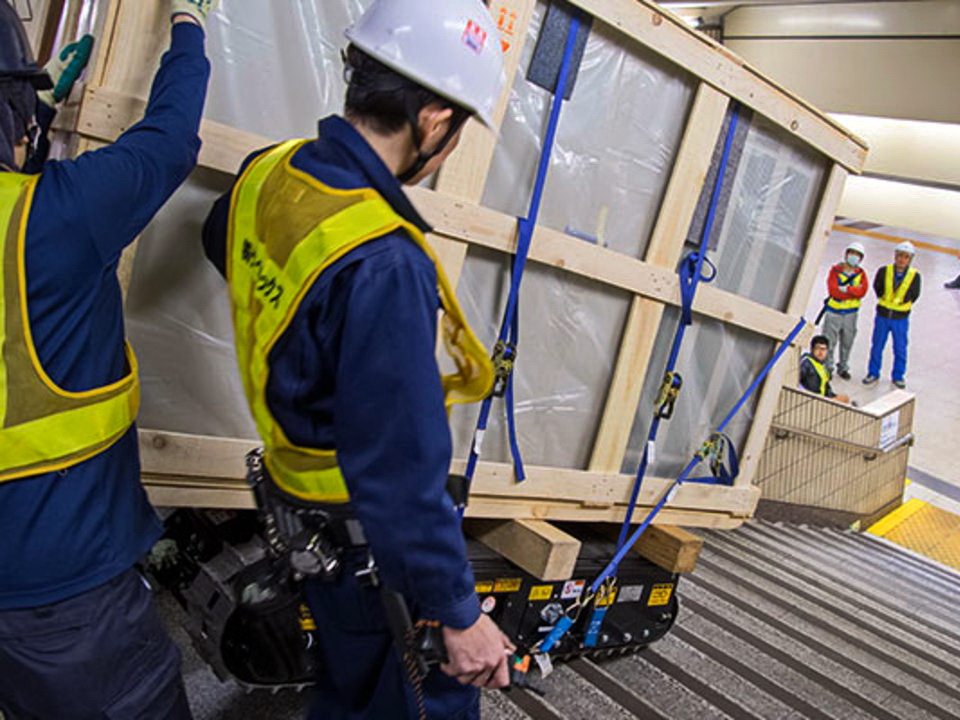

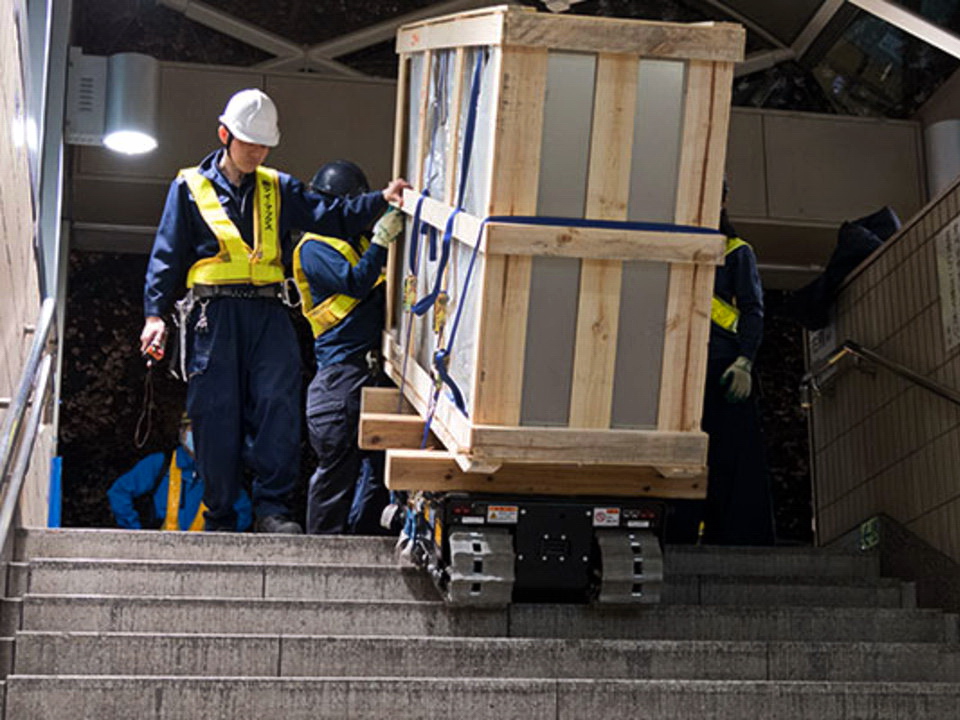

The Track-O Twin-Track 66 has a load bearing capacity of nearly 1.100 lb (500 kg) on stairs. This model is used mainly when staircase landings are narrow or where there is limited room to move. The Twin-Track 66 lifting platform can climb stairs with an angle of inclination of nearly 40 degrees. Easily moved from one place to another on a trailer or in the box of a transportation vehicle.
The unit can be expanded with a wide range of options.
If you need a higher final speed of your track system the 66HS (High Speed) version is the right one for you.

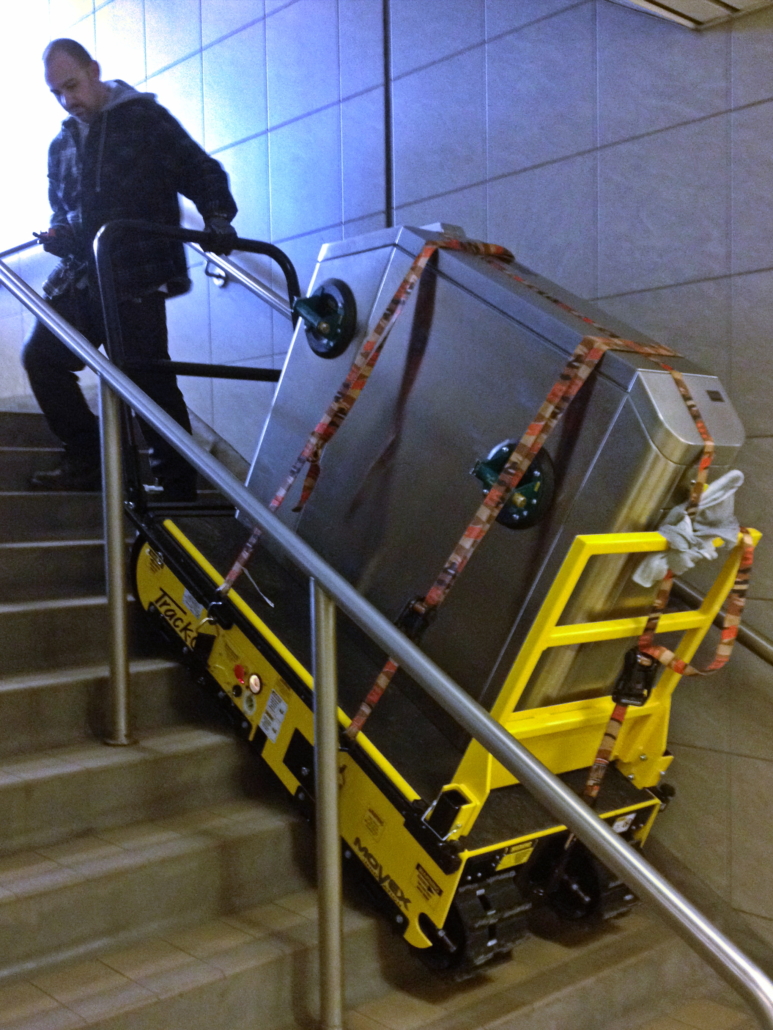

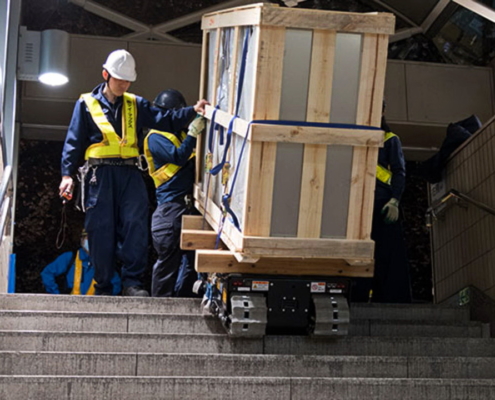

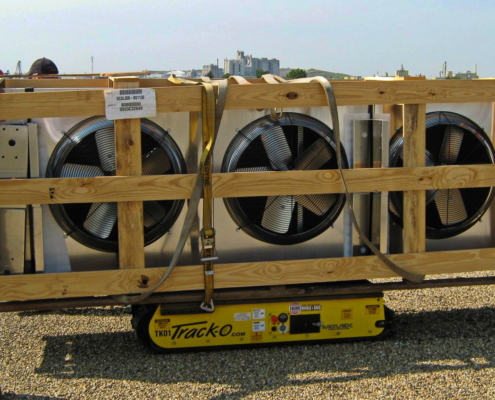

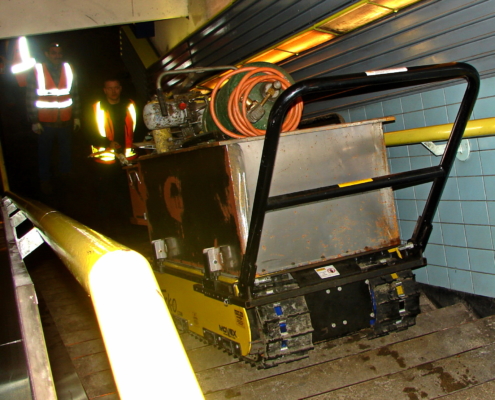

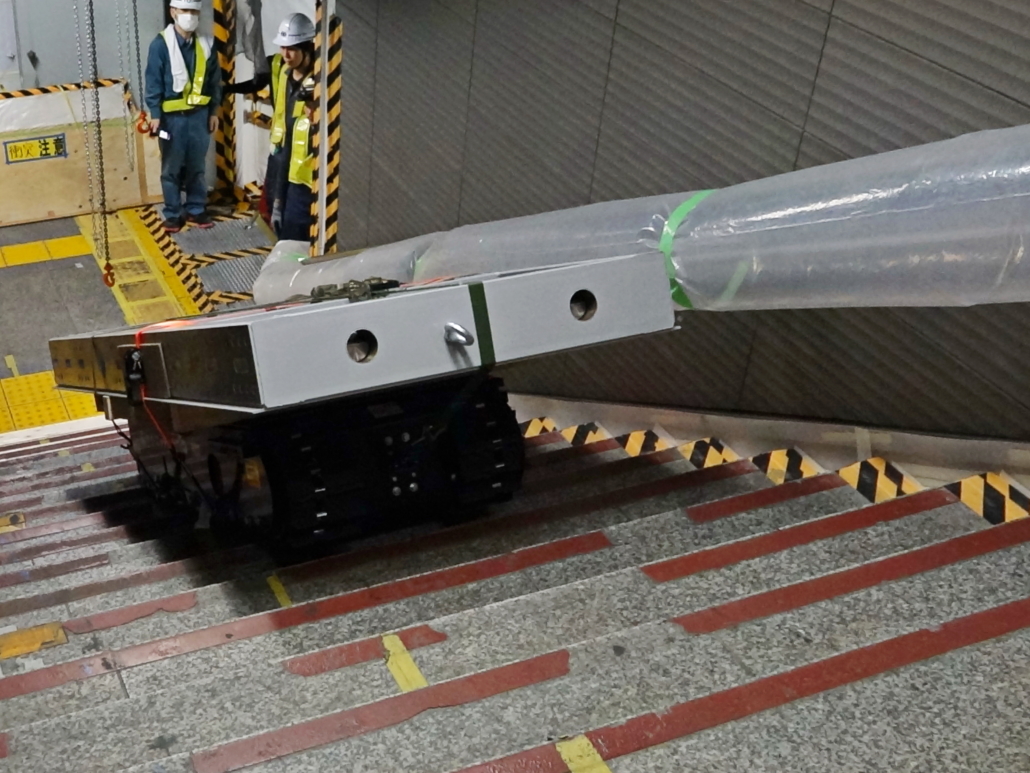

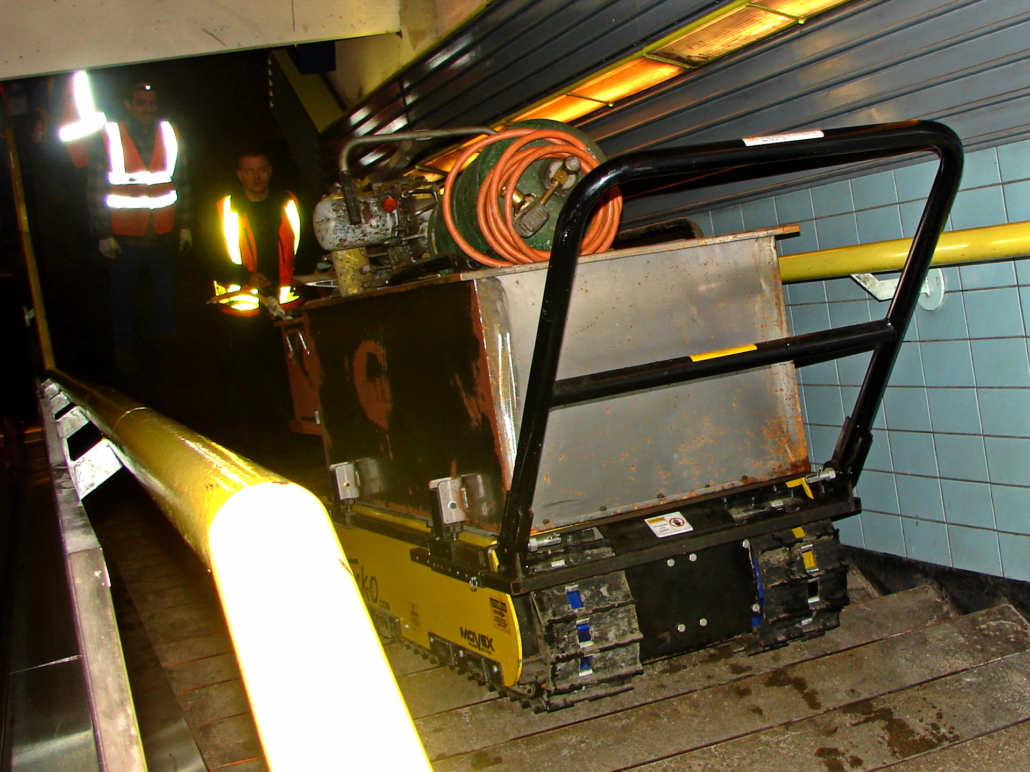

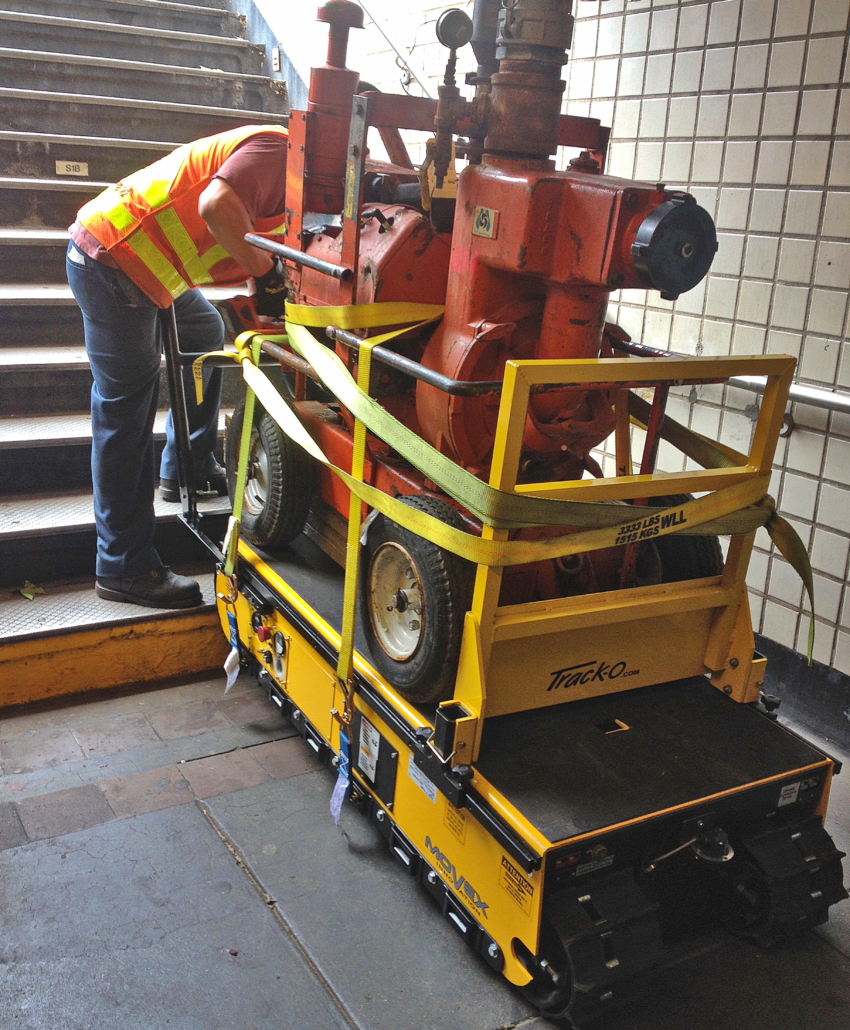

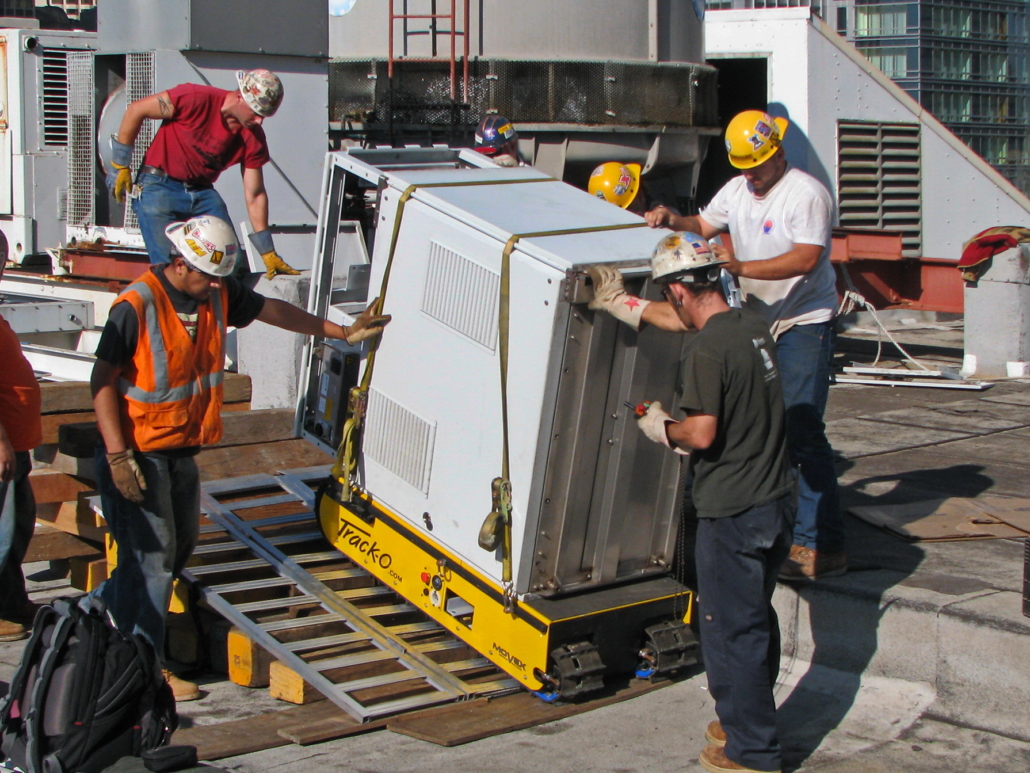

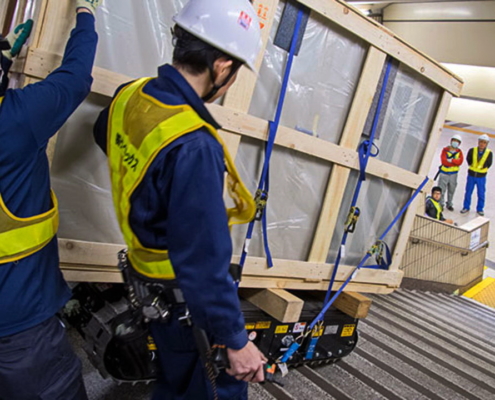

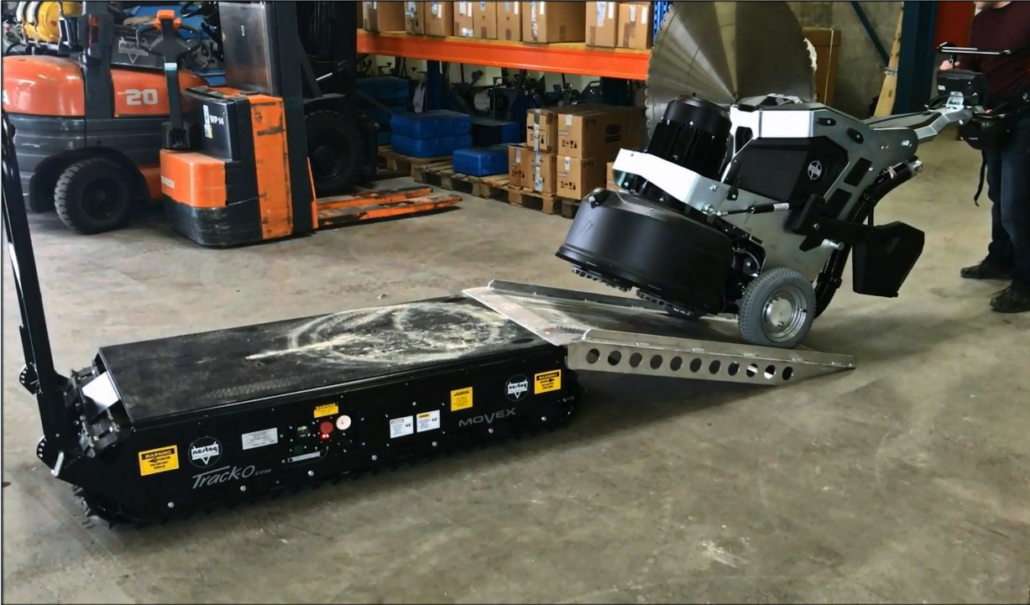

Convince yourself of our Track-O Twin-Track 66 modular stair climber track system – More Pictures
Advantages of the Track-O Twin-Track 66 modular stair climber track system
- Versatile and multifunctional equipment
- Can easily be fitted with a wide variety of options & accessories
- Contributed to making Movex known worldwide
- Moves loads from 700 lb to 1.100 lb (317 kg to 500 kg) on stairs at 40°

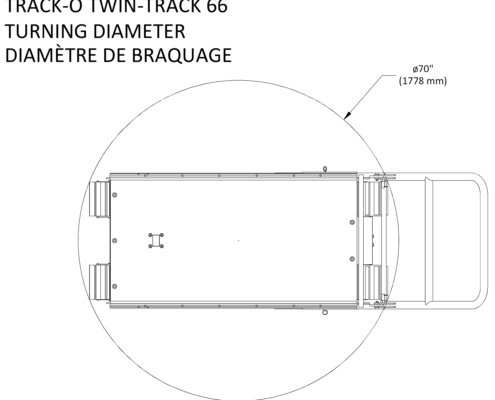

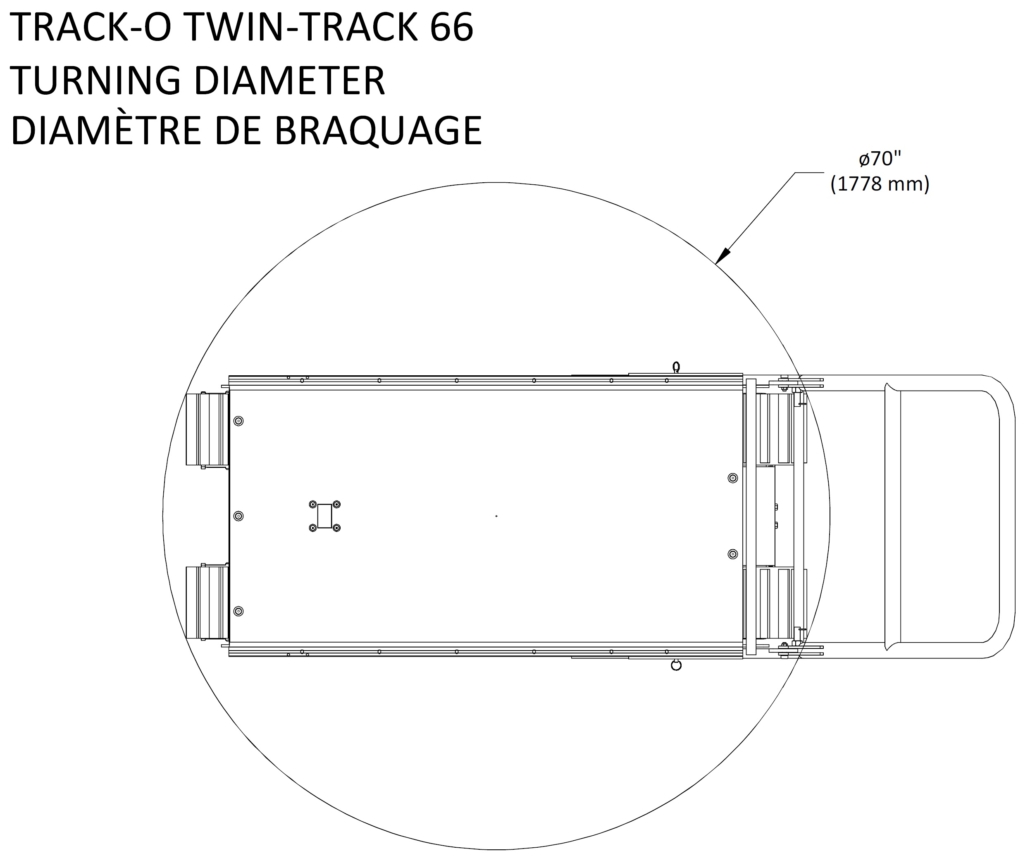

- Turning diameter of 70 in (1.778 mm)

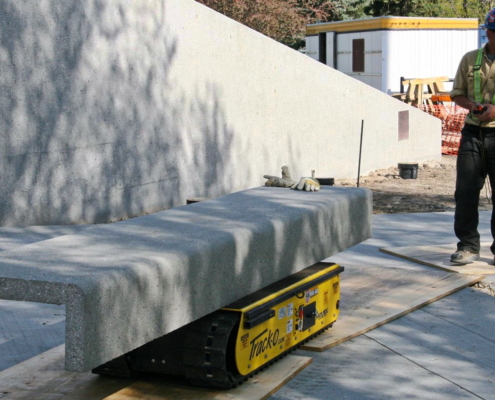

- Can be operated in conditions of snow, mud, sand & gravel
- Easy to transport
Technical Specifications
| Track-O Twin-Track 66 | |
|---|---|
| Frame | Steel |
| Cabinet | Aluminium |
| Length | 65 in (1.651 mm) |
| Width | 30 in (762 mm) |
| Height | 13 3/4 in (349mm) |
| Weight | 902 lb (410 kg) |
| Ground clearance | 2 1/8 in (54 mm) |
| Turning diameter | 70 in (1.778 mm) |
| Load bearing capacity (inclined surface) | 1.100 lb at 40° (500 kg at 40°) |
| Load bearing capacity (on stairs) | 1.100 lb at 40° (500 kg at 40°) |
| Load bearing capacity (flat surface) | 2.200 lb (1.000 kg) |
| Max. speed (flat surface) | 44 ft/min (13,5 m/min) |
| Max. speed (flat surface) HS | 164 ft/min (50 m/min) |
| Gearbox ratio | Either 104:1 (x2) or HS (High Speed) 50:1 (x2) |
| Motor power | Either 1 PS (x2) or HS (High Speed) 3,25 PS (x2) |
Power Features
| Track-O Twin-Track 66 | |
|---|---|
| Batteries Amperage/Voltage | 2 x 130 Amp at 12 volts |
| Charger | 1 x Integrated AC-DC |
| Battery Pack Amperage | 130 Amp |
| Operating voltage | 24 V DC |
| Continous Run-time | 5 hours approx. (without load, flat surface) |
| Battery Recharging Time | 7 hours approx. |
| Control | Standard wired, optional wireless |
Options for the Track-O Twin-Track 66
Technical Specifications of the options as PDF
- Options Overview
- Option Additional Battery Set

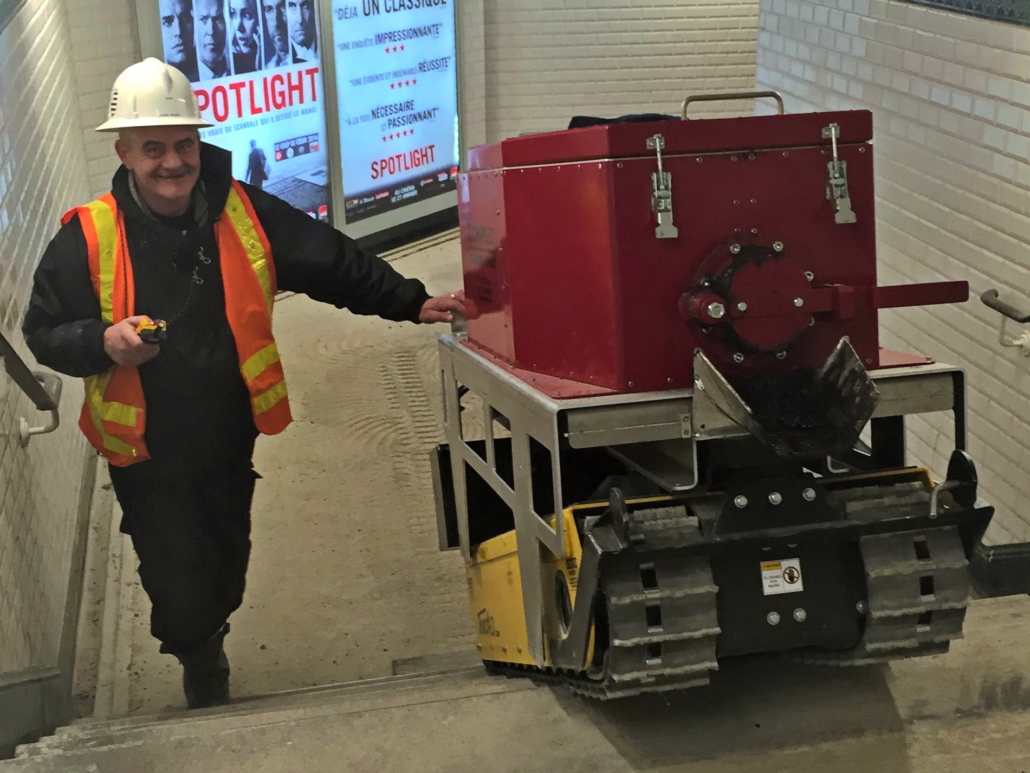

- Option Asphalt Container
- Option Backrest

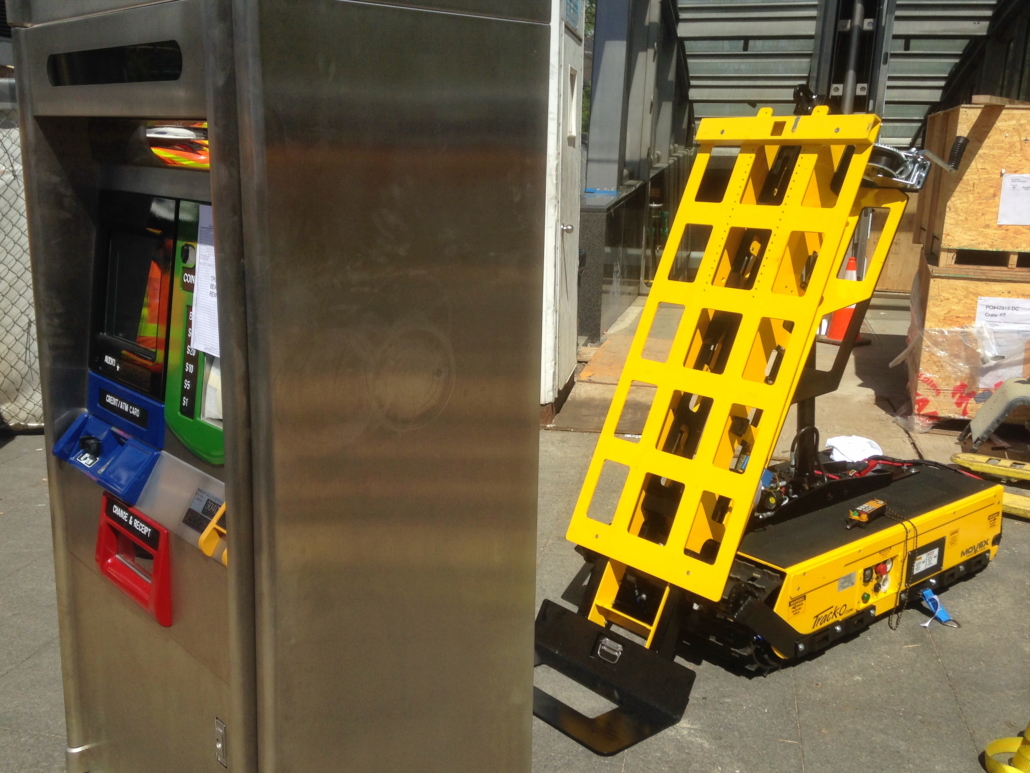

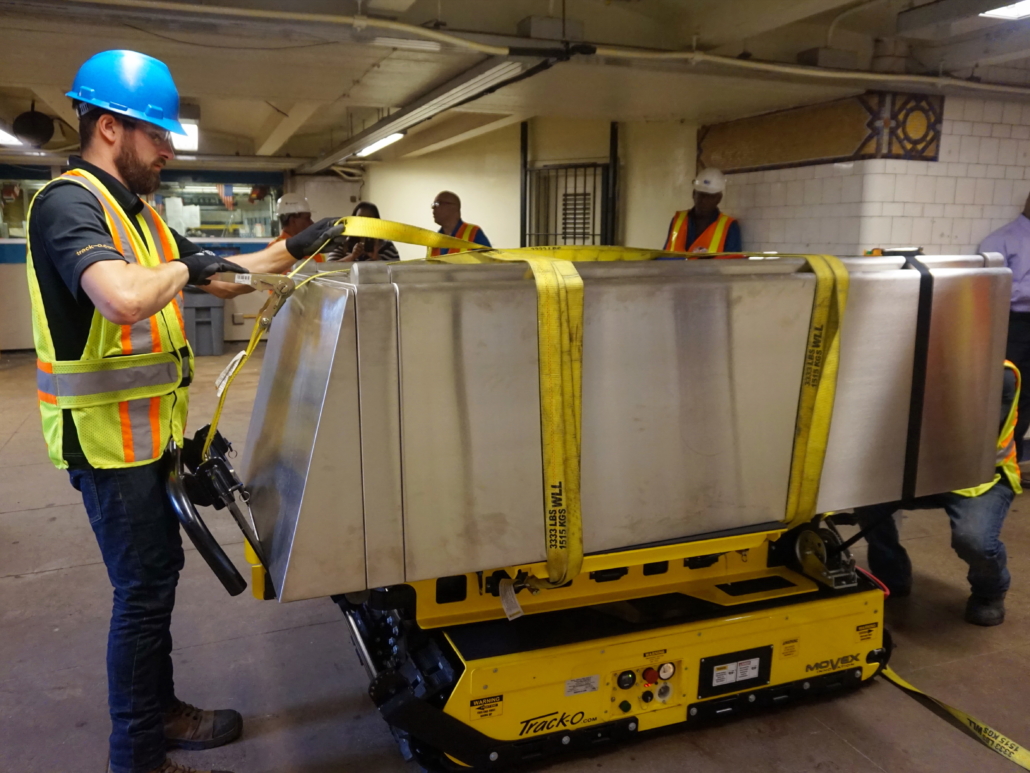

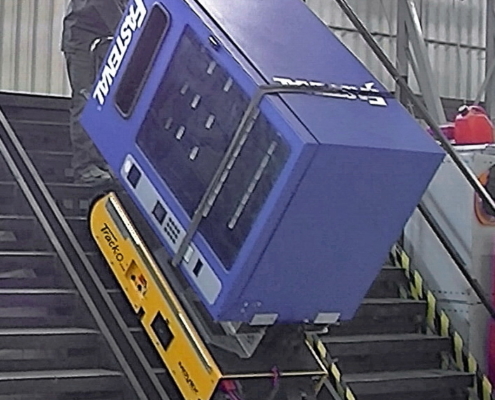

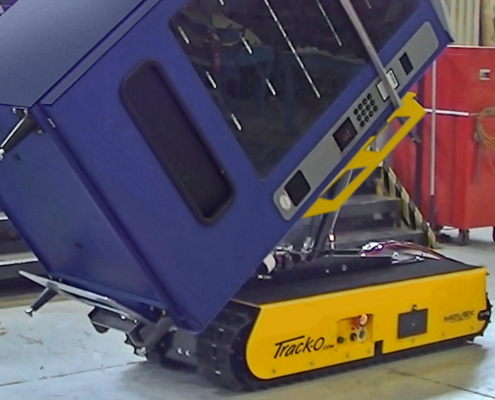

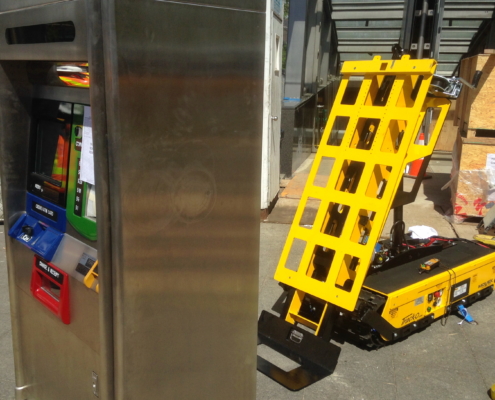

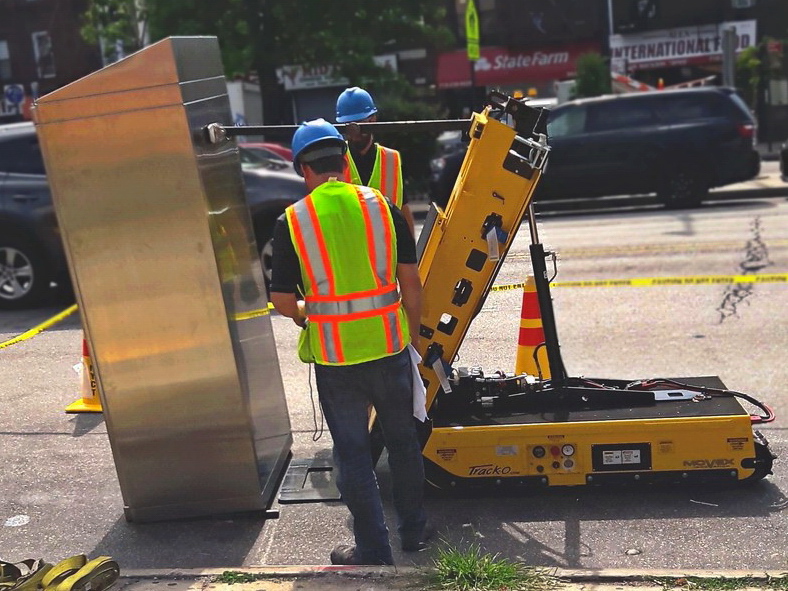

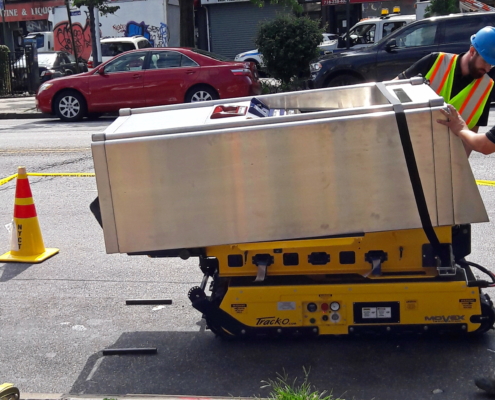

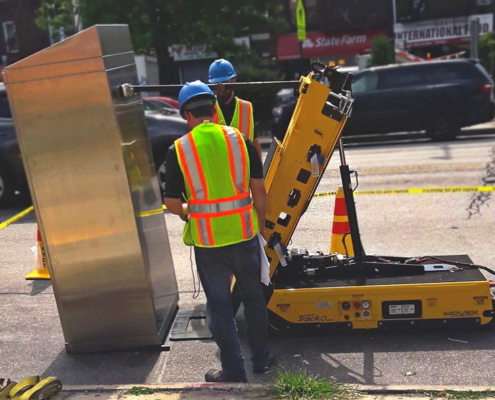

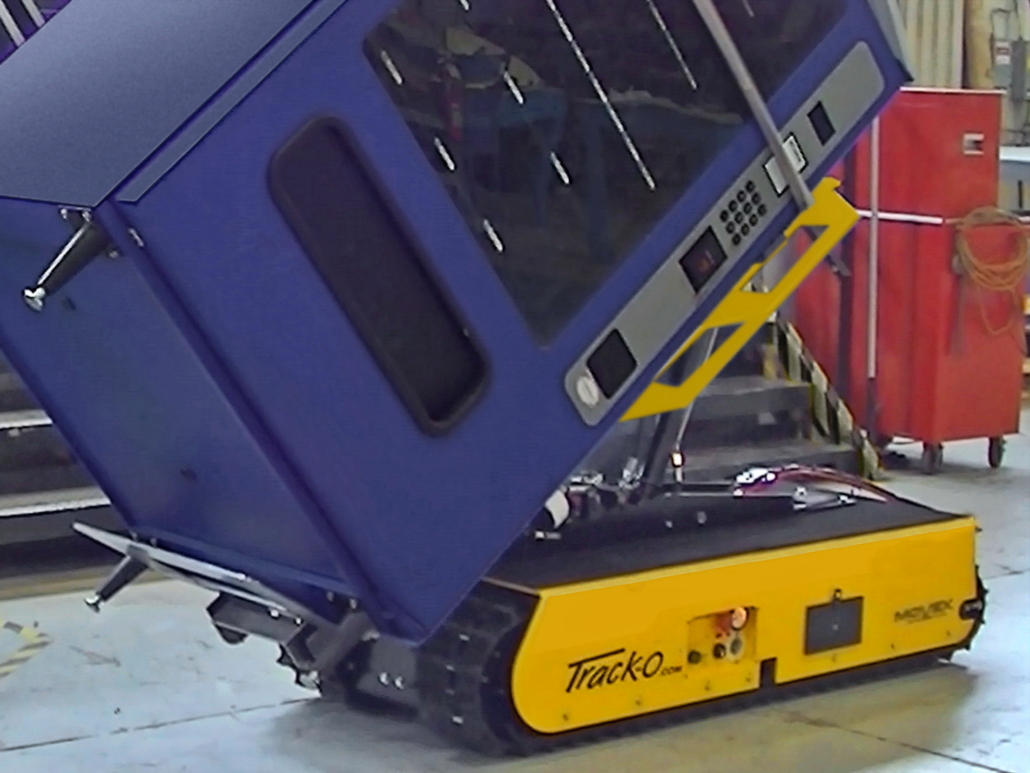

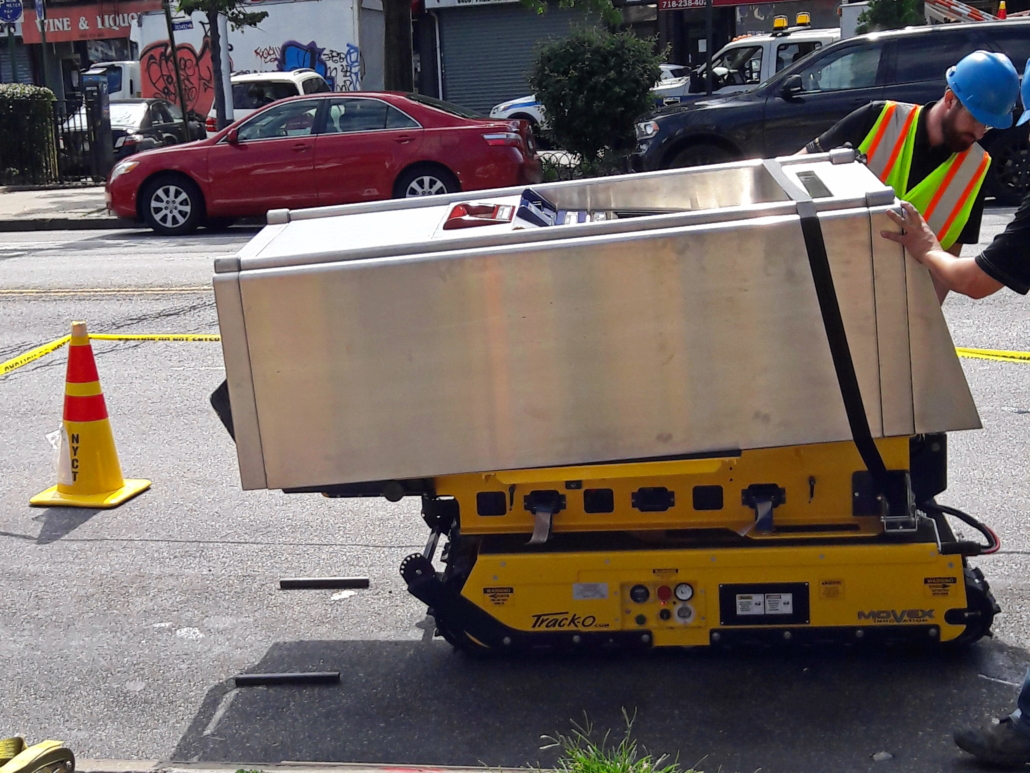

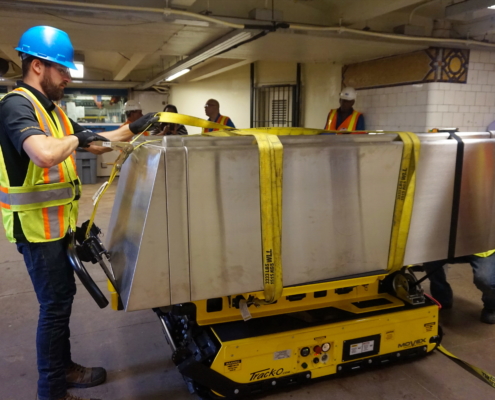

- Option Cabinet Loading Device
- Option Concrete Container
- Option Drum Loading Device
- Option Elektric Quick Connect
- Option Equipment Palett
- Option Forklift Lifting Device
- Option Track-O HD Moving Trolley
- Option Jib Crane 1000 lb

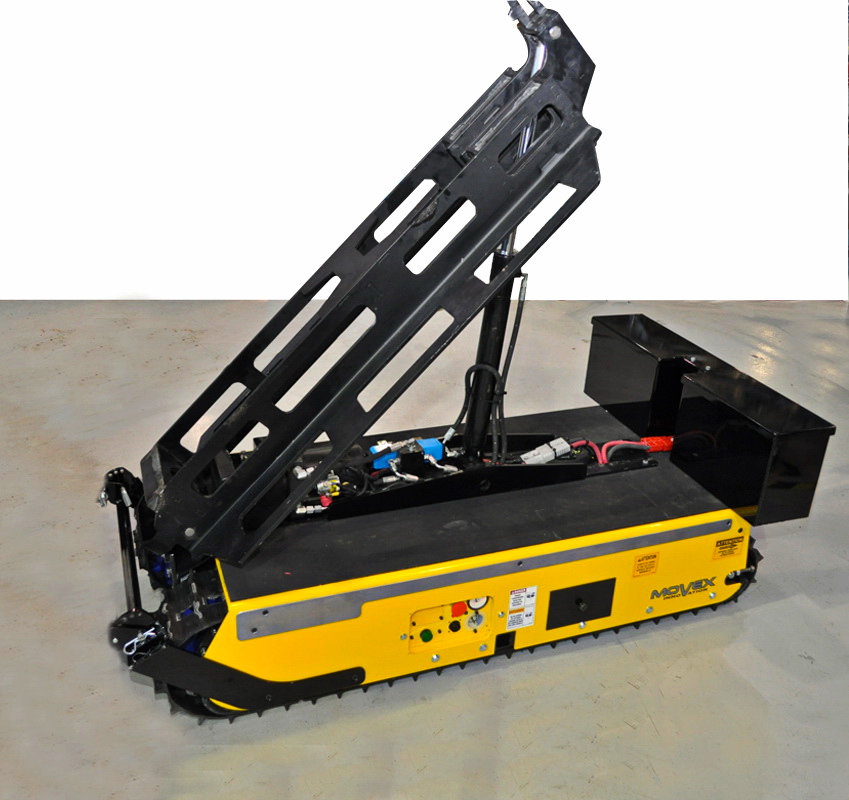

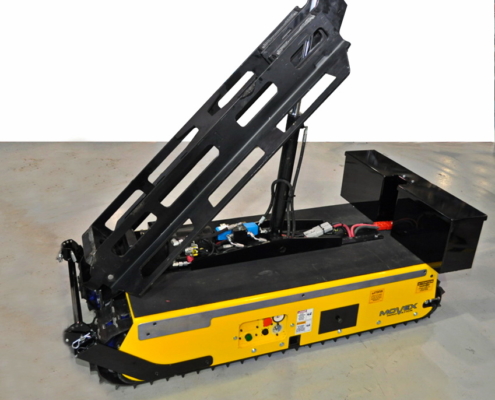

- Option Lifting Device 45 Degree
- Option Lifting Device 62 Degree
- Option Loading Platform
- Option Mini Container

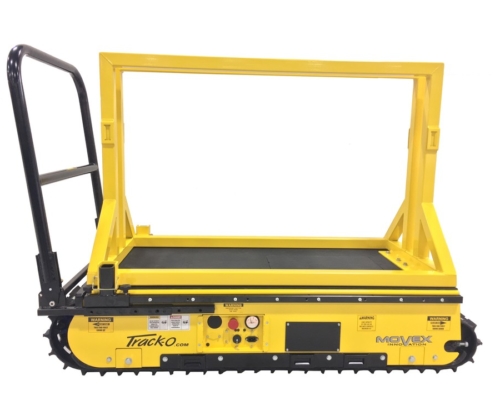

- Option Panel Support
- Option Portable Jib Crane 36 inch 500 lb
- Option Portable Jib Crane 48 inch 500 lb
- Option Fastening Kit
- Option Recharge Station for Batteries
- Option Reel Support
- Option Scissor Lift Table 1000 lb 24 inch run
- Option Stabilizers for Winch Use
- Option Track-O Moving Trolley
- Option Turntable for Cabinet Loading Device

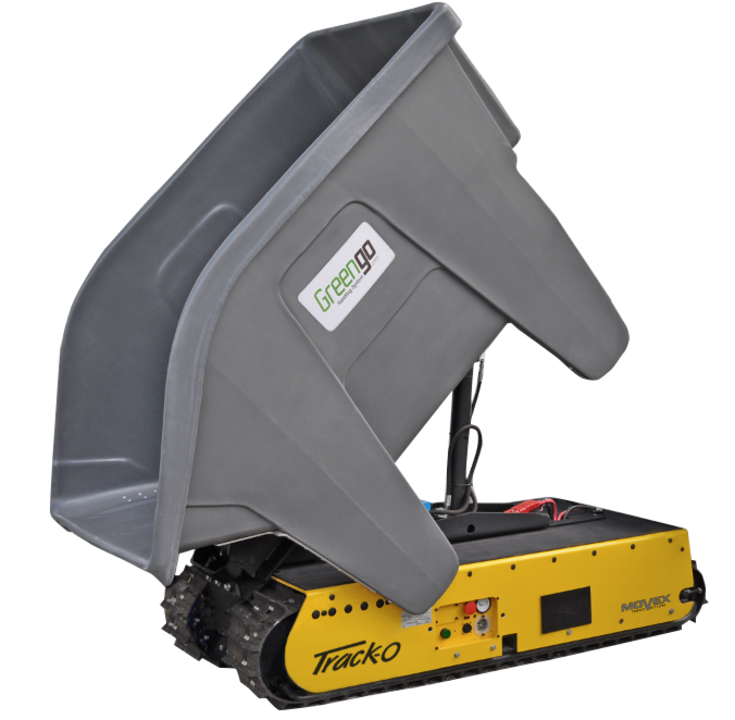

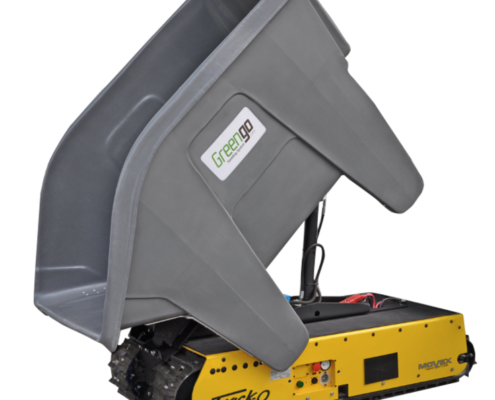

- Option Waste Container
Service & Consulting
We attach great importance to excellent service and technical support for your products. If you have any questions or a desired training course, just contact us!
