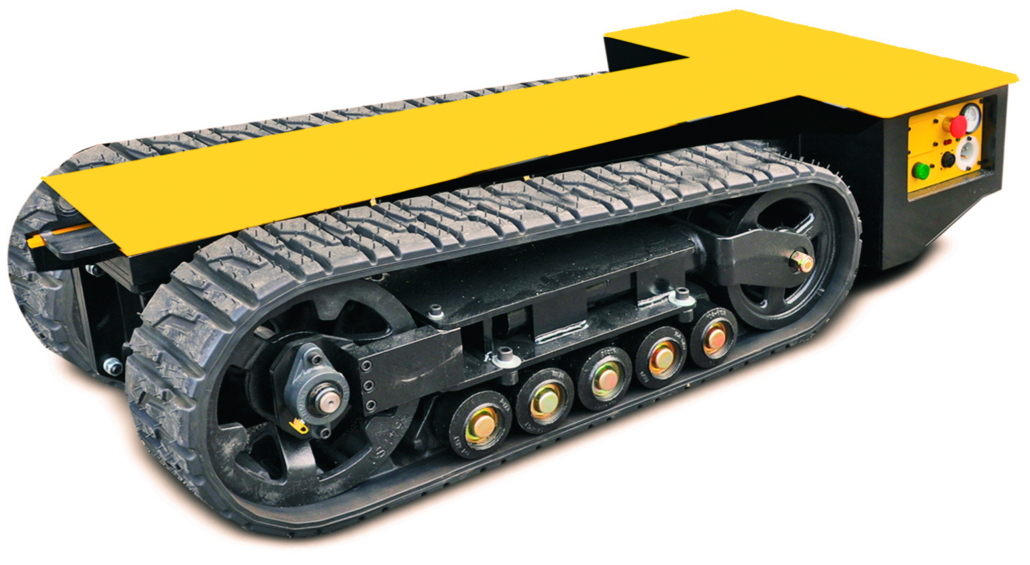

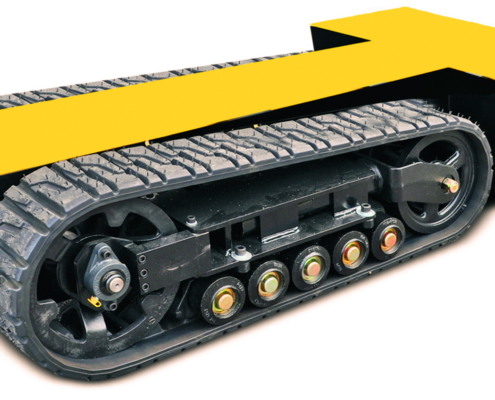

Track-O Heavy Duty – Modular All Terrain Track System
Capacity up to 6.000 lb (2.722 kg) at 30°
The Modular All Terrain Track System Track-O Heavy Duty (HD) is a heavy materials handling device that offers a load-bearing capacity of nearly 6.000 lb (2.722 kg). The HD load carrier is essential in any environments where heavy loads must be handled in places that are hard to access. This model can climb slopes with an angle of inclination of nearly 30 degrees. This model is not designed to climb stairs unless ramps are used.
The Track-O Heavy Duty tracked vehicle is designed to transport heavy loads with a good stand-alone capability, ideal for construction sites, transporting steel beams or industrial equipment. A support platform can be added to this model according to your specifications, etc.
The Greengo handling system, the innovative hoisting device or any other equipment and tools to make materials handling easier can be added to this device.
Convince yourself of our modular All Terrain track system Track-O Heavy Duty – More Pictures
Advantages of the modular All Terrain Track System Track-O Heavy Duty
- Carries heavy loads up to 6.000 lb (2.722 kg)
- Climb slopes with an angle of 30°
- Ideal and versatile for both indoors/outdoors heavy duty applications on flats surfaces
Technical Specifications
| Track-O Heavy Duty | |
|---|---|
| Frame (with rollers) | Steel |
| Cabinet | Steel |
| Length | 60 5/8 in (1.540 mm) |
| Width | 27 in (686 mm) |
| Height | 13 5/8 in (346 mm) |
| Weight | 1.110 lb (503 kg) |
| Ground clearance | 2 3/4 in (70 mm) |
| Turning diameter | 73 in (1.854 mm) |
| Load bearing capacity (inclined surface) | 2.500 lb at 30° (1.135 kg at 30°) |
| Load bearing capacity (on stairs) | N/A |
| Load bearing capacity (flat surface) | 6.000 lb (2.722 kg) |
| Max. speed (flat surface) | 66 ft/min (20 m/min) |
| Gearbox ratio | 75:1 (x2) |
| Motor power | 2 PS (x2 |
Power Features
| Track-O Heavy Duty | |
|---|---|
| Batteries Amperage/Voltage | 2 x 115 Amp at 12 volts |
| Charger | 1 x Integrated AC-DC |
| Battery Pack Amperage | 115 Amp |
| Operating voltage | 24 V DC |
| Continous Run-time | 3 hours approx. (without load, flat surface) |
| Battery Recharging Time | 7,5 hours approx. |
| Control | Standard wired, optional wireless |
Options for the Track-O Heavy Duty
Technical Specifications of the options as PDF
- Options Overview
- Option Additional Battery Set
- Option Asphalt Container
- Option Backrest
- Option Cabinet Loading Device
- Option Concrete Container
- Option Drum Loading Device
- Option Elektric Quick Connect
- Option Equipment Palett
- Option Forklift Lifting Device
- Option Track-O HD Moving Trolley
- Option Jib Crane 1000 lb
- Option Lifting Device 45 Degree
- Option Lifting Device 62 Degree
- Option Loading Platform
- Option Mini Container
- Option Panel Support
- Option Portable Jib Crane 36 inch 500 lb
- Option Portable Jib Crane 48 inch 500 lb
- Option Fastening Kit
- Option Recharge Station for Batteries
- Option Reel Support

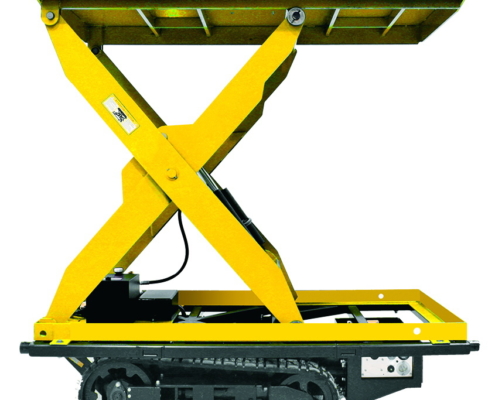

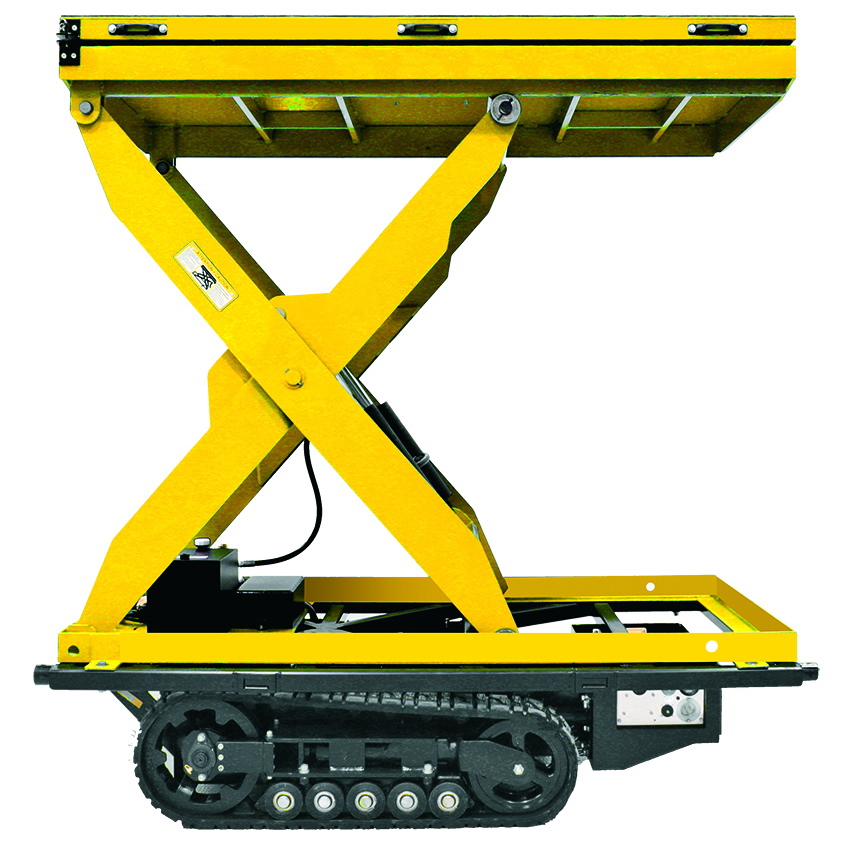

- Option Scissor Lift Table 1000 lb 24 inch run
- Option Stabilizers for Winch Use
- Option Track-O Moving Trolley
- Option Turntable for Cabinet Loading Device
- Option Waste Container
Service & Consulting
We attach great importance to excellent service and technical support for your products. If you have any questions or a desired training course, just contact us!
