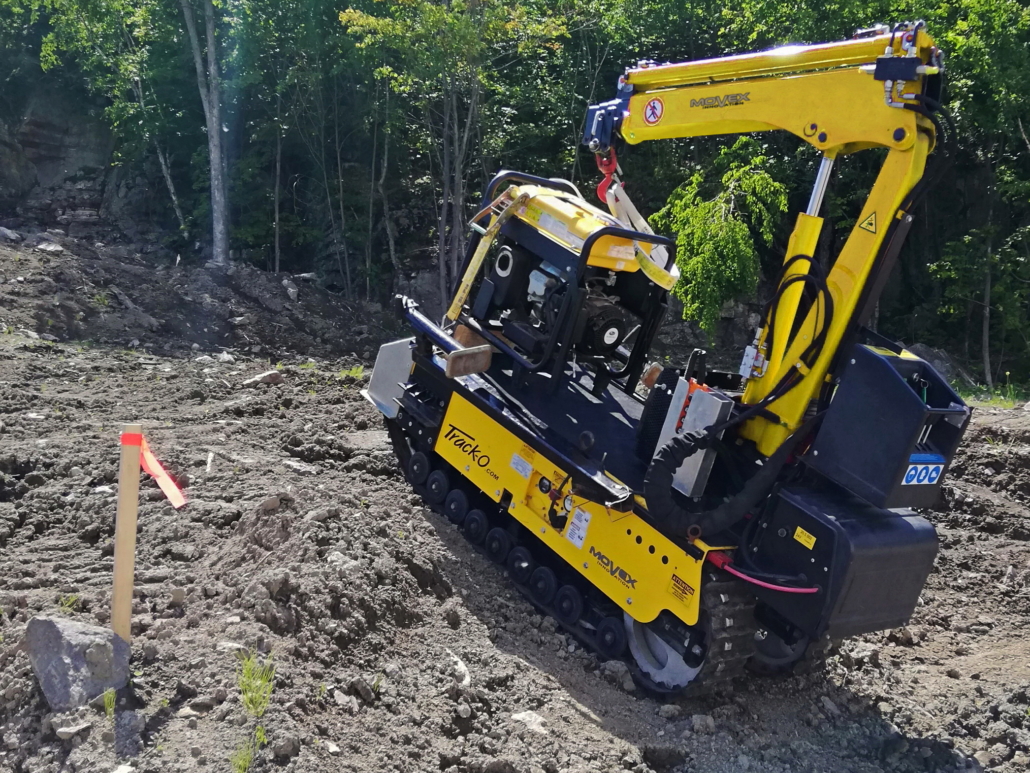

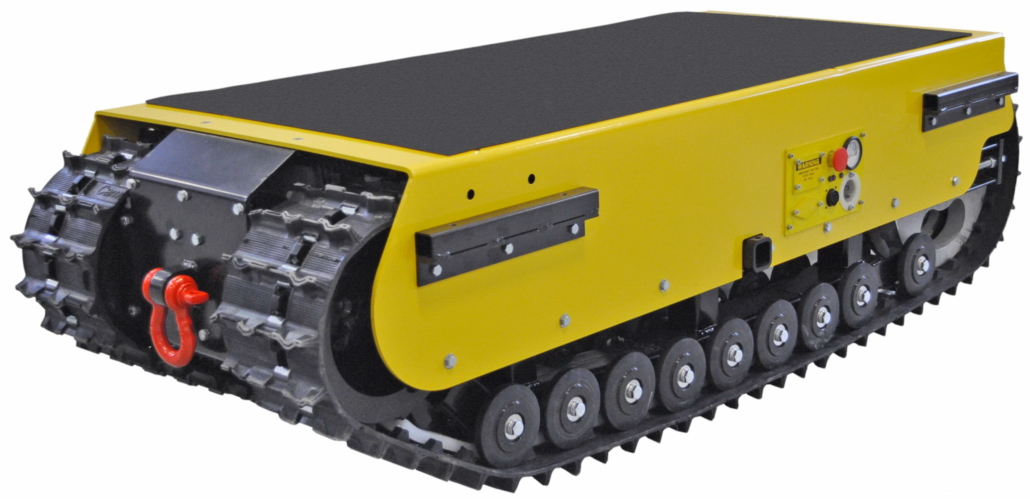

Track-O Cross-Country – Modular All Terrain Load Carrier
Capacity up to 1.600 lb (725 kg) at 40°

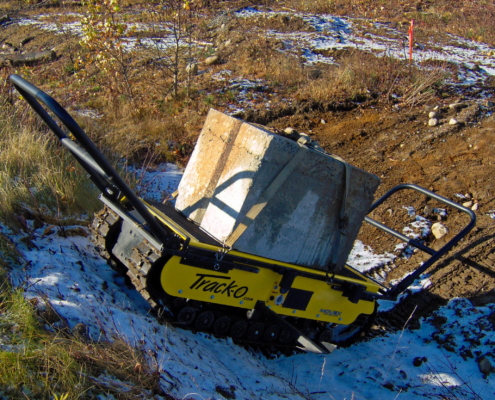

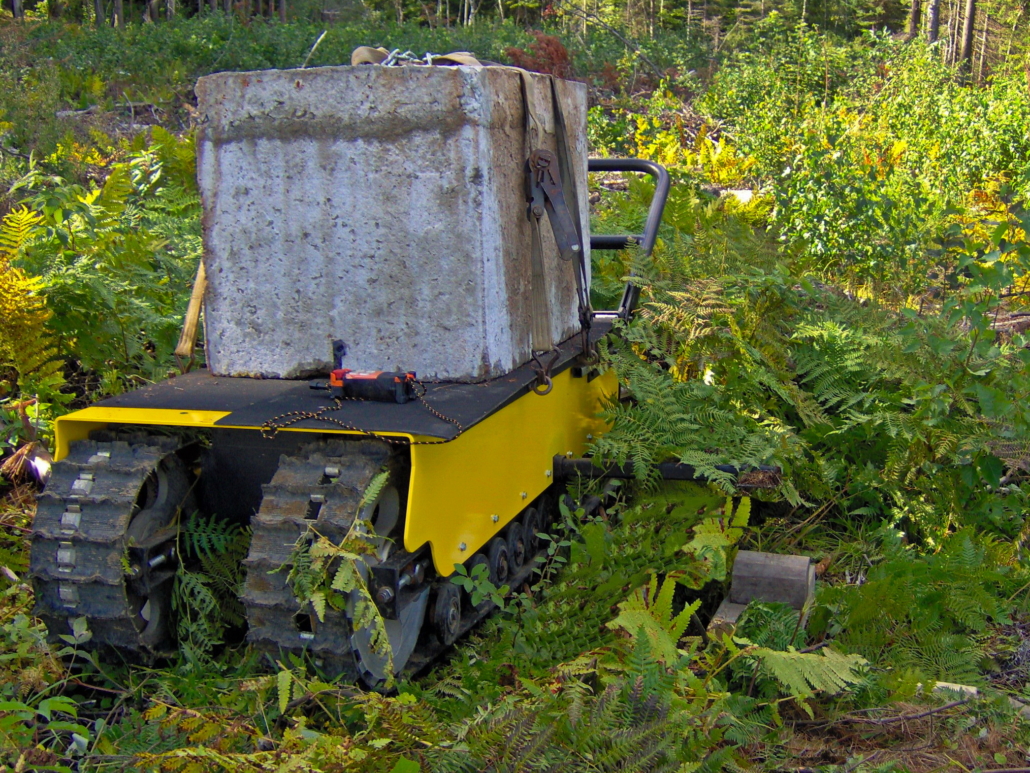

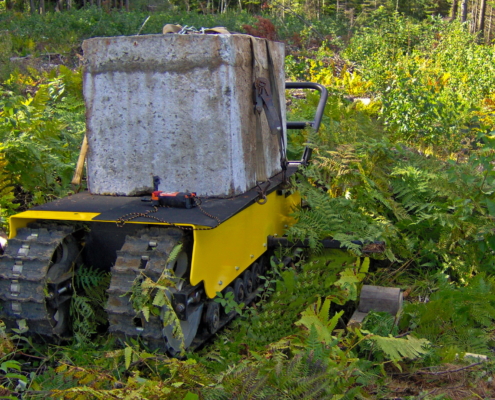

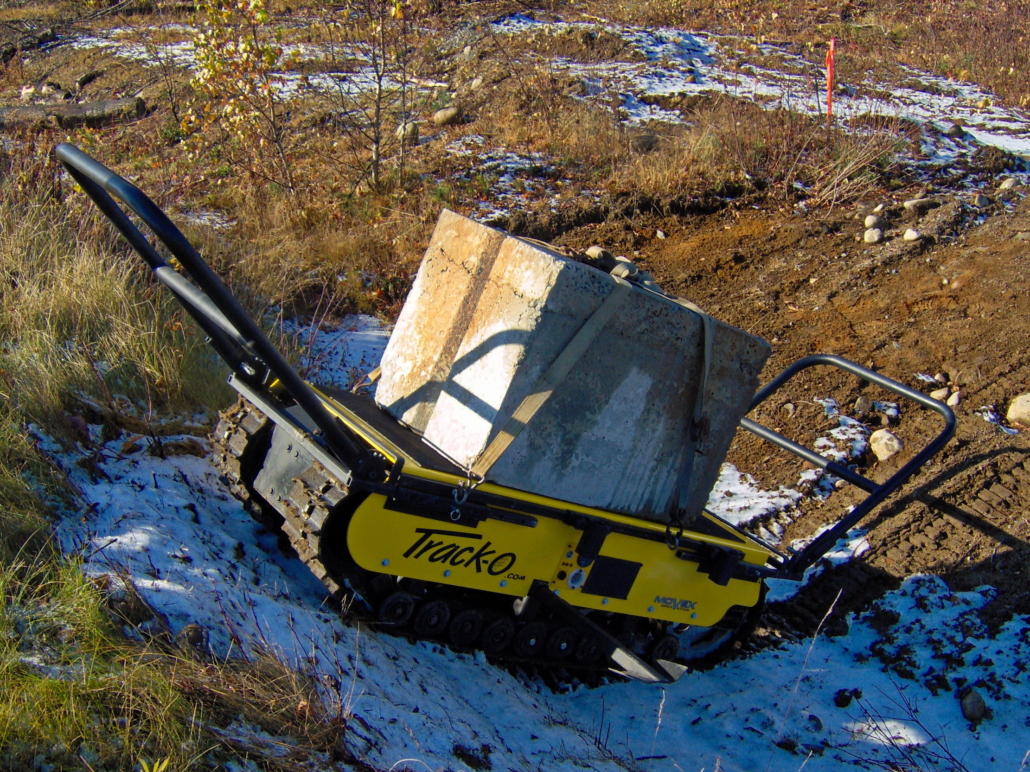

The Track-O Cross-Country is a modular all terrain load carrier specially designed for outside work and makes it possible to travel across areas where a traditional vehicle can not go. The Cross Country will work in harsh conditions, including snow, mud, sand and is capable of carrying loads on steps.

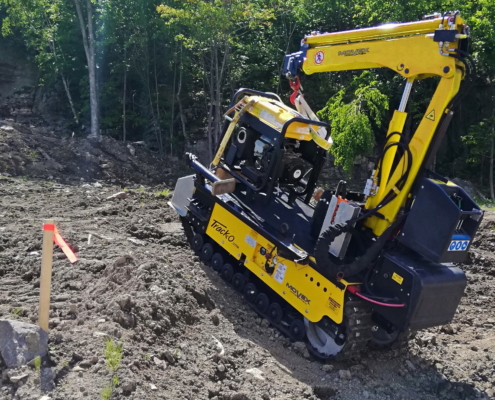

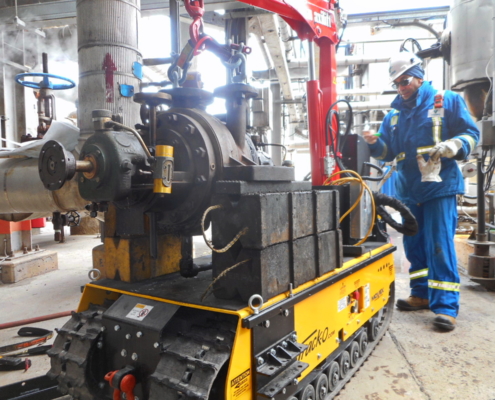

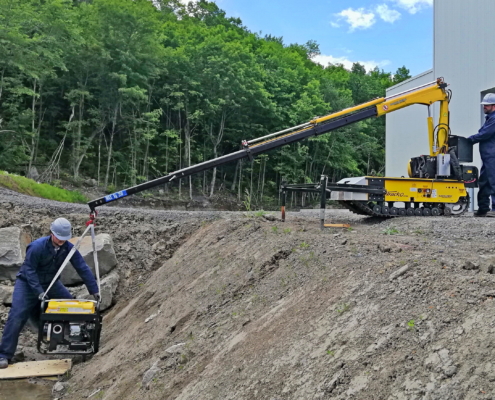

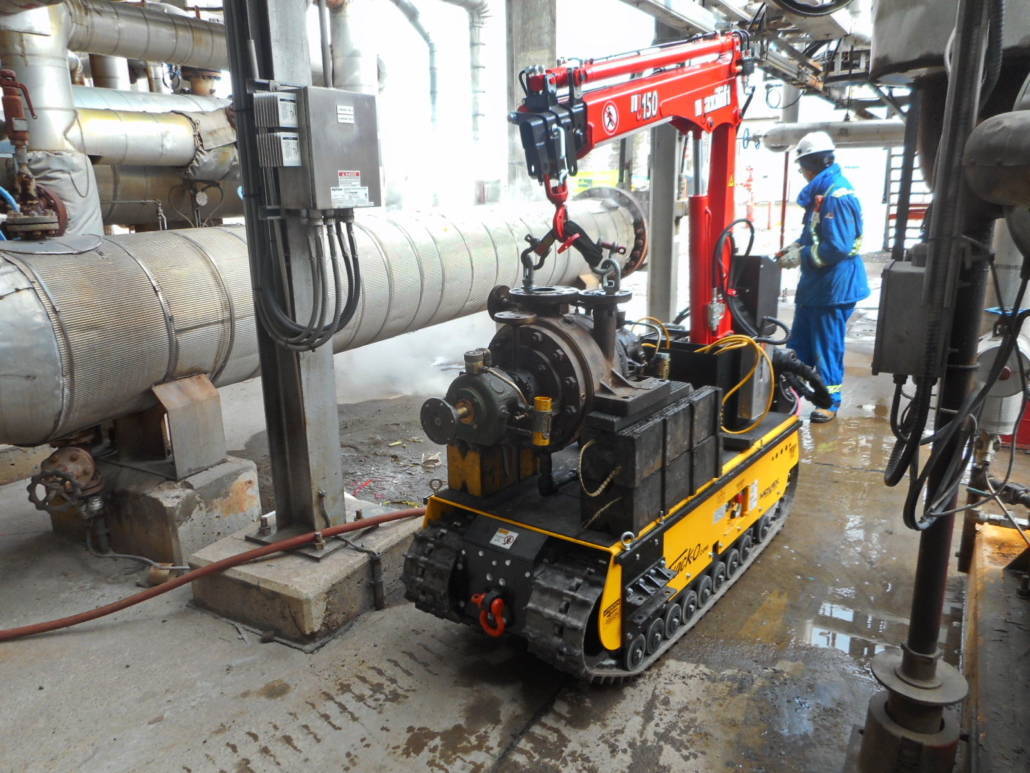

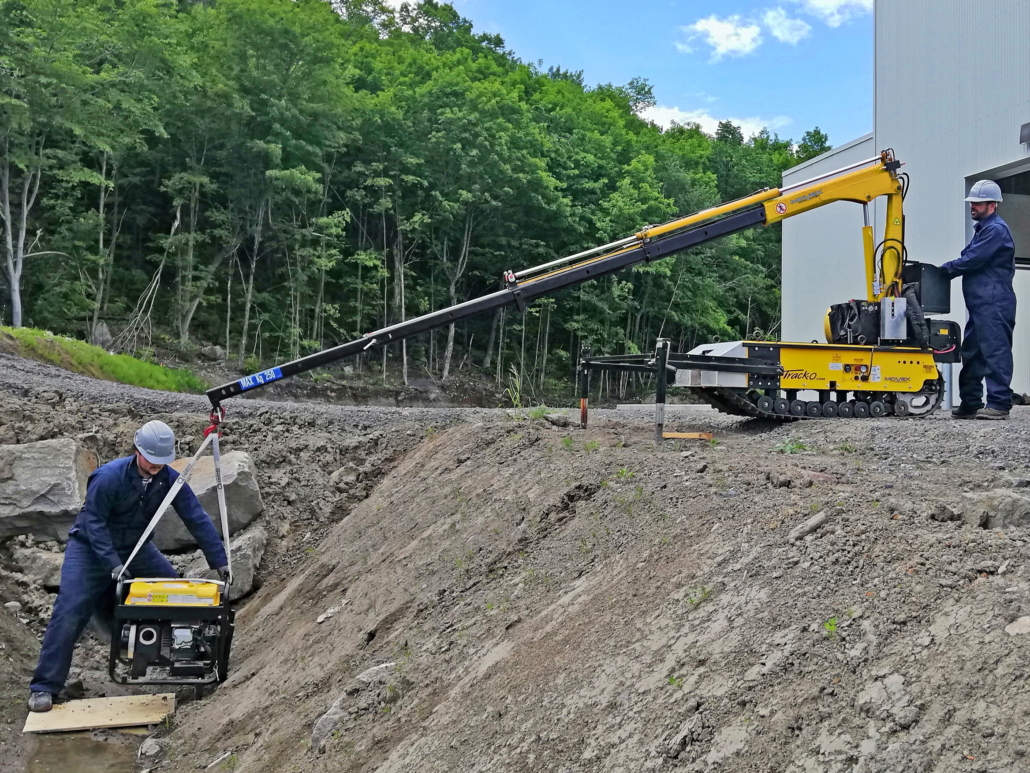

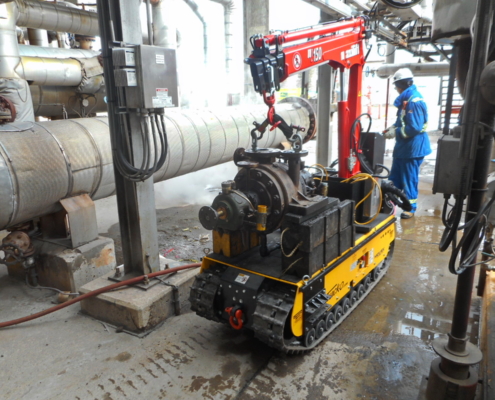

It has a clearance of nearly 9 inches (230 mm) that enables it to negotiate obstacles or bumps such as stones, tree stumps, etc. The Track-O Cross-Country can easily climb 40 degree slopes with a load capacity up to 1.600 lb (725 kg). This model can be adapted to the customer’s needs by adding a crane attachment or other accessory. Runtime is nearly 2,5 hours and can be improved by adding another battery.
If you need a higher final speed of your track system the Track-O Cross-Country HS (High Speed) version is the right one for you.
If you would also like to climb stairs with(925 lb (420 kg) at 40° and a reduced ground clearance of 6 7/8 in (174 mm) does not matter, the Cross-Country is also available with the matching flat undercarriage.
Convince yourself of our Track-O Cross-Country modular stair climber track system – More Pictures
Advantages of the Track-O Cross-Country modular stair climber track system
- Designed for outdoors works and hard-to-reach areas
- Clearance of 9 in (230 mm) for obstacles or pitfalls
- Climbs slopes of 40°
- Continuous run-time ranging from 2,5 hrs
Technical Specifications
| Track-O Cross Country | |
|---|---|
| Frame | Steel |
| Cabinet | Aluminium |
| Length | 72 1/4 in (1.835 mm) |
| Width | 30 3/16 in (767 mm) |
| Height | 21 1/2 in (546 mm) |
| Weight | 1.091 lb (495 kg) |
| Ground clearance | 9 in (229 mm) |
| Turning diameter | 76 1/2 in (1.943 mm) |
| Load bearing capacity (inclined surface) | 1.600 lb at 40° (725 kg at 40°) |
| Load bearing capacity (on stairs) | N/A |
| Load bearing capacity (flat surface) | 2.292 lb (1.039 kg) |
| Max. speed (flat surface) | 44 ft/min (13,5 m/min) |
| Max. speed (flat surface) HS | 164 ft/min (50 m/min) |
| Gearbox ratio | Either 104:1 (x2) or HS (High Speed) 50:1 (x2) |
| Motor power | Either 1 PS (x2) or HS (High Speed) 3,25 PS (x2) |
Power Features
| Track-O Cross-Country | |
|---|---|
| Batteries Amperage/Voltage | 2 x 130 Amp at 12 volts |
| Charger | 1 x Integrated AC-DC |
| Battery Pack Amperage | 130 Amp |
| Operating voltage | 24 V DC |
| Continous Run-time | 2,5 hours approx. (without load, flat surface) |
| Battery Recharging Time | 8,5 hours approx. |
| Control | Standard wired, optional wireless |
Options for the Track-O Cross-Country
Technical Specifications of the options as PDF
- Options Overview
- Option Additional Battery Set

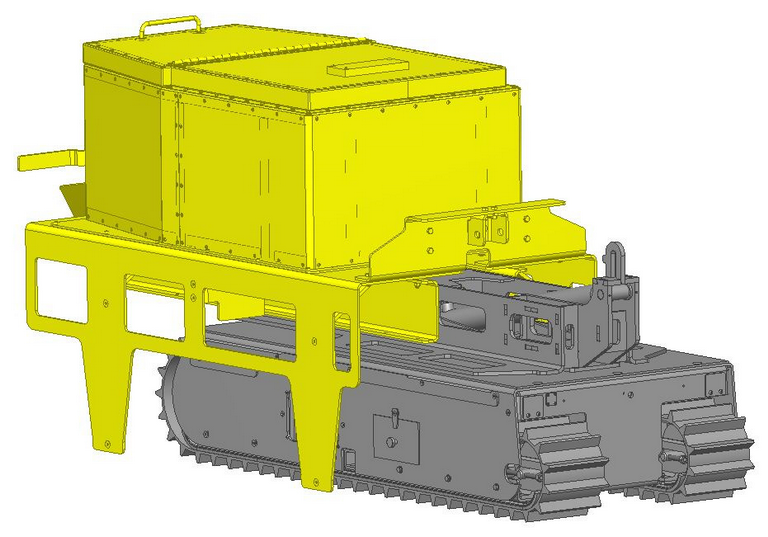

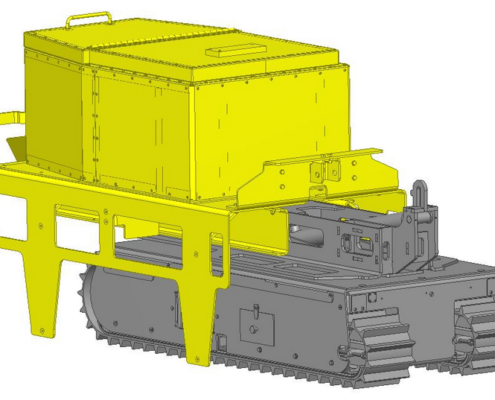

- Option Asphalt Container

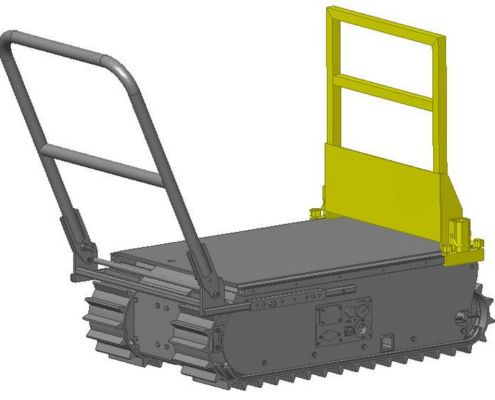

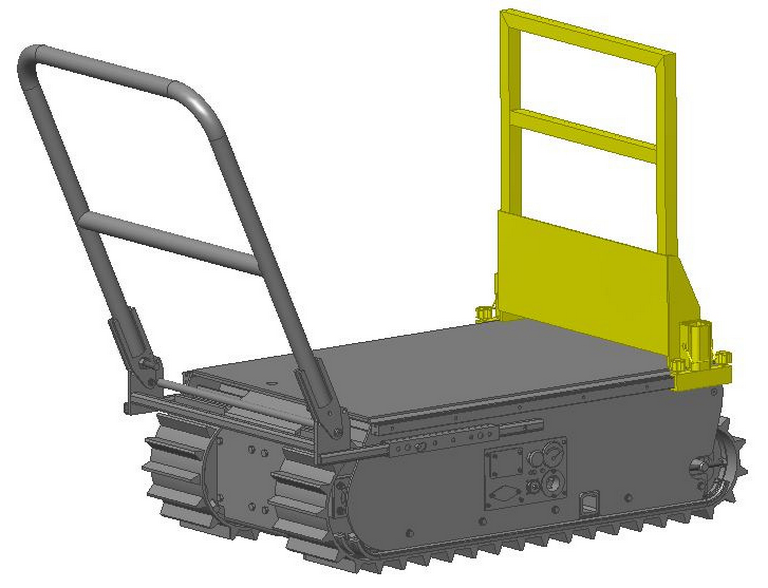

- Option Backrest

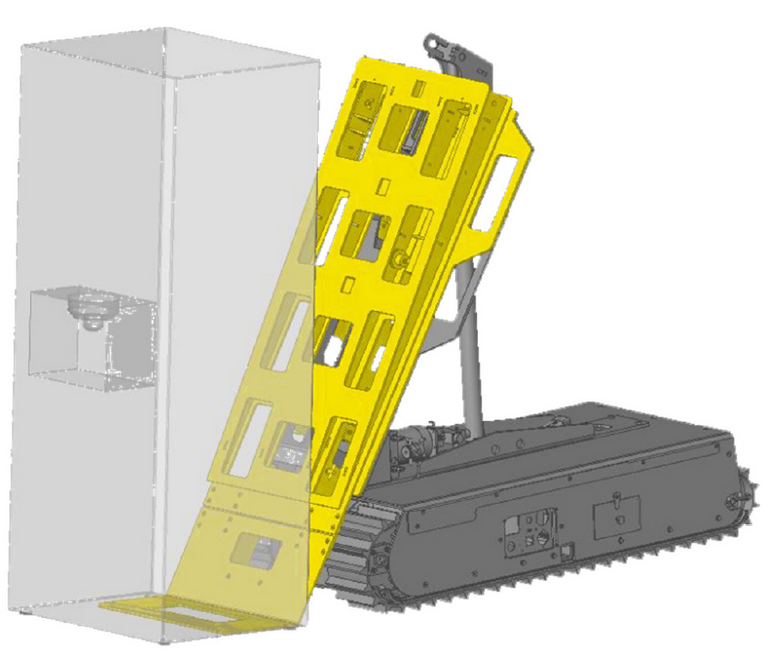

- Option Cabinet Loading Device

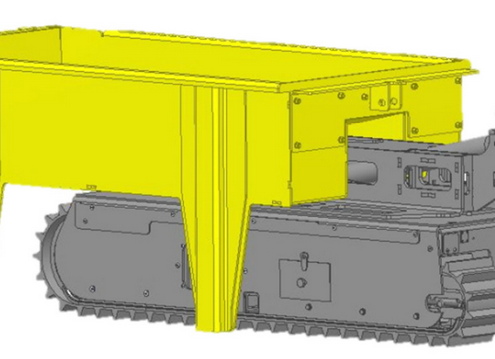

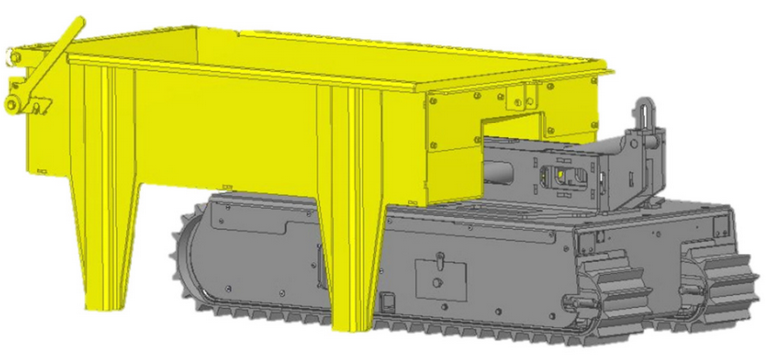

- Option Concrete Container

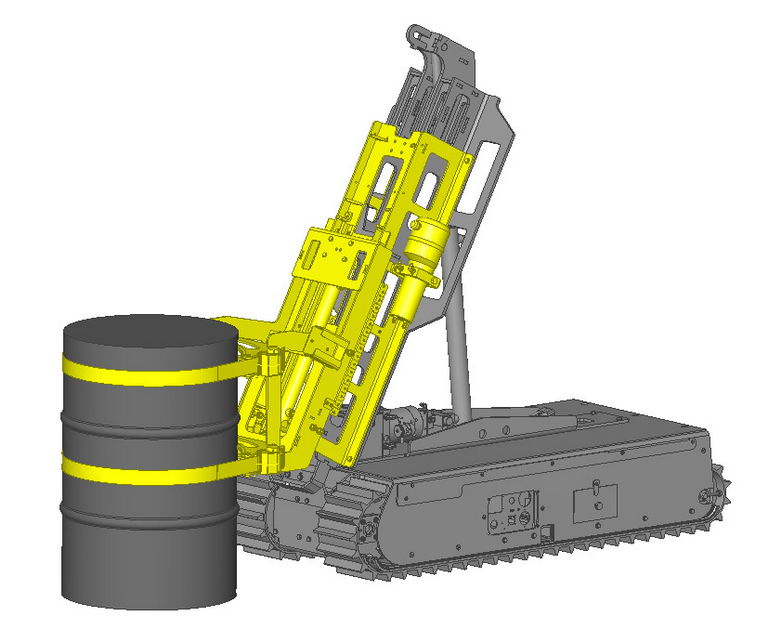

- Option Drum Loading Device
- Option Elektric Quick Connect

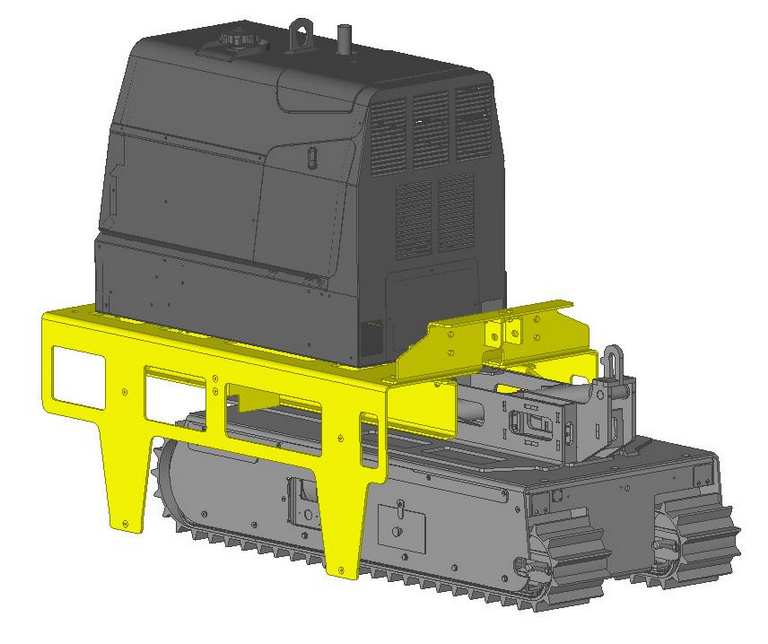

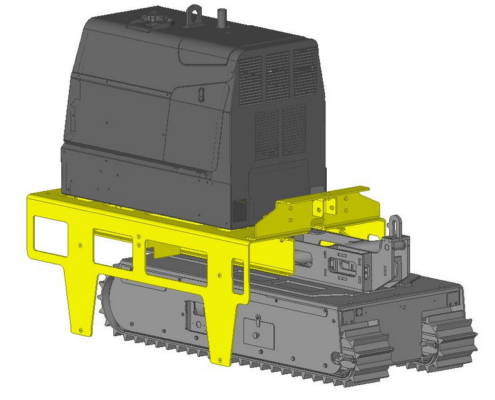

- Option Equipment Palett

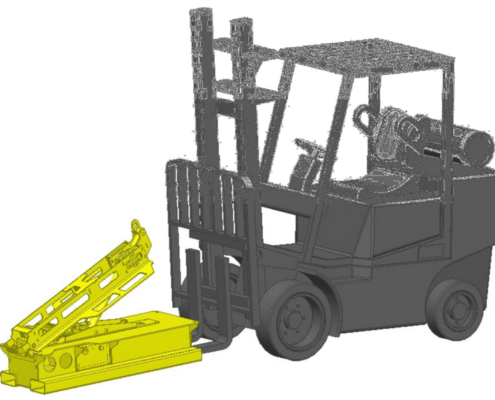

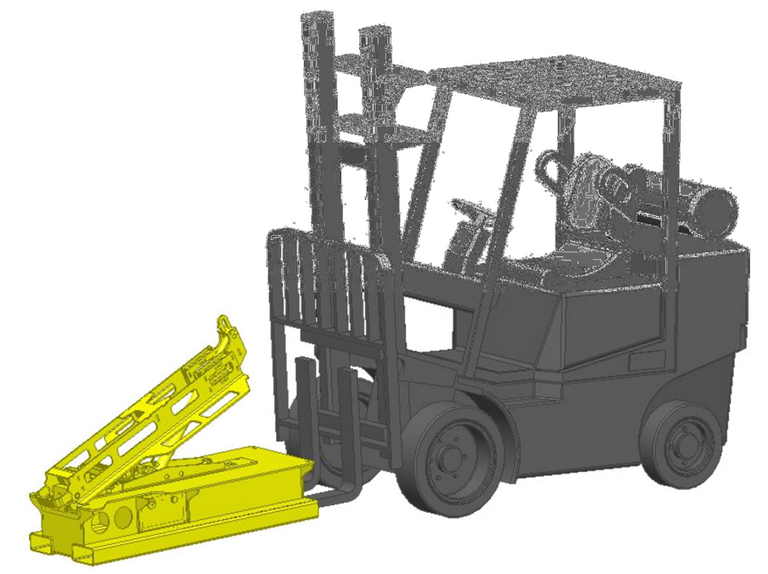

- Option Forklift Lifting Device
- Option Track-O HD Moving Trolley

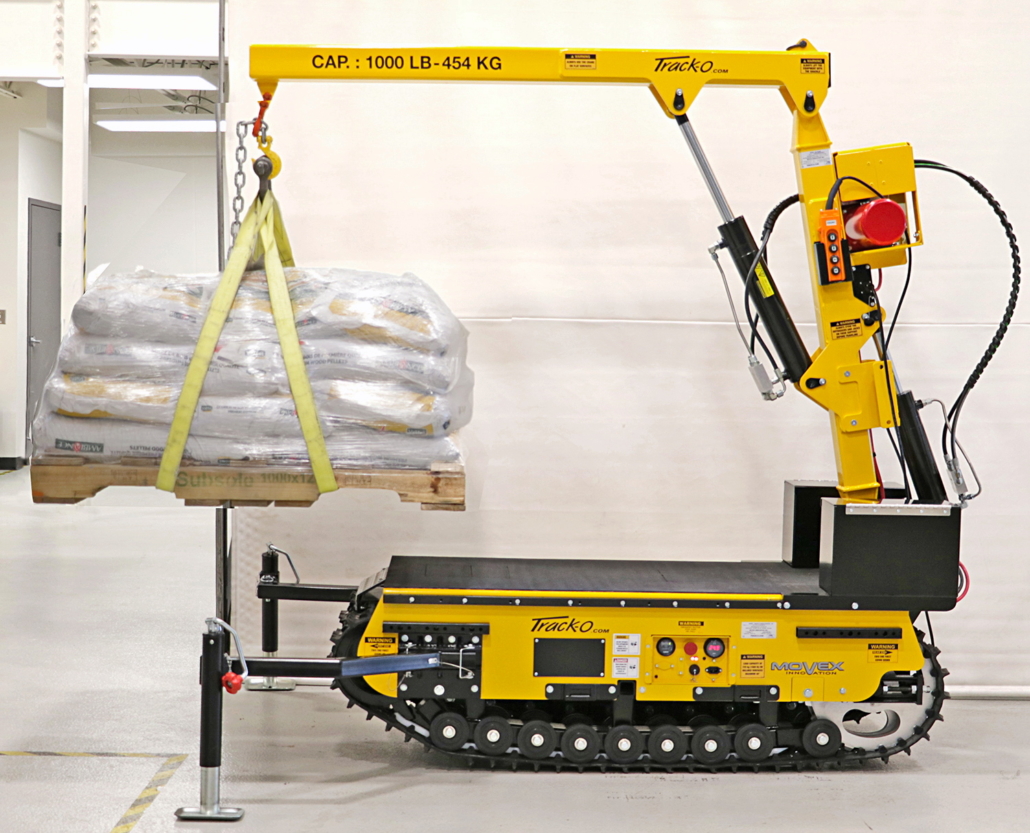

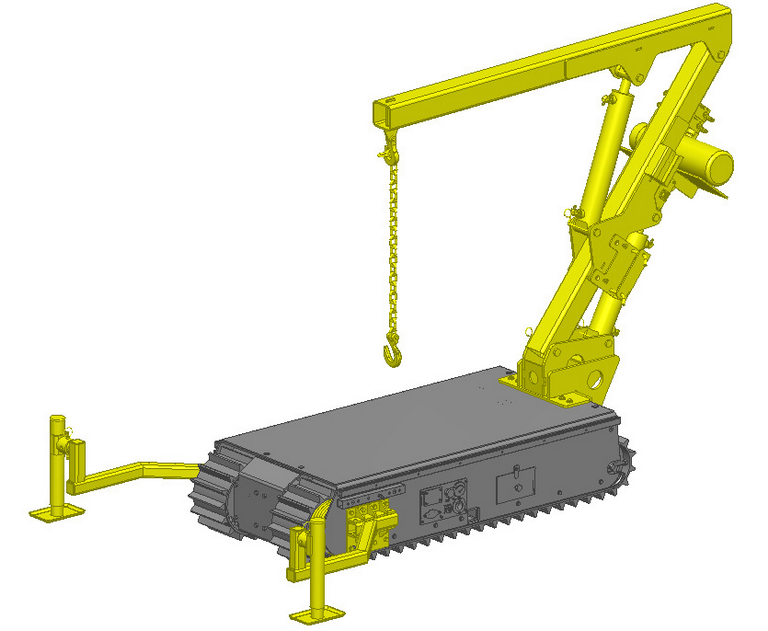

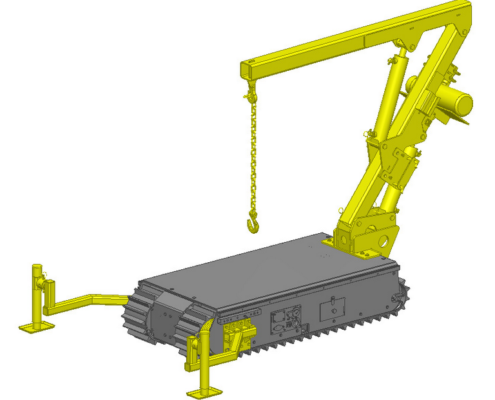

- Option Jib Crane 1000 lb
- Option Lifting Device 45 Degree

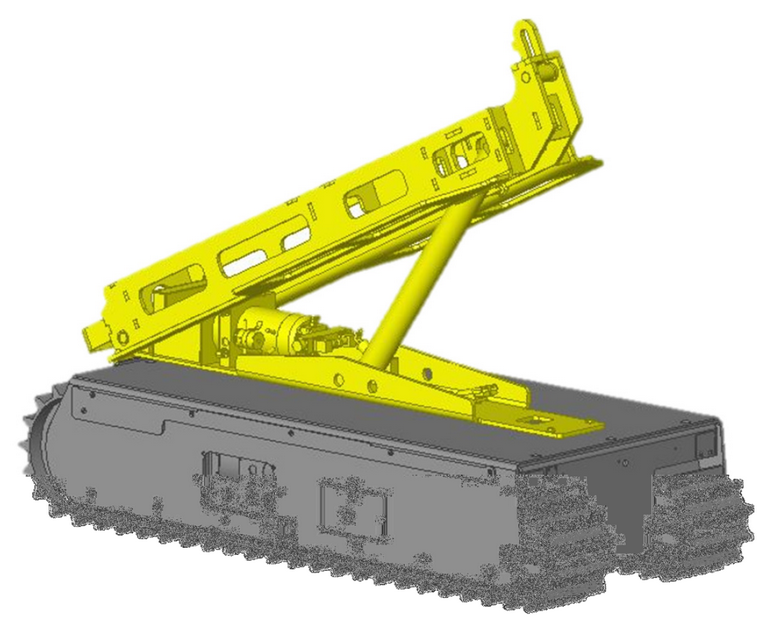

- Option Lifting Device 62 Degree
- Option Loading Platform

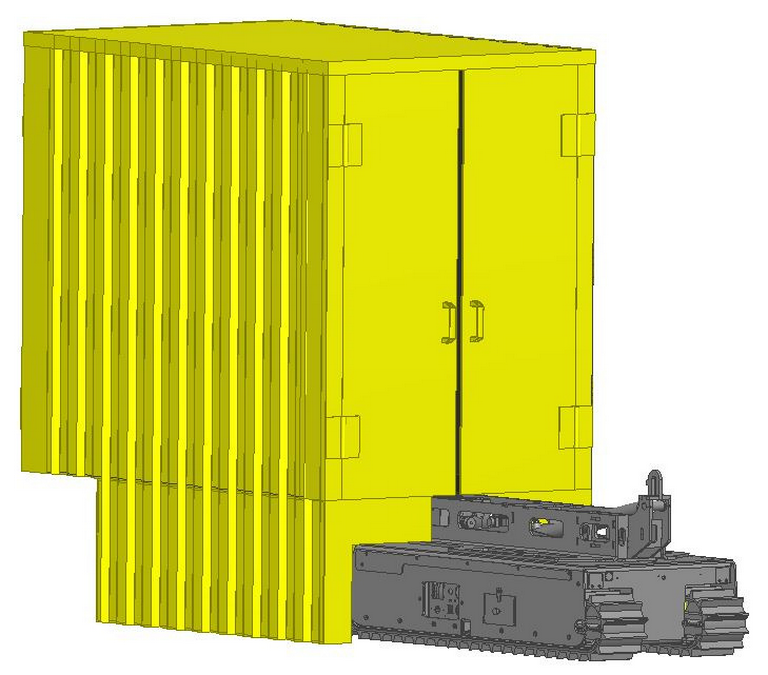

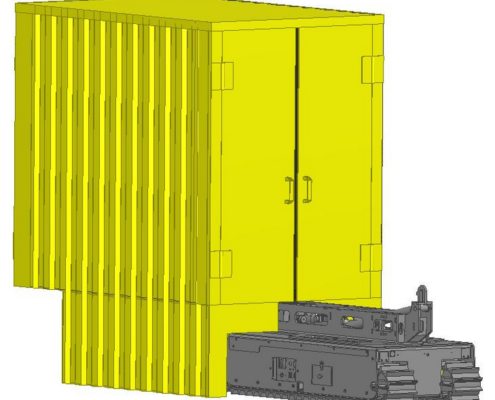

- Option Mini Container
- Option Panel Support

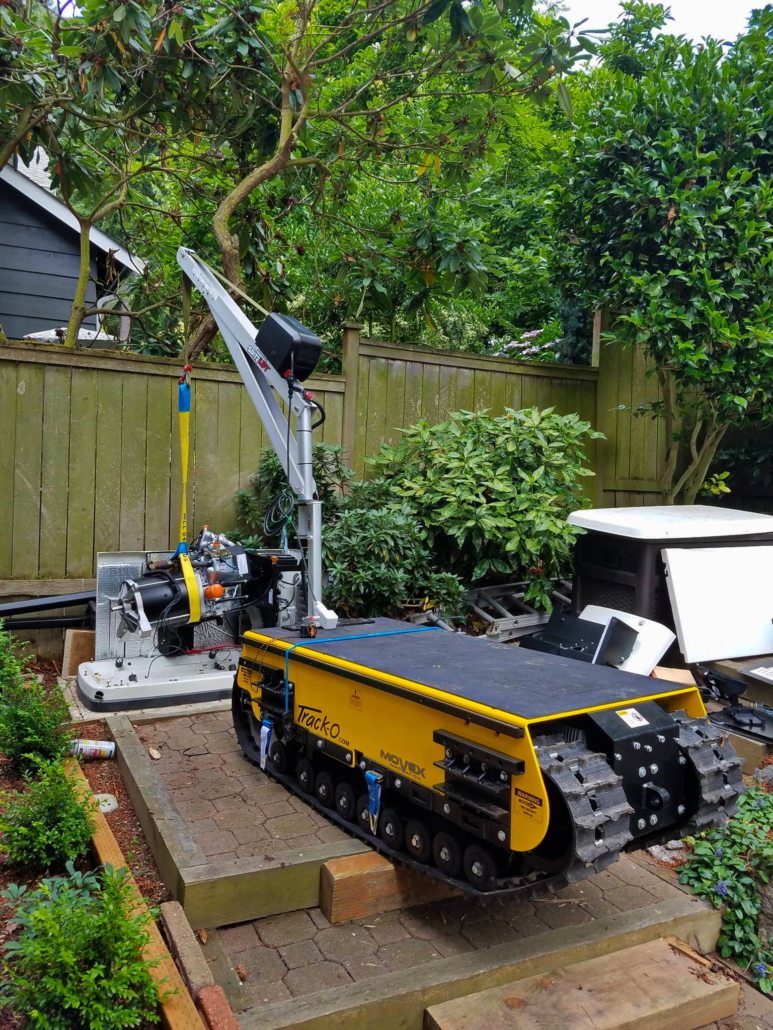

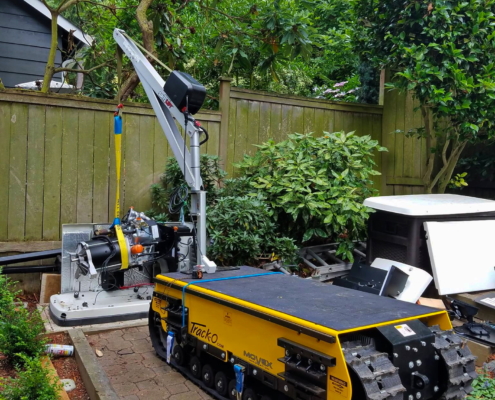

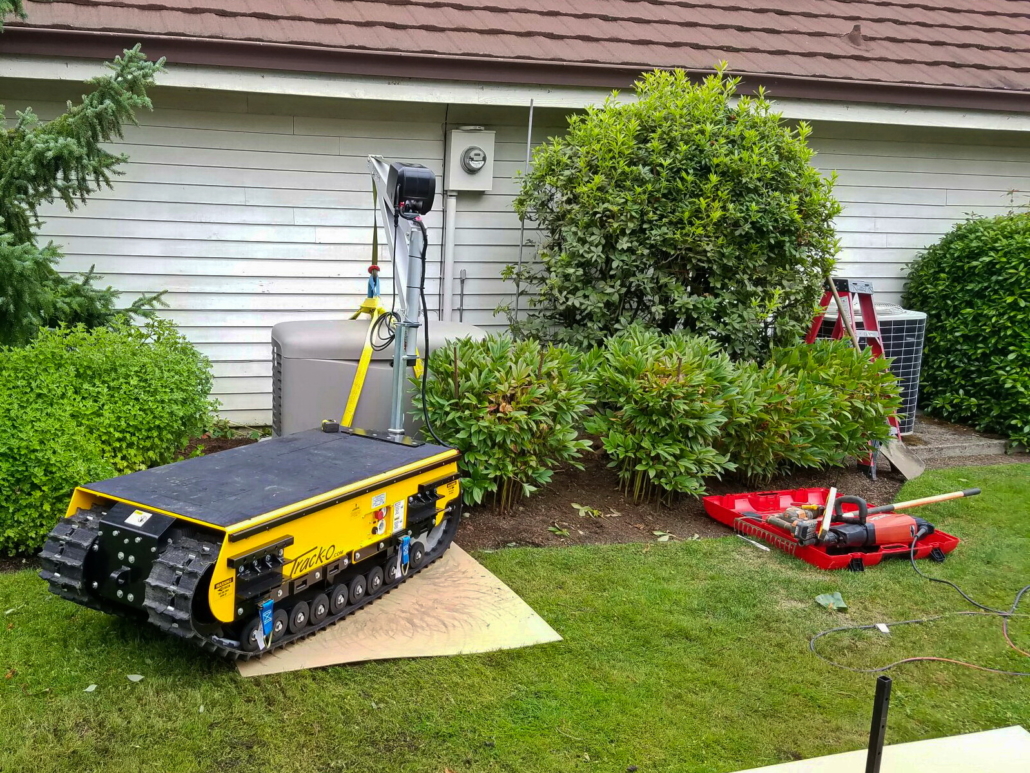

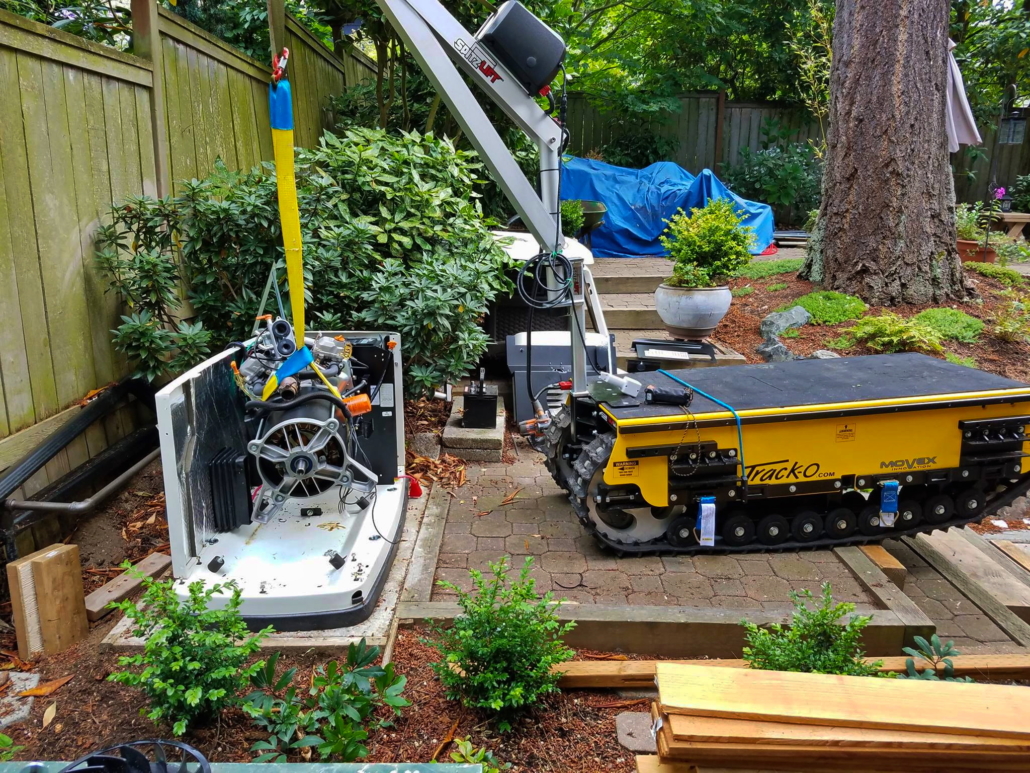

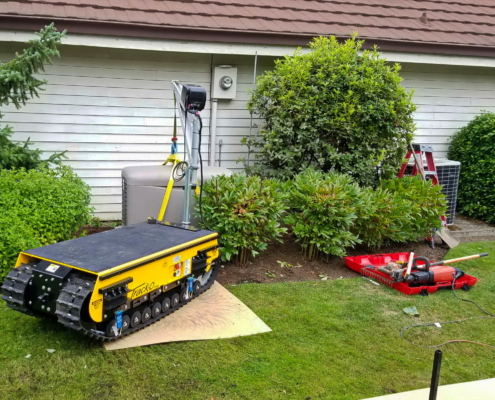

- Option Portable Jib Crane 36 inch 500 lb

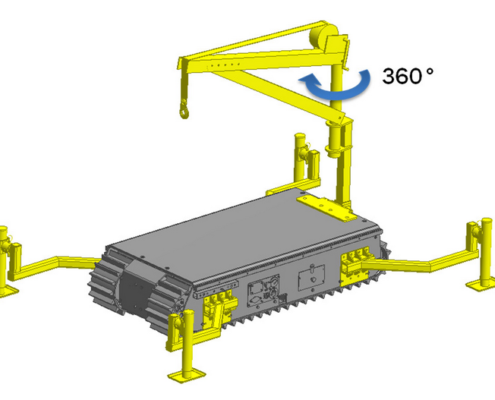

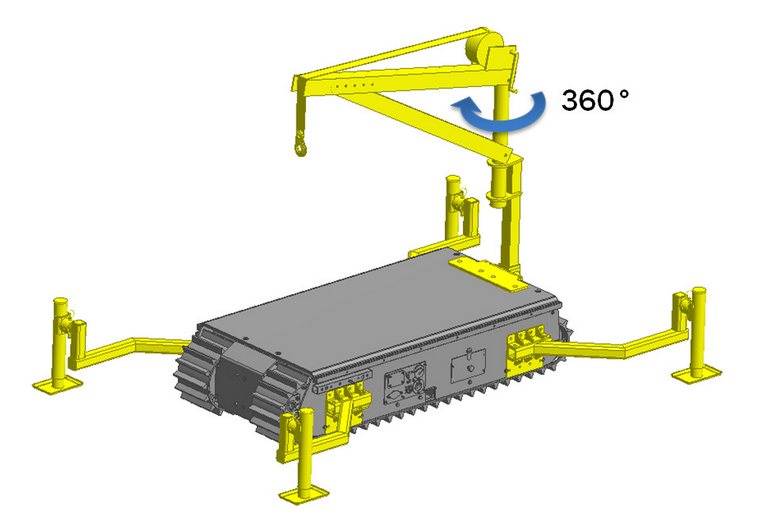

- Option Portable Jib Crane 48 inch 500 lb
- Option Fastening Kit

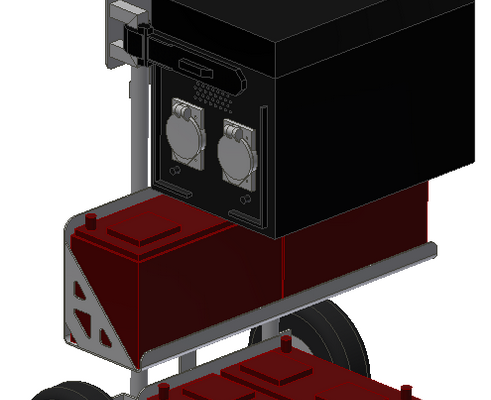

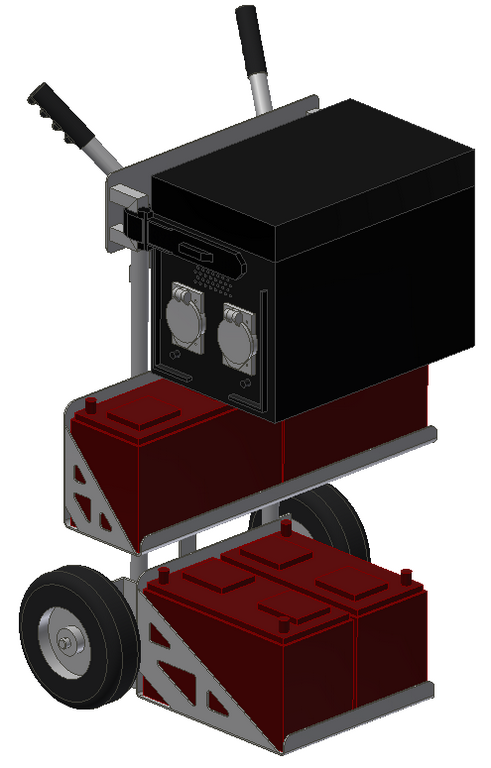

- Option Recharge Station for Batteries
- Option Reel Support
- Option Scissor Lift Table 1000 lb 24 inch run

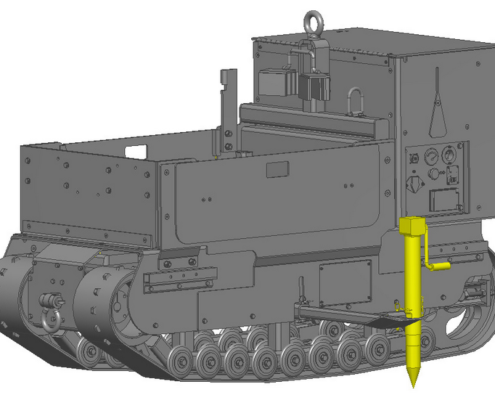

- Option Stabilizers for Winch Use

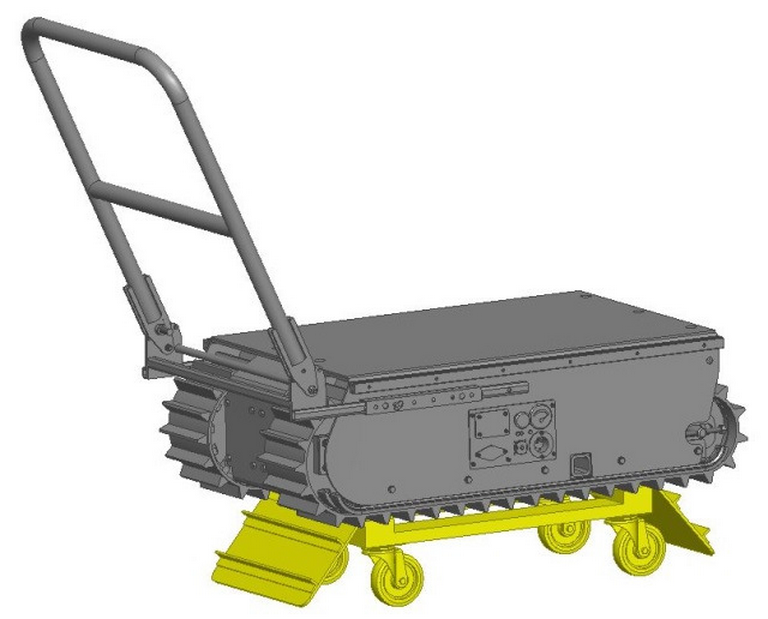

- Option Track-O Moving Trolley

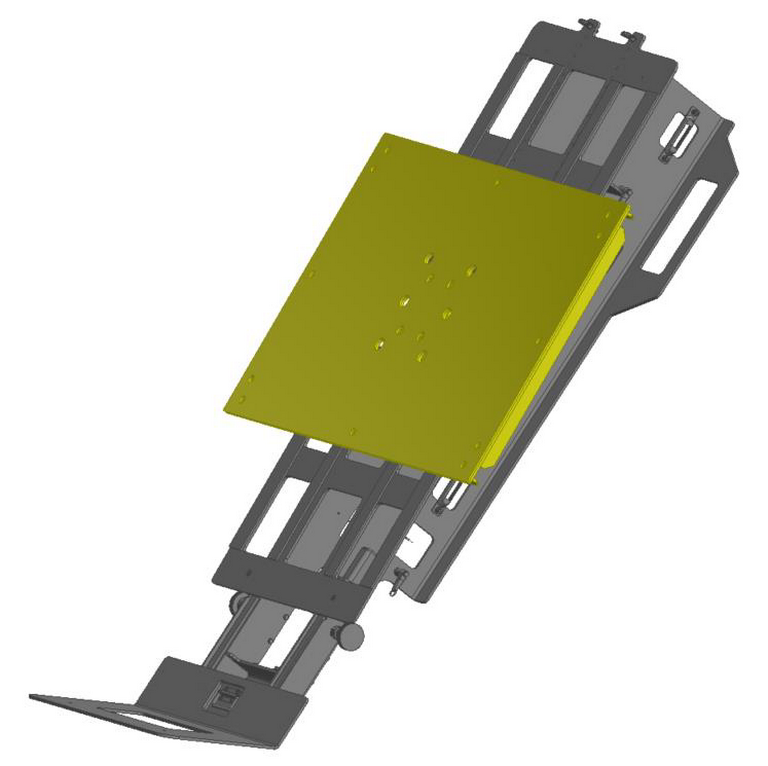

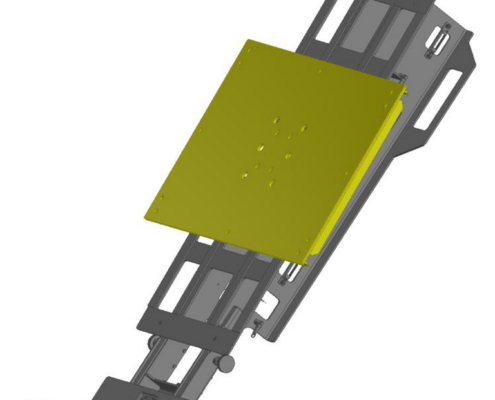

- Option Turntable for Cabinet Loading Device

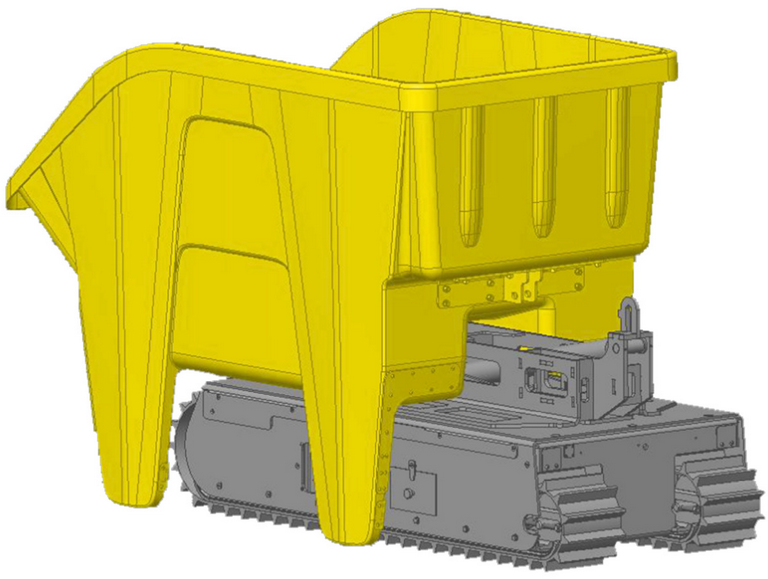

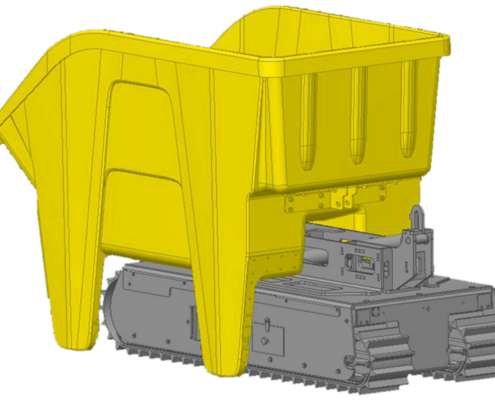

- Option Waste Container
