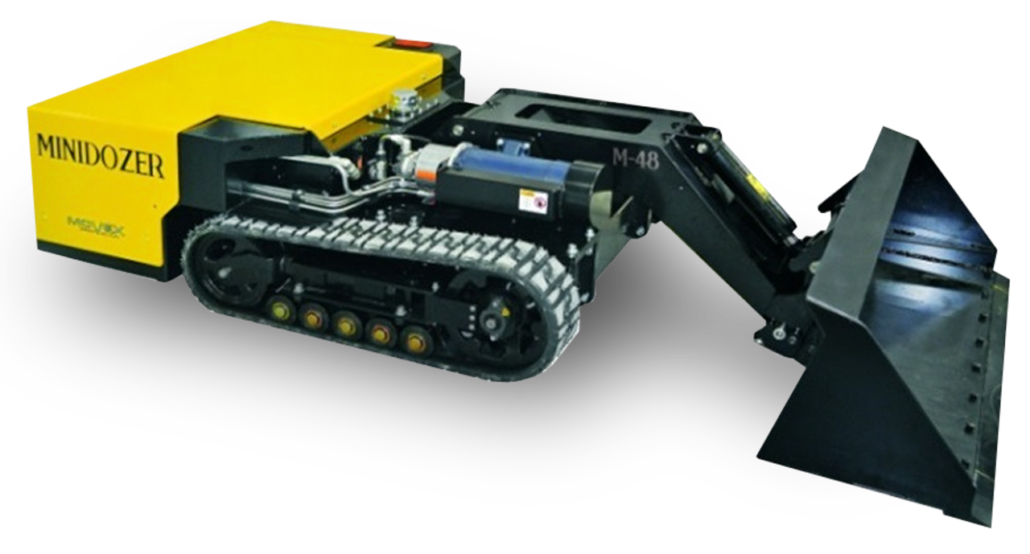

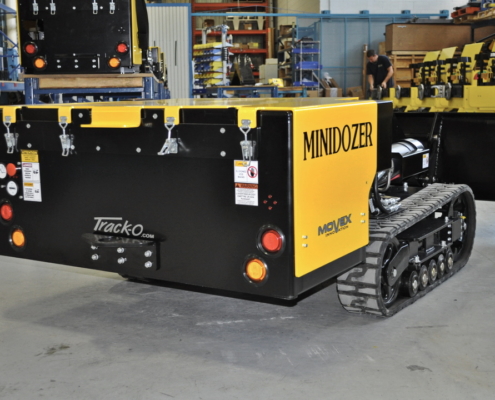

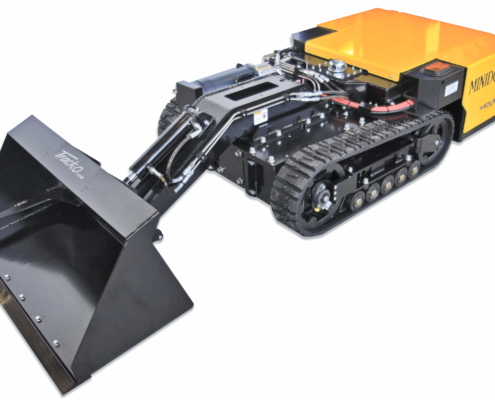

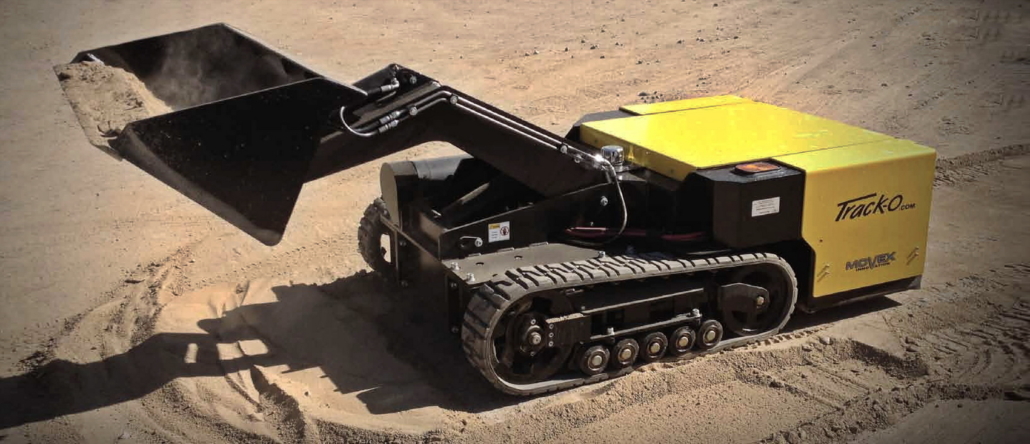

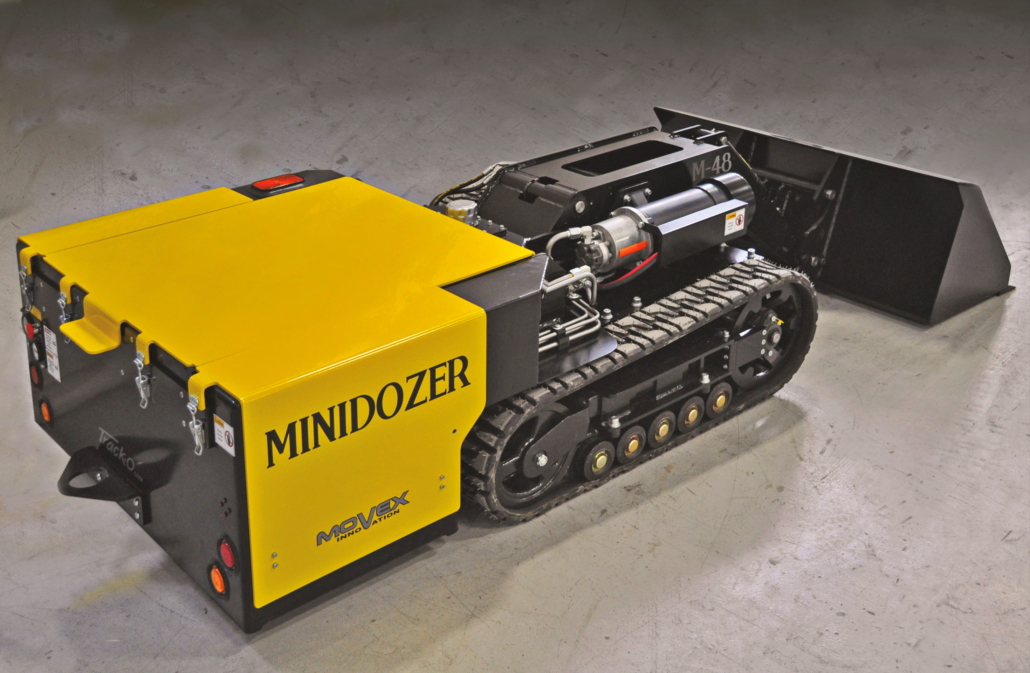

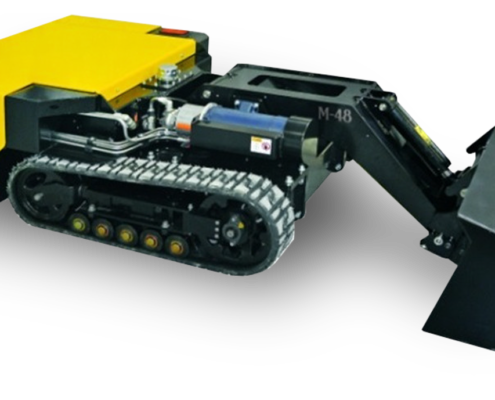

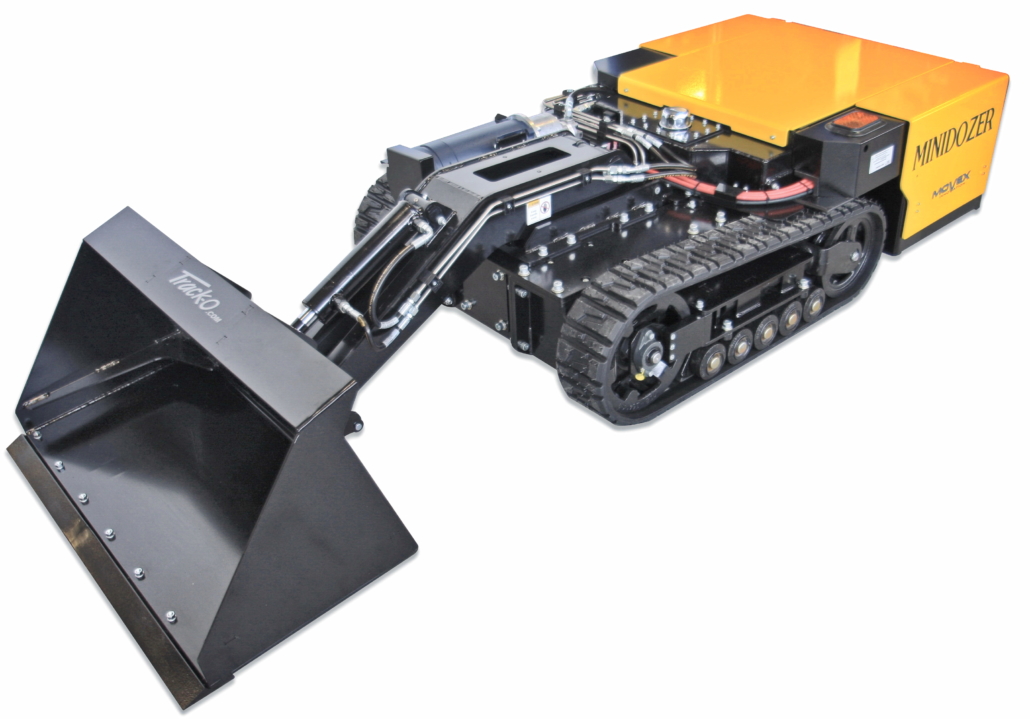

Track-O Minidozer M-48
Remote Electric vehicle for confined spaces
A safe, heavy duty, low maintenance solution for places where a standard vehicle won’t go.
Based on Movex exclusive technology, the Minidozer model, has been specifically designed to operate in confined spaces. It provides a safe and simple solution for picking up and transporting materials to hard to reach places. With an external charger and a runtime of nearly 10 hours. The Minidozer is equipped with interchangeable batteries that enable it to work continuously over several work shifts. With a low profile, this model offers a very good power/runtime ratio.

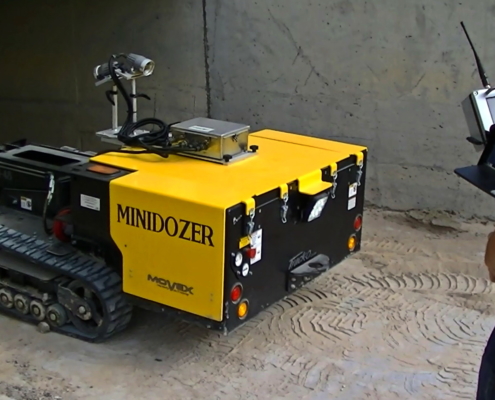

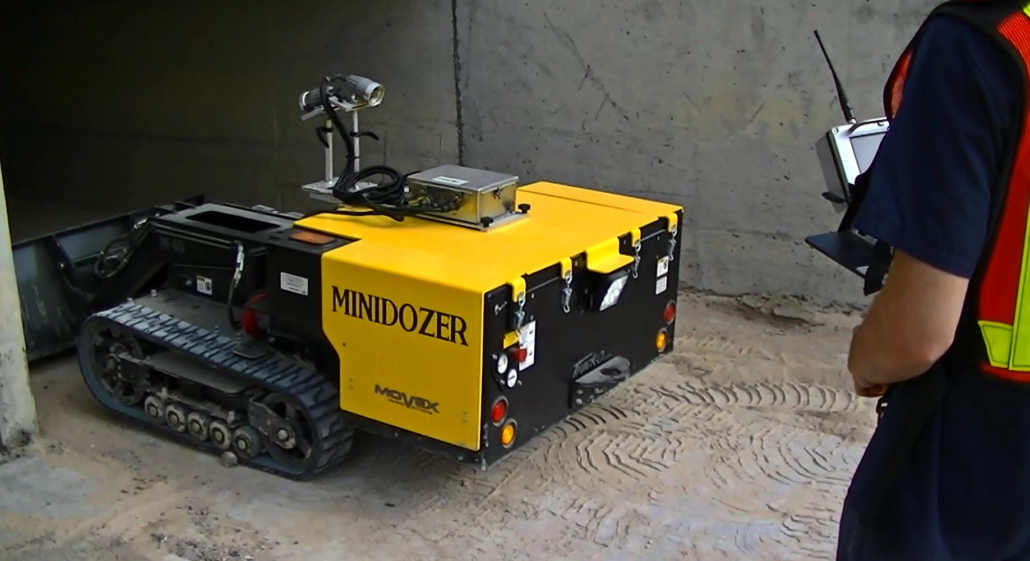

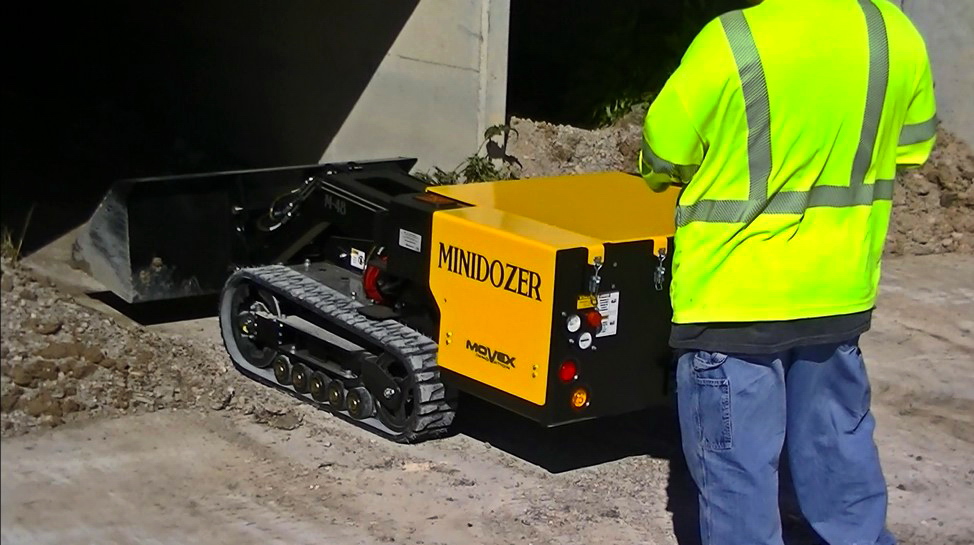

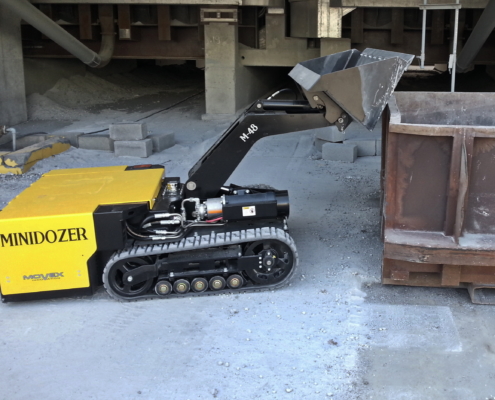

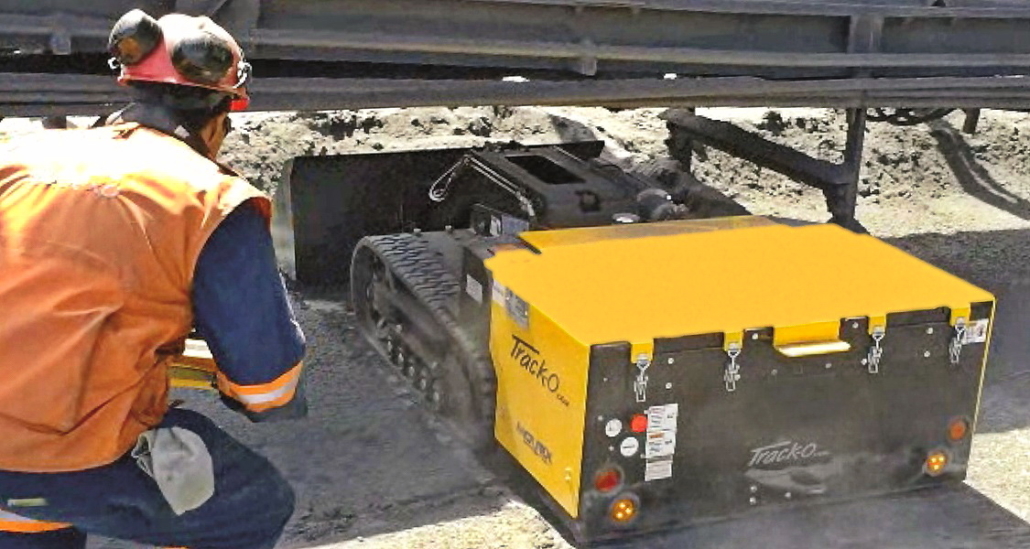

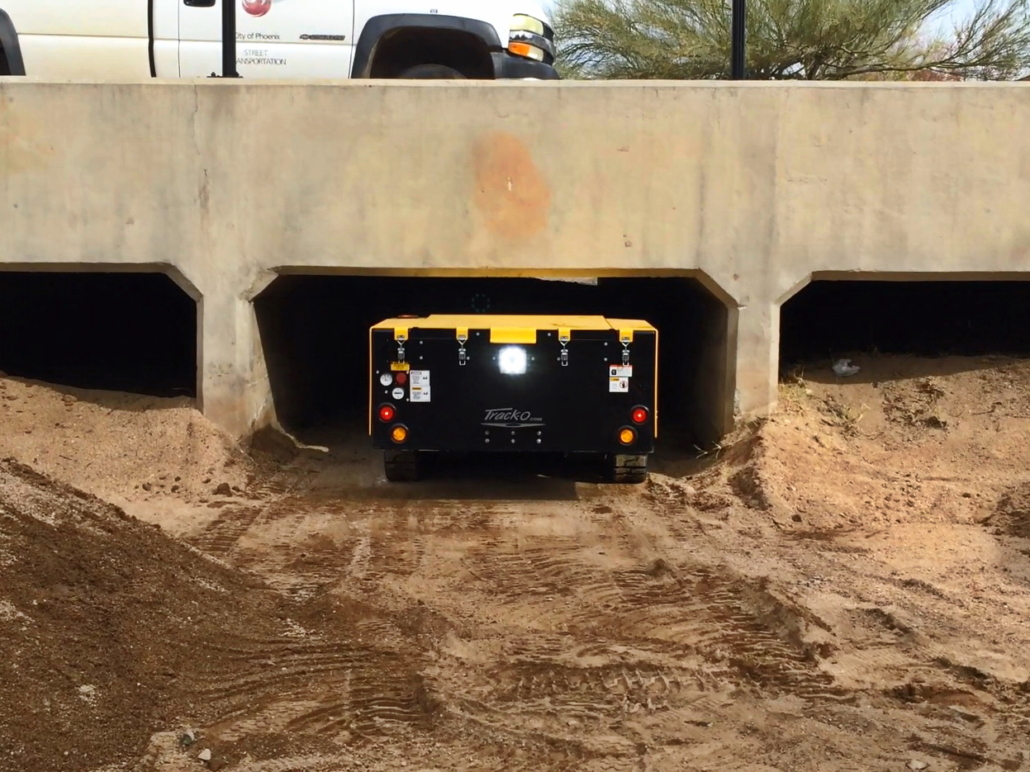

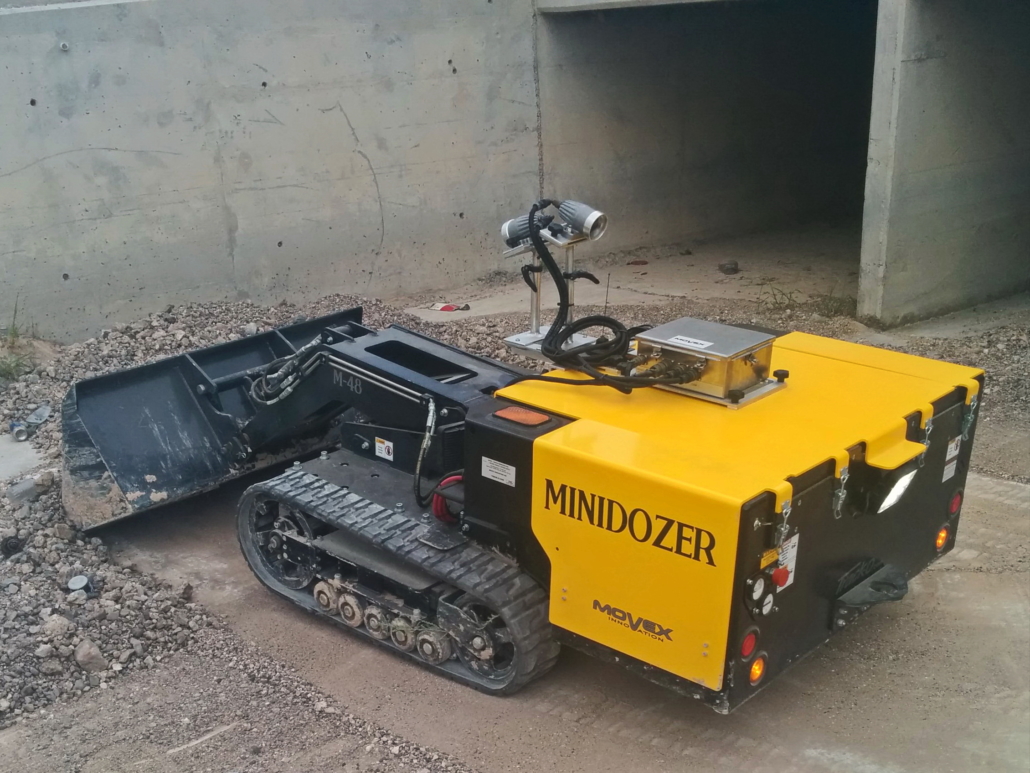

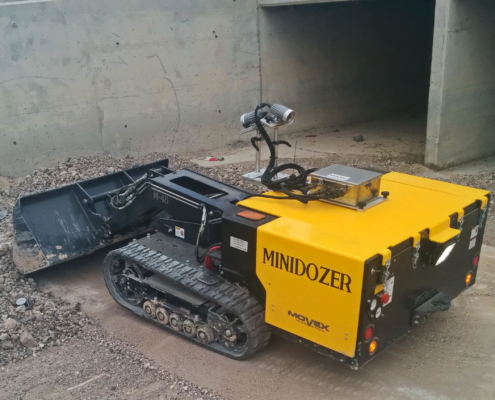

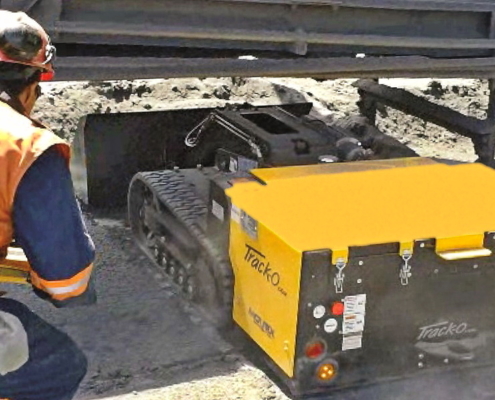

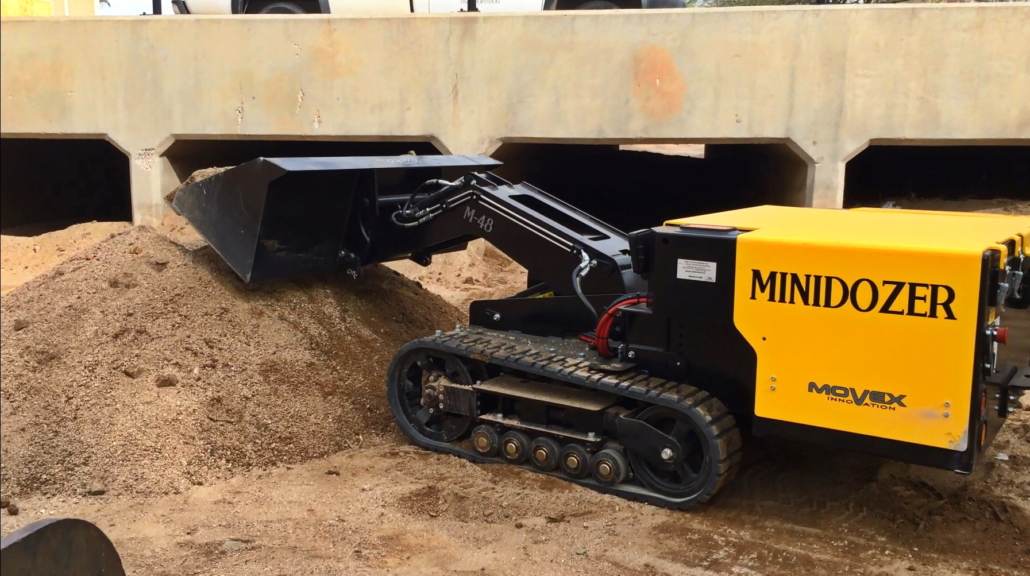

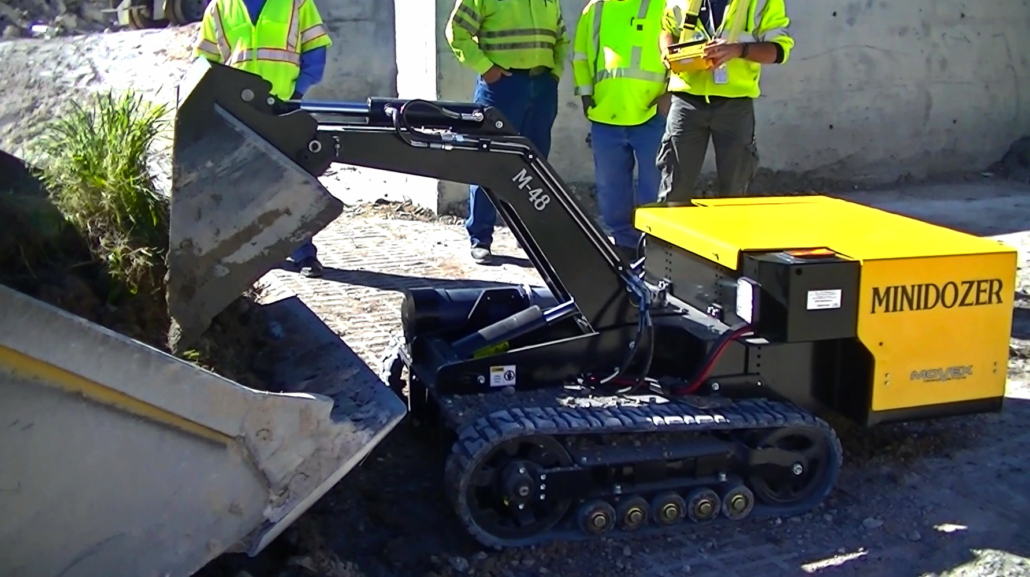

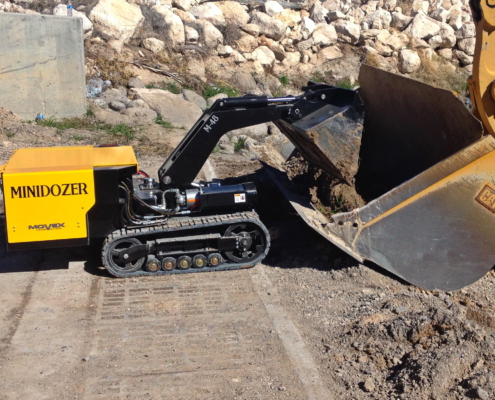

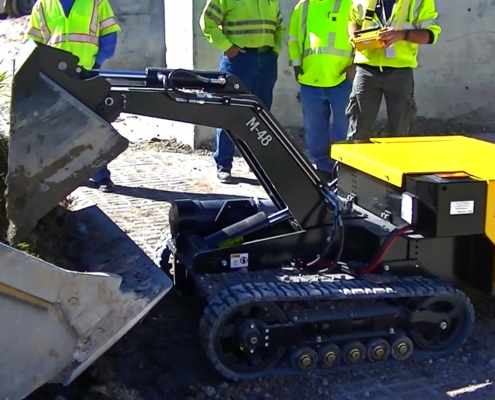

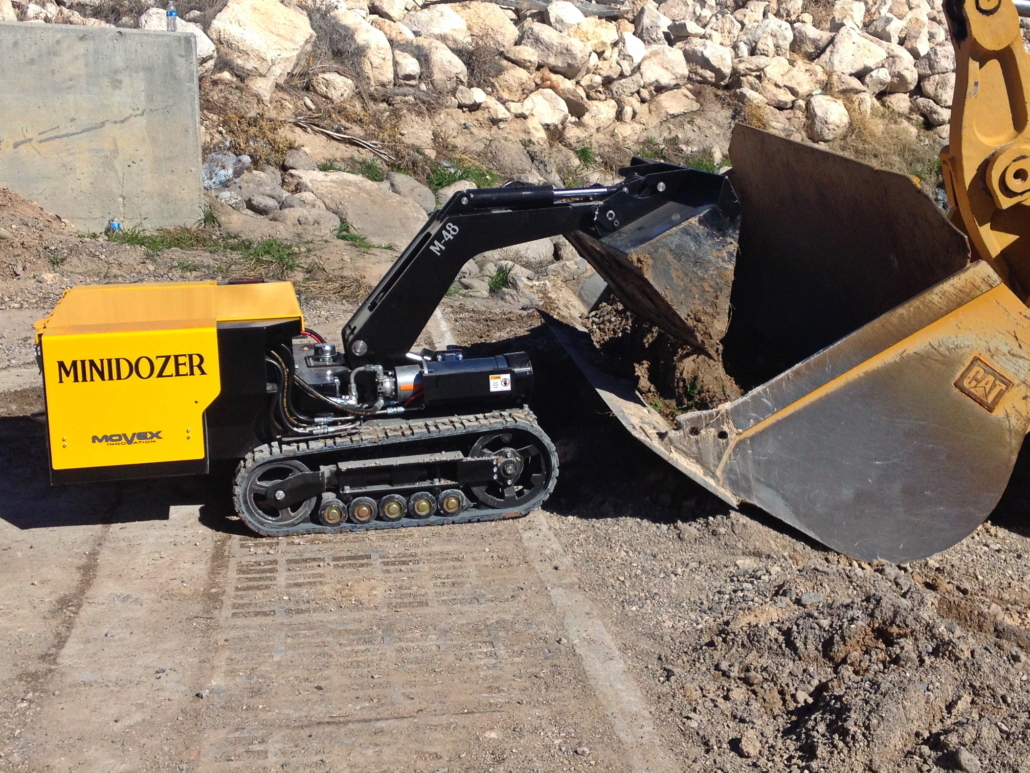

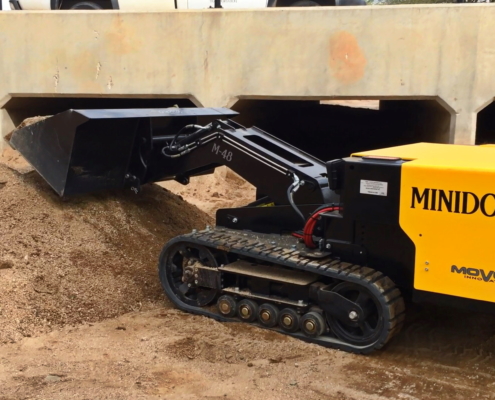

The Track-O Minidozer M-48 is ideal for clean-up operations under conveyor belts in aboveground and underground mining, ore crushing and concentration plants, clean-up operations of state and federal DOT, municipalities, cities and counties highways underground tunnels, box culverts and drainage systems, pumping stations and other irrigation projects and much more…
If you need a higher final speed of your track system the Minidozer M-48 HS (High Speed) version is the right one for you.

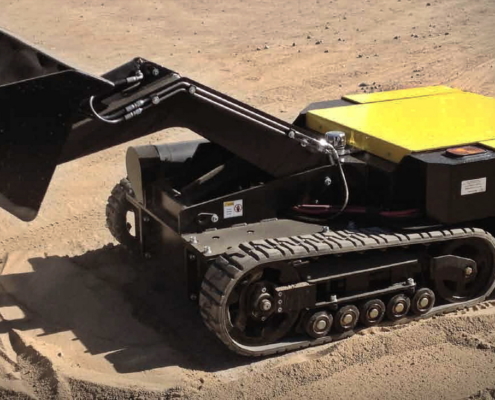

Convince yourself of our Track-O Minidozer M-48 – More Pictures
Advantages of the Track-O Minidozer M-48
- Ideally suited for works in confined spaces
- All electric drive system, environmentally friendly and low carbon footprint
- Improved operator’s health and safety
- High energy conversion rate of 80%, minimum heat radiation and noise
- No fan airborne dust, no diesel fuel leaks and toxic gas emissions
- No diesel fuel expense and no diesel engine overheat
- Significant lower downtime, maintenance, repair and service cost
- Increased crew productivity and safety
- Low total cost of ownership
- Ease of use
- Continuous run-time of 8 to 10 hours
- Adjustable ground clearance
Technical Specifications
| Track-O Minidozer M-48 | |
|---|---|
| Frame | Steel |
| Cabinet | Aluminium |
| Length | 110 in (2.794 mm) |
| Width | 48 in (1.219 mm) |
| Height | 22 in (559 mm) |
| Height (bucket to maximum) | 58 in (1.473 mm) |
| Weight | 3.340 lb (1.560 kg) |
| Turning diameter | 163 in (4.140 mm) |
| Bodenfreiheit | Adjustable |
| Lifting Capacity | 1.170 lb (531 kg) |
| Bucket Capacity | 0.175 yd3 (0.133 m3) |
| Max. speed (flat surface) | 66 ft/min (20.1 m/min) |
| Max. speed (flat surface) HS | 153 ft/min (47 m/min) |
| Gearbox Ratio | Either 75:1 (x2) or HS (High Speed) 50:1 (x2) |
| Motor Power | Either 2 PS (x2) or HS (High Speed) 3,25 PS (x2) |
| Hydraulic Motor Power (Bucket) | 2 PS (x1) |
Power Features
| Track-O Minidozer M-48 | |
|---|---|
| Batteries Amperage/Voltage | 8 x 435 Amp at 6 Volts |
| Charger | 1 x AC-DC external |
| Battery Pack Amperage | 435 Amp |
| Operating voltage | 24 VDC |
| Continuous Run-time | 10 hours approx. (no load, flat surface) |
| Battery Recharging Time | 14 hours approx. |

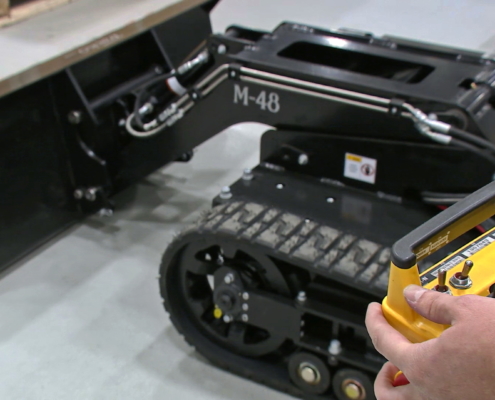

| Control | Standard wired, optional wireless |

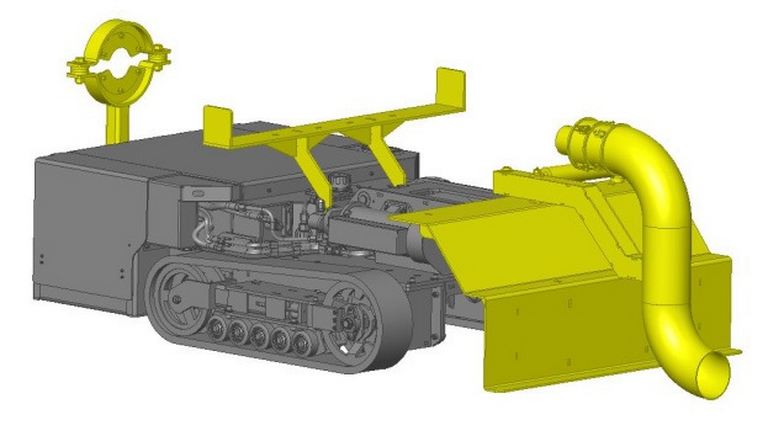

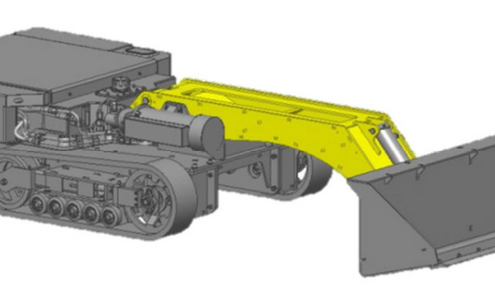

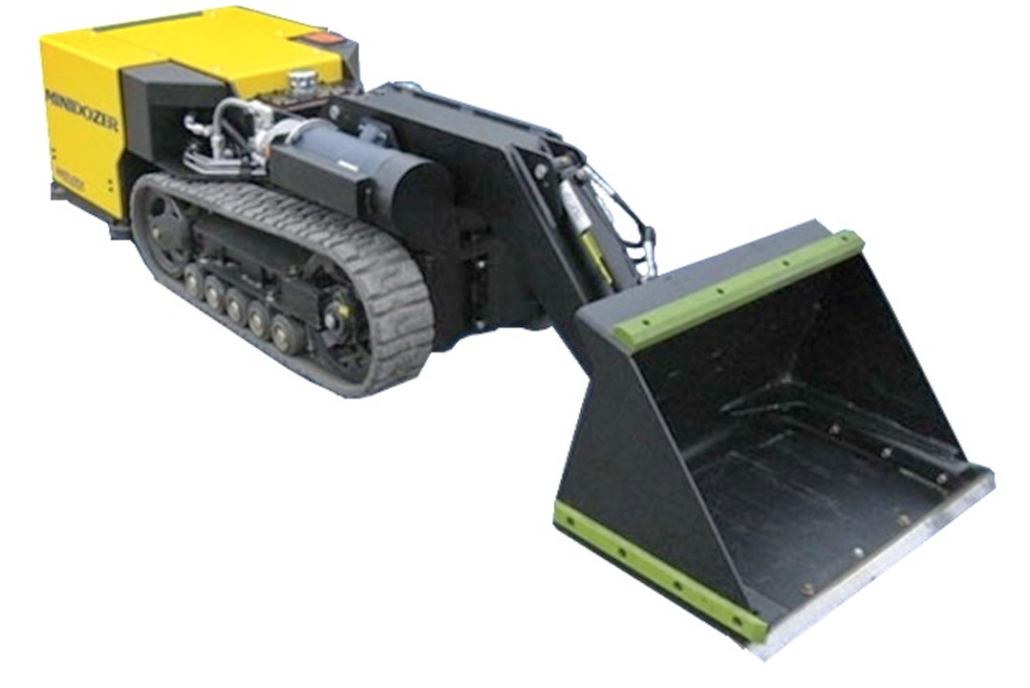

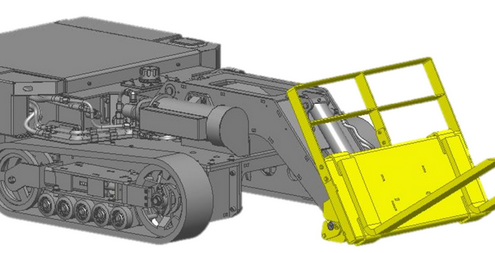

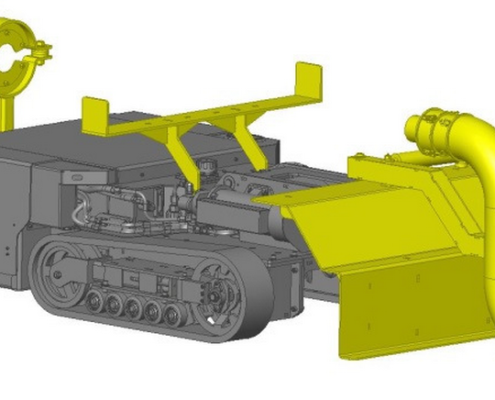

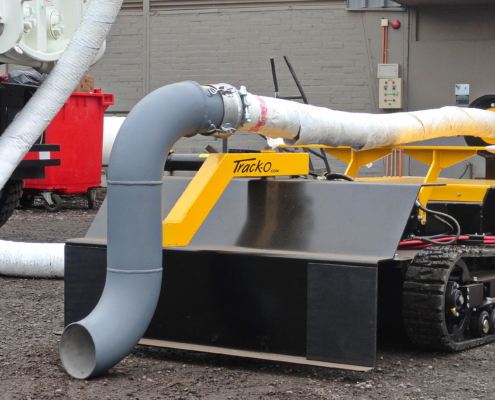

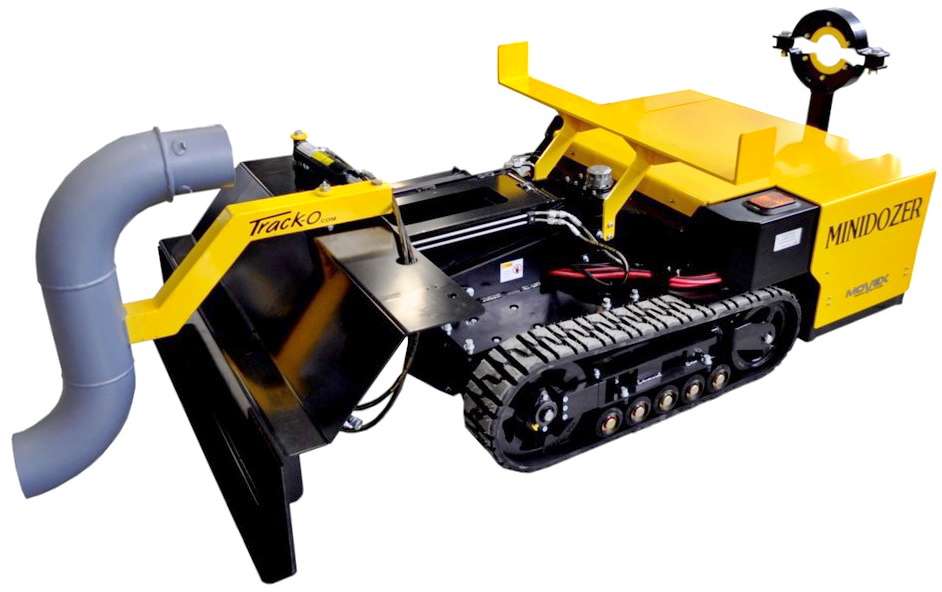

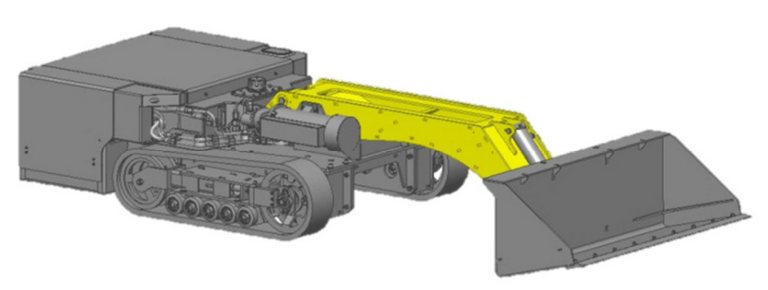

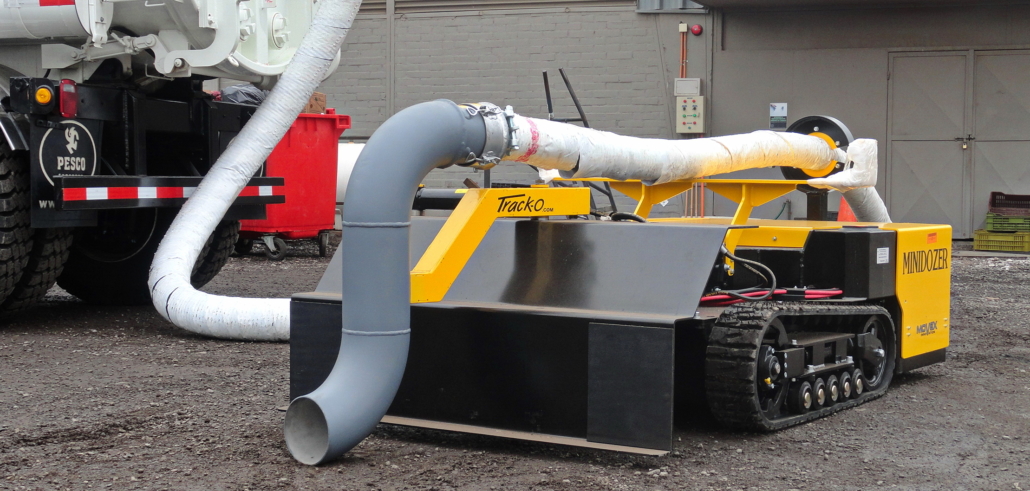

Options for the Track-O Minidozer M-48
Technical Specifications of the options as PDF
Service & Consulting
We attach great importance to excellent service and technical support for your products. If you have any questions or a desired training course, just contact us!
