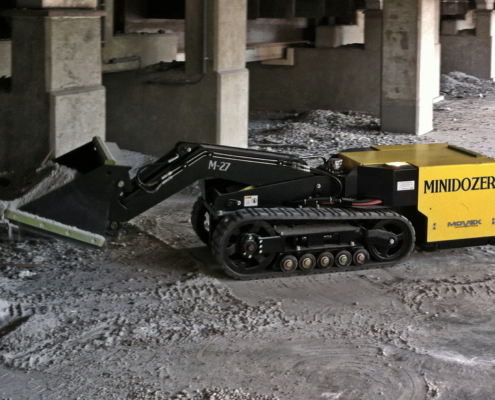

Track-O Minidozer M-27
Remote Electric vehicle for confined spaces
A safe, heavy duty, low maintenance solution for places where a standard vehicle won’t go.
Based on Movex exclusive technology, the Minidozer model, has been specifically designed to operate in confined spaces. It provides a safe and simple solution for picking up and transporting materials to hard to reach places.
With an external charger and a runtime of nearly 8 hours. The Minidozer is equipped with interchangeable batteries that enable it to work continuously over several work shifts.

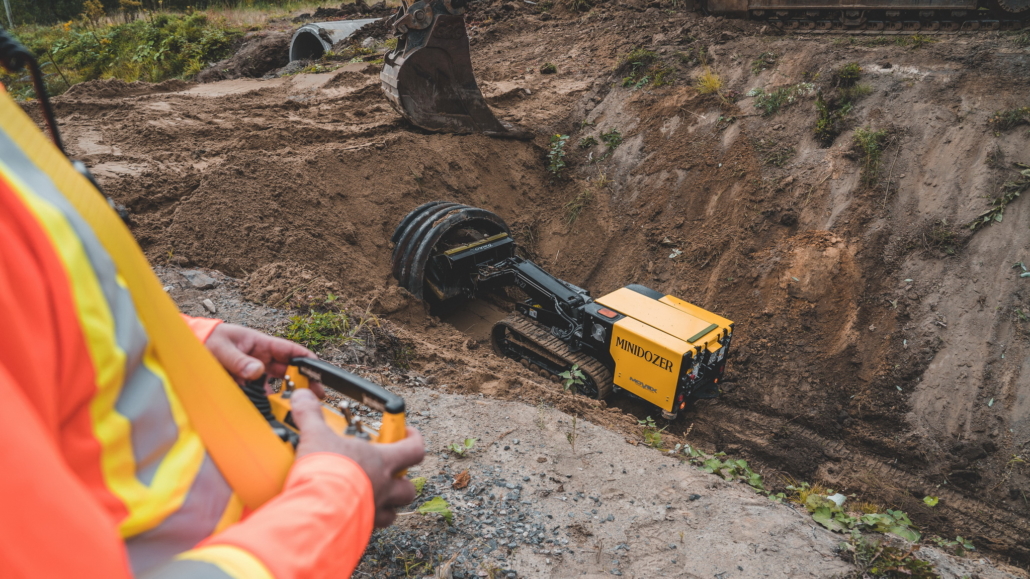

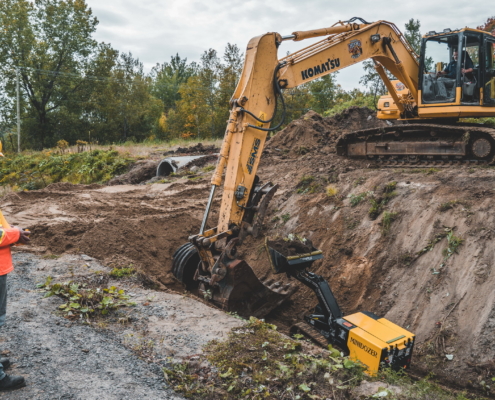

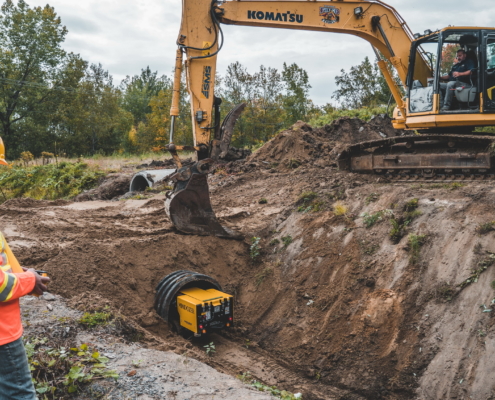

The Track-O Minidozer M-27 is ideal for clean-up operations for highways underground tunnels, box culverts and drainage systems, pumping stations and other irrigation projects and much more…
If you need a higher final speed of your track system the Minidozer M-27 HS (High Speed) version is the right one for you.

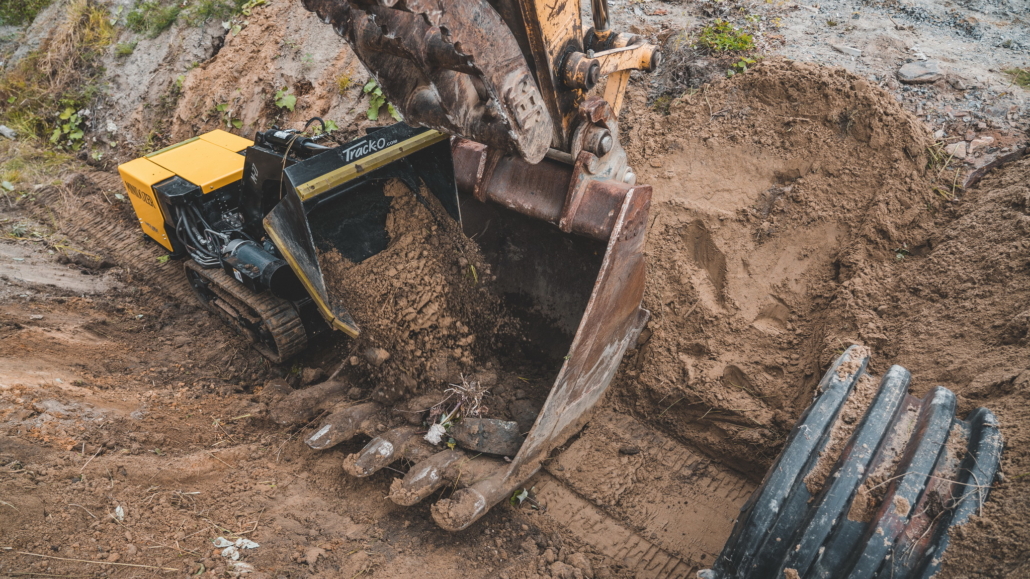

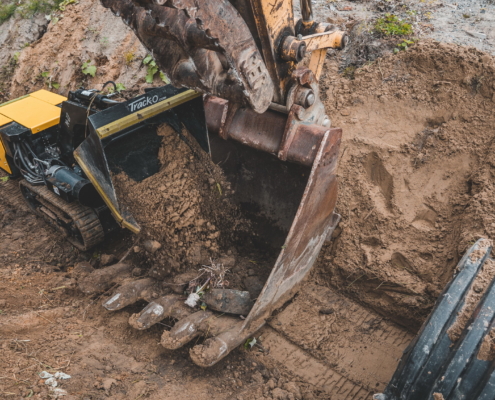

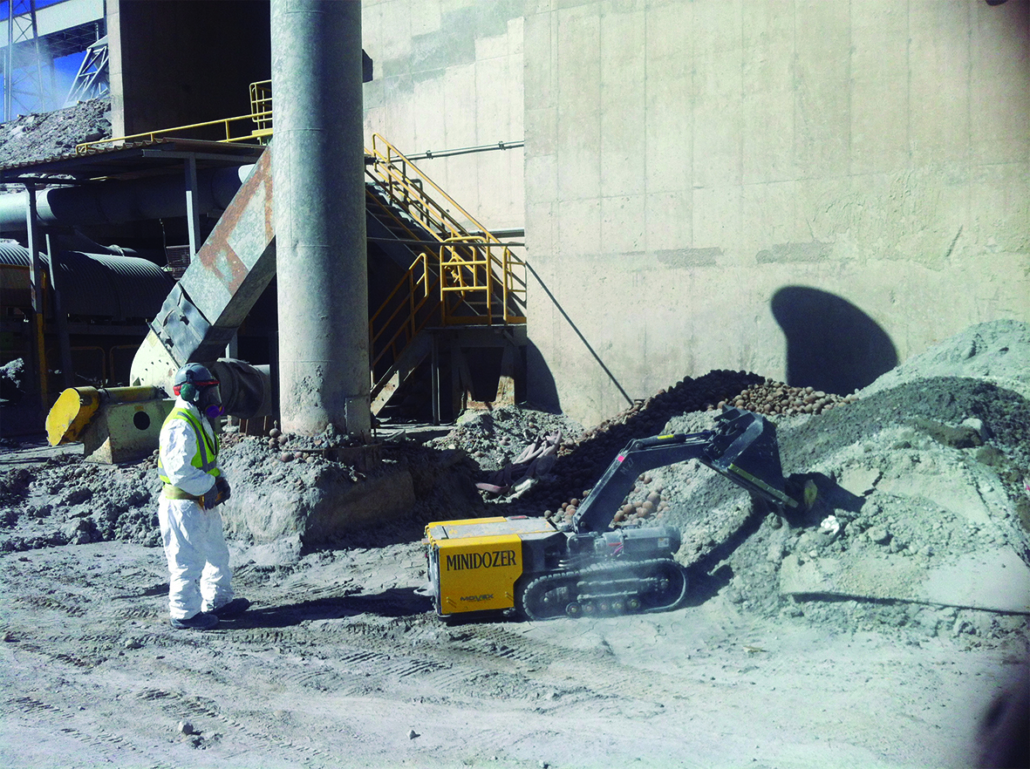

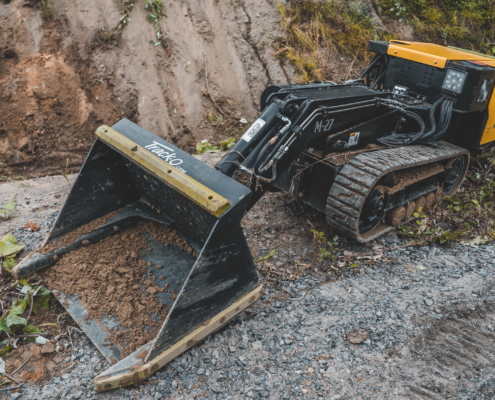

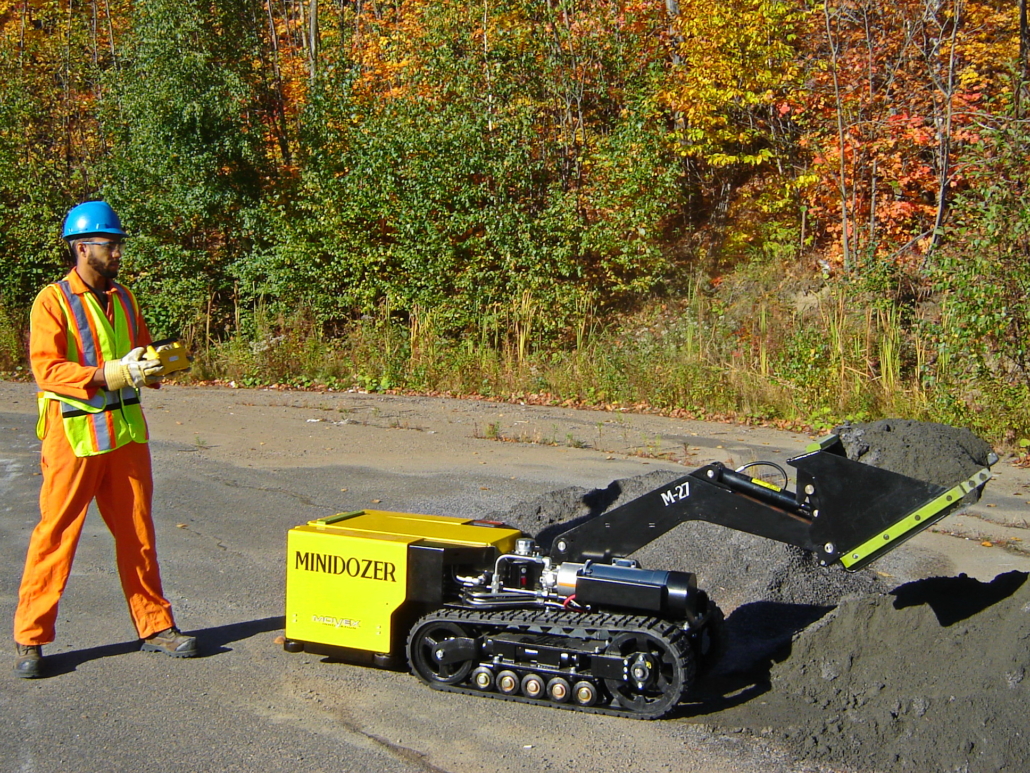

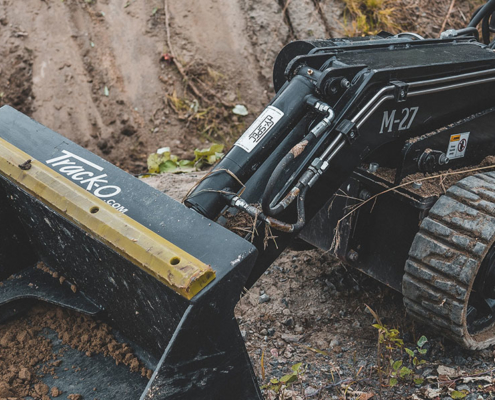

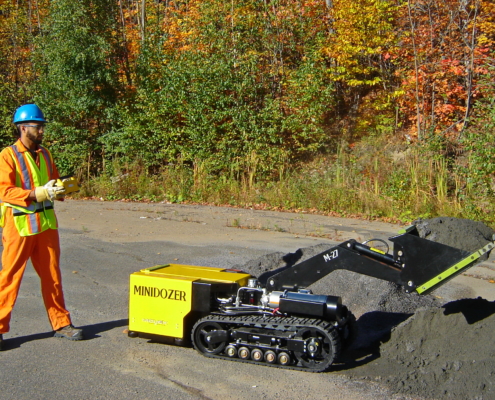

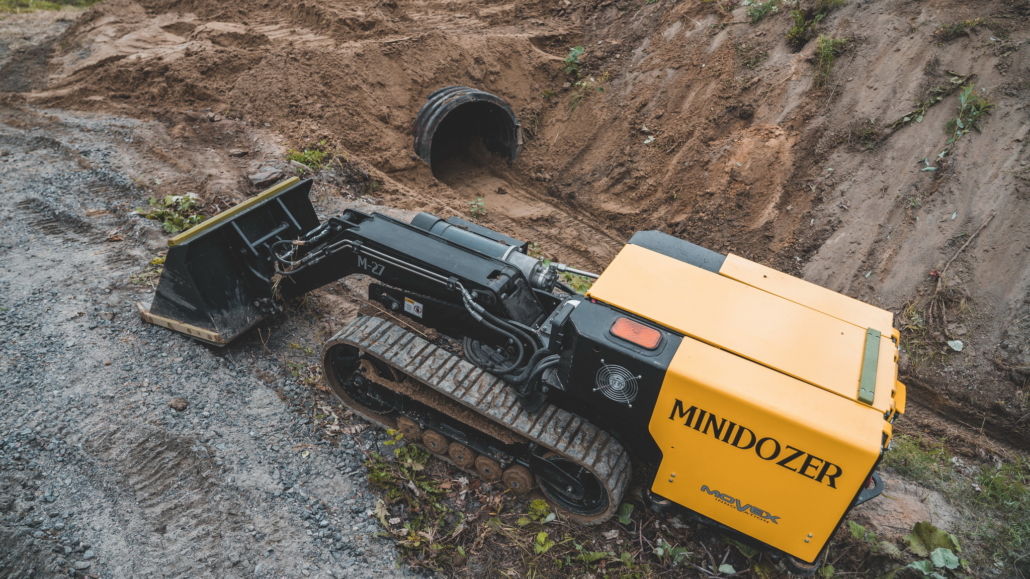

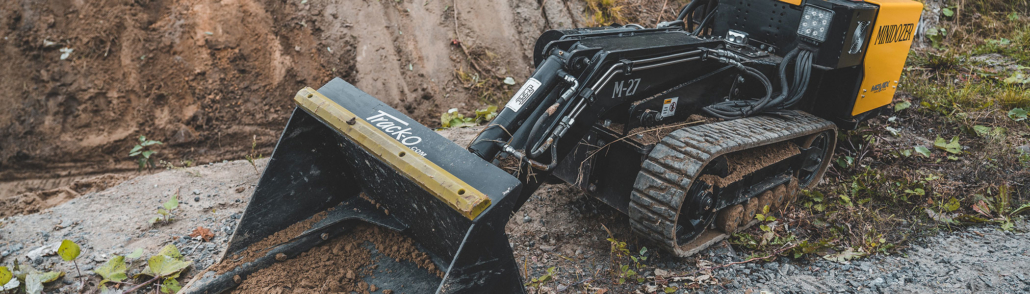

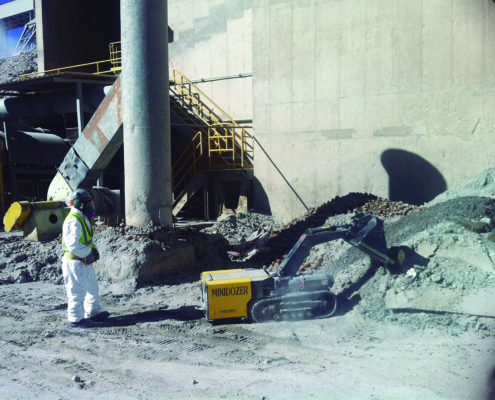

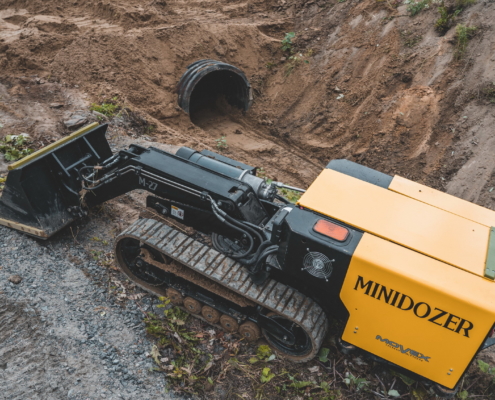

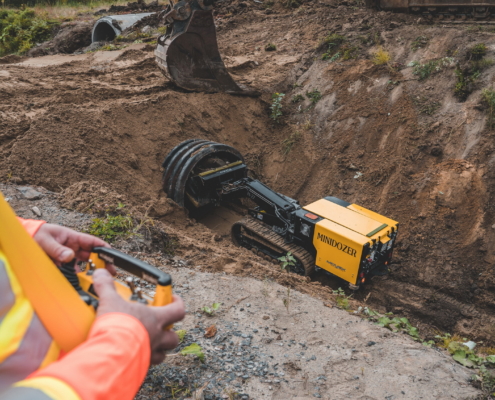

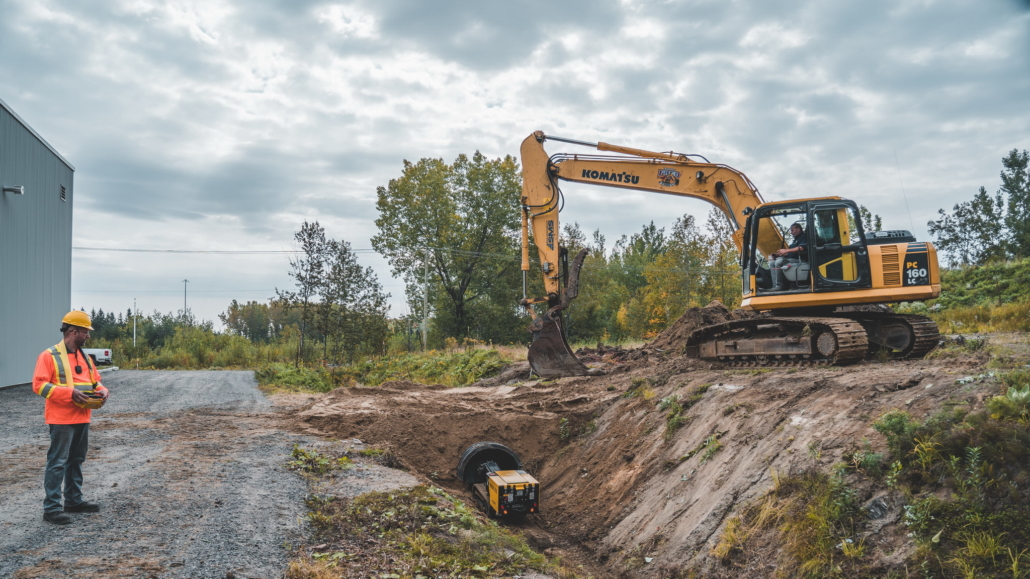

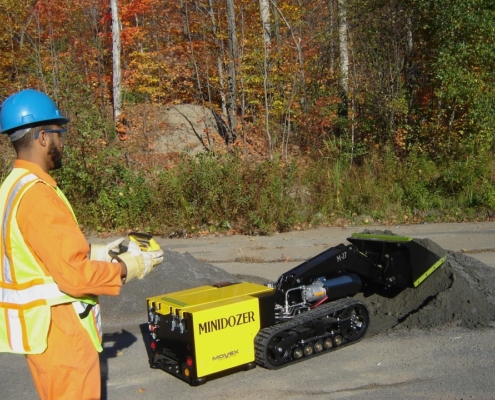

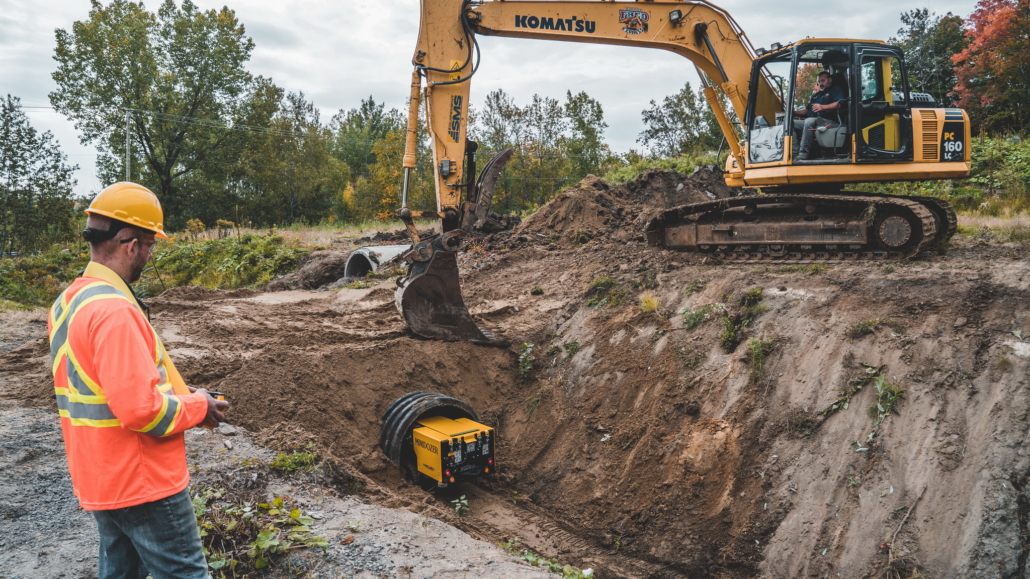

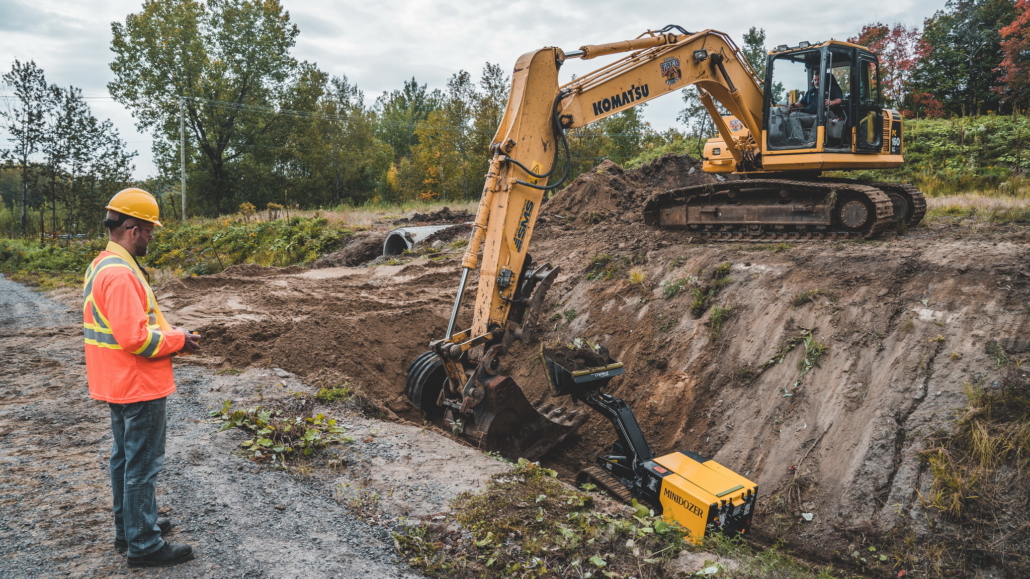

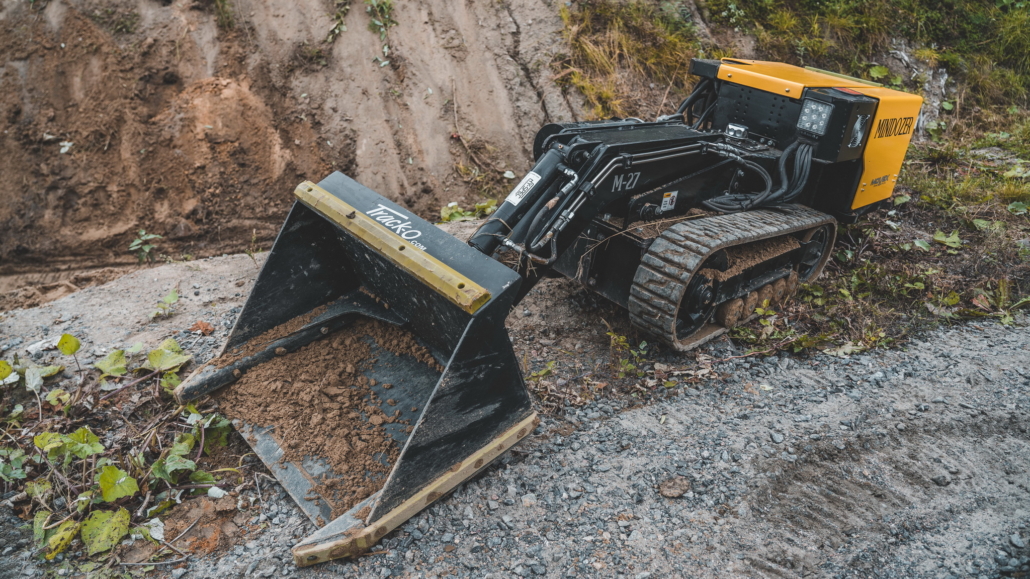

Convince yourself of our Track-O Minidozer M-27 – More Pictures
Advantages of the Track-O Minidozer M-27
- Designed for very confined spaces
- Minimum heat & noise, no gas exhaust & oil spill
- Ease of use
- Low maintenance & low TCO (Total Cost of Ownership)
- Continuous run-time of approx. 8 hours
- Adjustable ground clearance
Technical Specifications
| Track-O Minidozer M-27 | |
|---|---|
| Frame | Steel |
| Cabinet | Aluminium |
| Length | 112 3/4 in (2.863 mm) |
| Width | 27 3/4 in (705 mm) |
| Height | 22 5/16 in (567 mm) |
| Height (bucket to maximum) | 62 1/2 in / 1.590 mm |
| Weight | 2.200 lb (998 kg) |
| Turning diameter | 163 in (4.140 mm) |
| Bodenfreiheit | Adjustable |
| Load bearing capacity | 241 kg |
| Bucket Capacity | 0.096 yd3 (0.073 m3) |
| Max. speed (flat surface) | 66 ft/min (20.1 m/min) |
| Max. speed (flat surface) HS | 153 ft/min (47 m/min) |
| Gearbox Ratio | Either 75:1 (x2) or HS (High Speed) 50:1 (x2) |
| Motor Power | Either 2 PS (x2) or HS (High Speed) 3,25 PS (x2) |
| Hydraulic Motor Power (Bucket) | 2 PS (x1) |
Power Features
| Track-O Minidozer M-27 | |
|---|---|
| Batteries Amperage/Voltage | 4 x 435 Amp at 6 Volts |
| Charger | 1 x AC-DC external |
| Battery Pack Amperage | 435 Amp |
| Operating voltage | 24 VDC |
| Continuous Run-time | 8 hours approx. (no load, flat surface) |
| Battery Recharging Time | 12 hours approx. |
| Control | Standard wired, optional wireless |

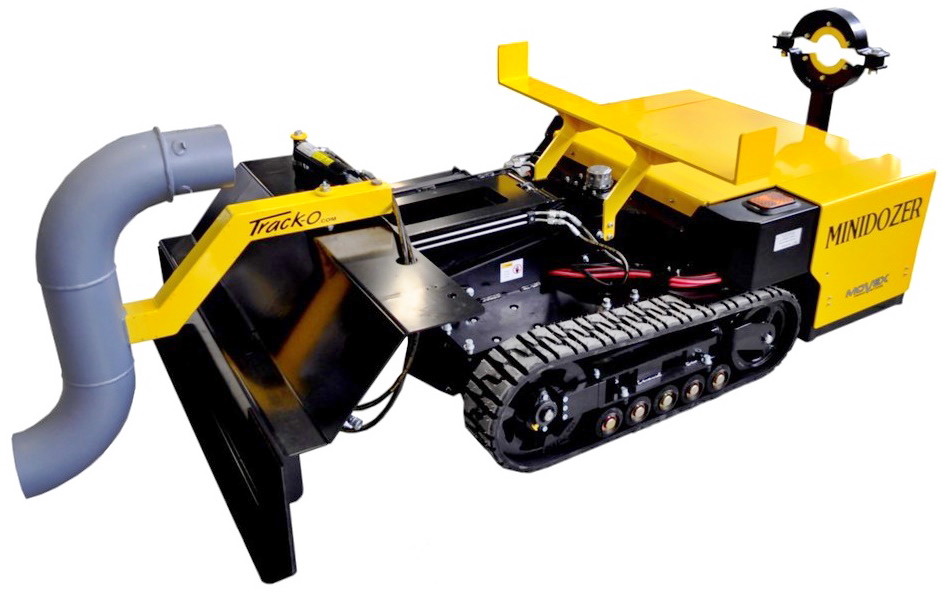

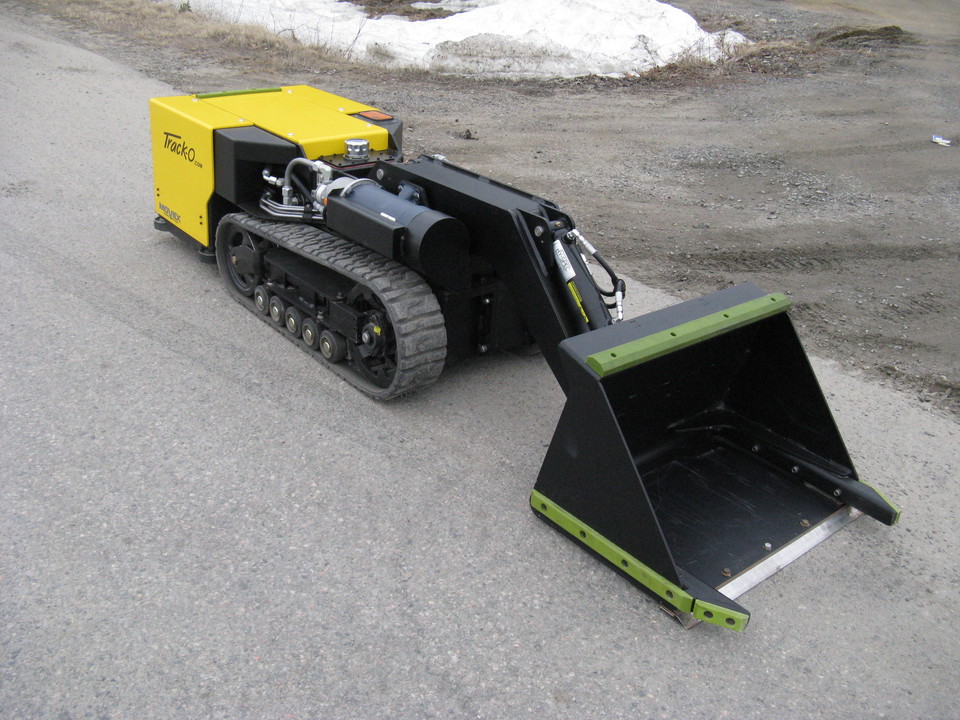

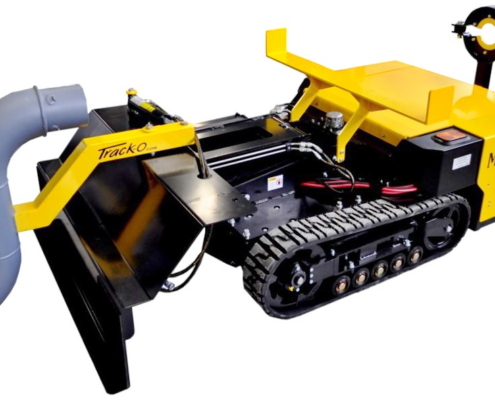

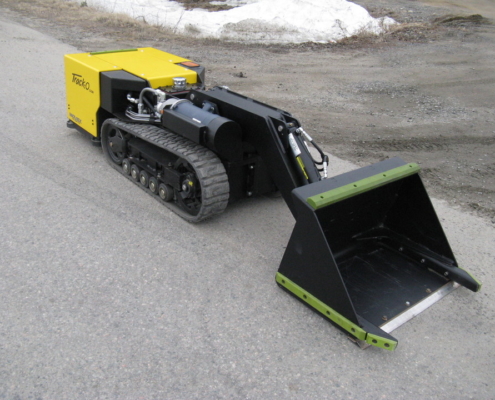

Options for the Track-O Minidozer M-27
Technical Specifications of the options as PDF
